OKY10115100A06ARFID Card Reader

Operational Manual Rev: 01 Date: 2019-09-23 1 Operation Manual RFID Reader “IDE-ZM-HF-U” Covered Variants: M/N: 10115-100 M/N: 10115-x 1 y 1 z 1 REVISION 1.0, 2021-07-14 BALTECH AG Lilienthalstraße 27 85399 Hallbergmoos Germany Phone: +49 (811) 99 88 1- 0 FAX: +49 (811) 99 88 1- 11 e-mail: [email protected] http://www.baltech.de/ 1 “x“, “y” and “z” shall represent any alphanumerical number or can be left blank. Operational Manual Rev: 01 Date: 2019-09-23 2 The “10115-100” Reader/Writer is a desktop contactless smart card USB reader and writer with 13.56 MHz card technology. It supports ISO Standards 14443 A & B and 15693 Transponders. Based on BALTECH’s core technology it provides support of the latest smartcard technologies, encryption and security features. Mounting and Connection The reader generates magnetic field at 13.56MHz, which could be influenced by any electrically conductive material close to the device. To ensure good performances and functionalities in terms of read range and reliability a minimum distance of 10cm from such materials is required. Mounting the unit directly to metal would result in a severe reduction of read range down to zero functionality. Care should be taken when testing the device after mounting at a problematic environment: Read ranges and performance vary from card to card and very much from card to tag or key-fob. When mounting multiple readers, the distance between readers should be minimum 0.5 m in order to avoid degradation of performance due to interference. To connect the device to a host system (a printer or a PC), please make sure that the system provides an USB socket intended for connection of the reader. Operation Whenever the device is connected to a proper power supply, it will switch on the internal antenna and periodically scan for a card. Once a card has been detected, the card number is read, the data converted and sent to the host system through the USB Interface. To enable the device to read cards, tags and key-fobs successfully, they should be placed centred above the reader. Operational Manual Rev: 01 Date: 2019-09-23 3 Technical Specification Operating Frequency (Model dependent) • 13.56 MHz Interfaces (Model dependent) • USB: Full speed 2.0 Supported Contactless Cards ISO 14443A, ISO 14443B, ISO 15693, Sony Felica Supported encryption Mifare classic, AES, DES Human Interfaced RGB LED & Buzzer Supply Power [VDC] USB bus powered: 5 (±5%) Power Consumption [W] Up to 1.5 / 1 typ. Operating Temperature [°C] -20 to +65 Operating Humidity [%] 20 to 80 relative humidity; non-condensing Non-Operating Humidity [%] 10 to 90 relative humidity; non-condensing Dimension 57mm x 35mm x 9mm Weight 11g Pinning The reader supports two different host interfaces. USB Interface Molex Header (4 pins) Molex Part Number: 53261-0471 Pin# Name Type Description 1 PWR Power 5V Power Supply 2 D- Data USB-Data inverted 3 D+ Data USB-Data 4 GND Power Signal and Power Ground Operational Manual Rev: 01 Date: 2019-09-23 4 General regulatory requirements for 10115-100 FCC ID OKY10115100A06A IC: 7657A-10115100 NOTICE: This device complies with Part 15 of the FCC Rules and with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Changes or modifications made to this equipment not expressly approved by BALTECH AG may void the FCC authorization to operate this equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help.

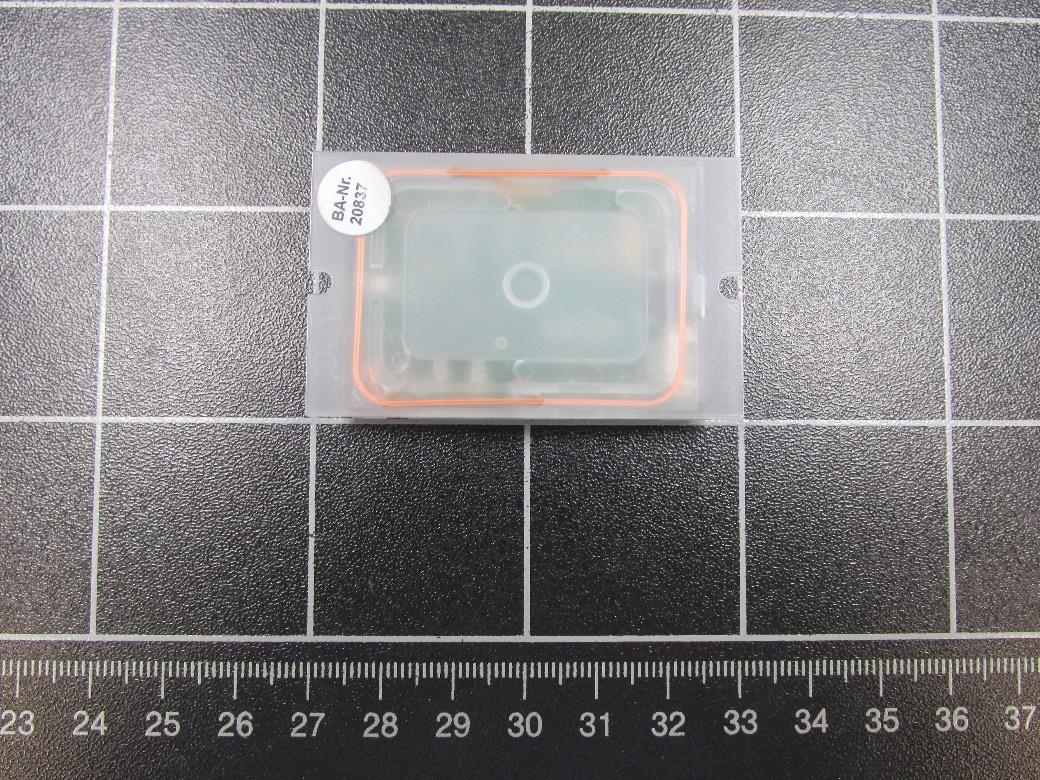

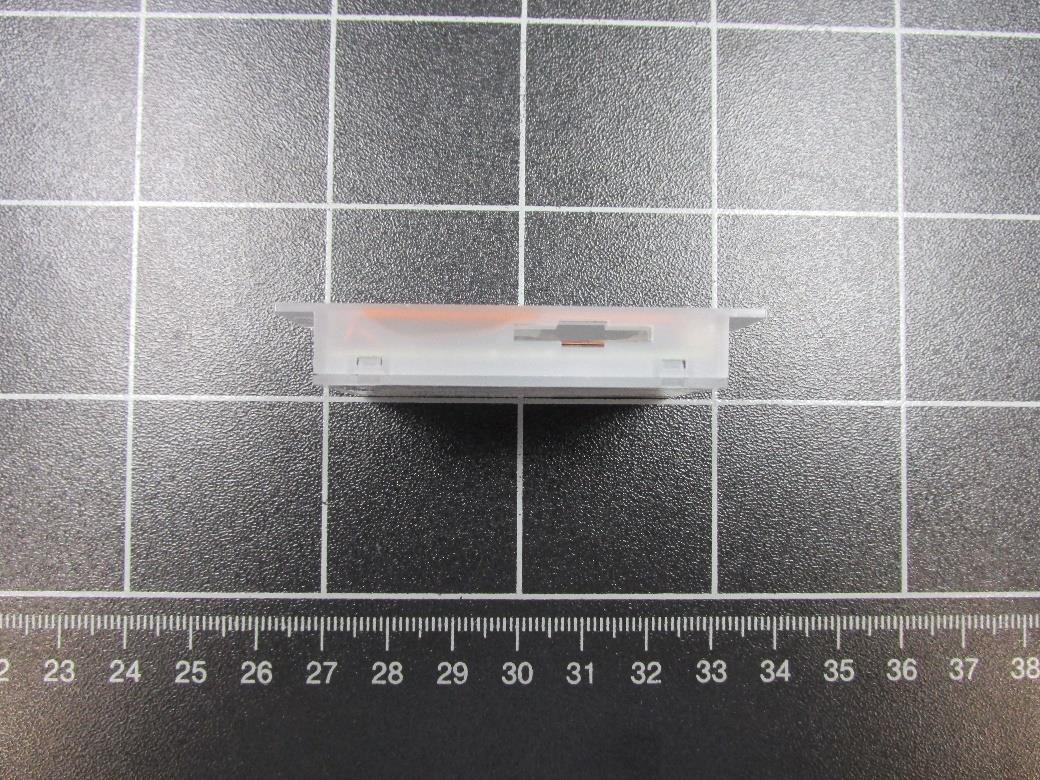

Document Number: TR-69583-20222-01 | Issue: 01 | Annex B COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 1 of 3 External Photos Figure 1 Figure 2 Document Number: TR-69583-20222-01 | Issue: 01 | Annex B COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 2 of 3 Figure 3 Figure 4 Document Number: TR-69583-20222-01 | Issue: 01 | Annex B COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 3 of 3 Figure 5 Figure 6

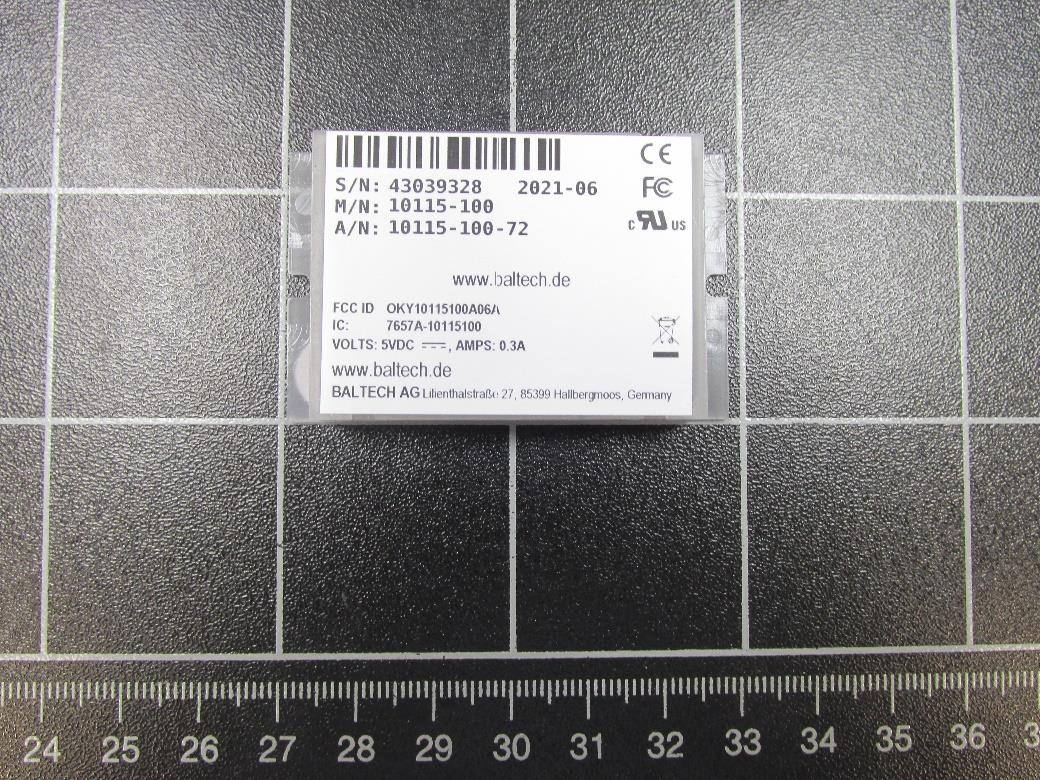

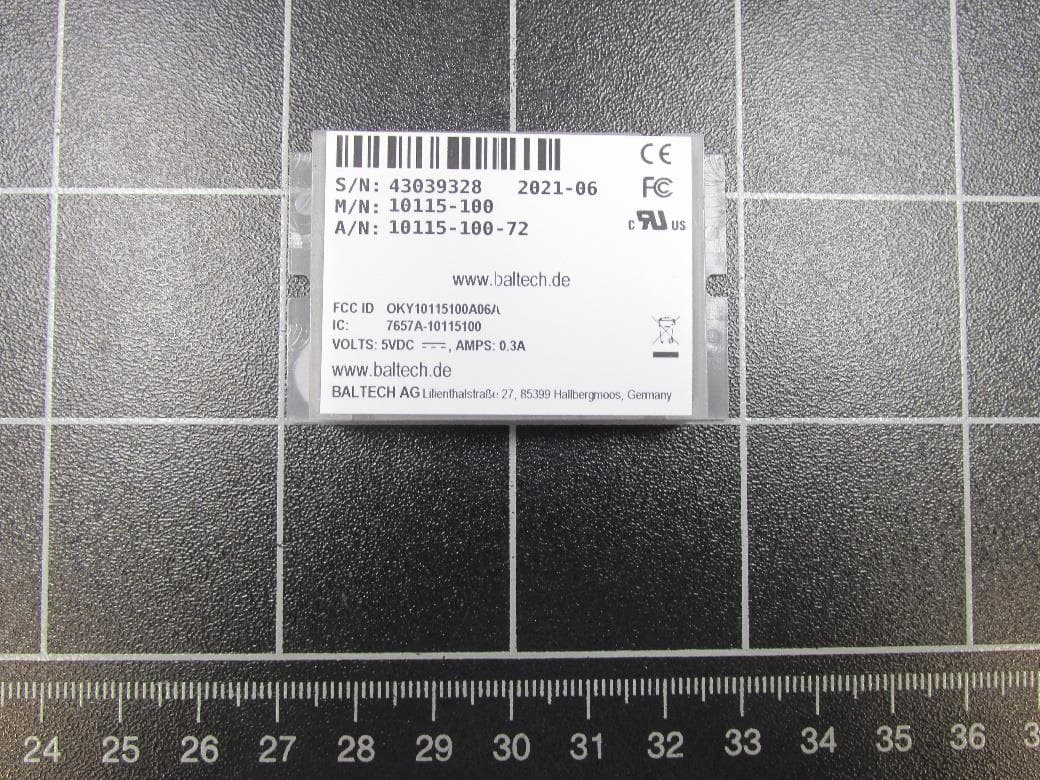

Label Information Product name: IDE-ZM-HF-U FCC ID: OKY10115100A06A IC ID: 7657A-10115100 Product Label M/N: 10115-100

Document Number: TR-69583-20222-01 | Issue: 01 | Annex C COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 1 of 1 Internal Photos Figure 1 Figure 2

Trade Register Munich HRB 85742 VAT ID No. DE129484267 Information pursuant to Section 2(1) DL-InfoV (Germany) at www.tuev-sued.com/imprint Managing Directors: Walter Reithmaier (Sprecher / CEO) Dr. Jens Butenandt Patrick van Welij Phone: +49 (0) 9421 55 22-0 Fax: +49 (0) 9421 55 22-99 www.tuev-sued.de TÜV SÜD Product Service GmbH Äußere Frühlingstraße 45 94315 Straubing Germany TÜV SÜD Product Service RESPONSIBLE FOR NAME DATE SIGNATURE Project Management Michael Ingerl 2021-07-12 SIGN-ID 531013 Authorized Signatory Markus Biberger 2021-07-12 SIGN-ID 531107 Signatures in this approval box have checked this document in line with the requirements of TÜV SÜD Product Service document control rules. ENGINEERING STATEMENT The measurements shown in this report were made in accordance with the procedures described on test pages. All reported testing was carried out on a sample equipment to demonstrate limited compliance with FCC 47 CFR Part 15C and ISED Canada RSS-210 and ISED Canada RSS-GEN. The sample tested was found to comply with the requirements defined in the applied rules. RESPONSIBLE FOR NAME DATE SIGNATURE Testing Michael Ingerl 2021-07-12 SIGN-ID 531014 Laboratory Accreditation DAkkS Reg. No. D-PL-11321-11-02 Laboratory recognition Registration No. BNetzA-CAB-16/21-15 ISED Canada test site registration 3050A-2 EXECUTIVE SUMMARY A sample of this product was tested and found to be compliant with FCC 47 CFR Part 15C, ISED Canada RSS-210 and ISED Canada RSS-GEN, Issue 10 (12-2019) and Issue 05 (03-2019). Report on the FCC and IC Testing of the BALTECH AG Model: 10115-100 In accordance with FCC 47 CFR Part 15C and ISED Canada RSS-210 and ISED Canada RSS- GEN Prepared for: BALTECH AG Lilienthalstr. 27 85399 Hallbergmoos - Germany FCC ID: OKY10115100A06A IC: 7657A-10115100 COMMERCIAL-IN-CONFIDENCE Date: 2021-07-12 Document Number: TR-69583-20222-01 | Issue: 01 Document Number: TR-69583-20222-01 | Issue: 01 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 2 of 29 Contents 1 Report Summary .................................................................................................................... 3 1.1 Report Modification Record ...................................................................................................... 3 1.2 Introduction .............................................................................................................................. 3 1.3 Brief Summary of Results ......................................................................................................... 4 1.4 Product Information .................................................................................................................. 5 1.5 Deviations from the Standard ................................................................................................... 5 1.6 EUT Modification Record.......................................................................................................... 6 1.7 Test Location ........................................................................................................................... 6 2 Test Details ............................................................................................................................. 7 2.1 Field Strength of any Emission ................................................................................................. 7 2.2 Frequency Tolerance Under Temperature Variations .............................................................. 12 2.3 20 dB Bandwidth .................................................................................................................... 14 2.4 Restricted Band Edges ........................................................................................................... 17 2.5 AC Power Line Conducted Emissions .................................................................................... 19 2.6 Exposure of Humans to RF Fields and SAR exclusion threshold ............................................ 23 3 Test Equipment Information ................................................................................................ 25 3.1 General Test Equipment Used ............................................................................................... 25 4 Measurement Uncertainty .................................................................................................... 26 Annexes: TR-69583-20222-01 Ed.1 Annex A TR-69583-20222-01 Ed.1 Annex B TR-69583-20222-01 Ed.1 Annex C Document Number: TR-69583-20222-01 | Issue: 01 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 3 of 29 1 Report Summary 1.1 Report Modification Record Alterations and additions to this report will be issued to the holders of each copy in the form of a complete document. Issue Description of Change Date of Issue 1 First Issue 2021-07-12 Table 1 1.2 Introduction Applicant BALTECH AG Manufacturer BALTECH AG Model Number(s) 10115-100 Serial Number(s) 43039328 Hardware Version(s) --- Software Version(s) --- Number of Samples Tested 1 Test Specification/Issue/Date FCC 47 CFR Part 15C, ISED Canada RSS-210 and ISED Canada RSS-GEN, Issue 10 (12-2019) and Issue 05 (03- 2019), FCC rule Part 2.1093, KDB 447498 D01, RSS-102 Issue 5 Test Plan/Issue/Date --- Order Number 5379331 Date of Receipt of EUT 2021-07-06 Start of Test 2021-07-09 Finish of Test 2021-07-12 Name of Engineer(s) Michael Ingerl Related Document(s) ANSI C63.10 (2013) ANSI C63.4 (2014) Document Number: TR-69583-20222-01 | Issue: 01 COMMERCIAL-IN-CONFIDENCE COMMERCIAL-IN-CONFIDENCE Page 4 of 29 1.3 Brief Summary of Results A brief summary of the tests carried out in accordance with FCC 47 CFR Part 15C and ISED Canada RSS-210, ISED Canada RSS-GEN, FCC rule Part 2.1093, KDB 447498 D01 and RSS-102 Issue 5 is shown below. Section Specification Clause Test Description Result Comments/Base Standard Configuration and Mode: 5V DC Powered – Continuous transmitting 2.1 15.225 (a)(b)(c)(d), B.1 to B.9, 6.…
