OKY12117601A01ARFID Card Reader

Operational Manual Rev: 01 Date: 2023-01-09 1 Operation Manual RFID Reader Covered Variants: M/N: 12117-601 REVISION 1.0, 2023-01-09 BALTECH AG Lilienthalstraße 27 85399 Hallbergmoos Germany Phone: +49 (811) 99 88 1- 0 FAX: +49 (811) 99 88 1- 11 e-mail: [email protected] http://www.baltech.de/ Operational Manual Rev: 01 Date: 2023-01-09 2 The “12117-601” Reader/Writer is a desktop contactless smart card USB/RS232 & Bluetooth wireless Technology Smart card reader and writer combining the high- frequency card technologies. It supports Mifare, ISO 14443A/B and ISO 15693 standards. It has also RS232 interface. Based on BALTECH’s core technology it provides support of the latest smartcard technologies, encryption and security features. Mounting and Connection The reader generates magnetic field at 13.56MHz and 2.4 GHz which could be influenced by any electrically conductive material close to the device. To ensure good performances and functionalities in terms of read range and reliability a minimum distance of 10cm from such materials is required. Mounting the unit directly to metal would result in a severe reduction of read range down to zero functionality. Care should be taken when testing the device after mounting at a problematic environment: Read ranges and performance vary from card to card and very much from card to tag or key-fob. When mounting multiple readers, the distance between readers should be minimum 0.5 m in order to avoid degradation of performance due to interference. To connect the device to a host system (a printer or a PC), please make sure that the system provides an USB socket intended for connection of the reader. Operation Whenever the device is connected to a proper power supply, it will switch on the internal antenna and periodically scan for a card. Once a card has been detected, the card number is read, the data converted and sent to the host system through the USB or RS232 Interface. To enable the device to read cards, tags and key-fobs successfully, they should be placed centred above the reader. The device is used for identification, access control. Operational Manual Rev: 01 Date: 2023-01-09 3 Technical Features Operating Frequency • 13.56MHz • 2402MHz-2480MHz Data transmission modulation reader to card: ASK Data transmission modulation card to reader: AM/Load modulation Interfaces USB: Full speed 2.0, RS 232, Bluetooth 5.2 Contactless Card Supported standards: LEGIC, ISO14443 A & B, ISO15693, Communication speed ISO14443A/B: Baud rate up to 424kBaud Operating Range • ISO14443A/B: up to 5cm • ISO15693: up to 8cm • Bluetooth wireless technology: up to 10m Human Red, Green, Blue LEDs & Buzzer Supply Power [V DC ] +5V (±5%) Power Consumption [W] Up to 1.5 / 1 typ. Operating Temperature [°C] -20 to +65 Operating Humidity [%] 20 to 80 relative humidity; non-condensing Non-Operating Humidity [%] 10 to 90 relative humidity; non-condensing Antennas • 2.4GHz internal Chip antenna • 13.56MHz integrates PCB loop antenna Duty cycle for normal use operation [ 6 minutes time window] Use 1 time within 6 minutes. An interaction with the user is 10 seconds in the vicinity to the device. • Duty Cycle = (1 x 10s )/ 6 min = 2,78 % Operational Manual Rev: 01 Date: 2023-01-09 4 Pinning The reader supports USB host interface. USB Interface Molex Header (4 pins) Molex Part Number: 53261-0471 Pin# Name Type Description 1 PWR Power 5V Power Supply 2 D- Data USB-Data inverted 3 D+ Data USB-Data 4 GND Power Signal and Power Ground RS232 Interface Molex Header (5 pins) Molex Part Number: 53261-0571 Pin# Name Type Description 1 PWR Power 5V Power Supply 2 GND Power Signal and Power Ground 3 MULTI_RX Data RX_UART 4 MULTI_TX Data TX_UART 5 MULTI_I/O GPIO Input, output pin. Operational Manual Rev: 01 Date: 2023-01-09 5 General regulatory requirements for 12117-601 FCC ID: OKY12117601A01A IC : 7657A-12117601 Contains FCC ID: QOQ-BGM220S Contains IC: 5123A-BGM220S NOTICE: This device complies with Part 15 of the FCC Rules and with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Changes or modifications made to this equipment not expressly approved by BALTECH AG may void the FCC authorization to operate this equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help.

LONG-TERM CONFIDENTIALITY REQUEST for Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 TO WHOM IT MAY cONCERN Pursuant to Paragraphs 0.457 and 0.459 of the Commission's Rules (47 C.F.R.) and Section $552(b(4) of the Freedom of Information Act, we request Long-Term Confidentiality for the following product: Check your GC here Grantee Code Equipment Product Code Cick Grantee Search. FCC ID: OKY 12117601A01A For the product stated above, we request Long-Term Confidentiality for exhibits which contain Block Diagram, Operational Description, Parts List/Tune Up Info, Schematics, SDR Software/Security Info. The above exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. This information will not be publicly available. If you have any questions, please feel free to contact us at the address shown below. Sincerely, mpany BALTECH AG Name: +49 811 99881-21 Phone: Lilienthalstrasse 27 Fax: +49 811 99881-11 Company 85399 Hallbergmoos E-mail: [email protected] Address: Germany Contact Iftekhar Alam Name: ek Au Signature 09.01.2023 Signature: Date: Document Version 1. 2020-10-30

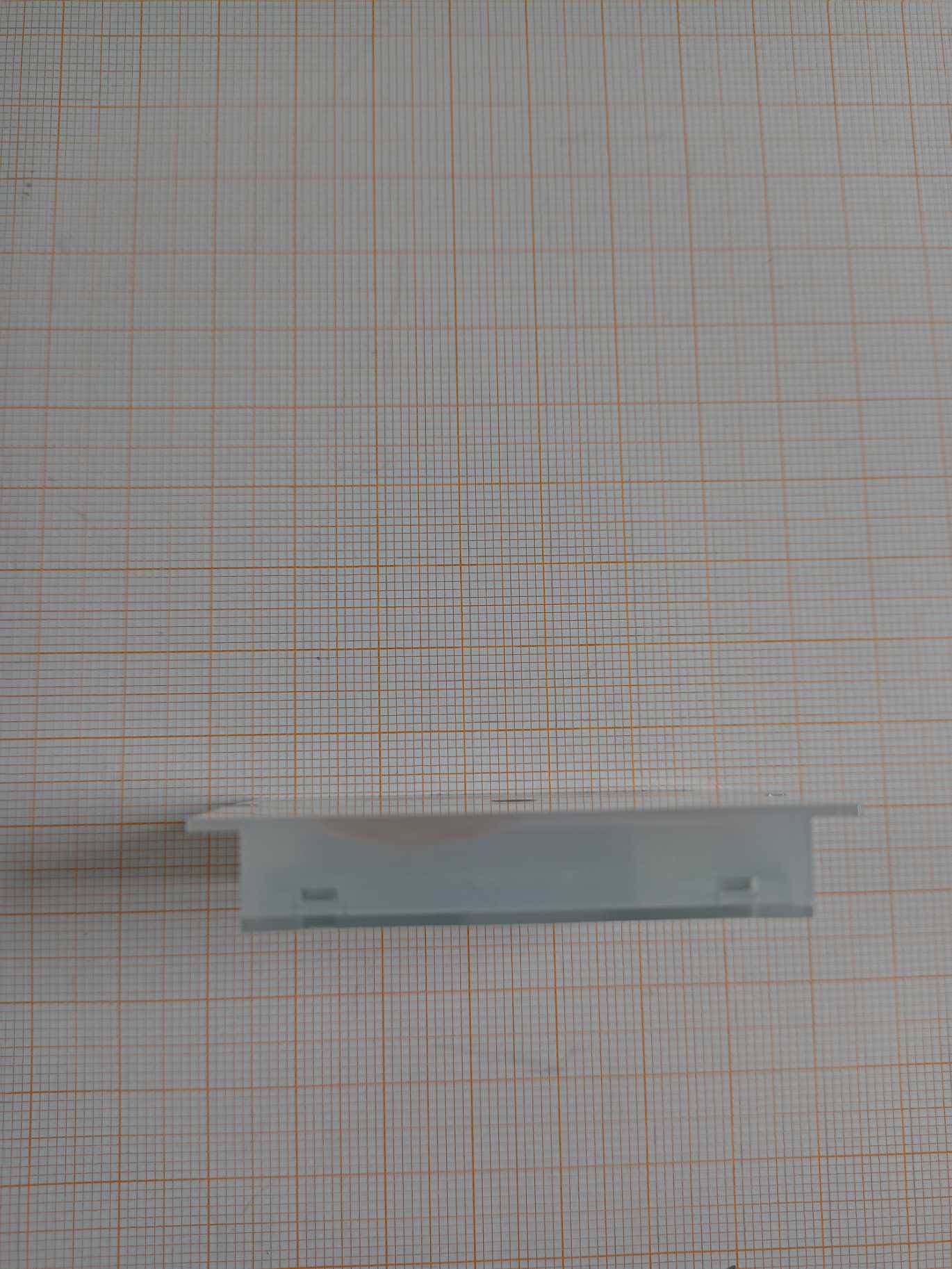

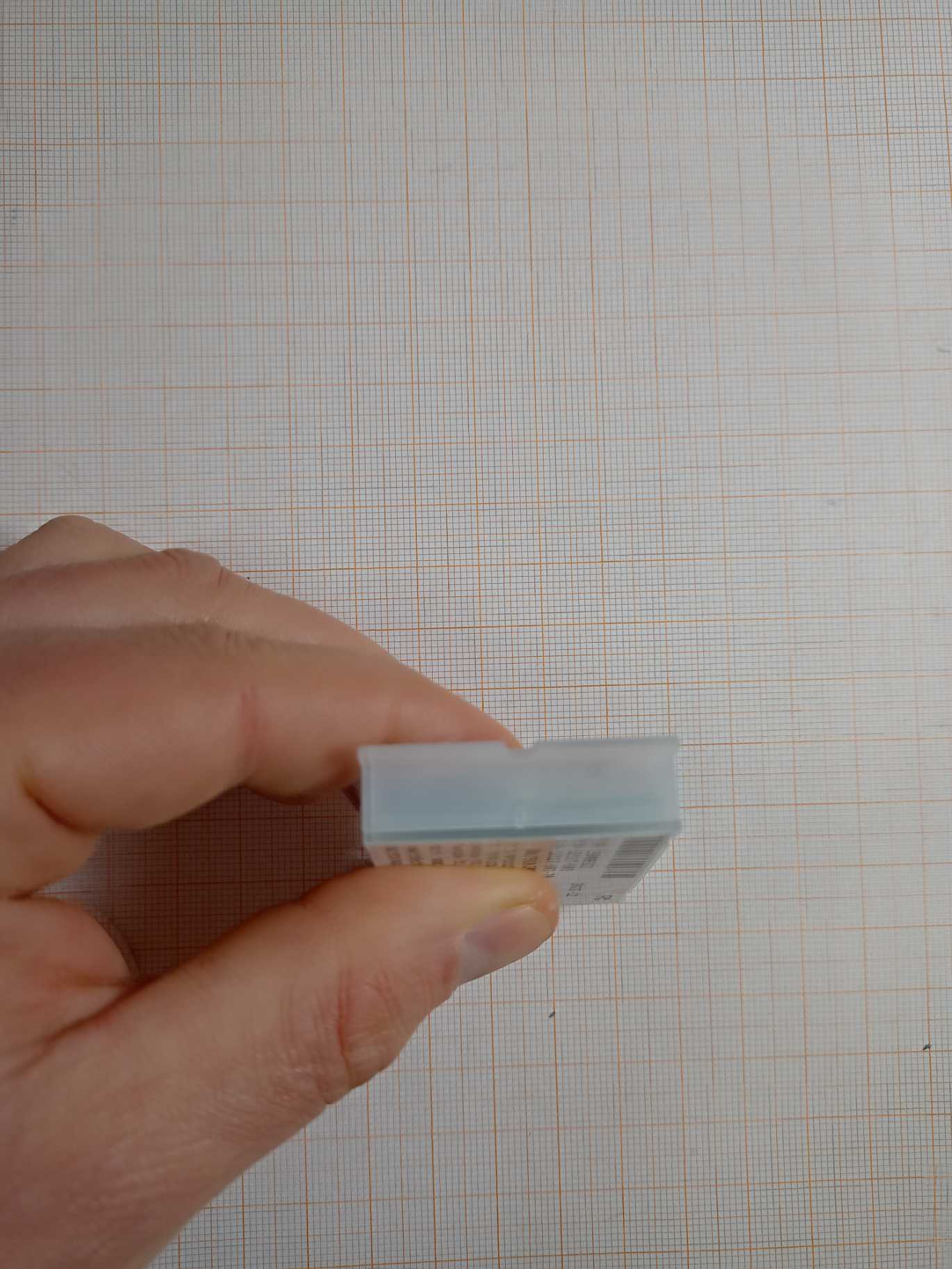

Annex A 1-5443/22-01-01_AnnexA External photos of the Equipment Under Test This addendum is electronically signed and valid without handwritten signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Document authorized: Tobias Wittenmeier Testing Manager Radio Communications & EMC CTC advanced GmbHUntertuerkheimer Str. 6-10 66117 Saarbruecken / Germany Phone: +49 681 5 98 - 0 Fax: +49 681 5 98 - 9075 web: ctcadvanced.com e-mail: [email protected] Photos Photo 1 Photo 2 2023-01-04Document No. 1-5443/22-01-01_AnnexA2/5 Photo 3 Photo 4 2023-01-04Document No. 1-5443/22-01-01_AnnexA3/5 Photo 5 Photo 6 2023-01-04Document No. 1-5443/22-01-01_AnnexA4/5 Document history VersionApplied changesDate of release initial release2023-01-04 - END OF DOCUMENT - 2023-01-04Document No. 1-5443/22-01-01_AnnexA5/5

Label Information M/N: 12117-601 FCC ID: OKY12117601A01A IC : 7657A-12117601 Contains FCC ID: QOQ-BGM220S Contains IC: 5123A-BGM220S

Annex B 1-5443/22-01-01_AnnexB Internal photos of the Equipment Under Test This addendum is electronically signed and valid without handwritten signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Document authorized: Tobias Wittenmeier Testing Manager Radio Communications & EMC CTC advanced GmbHUntertuerkheimer Str. 6-10 66117 Saarbruecken / Germany Phone: +49 681 5 98 - 0 Fax: +49 681 5 98 - 9075 web: ctcadvanced.com e-mail: [email protected] Photos Photo 1 Photo 2 2023-01-04Document No. 1-5443/22-01-01_AnnexB2/3 Document history VersionApplied changesDate of release initial release2023-01-04 - END OF DOCUMENT - 2023-01-04Document No. 1-5443/22-01-01_AnnexB3/3

BNetzA - CAB - 02/21 - 102 SAR Test exclusion documentation according to FCC KDB 447498 Report identification number: 1-5443/22-01-03 Exclusion (FCC) contains the module with the following certification numbers FCC ID OKY12117601A01A This test report is electronically signed and valid without handwritten signature. For verification of the electronic signatures, the public keys can be requested at the testing laboratory. Document authorised: Alexander Hnatovskiy Marco Scigliano Lab Manager Testing Manager Radio Communications & EMC Radio Communications & EMC Test report no.: 1-5443/22-01-03 © cetecom advanced GmbH Page 2 of 3 EUT technologies: Technologies: Max. declared cond. AVG Power (Peak) Max. measured EIRP Antenna gain NFC 13.56 MHz 23 dBm (=200 mW) 26.9 dBμV (Peak)@30m = -48.5 dBm < 0 dBi NOTE: The measured PEAK EIRP according proofs that the EUT antenna gain is far below 0dBi and that considering the max. declared output power is by far larger than the EIRP. Conducted values will be used for the RF exposure calculation. EIRP values are for information only. Test results for EIRP taken from CTC advanced GmbH report 1-4929/22-01-06 Max. output power for the13.56 MHz circle is 200 mW according customer declaration. The technical duty cycle of 19.3% is not applied as correction factor as the EUT even without its consideration is below the exclusion treshhold. (Duty cycle can be seen in Annex A of this document.) NFC: (c) (2) Standalone SAR test exclusion below 100 MHz < 50mm 0.5 × (Threshold 100MHz ) × (1+log(100/f)) where Threshold 1-g;10-g is 3 for 1-g; 7.5 for 10-g f is the RF channel transmit frequency Threshold 100MHz,50mm is Threshold 1-g;10-g × d / f 0.5 ; with f = 100MHz and d=50mm The table below gives the calculated maximal power that could be used for source based time averaged conducted power, adjusted for tune up tolerance. If this is below the calculated value SAR testing is excluded. frequency Powerlimit [MHz] [mW] [dBm] [mW] 13.56 3 474.34 442.97 23.00 199.5 yes Threshold 100MHz,50mm P max-declared Exclusion Threshold1-g;10-g This prediction demonstrates the following: The power density levels for FCC that are larger than the minimum safety-distances stated above, are below the maximum levels allowed by regulations. Test report no.: 1-5443/22-01-03 © cetecom advanced GmbH Page 3 of 3 Annex A: Duty cycles Duty cycle 13.56 MHz of the EUT: Duty Cycle 19.3%
