OLA-DX143TBriefcase Alert

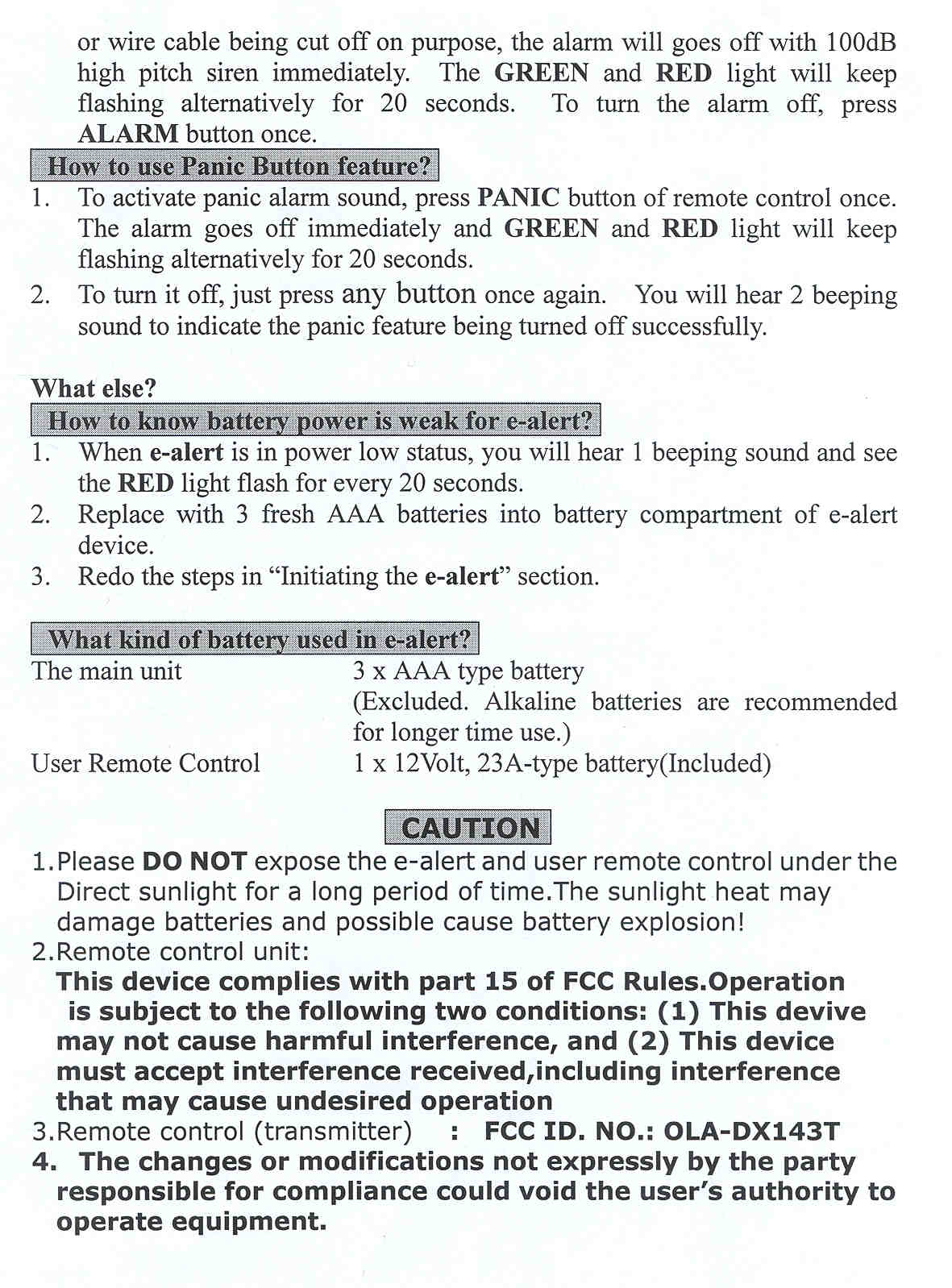

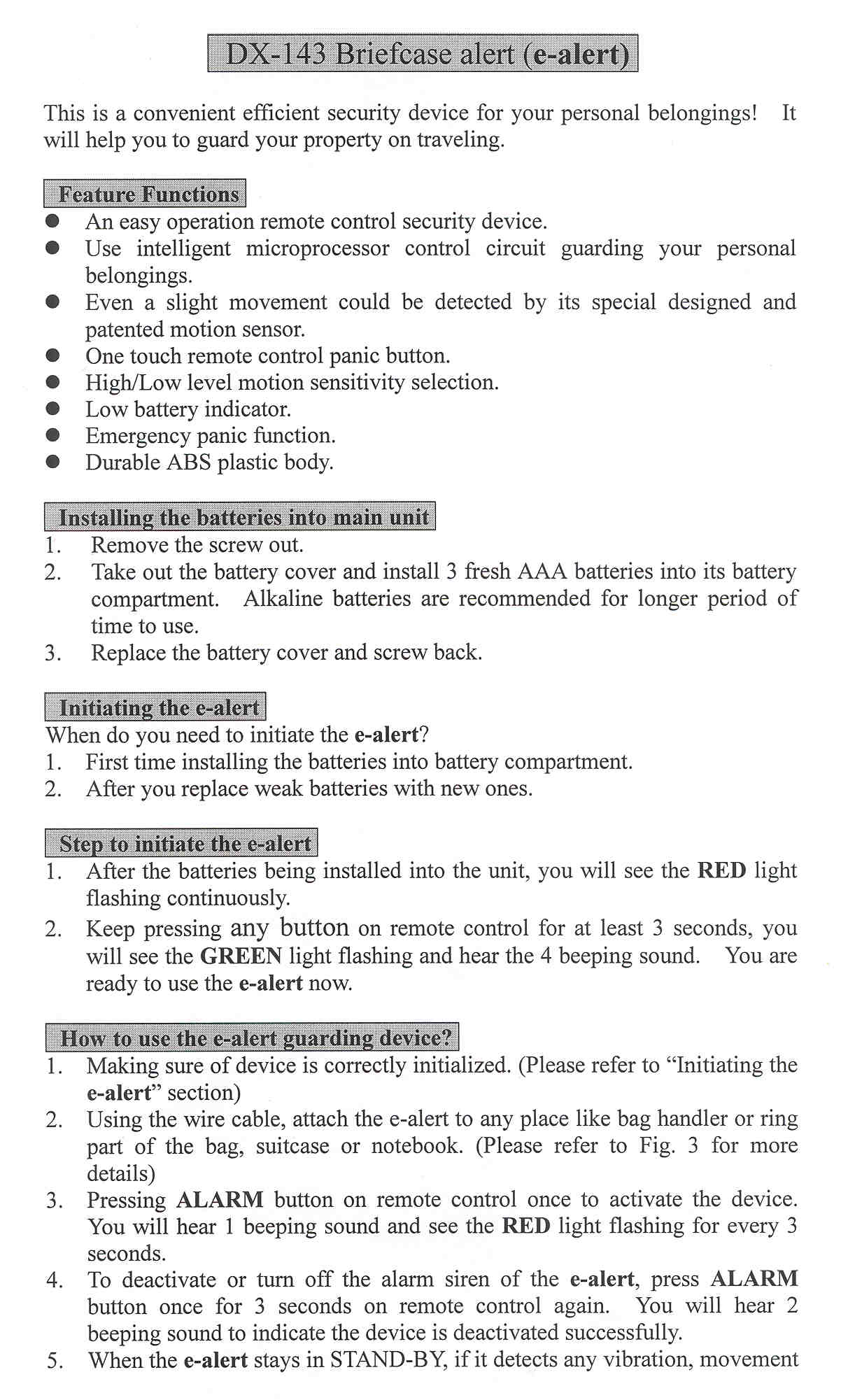

Operational Description INITIATION Press any button on remote control until Green light flash and 4 beeping sound come out. SETUP (E-alert Guarding Alarm) 1. Press ALARM button once to turn on the e-alert in STAND-BY. 2. Press again ALARM button once to turn off. (Panic Button Feature) 1. Press PANIC button once to activate. 2. Press any button once on remote to turn off. BATTERY-LOW WARNING One beeping sound and RED light flash for every 20 seconds.

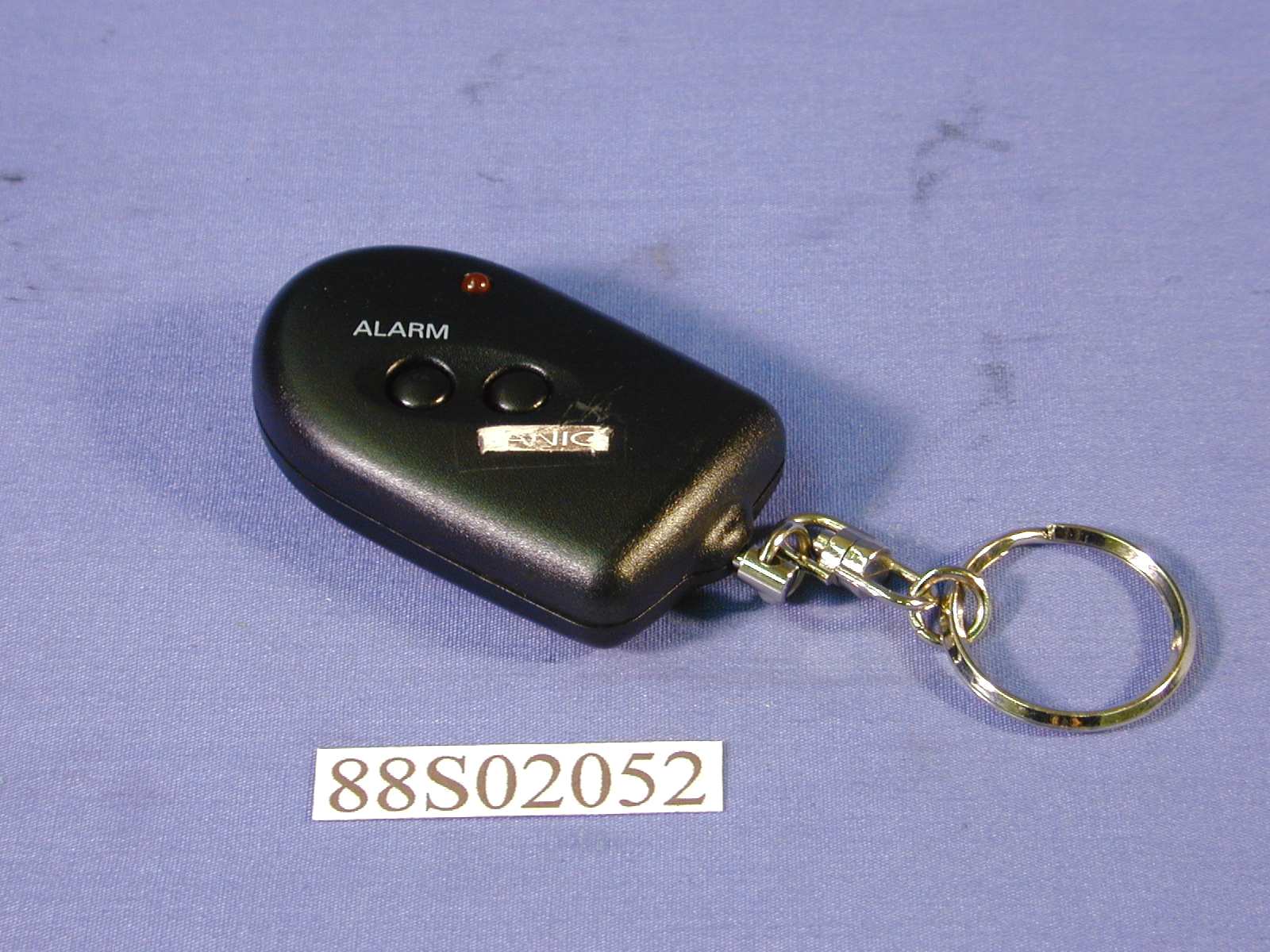

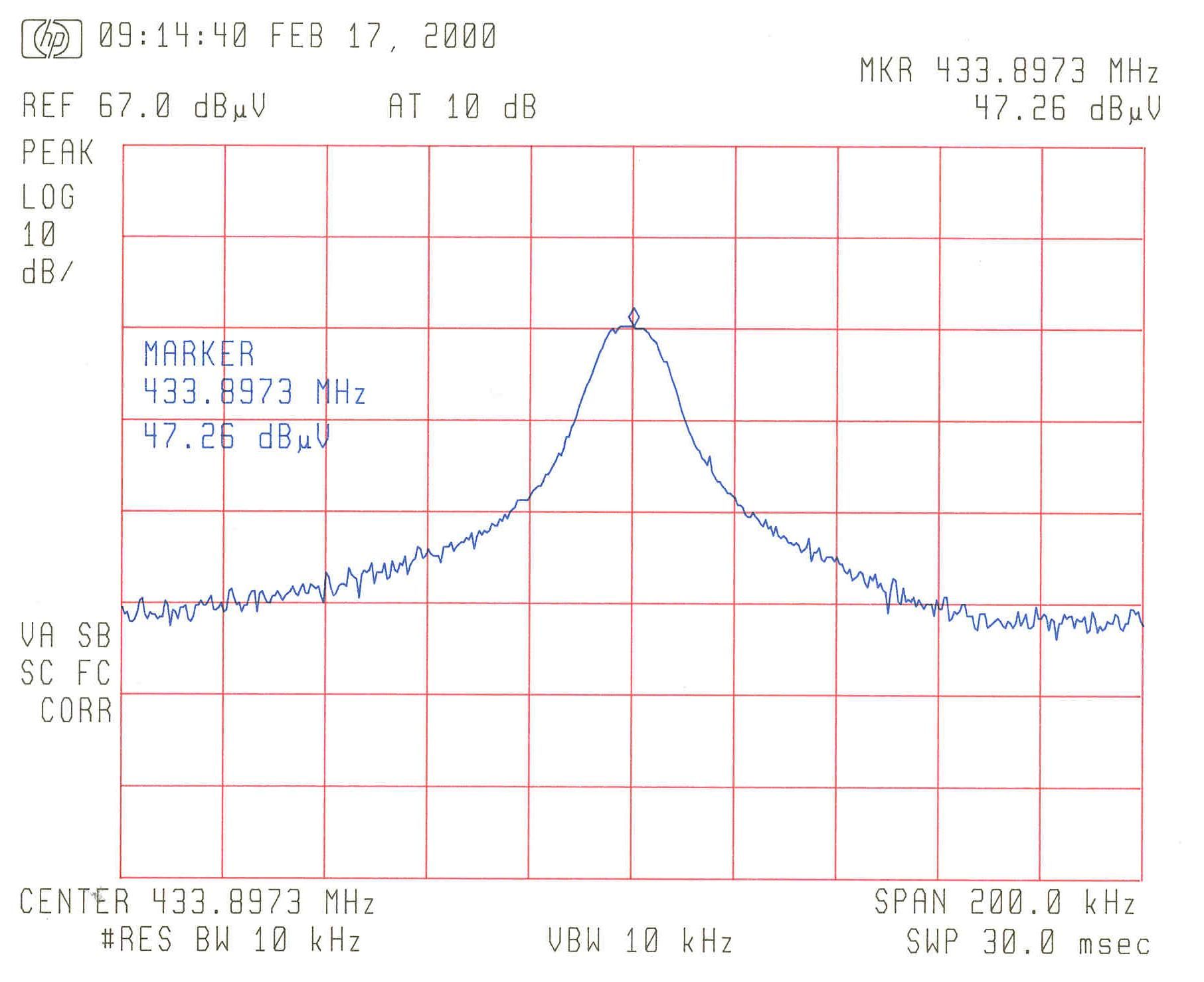

FCC ID.:OLA-DX143T Rev. No 1.0 FCC Part 15 Subpart C EMI TEST REPORT of E.U.T. : BRIEFCASE ALERT (Transmitter) FCC ID. : OLA-DX143T MODEL : DX143T Working Frequency : 433.87 MHz for APPLICANT : WELLMIKE ENTERPRISE CO., LTD. ADDRESS: 3FL. NO.2, LANE 497, CHUNG CHENG ROAD, HSIN TIEN, TAIPEI HSIEN, TAIWAN, R.O.C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 8 LANE 29, WENMIMG ROAD, LOSHAN TSUN, KWEISHAN HSIANG, TAOYUAN, TAIWAN, R.O.C. Tel:(03)3276170-3276174 Fax:(03)3276188 Report Number : ET89S-02-052-01 ETC Report No.:ET89S-02-052-01FCC ID.: OLA-DX143T Rev. No 1.0 TEST REPORT CERTIFICATION Applicant: WELLMIKE ENTERPRISE CO., LTD. 3FL. NO.2, LANE 497, CHUNG CHENG ROAD, HSIN TIEN, TAIPEI HSIEN, TAIWAN, R.O.C. Manufacturer: WELLMIKE ENTERPRISE CO., LTD. 3FL. NO.2, LANE 497, CHUNG CHENG ROAD, HSIN TIEN, TAIPEI HSIEN, TAIWAN, R.O.C. Description of EUT: a) Type of EUT: BRIEFCASE ALERT (Transmitter) b) Trade Name: WELLMIKE c) Model No.: DX143T d) FCC ID: OLA-DX143T e) Working Frequency : 433.87 MHz f) Power Supply: DC 12V Battery Regulation Applied: FCC Rules and Regulations Part 15 Subpart C (1996) I HEREBY CERTIFY THAT; The data shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note : 1. The results of the testing report relate only to the items tested. 2. The testing report shall not be reproduced except in full, without the written approval of ETC. Test Date : Feb. 15, 2000 Test Engineer : Approve & Authorized Signer : Win-Po Tsai, Supervisor, NVLAP Signatory EMC Dept. of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.:ET89S-02-052-01FCC ID.: OLA-DX143T Rev. No 1.0 Table of Contents Page 1. GENERAL INFORMATION ........................................................................................................................................ 1 1.1 P RODUCT D ESCRIPTIO N ................................................................................................................................................... 1 1.2 C HARACTERISTICS OF D EVICE : ........................................................................................................................................ 1 1.3 T EST M ETHODOLOGY ...................................................................................................................................................... 1 1.4 T EST F ACILITY ................................................................................................................................................................. 1 2. DEFINITION AND LIMITS.......................................................................................................................................... 2 2.1 D EFINITION ..................................................................................................................................................................... 2 2.2 R ESTRICTED B ANDS OF O PERATION ................................................................................................................................. 2 2.3 L IMITATION ..................................................................................................................................................................... 2 2.4 L ABELIN G R EQ UIREMEN T ................................................................................................................................................. 4 2.5 U SER I NFORMATION ........................................................................................................................................................ 4 3. RADIATED EMISSION MEASUREMENT................................................................................................................. 5 3.1 A PPLICABLE S TANDARD .................................................................................................................................................. 5 3.2 M EASUREMEN T P ROCEDURE ............................................................................................................................................ 5 3.3 T EST D ATA ...................................................................................................................................................................... 7 3.4 F IELD S TREN GTH C ALCULATIO N ...................................................................................................................................... 8 3.5 R ADIATED T EST E QUIPMENT ............................................................................................................................................ 8 3.6 M EASURIN G I N STRUMEN T S ETUP ..................................................................................................................................... 9 3.7 R ADIATED M EASUREMEN T P HOTOS ................................................................................................................................. 9 4. BANDWIDTH OF EMISSION.................................................................................................................................... 10 4.1 A PPLICABLE S TANDARD P LO T G RAPHIC OF B ANDWIDTH ............................................................................................... 10 4.2 B ANDWIDTH T EST E QUIPMENT ...................................................................................................................................... 10 4.3 P LO T G RAPHIC OF B ANDWIDTH ..................................................................................................................................... 10 5. CONDUCTED EMISSION MEASUREMENT.......................................................................................................... 11 5.1 S TANDARD A PPLICABLE ..........................................................…
