OLA-DX148SECURITY PROXIMETER ALARM
Wellmike Enterprise Co. Ltd.
Click to zoom
Application Details
- Equipment Class
- DXX - Part 15 Low Power Communication Device Transmitter
- Date of Grant
- Sep 22, 2003
- Application Purpose
- Original Equipment
- Date of Application
- Sep 22, 2003
- Equipment Note
- SECURITY PROXIMETER ALARM
- Frequency Range
- 433.92000000 - 433.92000000
- Company
- Wellmike Enterprise Co. Ltd.
- Country
- Taiwan
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Block Diagram
1234 A B C D 4321 D C B A POWER BATTERY CR2032(+3V) MICRO CONTROLLER SAW RESONATOR 433.92MHZ RF TRANSMISSION DIGITAL ENCODER AMPLITUDE MODULATION DX148 TRANSMITTER OF BLOCK POWER BATTERY CR2032(+3V) POWER REGULATOR +2.5V MICRO CONTROLLER DIGITAL OPCODER AMPLITUDE DEMODULATION RF RECEIVER LED OUT ALARM OUT ENABLE DX-148 RECEIVER OF BLOCK
External Photos

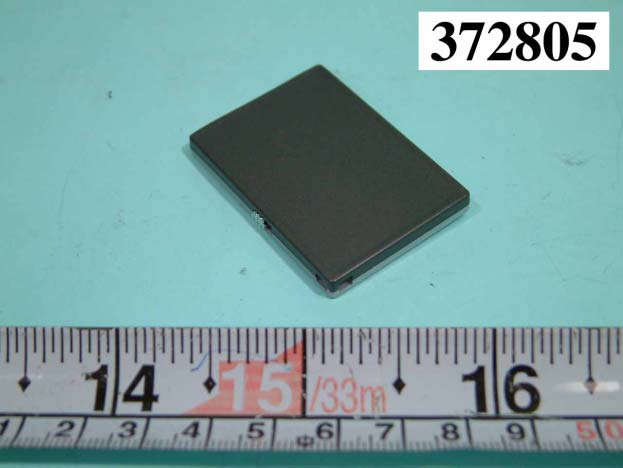

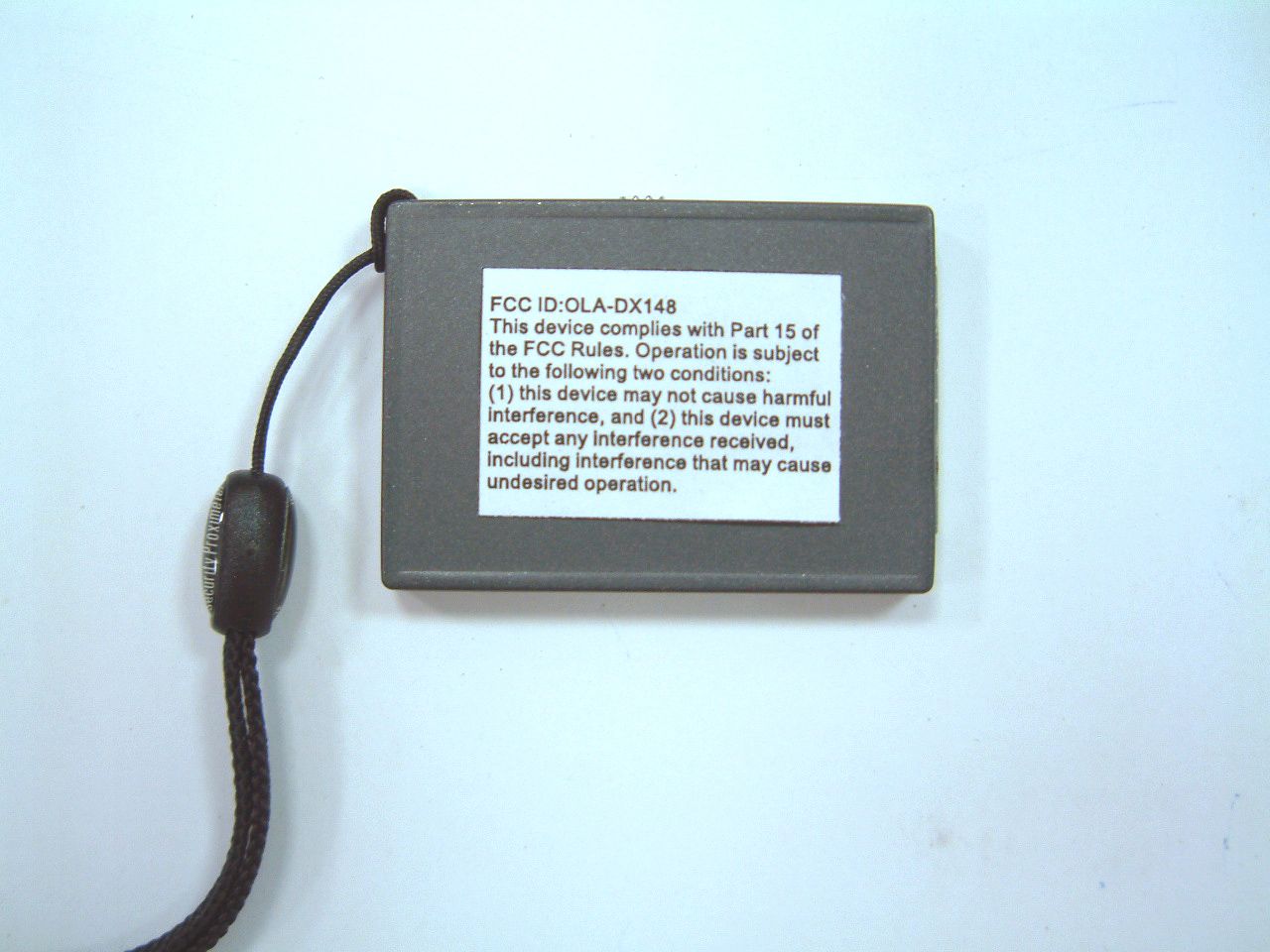

FCC ID: OLA-DX148 Number 1 FRONT SIDE OF EUT FCC ID: OLA-DX148 Number 2 REAR SIDE OF EUT
Contact Information
Applicant
SUE LIU(SALES MANAGER)
Test Firm
Sporton International Inc.Kathy Lin
Technical Specifications
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 433.92 MHz - 433.92 MHz | - |
