MPSTP2E B ENGLISH MPSTP2EB_V0.doc Member of:Associated CAUTION FOR THE USER Any change or modification of the product is forbidden if not expressly approved by the manufacturer 0. DESCRIPTION MPSTP2E B is a radio transmitter used with radio receivers of the Multipass and Roll series. It has two pushbuttons being capable to activate two different output channels on a radio receiver working with the same code and the same operating frequency. It works on 433.920 MHz frequency regulated by a SAW oscillator. It is provided with an integral antenna. It is not possible to transmit continously with MPSTP2E B . 1. APPLICATIONS It can be used in remote control applications as door opener and in control access applications. 2. TECHNICAL FEATURES Transmission frequency433.92 MHz (radio section) – 125 kHz (transponder section) Type of coderolling code No. Of channels2 (radio) + 1 (transponder) Power supply6V (two 3 V lithium battery) Power consumptionNegligible when not operating, 15mA for transmission Duration of transmission2 sec (radio transmission) Signalling devicesred LED MPSTP2E B ENGLISH MPSTP2EB_V0.doc Member of:Associated 3. HOW TO PROCEED WHEN CHANGING THE BATTERY HOW TO CHANGE THE BATTERIES: • Loosen screw «A» as shown in Fig. 1. • Open the remote control. • Remove the batteries handling them as shown in Fig. 2. • Fit new batteries taking care of aligning polarity correctly (see Fig. 4). LITHIUM BATTERY 3V B FCC ID: ON3MPSDT2 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. FIG. 1 FIG. 4 FIG. 2/1 A FIG. 2
FCC ID : ON3MPSTP2EB Block diagram Pag. 1 BLOCK DIAGRAM(S) OF THE EUT Block Diagram Description The Controller Board of the EUT is provided with: SAW oscillator SAW1= 433.920 MHz FCC ID : ON3MPSTP2EB Block diagram Pag. 2 Fig. 1 - Block Diagram of the EUT
Reference FCC ID: ON3MPSTP2EB As stated in Test Report RD 99/153 of October 13th,1999 page 14/23 the applicable limit for this kind of EUT is Section 15.231 (periodic operation). The report contains data of the fundamental and harmonics emissions (worst case as stated in the report) all other harmonics detected were less than 20 dB from the limit; EUT does not emit any other kind of spurious emissions: the only oscillator present in the circuit is the TX SAW oscillator. Regards G. Mecchia (Test Engineer of TUV QSL - Scarmagno (TO) Italy)

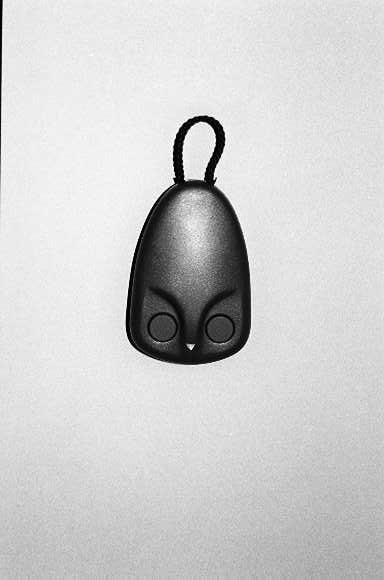

FCC ID : ON3MPSTP2EB External photos Pag. 1 Fig. 1 Overall front view FCC ID : ON3MPSTP2EB External photos Pag. 2 Fig. 2 Overall rear view
FCC ID : ON3MPSTP2EB ID label Pag. 1 PRODUCT LABELING Figure 1 FCC ID Label FCC ID: ON3MPSTP2E B FCC ID : ON3MPSTP2EB ID label Pag. 2 Figure 2 Location of the Label on EUT
FCC ID : ON3MPSTP2EB ID label Pag. 1 PRODUCT LABELING Figure 1 FCC ID Label FCC ID: ON3MPSTP2EB
FCC ID : ON3MPSTP2EB Internal photos Pag. 1 Fig. 1 Controller Board - Components side FCC ID : ON3MPSTP2EB Internal photos Pag. 2 Fig. 2 Controller Board - Foil side
FCC ID : ON3MPSTP2EB Operational description Pag. 1 GENERAL INFORMATION Product Description EUT is a radio transmitter that operate at 433.920 MHz; it is used in garage door opener applications with radio receivers of the Multipass and Roll series. It has two pushbuttons being capable of activating to different channels on a radio receiver working with the same code and the same operating frequency. It works on 433.920 MHz frequency regulated by a saw oscillator. It is provided with a built in antenna and it does not permit a continuous transmission (operation is limited to about two seconds).
FCC ID : ON3MPSTP2EB Part list Pag. 1 MPSTP2E B part list |----------------------------------------------------------------------------------------------------------------------------------------------------------| |Bill Of Materials for L9042B2.sch on Wed Jul 21 17:23:58 1999 | |----------------------------------------------------------------------------------------------------------------------------------------------------------| |Item|Qty |Ref. |Prastel Code |Name |Value |Tol. |Description | |----+-----+-----------------------------+----------------+--------------------+------------+------+-------------------------------------------------------| |1 |1 |J1 | | | | |Soldering Strip 5P 1.27 | |2 |1 |JP1 | |JP2 | | |Wire Jumper | |3 |1 |A2 | |Manifacturing | | |Manufacturing | |4 |1 |A1 | |NOTE | | |Row Pitch, Dimension See Sample | |5 |1 |R1 | |RSMD OPT | |5% |Resistor 0805 SMT | |6 |2 |P1-2 | | | | |Horizontal Pushbutton | |7 |1 |B2 |BAT6VL | |6V | | | |8 |1 |C8 |C10NCS |CSMD |10nF |Z5U |Ceramic Capacitor 0805 SMT | |9 |1 |C9 |C1M0V16S |CSMD |1MF16V | |Tantalum Capacitor CaseA SMT | |10 |2 |C3 C7 |C1N0CS |CSMD |1nF |Z5U |Ceramic Capacitor 0805 SMT | |11 |1 |C2 |C1P0CS |CSMD |1pF |NP0 |Ceramic Capacitor 0805 SMT | |12 |1 |C5 |C1P5CS |CSMD |1p5F |NP0 |Ceramic Capacitor 0805 SMT | |13 |1 |C1 |C1T03C2S |TZBX4Z030AE110 |1.4-3pF | |Trimmer Capacitor SMT | |14 |1 |C4 |C3P3CS |CSMD |3p3F |NP0 |Ceramic Capacitor 0805 SMT | |15 |1 |C6 |C4P7CS |CSMD |4p7F |NP0 |Ceramic Capacitor 0805 SMT | |16 |1 |Z1 |CSL391-2 |L391-2 |1mm/35um | |PCB Double Side | |17 |1 |D1 |DBAS16 |BAS16 | | |Signal Diode SOT23 SMT | |18 |1 |LD1 |DLEDRS2 |LHT774M | | |SMT-Top-Led Reverse Gullwing Hyper-Red | |19 |1 |L1 |I1UHST5 |B82422-A1102-M |1MH |5% |Inductor SIMID02-04 SMT | |20 |1 |L2 |I27NHST5 | |27nH |5% |Inductor SIMID02-04 SMT | |21 |1 |U1 |ICPL886AP1 |PL886A | | |8 Bit CMOS Microcontroller | |22 |1 |B1 |LAMBAT5 (x2) |ATTBAT6V | | |Battery Connector ROLLT2 | |23 |1 |P3 |PMET01 |SKHUAB | | |Horizontal Pushbutton SMT | |24 |1 |R5 |R0R0S |RSMD |0 Ohm |5% |Resistor 0805 SMT | |25 |2 |R2 R8 |R10KS |RSMD |10K |5% |Resistor 0805 SMT | |26 |1 |R7 |R1K0S |RSMD |1K |5% |Resistor 0805 SMT | |27 |1 |R6 |R47KS |RSMD |47K |5% |Resistor 0805 SMT | |28 |1 |SAW1 |RISSAW3S1 |R02101A | | |SAW Resonator 433.92 MHz | |29 |1 |R3 |RK56S |RSMD |560 |5% |Resistor 0805 SMT | |30 |1 |R9 |RM10S |RSMD |100K |5% |Resistor 0805 SMT | |31 |1 |R4 |RM68S |RSMD |680K |5% |Resistor 0805 SMT | |32 |1 |Q3 |TBC847C |BC847C | | |NPN Small Signal Transistor SOT23 SMT | |33 |2 |Q1-2 |TBFR93A |BFR93A | | |NPN Small Signal Transistor SOT23 SMT | |------------------------------------------------------------------------------- ---------------------------------------------------------------------------|
Test Report No. RD99/153 FCC ID: ON3MPSTP2E B Date October 13th, 1999 TÜV QSL 1/23 MEASUREMENT/TECHNICAL REPORT PRASTEL FCC ID: ON3MPSTP2E B October 13th, 1999 This report concerns (check one): Original grant __X__ Class II change____ Equipment type: RADIO TRANSMITTER (ex.: computer, printer, modem, etc.) Deferred grant request per 47 CFR 0.457(d)(1)(ii)? yes _____ no __X__ If yes, defer until: ______________ date Company Name agrees to notify the Commission by ______________ date of the intended date of announcement of the product so that the grant can be issued on that date. Report prepared by: P.Antonio VELO Giuseppe MECCHIA TÜV QSL srl Via Montalenghe 8 10010 Scarmagno ( TO ) Italy Phone : 0125 - 525441 Phone : 0125 – 525440 Fax : 0125 – 525499 Test Report No. RD99/153 FCC ID: ON3MPSTP2E B Date October 13th, 1999 TÜV QSL 2/23 Table of Contents Page 1GENERAL INFORMATION ........................................................ 3 1.1 Product Description ........................................................ 3 1.2 Related Submittal(s)/Grant(s).......................................... 3 1.3 Tested System Details..................................................... 4 1.4 Test Methodology ............................................................ 5 1.5 Test Facility..................................................................... 5 1.6 Test Equipment List......................................................... 5 2PRODUCT LABELING................................................................ 6 Figure 2.1 FCC ID Label ....................................................... 6 Figure 2.2 Location of the Label on EUT............................... 7 3SYSTEM TEST CONFIGURATION ............................................ 8 3.1 Justification...................................................................... 8 3.2 EUT Exercise Software.................................................... 8 3.3 Special Accessories ........................................................ 9 3.4 Equipment Modifications ................................................. 9 3.5 Configuration of the Tested System ................................ 10 Figure 3.1 Configuration of the Tested System...................... 10 4BLOCK DIAGRAM(S) OF THE EUT.. ......................................... 11 4.1 Block Diagram Description ............................................... 11 Figure 4.1 Block Diagram of the EUT.................................... 12 5RADIATED MEASUREMENT PHOTOS ..................................... 13 7RADIATED EMISSION DATA ..................................................... 14 7.2 Field Strength Calculation ............................................... 15 8PHOTOS OF TESTED EUT ....................................................... 16-22 User Manual (Draft Edition) ...............................................................23-Attached Test Report No. RD99/153 FCC ID: ON3MPSTP2E B Date October 13th, 1999 TÜV QSL 3/23 1 GENERAL INFORMATION 1.1 Product Description EUT is a radio transmitter that operate at 433.920 MHz; it is used in garage door opener applications with radio receivers of the Multipass and Roll series. It has two pushbuttons being capable of activating to different channels on a radio receiver working with the same code and the same operating frequency. It works on 433.920 MHz frequency regulated by a saw oscillator. It is provided with a built in antenna and it does not permit a continuous transmission (operation is limited to about two seconds). 1.2 Related Submittal(s)/Grant(s) None Test Report No. RD99/153 FCC ID: ON3MPSTP2E B Date October 13th, 1999 TÜV QSL 4/23 1.3 Tested System Details The FCC IDs for all equipment, plus descriptions of all cables used in the tested system (including inserted cards, which have grants) are: Model & Serial No. FCC IDDescriptionCable Descriptions ----------------------------------------------------------------------------------------------------------- MPSTP2EB (1) s/n EMC-99-0283 ON3MPSTP2E B TransmitterNo cables connected (1) EUT submitted for grant. Test Report No. RD99/153 FCC ID: ON3MPSTP2E B Date October 13th, 1999 TÜV QSL 5/23 1.4 Test Methodology Radiated testing was performed according to the ANSI C63.4-1992 test procedures . Radiated testing was performed at an antenna to EUT distance of 3 meters. 1.5 Test Facility TÜV QSL test site No. 2 The open area test site and conducted measurement facility used to collect the radiated data are located at Via Montalenghe 8, Scarmagno, Italy. This site has been fully described in a report dated March 25, 1997 submitted to your office, and accepted in a letter dated June 13, 1997 (31040/SIT-1300F2). 1.6 Test equipment list: Test receiverRohde & Schwarz ESVPs/n 879783/029 Biconical antennaEMCO 3110s/n 1735 Log-periodic antenna EMCO 3146 s/n 3678 Spectrum analyzerHP 8562As/n 3043A05627 Horn antennaEMCO 3115s/n 3572 Test Report No. RD99/153 FCC ID: ON3MPSTP2E B Date October 13th, 1999 TÜV QSL 6/23 2 PRODUCT LABELING Figure 2.1 FCC ID Label FCC ID: ON3MPSTP2E B Test Report No. RD99/153 FCC ID: ON3MPSTP2E B Date October 13th, 1999 TÜV QSL 7/23 Figure 2.2 Location of the Label on EUT Test Report No. RD99/153 FCC ID: ON3MPSTP2E B Date October 13th, 1999 TÜV QSL 8/23 3 SYSTEM TEST CONFIGURATION 3.1 Justification The EUT was configured for testing in a typical fashion (as a customer would normally use it). It has been tested in stand alone mode; EUT was forced to transmit by pushing alternatively one of the two pushbuttons provided: the continuous light on a led indicate normal operation, flashing light (after two seconds of operation) indicate stop of transmission. Test conditions: - a new battery has been installed - modulation was fixed (no regulation are permitted by the operator or factory settings) - during tests EUT has been rotate through the three ortogonal axes to determine which condition produces the highest emission with reference to the limits. 3.2 EUT Exercise Software The EUT exercis…
