ON3TP2EGARAGE DOOR REMOTE CONTROL

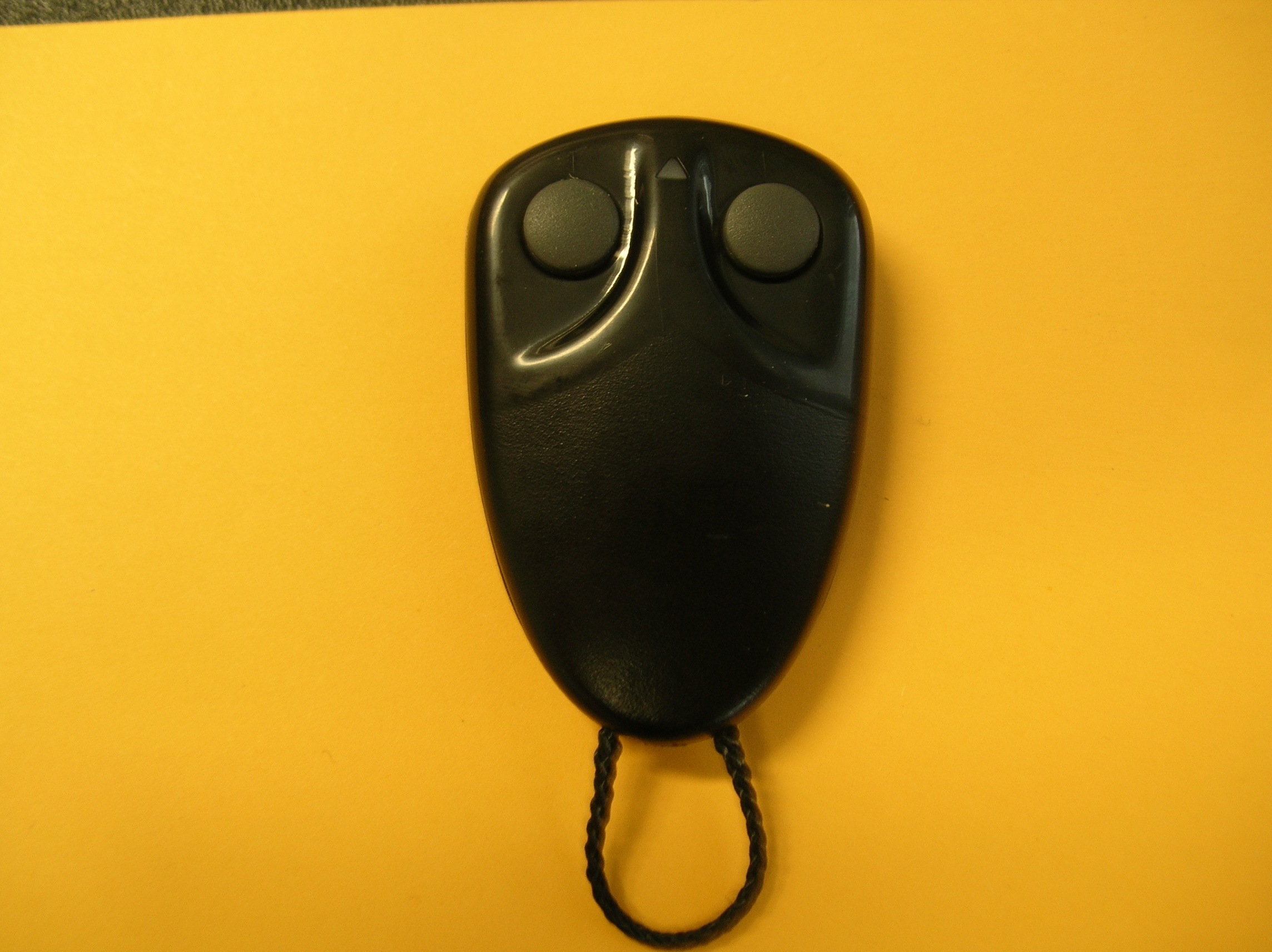

MPSPTP2E CAUTION FOR THE USER Any change or modification of the product is forbidden if not expressly approved by the manufacturer GENERAL INFORMATION The MPSPTP2E 2 channel transmitter transmits the rolling security code at 433 MHz and is fitted with a remote self-learning function on the receiver. It is powered by a lithium 3V battery (size CR2032). Intended use of the equipment: radio transmitter in garage-door systems. Typical use of the equipment: the equipment is not foreseen for continuous operations CHANNEL SELECTION 1. For channel 1 press button 1, for channel 2 press button 2 (fig.1) ENTERING THE TRANSMITTER IN THE MEMORY OF THE RECEIVER 1. Press the programming button on the receiver; the red LED lights up. 2. Press the button corresponding to the transmitter channel to be memorised; the code is set in memory. During the insertion, the receiver LED flashes for about two seconds, then returns to the steady light state to indicate that a new transmitter can be entered. When the operation is completed, press the programming button on the receiver again to exit from the procedure, the LED goes out. The exit from the procedure is automatic after 10 seconds from the last insertion of a transmitter. REMOTE ENTERING OF NEW TRANSMITTERS IN THE MEMORY OF THE RECEIVER (RPA FUNCTION) 1. Approach the receiver (1-2m) with an already programmed transmitter. 2. Press buttons 1 & 2 at the same time then release them; the LED lights up and after about 2 seconds goes out. 3. When the LED lights up again, press buttons 1 & 2 at the same time again and keep them pressed until the LED starts flashing alternatively red-green. 4. At the end of flashing, the TX sends a transmission which activates the learning function of the receiver 5. The receiver waits 10 seconds for transmissions from new transmitters. Press one of the buttons of the transmitter to be learned. The receiver stores the new transmitter into its memory. 6. During the learning procedure, the 10 seconds learning timeout is restored at any new transmitter learned. LOW BATTERY INDICATION When the battery is running out, it is signalled by a short flash every 5 minutes. It is advisable to replace the battery before it becomes completely flat. MPSPTP2E REPLACEMENT OF THE BATTERIES Loosen screw A (fig. 3) and open the remote control. Fit new battery taking care of aligning polarity correctly (fig. 4). During the operation, handle the battery as shown in fig. 5. FCC ID: ON3TP2E This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. A Via del Vetraio, 7 40138 Bologna – ITALIA Tel. +39 051 6023 311 Fax: +39 051 538 460 http://www.prastel.com e-mail: [email protected] Fig. 5 Fig. 3 Fig. 1 Fig. 4 Fig. 2

Bologna, 2008 March, the 26th Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Nemko Canada Inc, 303 River Road – Ottawa, Ontario, Canada,. to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in Federal Communications Commissions’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Prastel S.p.a., Via del Vetraio 7 – 40138 Bologna, Italy. Dated this 26 Day of March 2008 Agency agreement expiration date: 2009 – 03 -26 By: Alberto Gamberini Signature Printed Title: R&D Engineer On behalf of : Prastel S.p.a. Telephone: +390516023311

Bologna, 2008 March, the 26th Equipment Authorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: ON3TP2E Product Name: MPSTP2E Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics • Part list • Block Diagram • Operational description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 26 Day of March 2008 Agency agreement expiration date: 2009 – 03 - 26 By: Alberto Gamberini Signature Printed Title: R&D Engineer On behalf of : Prastel S.p.a. Telephone: +390516023311

LABEL REQUIREMENTS RF IC & FCC Prastel Model No.: MPSPT2E IC: 3851A – TP2E FCC ID: ON3TP2E Made in China The label dimensions are 40*19 mm. As the dimension of the product it will be possible to indicate in the label only the model, the IC number and the FCC ID. The other statement will be written in the instruction sheet. ** If label format is not in full scale, please indicate the dimensions of the label. MUST APPEAR ON THE OUTSIDE OF THE CERTIFIED UNIT. ALL INFORMATION MUST APPEAR ON THE LABEL.

LABEL LOCATION Prastel Model: MPSTP2E IC: 3851A – TP2E FCC ID: ON3TP2E

www.nemko.com FCC Part 15 Subpart C, 15.231 : June 2006 Test Report: 104318-3TRFWL Applicant: Prastel Spa Via del Vetraio, 7 40138 Bologna Italia Apparatus: MPSTP2E FCC ID: ON3TP2E In Accordance With: FCC Part 15 Subpart C, 15.231 Periodic operation in the band 40.66-40.70MHz and above 70 MHz. Tested By: Nemko Canada Inc. 303 River Road Ottawa, Ontario K1V 1H2 Authorized By: Heng Lin, EMC/Wireless Specialist Date: April 03, 2008 Total Number of Pages: 15 Nemko Canada Inc. REPORT SUMMARY Report Number: 104318-3TRFWL FCC ID: ON3TP2E Specification: FCC Part 15 Subpart C, 15.231 Page 2 of 15 Report Summary These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15, Subpart C. Radiated tests were conducted in accordance with ANSI C63.4-2003. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. The assessment summary is as follows: Apparatus Assessed: MPSTP2E Specification: FCC Part 15 Subpart C, 15.231 Compliance Status: Complies Exclusions: None Non-compliances: None Report Release History: Original Release Author: David Duchesne, Senior EMC Specialist Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. Nemko Canada Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. Nemko Canada Inc. REPORT SUMMARY Report Number: 104318-3TRFWL FCC ID: ON3TP2E Specification: FCC Part 15 Subpart C, 15.231 Page 3 of 15 TABLE OF CONTENTS Report Summary......................................................................................................................................... 2 Section 1 : Equipment Under Test............................................................................................................. 4 1.1 Product Identification .................................................................................................................................4 1.2 Samples Submitted for Assessment............................................................................................................4 1.3 Theory of Operation ...................................................................................................................................4 1.4 Technical Specifications of the EUT ..........................................................................................................4 Section 2 : Test Conditions......................................................................................................................... 5 2.1 Specifications .............................................................................................................................................5 2.2 Deviations From Laboratory Test Procedures ............................................................................................5 2.3 Test Environment .......................................................................................................................................5 2.4 Test Equipment...........................................................................................................................................5 2.5 Measurement Uncertainty...........................................................................................................................5 Section 3 : Observations ............................................................................................................................. 6 3.1 Modifications Performed During Assessment ............................................................................................6 3.2 Record Of Technical Judgements ...............................................................................................................6 3.3 EUT Parameters Affecting Compliance .....................................................................................................6 3.4 Test Deleted................................................................................................................................................6 3.5 Additional Observations .............................................................................................................................6 Section 4 : Results Summary ..................................................................................................................... 7 4.1 FCC Part 15 Subpart C : Test Results ........................................................................................................8 Appendix A : Test Results .......................................................................................................................... 9 Clause 15.209(a) Radiated Emissions within Restricted Bands ............................................................................9 Clause 15.231(b) Radiated Emissions .................................................................................................................12 Clause 15.231(c) 20dB Bandwidth ......................................................................................................................13 Appendix C : Block Diagram of Test Setups .......................................................................................... 15 Nemko Canada Inc. SECTION 1 : EQUIPMENT UNDER TEST Report Number: 104318-3TRFWL FCC ID: ON3TP2E Specification: FCC Part 15 Subpart C, 15.231 Page 4 of 15 Section…
