ONYET2055CTOUCH SCREEN CONTROLLER

USB TOUCH SCREEN CONTROLLER USER’S MANUAL ET2055C ET&T Technology Co., Ltd. 2F N0.2, Lane 57 Sec.1, Chien-Kuo N.Rd. Taipei,Taiwan,R.O.C. Tel: 886-2-2506-9472 Fax:886-2-2501-6877 E-Mail: [email protected] WARNING Note: This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of FCC Rules. These Limits are designed to provide reasonable protection against harmful interferfnce in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: l Reorient or relocate the receiving antenna. l Increase the separation between the equipment and receiver. l Connect the equipment into an outlet on a circuit different from that to which the receiver in connected. l Consult the dealer or an experienced radio/TV technician for help. Notice: Changes or modigications not expressly approved by the part responsible for Compliance could void the user’s authority operate equipment. This device complies with Part 15 of the FCC Rules operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Table of Contents 1. Hardware Installation. 2. Software Installation. 3. How To Use Appendix 1. Hardware Installation. 1.1 Hardware Requirement 1) A PC with USB Port. 2) Touch Screen Controller ( ET2055C ). 3) Touch Screen Panel. 1.2 Installation Note! Please turn off the power before following operation. 1) Fit in the Touch Screen accessories with monitor size. 2) To connect the controller and Touch Screen Panel. 3) Plug in Touch Screen USB controller to PC USB Port. 2. Software Installation 2.1 Preparation 1) Win98 operation system. 2) Win98 CD. 2.2 Installation 1) Boot up your system. 2) Insert driver diskette To A: 3) Place Win98 CD in CD Rom. 4) Following instruction step by step. 5) After completing driver installation, cursor will respond for touch on touch screen panel. 6) Please execute A:\setup.exe for adding calibration & swap button application for touch. Screen USB and let doubleclick more easy. 7) Execute the correcting coordinates program to configure the screen by instruction. 3. How To Use After setup up, Touch The Screen to let cursor move. Appendix Sepecification of ET2055C. Resolution: 12bit ADC TouchPanel Type: 4-wire Interface: USB port LED: Touch/Untouch indication Power: derived from USB port Power consumption: Idle: 20mA Active: 22mA Dimension: 79 x 38 x 21mm 3.11"x1.50"x0.83" Operation Temperature: 0 ~ 70 Storage Terpeature: -55 ~ 125 Regulatory Approvals: FCC-B CE and BCIQ

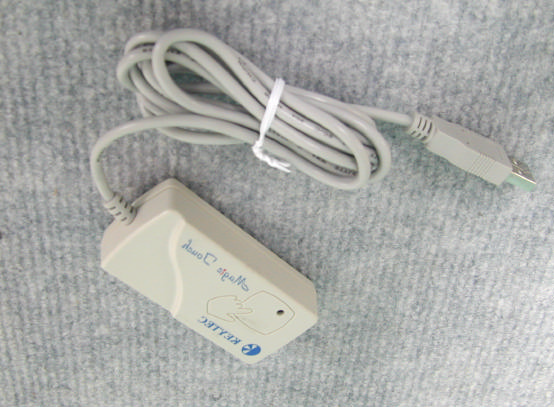

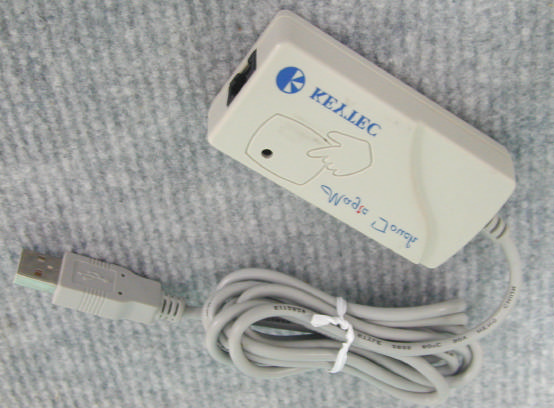

NEUTRON EMC LAB. Report No.NEI-FCC-E-03241 23/30 Photo # 1 NEUTRON EMC LAB. Report No.NEI-FCC-E-03241 24/30 Photo # 2

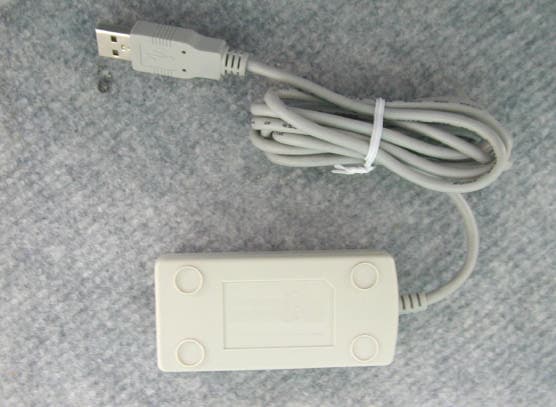

NEUTRON EMC LAB. Report No.NEI-FCC-E-03241 25/30 Photo # 3 NEUTRON EMC LAB. Report No.NEI-FCC-E-03241 26/30 Photo # 4

Product Descriptions(Application/Features/Specification) The EUT is a USB Touch Screen Controller. Based on the application, features, or specification exhibited in User's Manual, the EUT is considered as an ITE/Computing Device. More details of EUT technical specification, please refer to the User's Manual (Attachment - E.)

1 2 3 4 56 ABCD 6 5 4 3 2 1 D CBA Title Number Revision Size B Date: 19-Nov-2003 Sheet of File: D:\My Documents\..\ET2055C.sch Drawn By: R1310M OSC2 6M C16 20pF C15 20pF VCC ETouch2055C XX' Y' YNote:Tough R14100K D2 LED (red) R21.8K VCC R7 xxx R11 xxx C5103pF C4103pF 123456 J3CON6 X+X-Y-Y+Button RGND D5 5.6V D6 5.6V D3 5.6V D4 5.6V D1 5.6V X-Y+X+Y- PortPortPortPort R9 1K R15 1K C6103pF C7103pF R5xxx Button R GND R3xxxR40 Z1 ZENER1 C30.1uF C110uF VCC 1/1Nick V1.20 X+X-Y-Y+ P04 44 P05 45 P06 46 P07 47 ADVRF 48 P20 2 P21 3 P22 4 P23 5 P24 6 P25 8 P26 9 P27 10 P36 11 P37 12 P10 14 P11 15 P12 16 P13 17 GND 18 P14 20 P15 21 P16 22 P17 23 CLKSEL 24 XIN 26 XOUT 27 EXTINT 28 RESET 29 P30 30 P31 32 P32 33 P33 34 P34 35 P35 36 P00 38 P01 39 P02 40 P03 41 VDD 42 U1 WT505F-48PIN Choose 6M or 4M OSC "000" --> 6M"001" --> 4M R12 10K P16,P15,P14 XOUT P00 1 P01 2 P02 3 P03 4 P10 5 P12 6 VSS 7 VPP 8 CEXT 9 XIN 10 XOUT 11 VCC 12 D- 13 D+ 14 P13 15 P11 16 P07 17 P06 18 P05 19 P04 20 U2USBCONTROLLER XOUT USB0USB1USB2 USB0USB1USB2 R100 OSC16M D+D- D-D+ VCC R17.5K VCC VCC R8100K C80.1uF C130.1uF 123456 J2CON6 12345 J1CON5 C20.1uF R610K VCC C1810uF C12103pF C10103pF C14103pF C17103pF If to slow will eat power then nonstable J3:2.0 6pin 90 度 J1:2.0 5pin 180 度 J2:Phonejack R170 R160 C11220uF/16V C91.8k

NEUTRON EMC LAB. Report No.NEI-FCC-E-03241 2/30 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C., or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations , inferences or generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Assessment Authorities Test Standard/Scope/Item Acceptance FCC Part 15 Subpart B IEC/CISPR22 AS/NZS 3548 CNS 13438 FCC Part 15 Subpart B CISPR 22/EN 55022 AS/NZS 3548 VCCI -Technical Requirement CNS 13438 SS IEC/CISPR 22 IEC/EN 61000-3-2 IEC/EN 61000-4-5 IEC/EN 61000-3-3 IEC/EN 61000-4-6 IEC/EN 61000-4-2 IEC/EN 61000-4-8 IEC/EN 61000-4-3 IEC/EN 61000-4-11 IEC/EN 61000-4-4 NEUTRON EMC LAB. Report No.NEI-FCC-E-03241 3/30 Table of Contents Page 1 General Information 5 1.1 Applicant 5 1.2 Manufacturer 5 1.3 Equipment Under Tested 5 1.4 OEM Brand/Model 5 1.5 Product Description 5 1.6 Connecting I/O Port(s) 5 1.7 Power Supplied 5 1.8 Products Covered 6 1.9 Model Difference (Series, Versions, if any) 6 1.10 EUT Modifications 6 1.11 Electric Block Diagram 6 1.12 Photos of EUT 6 2 RFI Emissions Measurement 7 2.1 Test Facility 7 2.2 Standard Compliance 7 2.3 Test Methodology 7 2.4 Deviations from Standard Test Method 7 2.5 Sample(s) Tested 7 2.6 Measurement Instrument 7 2.7 Measurement Uncertainty 7 2.8 Tested System Set-Up/Configuration Details 7 Table -1 Equipments Used in Tested System 8 Diagram -1 Block diagram showing the configuration of system tested 9 Table - 2 Equipments Used in Tested System 10 Table - 3 Information of Interface Cable 10 2.9 Max.(Worst Case) RF Emission Evaluation 11 2.10 EUT Operation 11 3 Justification 12 3.1 Limitations 12 3.1.1 Power Line Conducted Emission 12 3.1.2 Radiated Emission Limits 12 3.2 Measurement Justification 13 3.2.1 Conducted Emission 13 3.2.2 Radiated Emission 13 3.3 Measurement Data 15 Table 4 Conducted Emission Data 15 Table 5 Radiated Emission Data 15 NEUTRON EMC LAB. Report No.NEI-FCC-E-03241 4/30 Table of Contents Page 4 Attachment 16 A. Electric Block Diagram 17 B. EUT Modification Description 18 C. EUT Test Photos 19 D. EUT Photos 22 E. User’s Manual 27 F. Product Labeling 28 G. Laboratory Accreditation Certificate 30 NEUTRON EMC LAB. Report No.NEI-FCC-E-03241 5/30 1. General Information 1.1 Applicant Name ET&T Technology Co., LTD. Address 2F, No. 2, Lane 57, Sec. 1, Chien Kuo N. Rd., Taipei 104, Taiwan, R.O.C. 1.2 Manufacturer Name N/A Address N/A 1.3 Equipment Under Tested Name: USB Touch Screen Controller Trade Name: ETouch Model No.: ET2055C 1.4 OEM Brand/Model (if applicable) OEM Brand(s)/Model(s) except the basic model in sub-clause 1.3 is(are) the follows: OEM Brand: N/A Model No.: N/A 1.5 Product Descriptions(Application/Features/Specification) The EUT is a USB Touch Screen Controller. Based on the application, features, or specification exhibited in User's Manual, the EUT is considered as an ITE/Computing Device. More details of EUT technical specification, please refer to the User's Manual (Attachment - E.) 1.6 Connecting I/O Port(s) Please refer to the User's Manual ( Attachment - E.) 1.7 Power Supplied Power Source: Supplied from PC USB Port. Power Cord: N/A Power Rating: N/A NEUTRON EMC LAB. Report No.NEI-FCC-E-03241 6/30 1.8 Products Covered (if applicable) The sample tested including the following sub-system/module/accessory : Sub-system/ Module/ Accessory Model/Type No. Int. Inst./ Ext. Cont. Touch Screen ETouch N/A 1.9 Model Difference (Series, Versions, if any) Except the basic model no. (model designation of the sample tested in this test report), additional model no. covered is(are) : N/A. 1.10 EUT Modifications (if applicable) No any modification required for the EUT to comply with the standards. Please refer to the Attachment – B. 1.11 Electric Block Diagram Please refer to the Attachment – A. 1.12 Photos of EUT Please refer to the Attachment – D. NEUTRON EMC LAB. Report No.NEI-FCC-E-03241 7/30 2. RFI Emissions Measurement 2.1Test Facility The test facilities used to collect the test data in this report located at No.132-1, Lane 329, Sec. 2, Palain Road, Shijr City, Taipei, Taiwan. 2.2 Standard Compliance The test data contained in this report relate only to the item(s) listed below : Limitation Class B FCC Part15, Subpart B / ANSI C63.4 : 1992. 2.3 Test Methodology Both conducted and radiated testing were performed during the max. EMI emission evaluation. Antenna to EUT distance is 10 m. Test procedures according to the technical standards: FCC Part15, Subpart B / ANSI C63.4 : 1992. 2.4 Deviations from Standard Test Method N/A 2.5 Sample(s) Tested The representative sample tested in this reports is(are): ET2055C Test results in this test report relate only to the sample(s) tested. The EUT has been tested according to the fo…
