ONYET2055FUSB TOUCH SCREEN CONTROLLER

USB TOUCH SCREEN CONTROLLER USER’S MANUAL ET2055FP (ET2055FL) ET&T Technology Co., Ltd. 2F N0.2, Lane 57 Sec.1, Chien-Kuo N.Rd. Taipei,Taiwan,R.O.C. Tel: 886-2-2506-9472 Fax:886-2-2501-6877 E-Mail: [email protected] WARNING Note: This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of FCC Rules. These Limits are designed to provide reasonable protection against harmful interferfnce in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: z Reorient or relocate the receiving antenna. z Increase the separation between the equipment and receiver. z Connect the equipment into an outlet on a circuit different from that to which the receiver in connected. z Consult the dealer or an experienced radio/TV technician for help. Notice: Changes or modigications not expressly approved by the part responsible for Compliance could void the user’s authority operate equipment. This device complies with Part 15 of the FCC Rules operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Table of Contents 1. Hardware Installation. 2. Software Installation. 3. How To Use Appendix 1. Hardware Installation. 1.1 Hardware Requirement 1) A PC with USB Port. 2) Touch Screen Controller ( ET2055FP、ET2055FL). 3) Touch Screen Panel. 1.2 Installation Note! Please turn off the power before following operation. 1) Fit in the Touch Screen accessories with monitor size. 2) To connect the controller and Touch Screen Panel. 3) Plug in Touch Screen USB controller to PC USB Port. 2. Software Installation 2.1 Preparation 1) Win98 operation system. 2) Win98 CD. 2.2 Installation 1) Boot up your system. 2) Insert driver diskette To A: 3) Place Win98 CD in CD Rom. 4) Following instruction step by step. 5) After completing driver installation, cursor will respond for touch on touch screen panel. 6) Please execute A:\setup.exe for adding calibration & swap button application for touch. Screen USB and let doubleclick more easy. 7) Execute the correcting coordinates program to configure the screen by instruction. 3. How To Use After setup up, Touch The Screen to let cursor move. Appendix Sepecification of ET2055FP(ET2055FL). Resolution: 12bit ADC TouchPanel Type: 5-wire Interface: USB port LED: Touch/Untouch indication Power: derived from USB port Power consumption: Idle: 30mA Active: 35mA Dimension: 79 x 38 x 21mm(ET2055FP) 3.11"x1.50"x0.83" 79 x 38 x 19mm(ET2055FL) 3.11"x1.50"x0.75" Operation Temperature: 0 ~ 70°C Storage Terpeature: -55 ~ 125°C Regulatory Approvals: FCC-B 、CE and BCIQ

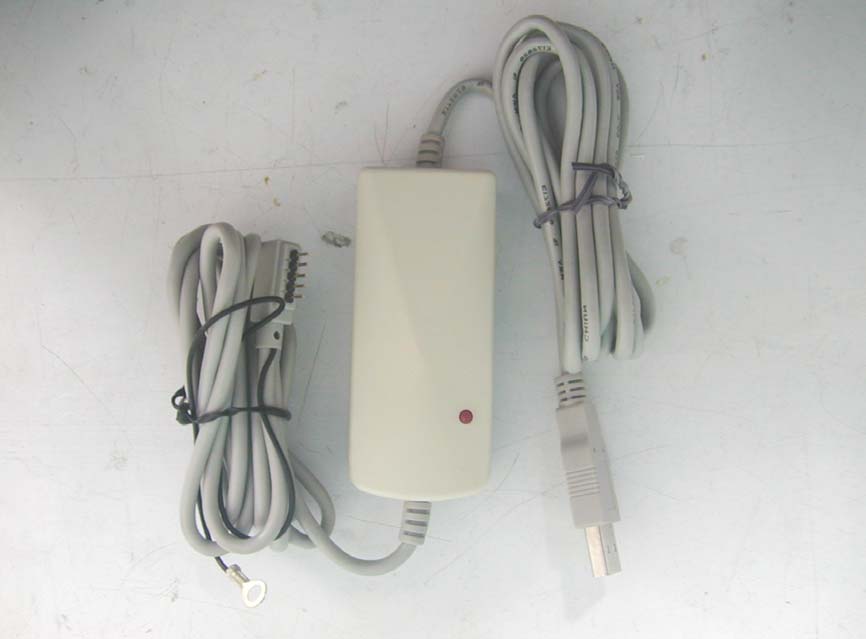

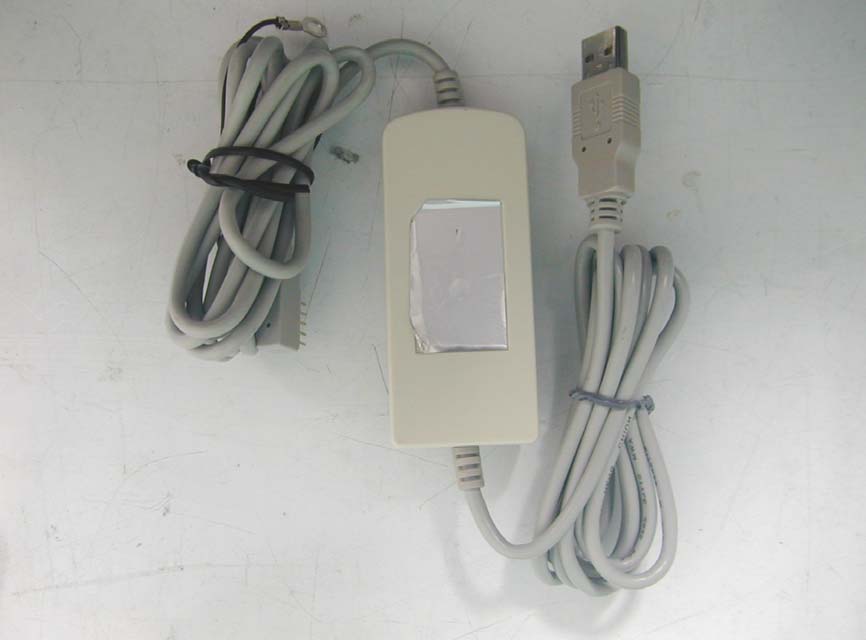

NEUTRON EMC LAB. Project No.：04E0155 2/11 ET2055FP 04E0155 04E0155 NEUTRON EMC LAB. Project No.：04E0155 3/11 ET2055FP 04E0155 04E0155 NEUTRON EMC LAB. Project No.：04E0155 7/11 ET2055FL 04E0155 04E0155 NEUTRON EMC LAB. Project No.：04E0155 8/11 ET2055FL 04E0155 04E0155

ET&T Technology Co., Ltd. MODEL : ET2055FP D33515 FCC ID :ONYET2055F This device complies with Part 15 of the FCC Rules operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. ET&T Technology Co., Ltd. MODEL : ET2055FL D33515 FCC ID :ONYET2055F This device complies with Part 15 of the FCC Rules operation is subject to the following two conditions : (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

-- FCC ID label -- The remained portion of label statement required by FCC is attached in the user’s manual. -- Location of Label on EUT -- 5.8cm 0.5cm

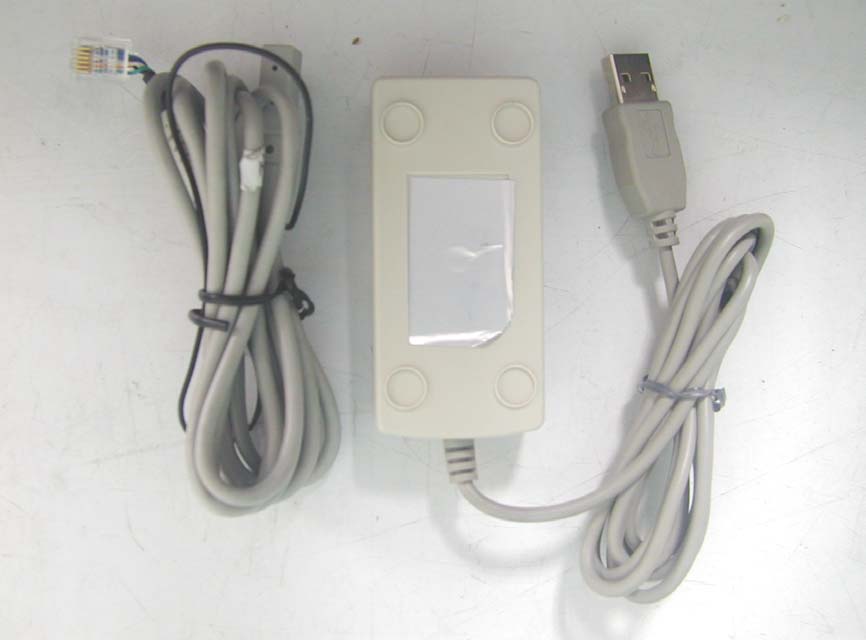

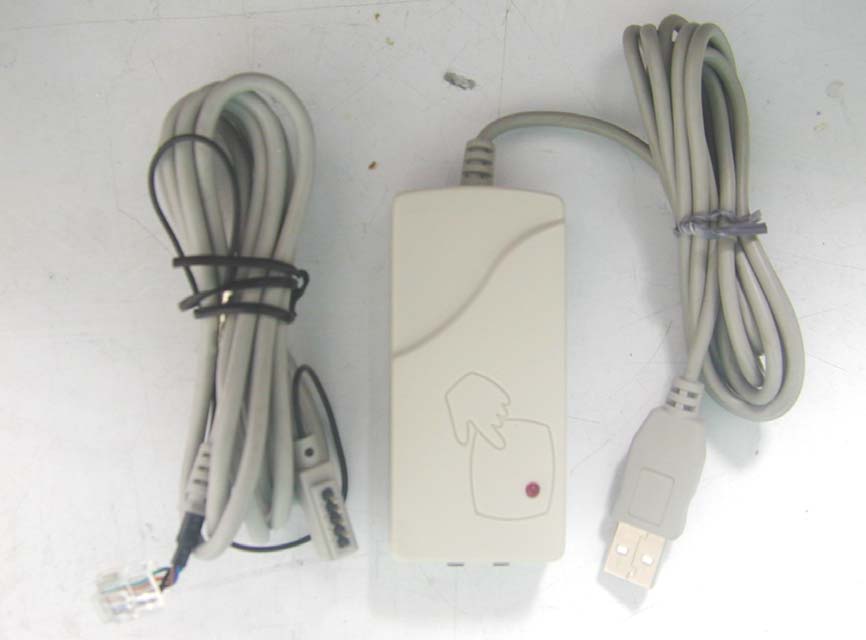

NEUTRON EMC LAB. Project No.：04E0155 4/11 ET2055FP 04E0155 NEUTRON EMC LAB. Project No.：04E0155 5/11 ET2055FP 04E0155 04E0155 NEUTRON EMC LAB. Project No.：04E0155 6/11 ET2055FP 04E0155 04E0155 NEUTRON EMC LAB. Project No.：04E0155 9/11 ET2055FL 04E0155 NEUTRON EMC LAB. Project No.：04E0155 10/11 ET2055FL 04E0155 04E0155 NEUTRON EMC LAB. Project No.：04E0155 11/11 ET2055FL 04E0155 04E0155

NEUTRON EMC LAB. Report No.：NEI- FCCE-1-04E0155 2/26 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C., or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations , inferences or generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Assessment Authorities Test Standard/Scope/Item Acceptance FCC Part 15 Subpart B IEC/CISPR22 AS/NZS CISPR 22 CNS 13438 FCC Part 15 Subpart B CISPR 22/EN 55022 AS/NZS CISPR 22 VCCI -Technical Requirement CNS 13438 SS IEC/CISPR 22 IEC/EN 61000-3-2 IEC/EN 61000-4-5 IEC/EN 61000-3-3 IEC/EN 61000-4-6 IEC/EN 61000-4-2 IEC/EN 61000-4-8 IEC/EN 61000-4-3 IEC/EN 61000-4-11 IEC/EN 61000-4-4 CISPR 22/EN 55022 IEC/EN 61000-3-2 IEC/EN 61000-4-5 IEC/EN 61000-3-3 IEC/EN 61000-4-6 IEC/EN 61000-4-2 IEC/EN 61000-4-8 IEC/EN 61000-4-3 IEC/EN 61000-4-11 IEC/EN 61000-4-4 VCCI -Technical Requirement NEUTRON EMC LAB. Report No.：NEI- FCCE-1-04E0155 3/26 Table of Contents Page 1 General Information 5 1.1 Applicant 5 1.2 Manufacturer 5 1.3 Equipment Under Tested 5 1.4 OEM Brand/Model 5 1.5 Model Difference (Series, Versions, if any) 5 1.6 Product Description 6 1.7 Connecting I/O Port(s) 6 1.8 Power Supplied 6 1.9 Products Covered 6 1.10 Description of Test Mode(s) 6 1.11 EUT Modifications 6 1.12 Summary of Test Results 7 2 RFI Emissions Measurement 8 2.1 Test Facility 8 2.2 Standard Compliance 8 2.3 Test Methodology 8 2.4 Deviations from Standard Test Method 8 2.5 Sample(s) Tested 8 2.6 Measurement Instrument 8 2.7 Measurement Uncertainty 9 2.8 Tested System Set-Up/Configuration Details 9 Table -1 Equipments Used in Tested System 10 Diagram -1 Block diagram showing the configuration of system tested 11 Table - 2 Equipments Used in Tested System 12 Table - 3 Information of Interface Cable 12 2.9 EUT Operating Conditions 13 3 Justification 14 3.1 Limitations 14 3.1.1 Power Line Conducted Emission 14 3.1.2 Radiated Emission Limits 14 3.2 Measurement Justification 15 3.2.1 Conducted Emission 15 3.2.2 Radiated Emission 15 3.3 Measurement Data 15 Table 4 Conducted Emission Data 16 Table 5 Radiated Emission Data 18 NEUTRON EMC LAB. Report No.：NEI- FCCE-1-04E0155 4/26 Table of Contents Page Attachment 20 A. EUT Modification Description 21 B. EUT Test Photos 22 NEUTRON EMC LAB. Report No.：NEI- FCCE-1-04E0155 5/26 1. General Information 1.1 Applicant Name ET&T Technology Co., LTD. Address 2F, No. 2, Lane 57, Sec. 1, Chien Kuo N. Rd., Taipei 104, Taiwan, R.O.C. 1.2 Manufacturer Name N/A Address N/A 1.3 Equipment Under Tested Name: USB Touch Screen Controller Model No.: ET2055FP; ET2055FL 1.4 OEM Brand/Model (if applicable) OEM Brand(s)/Model(s) except the basic model in sub-clause 1.3 is(are) the follows: OEM Brand: N/A Model No.: N/A 1.5 Model Difference (Series, Versions, if any) Except the basic model no. (model designation of the sample tested in this test report), additional model no. covered is(are) : There are two models based on similar electrical circuit except the difference of list below: ------------------------------------------------------------------------------------------------------------ Model No. Phone Jack Connect ET2055FP 9 X ET2055FL X 9 ------------------------------------------------------------------------------------------------------------ All the above models were tested, and the model: ET2055FP and ET2055FL were found to be the worst cases during the pr-scanning test. These modes of the worst cases were used for final testing and collecting test data included in this report. NEUTRON EMC LAB. Report No.：NEI- FCCE-1-04E0155 6/26 1.6 Product Descriptions(Application/Features/Specification) The EUT is an USB Touch Screen Controller. Based on the application, features, or specification exhibited in User's Manual, the EUT is considered as an ITE/Computing Device. More details of EUT technical specification, please refer to the User's Manual 1.7 Connecting I/O Port(s) Please refer to the User's Manual 1.8 Power Supplied Power Source : Supplied from PC USB port. Power Cord : N/A Power Rating : N/A 1.9 Products Covered (if applicable) The sample tested including the following sub-system/module/accessory : Sub-system/ Module/ Accessory Model/Type No. Int. Inst./ Ext. Cont. N/A N/A N/A 1.10 Description of Test Mode(s) To investigate the maximum EMI emission characteristics generates from EUT, the test system was pre-scanning tested base on the consideration of following EUT operation mode or test configuration mode which possible have effect on EMI emission level. Each of these EUT operation mode(s) or test configuration mode(s) mentioned above was evaluated respectively. 1.11 EUT Modifications (if applicable) Not any modification required for the EUT to comply with the standards. Please refer to the Atta…

Text truncated - open the document above for the full version.

NEUTRON EMC LAB. Report No.：NEI- FCCE-1-04E0155 23/26 Conducted Measurement Photos ET2055FP NEUTRON EMC LAB. Report No.：NEI- FCCE-1-04E0155 24/26 Conducted Measurement Photos ET2055FL NEUTRON EMC LAB. Report No.：NEI- FCCE-1-04E0155 25/26 Radiated Measurement Photos ET2055FP NEUTRON EMC LAB. Report No.：NEI- FCCE-1-04E0155 26/26 Radiated Measurement Photos ET2055FL
