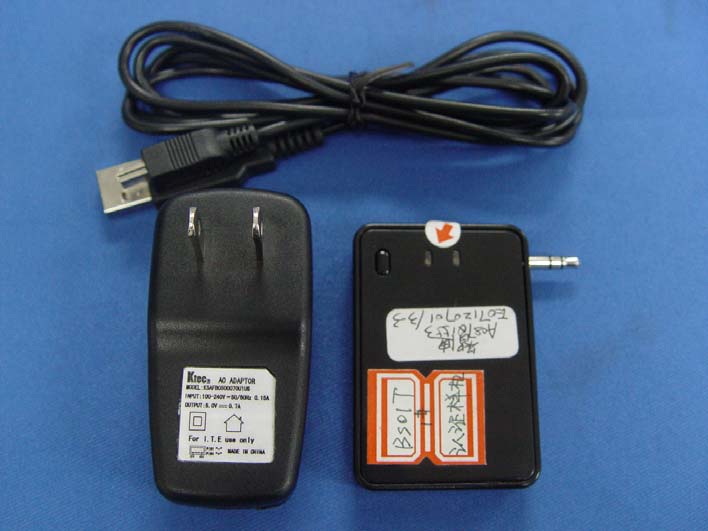

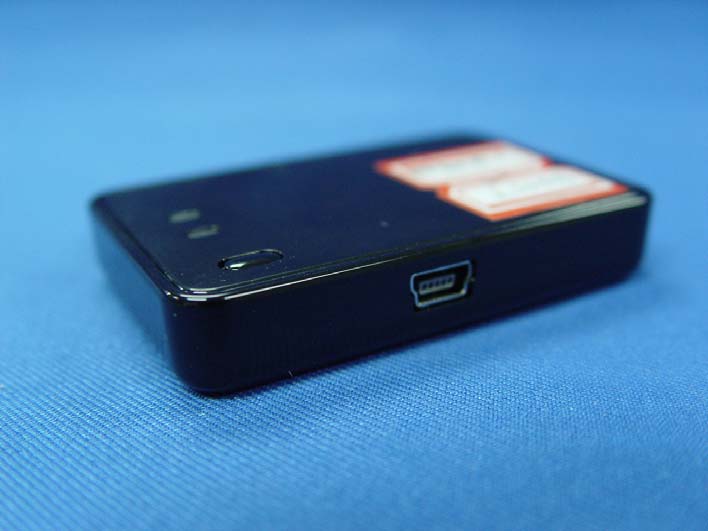

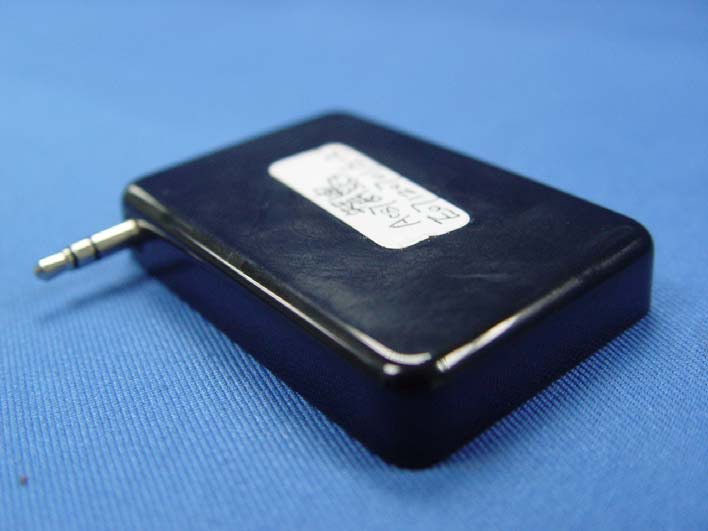

PC Mp4 PSP Bluetooth Stereo Transmitter & Receiver Quick Guide Congratulation! You have got a Mobile HIFI system. Please read this manual thoroughly, and set up your Bluetooth wireless music World. 1. Check the package contents The package include: USB charging Cable Power Adapter Quick Guide Bluetooth Stereo Transmitter Stereo RCA interconnect cable 4. How to connect Power LED Connect indicator Connect Button RCA jack USB jack 3. To turn on the power Power LED Connect indicator Connect Button USB jack IPOD 5. Using with your mobile phone Bluetooth Stereo Receiver Blue LED power is on Blue flashing LED finish connected successfully Red LEDbattery is charging, turns green when charged fully Red flashing LED battery is low 6. Using with your PC 2. Charge the battery Plug the USB cable Plug the power adapter The device can work continuously for six hours. If it is almost no power, the power LED will flash red, please using the power adapter or the USB cable to charge. Plug one end of the USB jack into the transmitter/receiver, and insert the other end to a USB port of your PC. (Make sure your PC is on) or Plug one end of the USB jack into the transmitter/receiver, and the other end into the power adapter. (Make sure the power adapter connected to the power) When it is being charged, the power LED keeps lighting red. If it is fully charged, the power LED will turn green. Note: Before the first use, charge the battery fully for about 10 hours. Thereafter, recharging takes about 90 Minutes. To turn on the power, Press and hold the connect button (about 2 seconds) until the Connect indicator light blue. To turn off the power, Press and hold the connect button (about 2 seconds) until the Connect indicator light off. The Bluetooth stereo receiver can be used with the Bluetooth transmitter or Bluetooth Audio Dongle (not included this package). On first use, the devices must be paired. 1. Connect the Bluetooth receiver to your stereo system by the enclosed Stereo RCA interconnect cable. 2. Plug your transmitter into an player, such as MP4, IPOD, Mobile phone, computer, PSP. For connecting the mobile phone and PC, please refer the chapter 5 and 6. For the Mp4 and ipod, you just plug the transmitter to them directly . 3. Press connect button on your Bluetooth stereo receiver. 4. Press connect button on your transmitter. The Blue LED on the receiver/transmitter will flash when connected. 5. Open your favorite play list and press Play from your player. 6. Sit back, relax and enjoy your music. Before using, please check if your mobile phone has Bluetooth A2DP profile, if you are not sure of that, please consult with your mobile provider.If the mobile phone has Bluetooth A2DP profile, you only need to connect the receiver, and needn't connect the transmitter,For the mobile phone not support Bluetooth A2DP, use the transmitter to connect with your mobile's earphone's port (you need an additional plug transfer from 2.5mm diameter to 3.5mm diameter). Please refer the chapter 4 of How to connect. 1. Enable Bluetooth on your phone 2. Turn on the receiver by pressing reset key.( Check that on the device connects with the receiver by confirming that the power/link LED is not flashing). 3. In the phone's Bluetooth menu, search for devices; 4. Select Bluexon. 5. Enter the PIN code 0000. Select and play the Music on your mobile phone, select Use Bluetooth. Your mobile phone will be connected with the receiver and send the music. To terminate the music transportation, select use mobile. Before using, please check if your PC has Bluetooth A2DP profile, if you are not sure of that, please consult with your PC provider.If it has, you only need to connect to the receiver, and needn't connect the transmitter, If your PC has no Bluetooth A2DP profile, then connect the transmitter to your PC. Please refer the chapter 4 of How to connect. 7. Troubleshooting If the Bluetooth Stereo System does not work, try the following: Ensure your mobile or PC was built - in BLUETOOTH A2DP profile. Check the operation distance. Power off the receiver and reconnect again and ensure the right paring password0000. Check whether other Bluetooth device is connected. Check whether the system is out off power. Check whether the system is connected correctly. Check whether Bluetooth function of device is turned on. Operating frequency band: 2.4 to 2.48GHz unlicensed ISM band Bluetooth specification: V1.2 Output power class: class 2 Transmission power: +3dbm to -20dbm Maximum data rate Asynchronous: 723.2/57.6kbps Synchronous: 433.9/433.9Kbps Operation temperature: -40 to +85 degrees Receiving signal range: -83dbm to -20 dbm Receiving sensitivity: -83 dBm 0.1% BER Storage temperature: -40 to +105 degrees Transmit power consumption: 46mA Power supply: Standard Li-lon battery, 350mAh Rating: 3.7V 5vdc 50 100mA 8. Specifications This device complise with Part 15 of the FCC Rules. Operation is subiect to the following two conditions:(1)this device may not cause harmful interference, and (2)this device must accept any interference received,including interference that may cause undesired operation. NoteTHE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT.SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT. 9. Caution: Pairing code:0000 Only use the USB cable and net adaptor supplied. Physical Specification: Dimension: 62 mm x 42 mm x 12 mm Bluedio is a trademark owned by G.Tech Technology Ltd. Other product names used in this quick guide are the properties of their respective owners and are acknowledged. 10. Copyright
