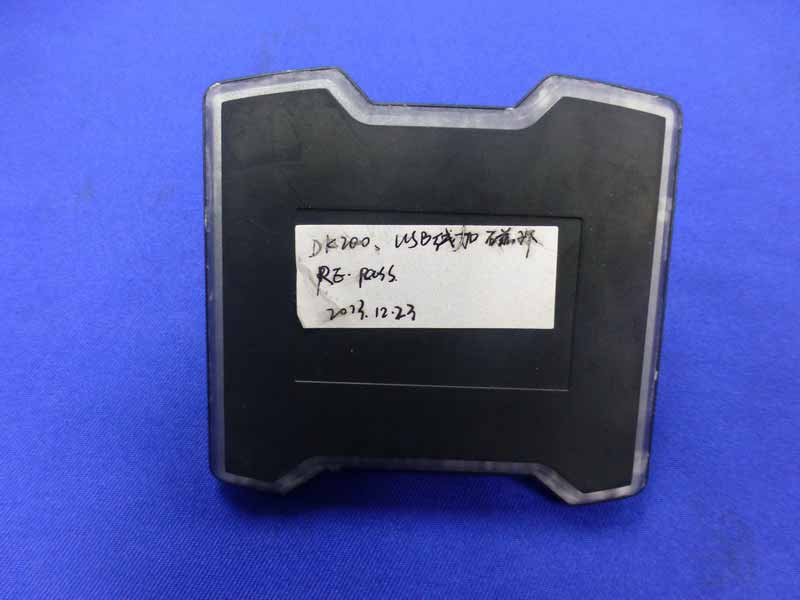

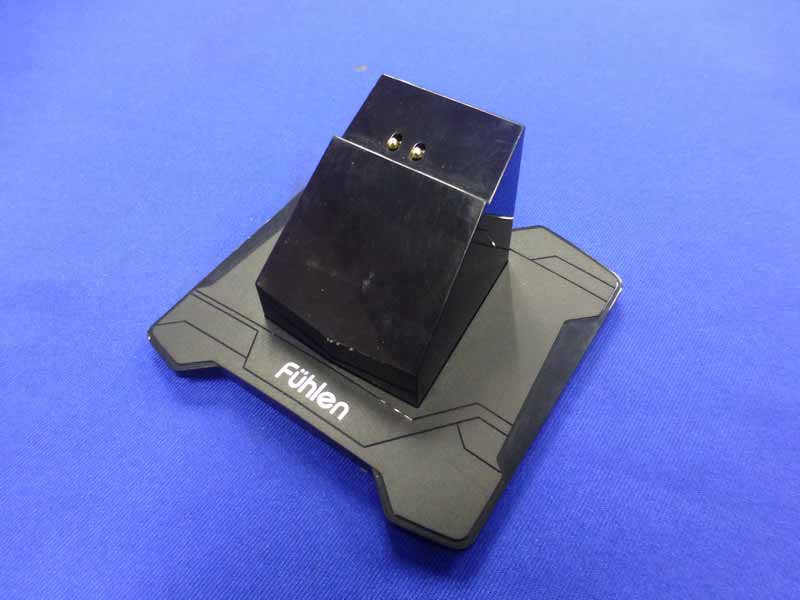

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:OO9DK200 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14104 12-1 12. PHOTOGRAPH OF EUT Figure 1 General Appearance of the EUT Figure 2 General Appearance of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:OO9DK200 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14104 12-2 Figure 3 General Appearance of the EUT Figure 4 Inside of the UET

FCC ID:OO9DK200

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:OO9DK200 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14104 12-3 Figure 5 Inside of the UET Figure 6 Component Side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:OO9DK200 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14104 12-4 Figure 7 Component Side of the PCB Figure 8 Component Side of the PCB R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:OO9DK200 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14104 12-5 Figure 9 USB Cable

DK200 2.4GHz Wireless Receiver BOM IDVALUEREFUNITREMARK Resistance 1 RFT0402-220JTR32.R332 2 RFT0402-510JTR11 3 RFT0402-222JTR41 4 RFT0402-000JTR241 5 RFT0402-684JTR31 6 RFT0402-105JTR231 7 RC06K5R1JTR10.R11.R12.R13.R145 8Capacitance 9 0402F1R2Z100NTC31 10 0402CG150J500NTC7.C82 11 0402CG220J500NTC16.C172 12 0402B104K100NTC1.C9.C11.C12.C14.C156 13 0402F105Z100NTC5.C62 14 0603X106M6R3NTC10.C132 15Inductance 16 VHF100505H3N3STL11 17Chip Ferrite Bead 18 GZ1608D/102TB11 19Diode 20 CE2301M/SOT-23GQ31 21 CE2312M/SOT-23GQ41 22Crystal 23 SMD3225-12.000MHz/10PFY11 24USB Jack 25 Micro-USB-5PJ11 26IC 27 TP7233/SOT23-3U11 28 CG7595AS/CY7C60445-3X14CU41 29 CYRF8935A-4X14CU31 30Other 31 2*4PIN/2.0MM J4~PCB2(J5) 1 32 180-200-2P/2.0MMJ21 33 PCB 34 DK300V13-PCB11 PCB1 1/2 DK200 2.4GHz Wireless Receiver BOM 35 Resistance 36 RFT0402-471JTR5.R6.R7.R84 37 RFT0402-102JTR181 38Diode 39 9014Q11 40 Other/2*4PIN/2.0MM J5~PCB1(J4) 1 41 LED/EST-MB234BLED5.LED6.LED7.LED84 42 PCB/DK300V12-PCB21 43 Other/1007#30/L=70MM/2.0MM1 44 DK300 ShrapnelDK200-TP2 45 DK200 Top CoverDK200-SG1 46 DK200 Middle CoverDK200-ZG1 47 DK200 Bottom CoverDK200-XG1 48 DK200/USB JackDK300-USBGDZ1 49 DK300 Magnetic iron jackDK300-CTGDZ1 50 DK300 Magnetic iron7.35*15*2.5MM1 51 DK300 paper92.36*87.08*0.1MM1 52 Foot PadDK300/83.35*77.83*1.6MM1 53 ScrewPWA1.8*4*54 54 ScrewPB2*57 PCB2 All Components are RoHS Compliant. 2/2

Product Name：2.4GHz Wireless Receiver Model Number: DK200 FCCID: OO9DK200 RADIO FRREQUENCY EXPOSURE COMPLIANCE RESULT : PASS Test standard : According to 447498 D01 General RF Exposure Guidance v05 The 1‐g and 10‐g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune‐up tolerance, mW)/(min. test separation distance, mm)] ∙[√f(GHz)] ≤ 3.0 for 1‐g SAR and ≤ 7.5 for 10‐g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, ‐‐‐ 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m)‐‐‐3m So pt = (EXd) 2 /30 x gt Field strength =91.11dBuV/m @3m Ant gain =0dBi So pt={ [10 (91.11/20) /10 6 x3] 2 /30x1 }x1000 mW =0.387 mW So (0.387 mW/5mm)x √2.402 = 0.120 <3 Then SAR evaluation is not required

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:OO9DK200 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14104 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of G. tech Technology Ltd. 2.4GHz Wireless Receiver Model Number: DK200 FCC ID: OO9DK200 Prepared for : G. tech Technology Ltd. No.21, Jinding Industrial Park, West Jinfeng Road, Tangjiawan Town, Xiangzhou District Zhuhai Guangdong China Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ： ACS-F14104 Date of Test ： Mar.24~27, 2014 Date of Report ： Apr.14, 2014 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:OO9DK200 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14104 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS.......................................................... 1-1 1.1. Description of Standards and Results .................................................................................. 1-1 2. GENERAL INFORMATION ......................................................................................... 2-1 2.1. Description of Device (EUT) ............................................................................................... 2-1 2.2. Tested Supporting System Details ....................................................................................... 2-2 2.3. EUT Configuration and operation conditions for test.......................................................... 2-2 2.4. Test Facility ......................................................................................................................... 2-3 2.5. Measurement Uncertainty (95% confidence levels, k=2) .................................................... 2-3 3. POWER LINE CONDUCTED EMISSION TEST ....................................................... 3-1 3.1. Test Equipment .................................................................................................................... 3-1 3.2. Block Diagram of Test Setup ............................................................................................... 3-1 3.3. Power Line Conducted Emission Test Limits...................................................................... 3-1 3.4. Configuration of EUT on Test ............................................................................................. 3-1 3.5. Operating Condition of EUT................................................................................................ 3-2 3.6. Test Procedure...................................................................................................................... 3-2 3.7. Conducted Disturbance at Mains Terminals Test Results.................................................... 3-2 4. RADIATED EMISSION TEST ...................................................................................... 4-1 4.1. Test Equipment .................................................................................................................... 4-1 4.2. Block Diagram of Test Setup ............................................................................................... 4-2 4.3. Radiated Emission Limit Standard: FCC 15.209 and 15.249 .............................................. 4-3 4.4. EUT Configuration on Test.................................................................................................. 4-3 4.5. Operating Condition of EUT................................................................................................ 4-3 4.6. Test Procedure...................................................................................................................... 4-3 4.7. Radiated Emission Test Results ........................................................................................... 4-4 5. 20 DB BANDWIDTH TEST ........................................................................................... 5-1 5.1. Test Equipment .................................................................................................................... 5-1 5.2. Limit..................................................................................................................................... 5-1 5.3. Test Results .......................................................................................................................... 5-1 6. BAND EDGE COMPLIANCE TEST ............................................................................ 6-1 6.1. Test Equipment .................................................................................................................... 6-1 6.2. Limit..................................................................................................................................... 6-1 6.3. Test Produce ......................................................................................................................... 6-1 6.4. Test Results .......................................................................................................................... 6-1 7. ANTENNA REQUIREMENT ........................................................................................ 7-1 8. RADIO FRREQUENCY EXPOSURE COMPLIANCE.............................................. 8-1 9. TEST SOFTWARE.......................................................................................................... 9-1 10. DEVIATION TO TEST SPECIFICATIONS.............................................................. 10-1 11. PHOTOGRAPH OF TEST ........................................................................................... 11-1 11.1. Photos of Power Line Conducted Emission Test ............................................................... 11-1 11.2. Photos of Radiated Emission Test...................................................................................... 11-2 12. PHOTOGRAPH OF EUT ...................................................................…

Text truncated - open the document above for the full version.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:OO9DK200 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14104 11-1 11. PHOTOGRAPH OF TEST 11.1. Photos of Power Line Conducted Emission Test R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:OO9DK200 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14104 11-2 11.2. Photos of Radiated Emission Test (At Anechoic 3m Chamber Test 30-1000MHz) R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:OO9DK200 page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F14104 11-3 (At Anechoic 3m Chamber Test 1GHz –18GHz)
