OO9GK-100012CPT2.4GHz Wireless Mouse

ENGLISH 1 Hardware Installation 1. Install one AAA battery into the keyboard and one AA battery into the mouse. 2. Plug in your USB receiver to a USB port of your PC. ID Channel Setting and connection: After you install the receiver: Wait about 5-10 seconds and the connection will be executed and the kit will be ready for use. Replace Batteries If the mouse or keyboard does not work properly, then the batteries have lost their charge, so you need to replace them. Warning: do not mix or use different types of batteries at the same time. ENGLISH 2 Keyboard hot key definition Turn down the volume. Turn up the volume. Mouse Button Assignments 1. Left Button: Provides traditional mouse functions like click, double click and drag. 2. Magic-Roller: Scroll the button to surf the Internet and Windows documents. 3. Right Button: Provides traditional mouse click function Notes on Battery Usage When you use the battery, carefully read and strictly observe the Safety Instructions and the notes described below: „ Different battery types and surrounding temperatures may affect the battery performance. „ Avoid using batteries in extremely cold environments as low temperatures can shorten the battery life and reduce wireless device performance. „ If you are using a new rechargeable battery or rechargeable battery that has not been used for an extended period of time ENGLISH 3 (batteries that pass the expiry date are exceptions) it might affect the period of time you can use this device. Therefore, to maximize their performance and lifetime, we recommend that you fully charge the batteries and discharge them for at least one complete cycle before use. „ The battery may feel warm when using the wireless device for an extended period of time. This is normal and not a malfunction. „ The wireless device may feel warm when being used continuously or for an extended period of time. This is normal and not a malfunction. „ If you will not be using the batteries for an extended period of time, remove them from the wireless device to prevent leakage or corrosion. „ Always keep the terminals in a clean state. „ Risk of explosion if battery is replaced by an incorrect type. „ Dispose of used batteries according to the instructions. Federal Communications Commission (FCC) Notice: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Notice English - 1 3 F ujitsu Technology Solut ions 31

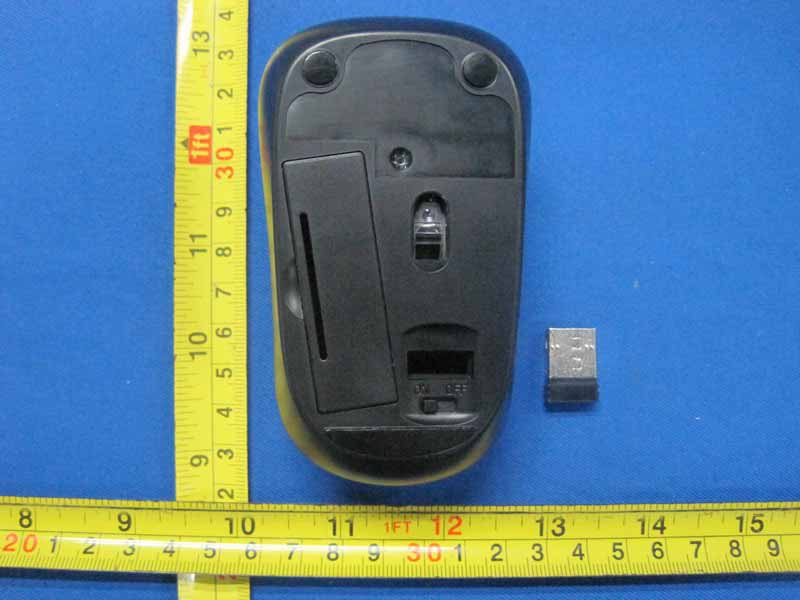

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:OO9GK-100012CPT page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12184 11-1 11. PHOTOGRAPH OF EUT Figure 1 General Appearance of the EUT Figure 2 Inside of the EUT

M/N: GK-100012CP/T Product Name: SlimStar 8000ME MADE IN CHINA FCC ID: OO9GK-100012CPT RATING: DC1.5V --- 10mA www.geniusnet.com WV12ME900001 45 mm 2 7 m m

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:OO9GK-100012CPT page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12184 11-2 Figure 3 Inside of the EUT Figure 4 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:OO9GK-100012CPT page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12184 11-3 Figure 5 Inside of the EUT Figure 6 Inside of the EUT R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:OO9GK-100012CPT page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12184 11-4 Figure 7 Inside of the EUT

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:OO9GK-100012CPT page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12184 7-1 7. RADIO FRREQUENCY EXPOSURE COMPLIANCE RESULT : PASS Test standard : FCC KDB Publication 447498 Since maximum peak output power of the transmitter is<60/f(GHz)mW, i.e.0.009346mW<25(=60/2.4)mW, hence the EUT is exclueded from SAR evaluation according to FCC KDB Publication 447498 D01:Mobile Portable RF Exposure.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:OO9GK-100012CPT Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12184 FCC PART 15C TEST REPORT FOR CERTIFICATION On Behalf of G. tech Technology Ltd. 2.4GHz Wireless Mouse Model Number: GK-100012CP/T FCC ID: OO9GK-100012CPT Prepared for : G. tech Technology Ltd. No.21, Jinding Industrial Park, West Jinfeng Road, Tangjiawan Town, Xiangzhou District Zhuhai Guangdong China Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6, Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755) 26639496 Report Number ： ACS-F12184 Date of Test ： Aug.06~08, 2012 Date of Report ： Sep.05, 2012 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:OO9GK-100012CPT Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12184 TABLE OF CONTENTS Description Page 1. SUMMARY OF STANDARDS AND RESULTS.......................................................... 1-1 1.1. Description of Standards and Results .................................................................................. 1-1 2. GENERAL INFORMATION ......................................................................................... 2-1 2.1. Description of Device (EUT) ............................................................................................... 2-1 2.2. EUT Configuration and operation conditions for test.......................................................... 2-1 2.3. Test Facility ......................................................................................................................... 2-2 2.4. Measurement Uncertainty (95% confidence levels, k=2) .................................................... 2-2 3. RADIATED EMISSION TEST ...................................................................................... 3-1 3.1. Test Equipment .................................................................................................................... 3-1 3.2. Block Diagram of Test Setup ............................................................................................... 3-1 3.3. Radiated Emission Limit Standard: FCC 15.209 and 15.249 .............................................. 3-2 3.4. EUT Configuration on Test.................................................................................................. 3-3 3.5. Operating Condition of EUT................................................................................................ 3-3 3.6. Test Procedure...................................................................................................................... 3-3 3.7. Radiated Emission Test Results ........................................................................................... 3-3 4. 20 DB BANDWIDTH TEST ........................................................................................... 4-1 4.1. Test Equipment .................................................................................................................... 4-1 4.2. Limit..................................................................................................................................... 4-1 4.3. Test Results .......................................................................................................................... 4-1 5. BAND EDGE COMPLIANCE TEST ............................................................................ 5-1 5.1. Test Equipment .................................................................................................................... 5-1 5.2. Limit..................................................................................................................................... 5-1 5.3. Test Produce ......................................................................................................................... 5-1 5.4. Test Results .......................................................................................................................... 5-2 6. ANTENNA REQUIREMENT ........................................................................................ 6-1 7. RADIO FRREQUENCY EXPOSURE COMPLIANCE.............................................. 7-1 8. TEST SOFTWARE.......................................................................................................... 8-1 9. DEVIATION TO TEST SPECIFICATIONS................................................................ 9-1 10. PHOTOGRAPH OF TEST ........................................................................................... 10-1 10.1. Photos of Radiated Emission Test (30-1000MHz) ............................................................ 10-1 11. PHOTOGRAPH OF EUT ............................................................................................. 11-1 R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:OO9GK-100012CPT page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12184 1-1 1. SUMMARY OF STANDARDS AND RESULTS 1.1. Description of Standards and Results The EUT have been tested according to the applicable standards as referenced below. EMISSION Description of Test Item Standard Results Radiated Emission Test FCC Part 15C: 15.209 FCC Part 15C: 15.249 ANSI C63.10-2009 PASS Band Edge Compliance Test FCC Part 15: 15.249 ANSI C63.10-2009 PASS 20dB Bandwidth Test FCC Part 15: 15.215 ANSI C63.10-2009 PASS R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:OO9GK-100012CPT page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12184 2-1 2. GENERAL INFORMATION 2.1. Description of Device (EUT) Product Name : 2.4GHz Wireless Mouse Model Number : GK-100012CP/T FCC ID : OO9GK-100012CPT Operation frequency : 2402MHz-2479MHz Antenna : Integrated PCB antenna, 0dBi gain Modulation : GFSK Power Supply : DC1.5V Applicant : G. tech Technology Ltd. No.21, Jinding Industrial Park, West Jinfeng Road, Tangjiawan Town, Xiangzhou District Zhuhai Guangdong China Manufacturer : G. tech Technology Ltd. No.21, Jinding Industrial Park, West Jinfeng Road, Tangjiawan Town, Xi…

Text truncated - open the document above for the full version.

R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:OO9GK-100012CPT page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12184 10-1 10. PHOTOGRAPH OF TEST 10.1.Photos of Radiated Emission Test (30-1000MHz) R AUDIX Technology (Shenzhen) Co., Ltd. FCC ID:OO9GK-100012CPT page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F12184 10-2 (At Anechoic 3m Chamber Test 1GHz -6GHz)
