OO9HT03Wireless Keyboard

F Wireless Multimedia Keyboard(HT03) and Laser Mouse Desktop Instruction Manual - 1 - Thank you for your purchasing the RF Laser Mouse and Multimedia keyboard bundle. This USB combo is composed of 7-button Laser mouse with USB dongle receiver and 14-Multimedia key keyboard. INSTALLING BATTERIES The wireless Laser Mouse uses two AA batteries. The Multimedia keyboard uses two AA batteries. Installing batteries for the mouse and keyboard as follow: 1 Open the battery compartment cover. 2 Insert the AA MAXELL batteries into the mouse battery compartments as indicated by the polarity symbols (+and-) marked inside. Insert the AA batteries into the keyboard’s battery compartments as indicated by the polarity symbols (+and-) marked inside. 3 Replace the battery compartment covers. CONNECTING RECEIVER 1 Make sure your computer system is turned ON. 2 Plug the USB port of receiver into the USB port of your computer. 3 Set up the receiver at least 20CM (8 inches) away from other electronic devices. Such as monitor and external storage drives. SETTING UP THE ID WIRELESS LINK 1 Start up your computer. 2 Press “connect” of receiver the indicator will light on and the receiver is successful to connection. 3 Press “connect” of keyboard the connection indicator the Receiver indicator light goes off, the keyboard is working. 4 Press “connect” of receiver the indicator will light on and the receiver is successful to connection.0 5 Press “connect” of Mouse the Receiver connection indicator light goes off, the Mouse is working. a. Please repeat step 2 to step 3 and step 4 to step 5 for the first use or changing batteries. b. Keyboard and Mouse will have a set of ID CODE to avoid interference when a lot of RF products using in the same place, you should change the ID CODE as some occasionally interfering. (Please follow step2, step 3 and step4, step 5.) c. “ A ” light on your computer means Capital ON state,
1  light on your computer means Num Lock ON state. INSTALLING THE SOFTWARE You can achieve some function without software under system Win/Me /2000/XP. To take advantage of all the features of your laser Mouse and Multimedia keyboard, please install the software that comes with the product. 1 Turn on your computer and start Windows; 2 Insert the software of CD, run SETUP files of KEYBOARD and MOUSE. F Wireless Multimedia Keyboard(HT03) and Laser Mouse Desktop Instruction Manual - 2 - 3 Following the on–screen instructions. The wireless keyboard and mouse offer 1 channels. The receiver automatically detects the channel of the mouse and keyboard. CHECKING BATTERY POWER There are a low-power LED on Laser mouse. When the batteries are low, the LED will flash. Please change new battery for the Mouse. Note: The LED on Mouse can’t light when the batteries no power. The LED on the mouse will be off when the batteries are almost no power. And when you click the buttons of the mouse every time, the low-power LED will light. MULTIMEDIA FUNCTIONS The multimedia key can set-up by software as what you like, such as software what you like using can be set-up shortcut key. 1 If you use Windows 98, please be sure install the driver enclosed the package before connecting the keyboard and mouse. 2 You can achiever the multimedia function and not need to install the software if you use Microsoft Windows XP. Mouse wheel function
There is a wheel button on the mouse except left and right button. (the third key). It can be scroll. When you scroll the wheel the file or the Web will be rolled.
The key 4 is Page Up function of default setting.
The key 5 is Page Down function of default setting.
Press key 6 the Mouse is 1200DPI, green light.
Press key 7 the Mouse is 800 DIP, orange light. You can set-up function of the key3, key4, key5 when you install the driver. F Wireless Multimedia Keyboard(HT03) and Laser Mouse Desktop Instruction Manual - 3 - ADDITIONAL BUTTON OF MOUSE 1. There are two additional 4 and 5 on left side on mouse. The two buttons are using in page-up and page-down on acquiescence operating system. You can set-up this two button as you like when installing CD driver. 2. Key 6 and key 7 are PDI changing key. 3. Default DPI setting: 800DPI Mouse will be in sleep mode after the mouse stop working 1 minute. If you want to make it awake, please remove the mouse or click the buttons, the Mouse will be work. CLEANING MOUSE Please clean the mouse using cotton with disinfector Optical Mouse need not clean normally, but when your mouse did not moving as quickly please check back of mouse. If there is dust please cleaning lends with cotton, and do not using impregnant and disinfector. TROUBLES SHOOTING Please do not open mouse or keyboard if you cannot solve problems, please contact agent of location. A    Mouse or keyboard not detected. 1 Make sure the batteries installed correctly. 2 Make sure the batteries have enough power. 3 Make sure the receiver is correctly connected. 4 If your desktop are red or glass, please use normally mouse pad. 5  Check if there is dust on the back of mouse. 6  Please disconnect the connection between receiver and computer, and connect more one time. B    Mouse cursor moving un-agility 1 For 27MHZ performance, place the receiver at least 20CM (8 inches) away from other electronic devices, such as monitor or external storage drives. 2 Shorten the distance between the mouse and receiver. 3 Keep the receiver at least 20CM (8 inches) away from the mouse to avoid interference. Because interference will be appear as keyboard and mouse working in same time, if shorten distance between them to mouse, the mouse working will be infection. C    Keyboard missing-keys. 1 Make sure the batteries have enough power. 2 Keep the Receiver at least 20CM (8 inches) away from the keyboard to avoid interference, such as monitor or external storage drives. 3 Shorten the distance between receiver and keyboard. D    There are errors action …

Text truncated - open the document above for the full version.

11 22 33 44 D D C C B B A A D a t e : F i l e n a m e : D r a w n T I T L E : HT03 Block Diagram A p p r o v e d C o n f i r m e d b y : b y : b y : V e r s i o n G T - R 0 1 0 1 - A NO. Key Input Data output VCC Data out Oscillator1 Power Amplification ANT Power control Key output Key Matrix Connect Power control MCU LED1 TXD VCC BATTERY DC-DC Low Voltage Detector CH1 TX CH1=27.045MHz OSC1 SW1Connect

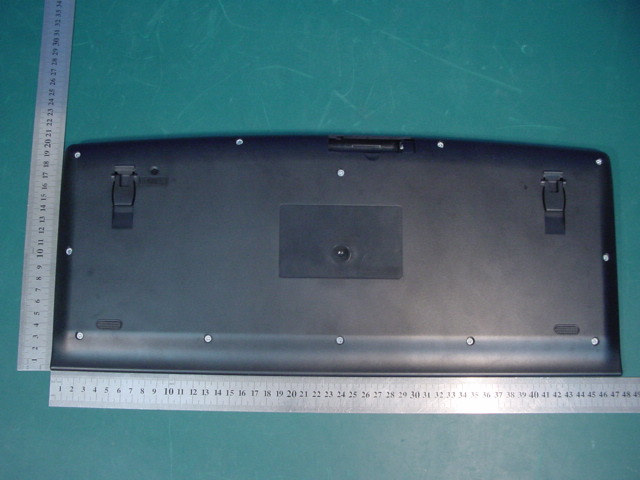

Wireless Keyboard HT03 external photo

Wireless Keypad HT03 internal photo

Page 1 of 1 Product Operation Description of HT03 This product HT03 is wireless multimedia keyboard, which has 104/105 standard keys and some multimedia keys such as Home, Search, Favorites, etc. It uses two AA batteries. There is a low-power LED indicator on the keyboard. When the batteries are low, the LED will flash. Please change new battery for the Keyboard. The main function of HT03 is modulating pressing keys message and transmitting RF signal to associated receiver. HT03 has one working channel, and the operation frequency range is 26.96 to 27.28MHz. The “CONNECT” key on HT03 is used to setup of the wireless link between the keyboard and its receiver at first time of use or while changing the battery. While the “CONNECT” key of the receiver is pressed, the indicator on the receiver will light on and the receiver is successfully prepared for connection. Then press “CONNECT” key of HT03, the Receiver connection indicator light goes off, the Keyboard is working. To setup the connection between the Keypad and the receiver, place the receiver at least 20cm (8 inches) away from other electronics devices, such as monitor and external storage drives.

11 22 33 44 55 66 D D C C B B A A D a t e : F i l e n a m e : E:\tcx\GT2006\HT03\V12\HT03V12SCH.SCHDOC D r a w n T I T L E : HT03V12-SCH A p p r o v e d C o n f i r m e d b y : b y : b y : V e r s i o n V12 文件 编号 G T - R 0 1 0 1 - A 1 J3 BAT+ 1 J4 BAT- L5 0406-220uH C6 47uF/10V C3 22uF/16V D7 1N5819 VCC BAT+ T1 T2 Vout 2 Vin 3 GND 1 U5 TP331A R322K VCC /Reset VCC C2030pFC2130pF XTAL2XTAL1 XTAL1XTAL2 1 23 Q1 9014 R422K R5 22K C2 1uF X32M T3 PE3(LED) 19 PE2(LED) 18 PB1 9 VSS 17 PD4 16 NC 12 PD7 13 PD6 14 PD75 15 PB5 1 PB4 2 PA3 3 PA2 4 PA1 5 PA0 6 PB3 7 PB2 8 NC 11 PB0 10 PC0 20 PC1 21 PC2 22 PE0 23 PE1 24 PC3 25 PC4 26 PC5 27 PC6 28 PC7 29 PD0 30 PD1 31 PD2 32 PD3 33 PE4(LED) 34 RESET 35 VDD 36 OSC1 37 OSC2 38 NC 39 NC 40 NC 41 NC 42 PA7 43 PA6 44 PA5 45 PA4 46 PB7 47 PB6 48 U3 HT82K68E R10R9 R3 R4R5R6R7R8R1 R14R13R15R16 R17R18 R11 R2 C1C2C3C4 C5 C6C7C8 /Reset C560.1uF R12 R2R3R4R5R6R7R9R1R8R10R11R13R15R16R17R18R12C2C3C4C5C6C7C8C1 CH1 TXD VCC XTAL1XTAL2 A0 1 A1 2 A2 3 VSS 4 SDA 5 SCL 6 WP 7 VCC 8 U4 S524A40X21 SCL SDA VCC C1 1uF SDASCL LED1/ID-KEY R1010K VCC C1833pFC1733pFC1633pFC1533pFC1433pFC1333pFC1233pFC1133pF R810K R14C6 LED1/ID-KEY C4 R16C6C1 R12 R17 R18 C2 C1 C2 C3 C4 C5 C6 C7C8 BAT+ 123456789101112131415161718 P1 12345678910 P2 VCC R1622K R13 10K R1210K VCC R20220R LED13R2SD GND 3 VCC 2 OUT 1 U2 TP74N22-89 BAT+ C70.1uF TXD T7 T8 T9 T10 T11 T12 T13 T14 T15 T6 12 SW8 Caculator 12 SW15 Mute 12 SW13 Vol+ 12 SW14 Vol- 12 SW3 E-Mail12 SW2 Web C7C1C6 C7 C5 C4 R12R17 R18 R12R17 R18 12 SW4 WWWSTOP 12 SW5 SEARCH 12 SW10 MEDIA 12 SW7 Computer 12 SW6 Sleep 12 SW9 Favorit 12 SW11 Play/Pause 12 SW12 NEXT C4 R17 R17 C8 C8 R12 C4 R18 C4 R16 C2 R18 C6 R12 C5 R8 R15 22K C25 100pF R2568K 1 23 Q5 KSC2223Y C40.1uF C5 0.1uF R247K R26220R C27 1000pF 1 23 Q6 9014 C26 47pF C2915pF VCC X1 27.045M C19 100pF R29 47R CH1 1 23 Q7 KSC2223Y R27 22K R28 10R L6 2.2uH C32 68pF C33 22pF C28 15pF C30 10uF R18 47K C35 15PF C31 OR L7 *uH ANT1 T4 T5 CH1 R302.2uH R191M 123456789101112 P412PIN 123456789 101112 P512PIN C8 C7 T16 T17 T18T19T20 T21 T22 T23 T24 T25 T26T27T28 T29T30T31 T32 T33 T34 SW1TS-1102-8.0 12 ANT2 C34 * C36 * 1.5UH

Produkte Products Prüfbericht - Nr.: Test Report No.: 16008615 001 Seite 2 von 15 Page 2 of 15 TEST SUMMARY 5.1 CONDUCTED EMISSION FOR FCC PART 15 PER SECTION 15.207(A) RESULT: N/A 5.2 RADIATED EMISSION FOR FCC PART 15 PER SECTION 15.209(A) RESULT: Pass 5.3 FUNDAMENTAL AND HARMONICS RADIATED EMISSION FOR FCC PART 15 PER SECTION 15.227 RESULT: Pass Produkte Products Prüfbericht - Nr.: Test Report No.: 16008615 001 Seite 3 von 15 Page 3 of 15 Contents 1 GENERAL REMARKS................................................................................................................ 4 1.1 COMPLEMENTARY MATERIALS.............................................................................................. 4 2 TEST SITES............................................................................................................................... 4 2.1 TEST FACILITIES..................................................................................................................... 4 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS................................................................ 5 2.3 TRACE ABILITY........................................................................................................................ 5 2.4 CALIBRATION.......................................................................................................................... 5 2.5 MEASUREMENT UNCERTAINTY.............................................................................................. 6 2.6 LOCATION OF ORIGINAL DATA................................................................................................ 6 2.7 STATUS OF FACILITY USED FOR TESTING................................................................................ 6 3 GENERAL PRODUCT INFORMATION........................................................................................ 6 3.1 PRODUCT FUNCTION AND INTENDED USE.............................................................................. 7 3.2 RATINGS AND SYSTEM DETAILS............................................................................................. 7 3.3 INDEPENDENT OPERATION MODES........................................................................................ 7 3.4 SUBMITTED DOCUMENTS........................................................................................................ 8 4 TEST SET-UP AND OPERATION MODE.................................................................................... 8 4.1 PRINCIPLE OF CONFIGURATION SELECTION.......................................................................... 8 4.2 TEST OPERATION AND TEST SOFTWARE................................................................................ 8 4.3 SPECIAL ACCESSORIES AND AUXILIARY EQUIPMENT........................................................... 8 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE......................................................... 8 4.5 TEST SET-UP............................................................................................................................. 9 5 TEST RESULTS E MI S S I ON.......................................................................................... 10 5.1 CONDUCTED EMISSION FOR FCC PART 15 PER SECTION 15.207(A) .................................. 10 5.2 RADIATED EMISSION FOR FCC PART 15 PER SECTION 15.209(A) ...................................... 11 5.3 FUNDAMENTAL AND HARMONICS RADIATED EMISSION FOR FCC PART 15 PER SECTION 15.227 ................................................................................................................................................ 12 6 PHOTOGRAPHS OF THE TEST SET-UP................................................................................... 13 7 LIST OF TABLES..................................................................................................................... 15 8 LIST OF PHOTOGRAPHS......................................................................................................... 15 Produkte Products Prüfbericht - Nr.: Test Report No.: 16008615 001 Seite 4 von 15 Page 4 of 15 1 General Remarks 1.1 Complementary Materials All attachments are integral parts of this test report. This applies especially to the following appendix: Appendix 1: Test result 2 Test Sites 2.1 Test Facilities Shenzhen SMQ Shenzhen Bureau of Quality Technical Supervision Shenzhen Academy of Metrology and Quality Inspection Bldg, of Shenzhen Academy of Metrology and Quality Inspection Longzhu Road, Nanshan, Shenzhen, P.R. China Produkte Products Prüfbericht - Nr.: Test Report No.: 16008615 001 Seite 5 von 15 Page 5 of 15 2.2 List of Test and Measurement Instruments Table 1: List of Test and Measurement Equipment Kind of Equipment Manufacturer Type S/N Calibrated until EMI Test Receiver Rohde & Schwarz ESI26 838786/013 29.01.2007 Signal Generator Rohde & Schwarz SMR20 100047 29.01.2007 Bilog Antenna Chase CBL6112B 2591 29.01.2007 3m Semi-anechoic chamber Albatross Projects 9X6X6 ---- 29.01.2007 Loop Antenna Schwarzbeck FMZB1516 113 29.01.2007 2.3 Trace ability All measurement equipment calibrations are traceable to NIST or where calibration is performed outside the United States, to equivalent nationally recognized standards organizations 2.4 Calibration Equipment requiring calibration is calibrated periodically by the manufacturer or according to manufacturer’s specifications. Additionally all equipment is verified for proper performance on a regular basis using in house standards or comparisons. Produkte Products Prüfbericht - Nr.: Test Report No.: 16008615 001 Seite 6 von 15 Page 6 of 15 2.5 Measurement Uncertainty The estimated combined standard uncertainty for conducted emissions measurements is ± 3 dB. The estimated combined standard uncertainty for radiated emissions measurements is ± 3 dB. 2.6 Location of original data The original copies of all test data taken during actual testing were attached at Appendix 1 of this report and delivered to t…

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report No.: 16008615 001 Seite 13 von 15 Page 13 of 15 6 Photographs of the Test Set-Up Photograph 1: Set-up for Radiation Measurement Below 30MHz Produkte Products Prüfbericht - Nr.: Test Report No.: 16008615 001 Seite 14 von 15 Page 14 of 15 Photograph 2: Set-up for Radiation Measurement below 1GHz
