OO9K9002Wireless Keyboard

- 1- RF Wireless Slim Keyboard and Mouse Desktop Instruction Manual Version: GT3.0 The wireless keyboard and optical mouse operate with digital radio technology. There is no connecting cable to pile up desktop. The keyboard and mouse use radio frequencies to send data to the receiver, which forwards these to your computer. You can use the keyboard and mouse on any computer equipped with a free USB interface. There are two channels, CH1 and CH2 for your selection. CE marking This equipment complies with the requirements of Directive 1999/5/EC of the European Parliament and Commission from 9 March 1999 governing Radio and Telecommunications Equipment and mutual recognition of conformity. BATTERY INSTALLATION The cordless optical mouse uses two AAA rechargeable batteries. pic.1 1. Press the tab to remove the battery compartment cover on the bottom of the mouse. 2. Insert two supplied AAA rechargeable batteries in the battery compartment according to the polarity marked inside. 3. Replace the cover. The cordless keyboard uses two AAA batteries. pic.2 1. Press the tab to remove the battery compartment cover on the bottom of the cordless keyboard. 2. Insert two AAA batteries according to the polarity marked inside. 3. Replace the cover. PDF created with FinePrint pdfFactory trial version http://www.fineprint.com 1 BATTERY NOTES l Dispose of old batteries promptly and properly. l Do not burn or bury batteries. l Use only fresh batteries of the required size and recommended type. l Do not mix old and new batteries, different types of batteries (standard, alkaline or rechargeable), or rechargeable batteries of different capacities. l If you do not plan to use the mouse or the keyboard for more than a week, remove the batteries. Batteries can leak chemicals that may damage electronic parts. l Each time you replace the batteries, repeat the mouse or keyboard setup by following “setting up the ID wireless link.” CONNECTING TO AC POWER Power the receiver using the supplied 7.5V, 300mA AC/DC adapter. CAUTION: ! You must use a Class 2 power source that supplies 7.5V DC and delivers at least 300mA. Its center tip must be set to positive and its plug must fit the receiver’s DC 7.5V jack. The supplied adapter meets these specifications. Using an adapter that does not meet these specifications could damage the receiver or the adapter. CONNECTING THE RECEIVER 1. Make sure your computer is turn off. 2. Connect the receiver's cable to the USB port of your computer . 3. Connect the adapter to a standard AC outlet. 4. Turn on your computer. Set up the receiver at least 20 cm away from other electronic devices, such as the computer monitor or external storage drives, to achieve optimum performance. Note: Maintain a distance - even in office environments - with the keyboard, mouse and receiver of at least five meters from other radio devices to prevent interference during transmission of the signals. The receiver has two lights “ lA ” and “ II ” indicating the state of Caps lock and numeral keys. PDF created with FinePrint pdfFactory trial version http://www.fineprint.com 2 SETTING UP THE ID WIRELESS LINK Set up your Keyboard and Mouse ID wireless link separately. Slim Keyboard 1. Press CONNECT key on the receiver after booting the system. The green LED inside the connect key will light on. 2. To set up the keyboard wireless link, press CONNECT key on the bottom of the slim keyboard. The green LED will go off. A 1 pic.3 Optical mouse 1. Press CONNECT key on the receiver after booting the system. The green LED inside the connect key will light on. 2. To set up the mouse wireless link, press CONNECT key on the bottom of the mouse. The green LED will go off. A 1 pic4 Note: The setup must be completed within one minute. If the setup time exceeds one minute, repeat the procedure. SETTING CHANNEL The wireless optical mouse and multimedia keyboard offer 2 channels, CH1 and CH2. Interference can be removed by adjusting the channels. The operation of setting channels PDF created with FinePrint pdfFactory trial version http://www.fineprint.com 3 is as bellows: For mouse to set channel If you decide to use “CH 1” for mouse, 1. Remove the battery compartment cover on the mouse, turn the button inside the compartment to “ CH 1 “ and replace and close the cover. 2. Press the “ CONNECT “ key on the receiver. 3. Press the “CONNECT” key on the bottom of the mouse. Then the CH1 can be set successfully. Note: the same way for “ CH 2 “ setting. For keyboard to set channel The channel of keyboard can be detected automatically. If you decide to use “ CH 1 “ for keyboard, you just turn the button on the bottom of the keyboard to “ CH 1 “, then the CH1 can be set successfully. If you want to change to “ CH 2 “, you just turn the button to “ CH 2 “, then the keyboard can be changed to “ CH 2 “. Pic6 CHANGING COMMUNICATION CODE The desktop has a communication code to the computer to avoid interference with other desktops. Change the code if there is any interference. The interference only exists when more than one mouse and keyboard are used at the same time. It need you reset the ID wireless link A 1 Pic5 PDF created with FinePrint pdfFactory trial version http://www.fineprint.com 4 The operation is same as that SETTING UP THE ID WIRELESS LINK BATTERY LOW WARNING On the Mouse The mouse has a battery-low indicator, which will light RED when battery has low power. On the Keyboard When you press any key, the power indicator & on the keyboard lights RED to show the keyboard batteries are out of power. Pic8 Charging the Batteries on the Mouse Charging the rechargeable batteries of the mouse for the first time, place it in the charging unit of the receiver for approximately 12 hours to 16 hours to charge the batteries. For the later use, it will take only 2 hours to realize quickly charge. Make sure the adapter is connected to the power. 1. Put the mouse on the charging-stand as shown. 2. The mouse power indicator will light RED, indicating ch…

Text truncated - open the document above for the full version.

1 2 34 ABCD 4 3 2 1 D CBA D a t e : F i l e n a m e : E:\tcx\k9002\V12\K9002-blk.sch D r a w n T I T L E : K9002 block diagram A p p r o v e d C o n f i r m e d b y : b y : b y : V e r s i o n 1 . 0 文件 编号 G T - R 0 1 0 1 - A Key Input Data output VCC Data out Oscillator1 Power Amplification ANT Power control Key output Key Matrix Reset Power control MCU Oscillator2 Low Voltage Detector LED Power control VCC DC/DC Convertor BATTERY Channel2 Channel Control Channel1 Reset GND 2 1 3 ID ID KEY

Wireless keyboard K9002 external photo

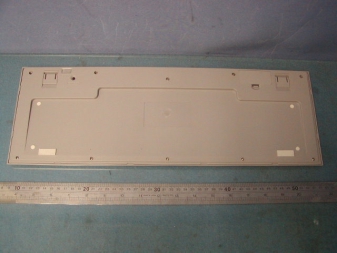

Wireless Keyboard K9002 internal photo

Page 1 of 1 Product Operation Description This product K9002 is wireless keyboard, which are 104/105 standard keys, 6 multimedia keys and use two AAA batteries. The main function of K9002 is modulating pressing keys message, transmit RF signal to associated receiver. The operation frequency range is 26.96 to 27.28MHz, K9002 has two channels, and the frequency channel can be selected via change a switch on the bottom, then press CONNECT key on the bottom of the keyboard, also you need to press CONNECT key on the receiver at the same time, the connection will be set up within one minute. The keyboard K9002 has a battery-low indicator, when you press any key and the power indicator become red, that means the batteries are out of power.

123456 A B C D 654321 D C B A Date: Filename: E:\tcx\k9002\V12\K9002v12sch.sch Drawn TITLE: K9002-SCH Approved Confirmed by: by: by: Version V10 文 件 编 号 GT-R0101-A 1 J3 BAT+ 1 J4 BAT- L5 0406-220uH C6 100uF/10V C19 10uF/16V D7 1N5819 VCC BAT+ T1 T2 Vout 2 Vin 3 G N D 1 U5 RT9261-33CX R3 22K VCC /Reset VCC C20 30pF C21 30pF XTAL2 XTAL1 XTAL1 XTAL2 1 2 3 Q1 9014 R4 22K R5 22K SW1 TS-04P C2 1uF X3 2M T3 PE3(LED) 19 PE2(LED) 18 PB1 9 VSS 17 PD4 16 NC 12 PD7 13 PD6 14 PD75 15 PB5 1 PB4 2 PA3 3 PA2 4 PA1 5 PA0 6 PB3 7 PB2 8 NC 11 PB0 10 PC0 20 PC1 21 PC2 22 PE0 23 PE1 24 PC3 25 PC4 26 PC5 27 PC6 28 PC7 29 PD0 30 PD1 31 PD2 32 PD3 33 PE4(LED) 34 RESET 35 VDD 36 OSC1 37 OSC2 38 NC 39 NC 40 NC 41 NC 42 PA7 43 PA6 44 PA5 45 PA4 46 PB7 47 PB6 48 U3 HT82K68E R10 R9R3 R4 R5 R6 R7 R8 R1 R14 R13 R15 R16 R17 R18 R11 R2 C1 C2 C3 C4C5 C6 C7 C8 /Reset C56 0.1uF R12 R2 R3 R4 R5 R6 R7 R8 R9 R10 R11 R12 R13 R9 R15 R16 R17 R18 R1 C2 C3 C4 C5 C6 C7 C8 C1 CH1 TXD VCC XTAL1 XTAL2 CH2 A0 1 A1 2 A2 3 VSS 4 SDA 5 SCL 6 WP 7 VCC 8 U4 KS24C010 SCL LED2/SDA VCC C1 0.1uF LED2/SDA SCL LED1/ID-KEY R10 10K VCC C18 33pF C17 33pF C16 33pF C15 33pF C14 33pF C13 33pF C12 33pF C11 33pF VCC R8 10K R14 R8 LED2/SDA LED1/ID-KEY 12 SW4 Caculator 12 SW5 Mute 12 SW6 Vol+ 12 SW7 Vol- 12 SW3 E-Mail 12 SW2 Web C7 C1 C6 C7 C5 C4R12 R17 R18 R12 R17 R18 C4 C5 C6 C7 R12 R17 R18 C1 C1 C2 C3 C4 C5 C6 C7 C8 1 2 3 4 5 6 7 8 9 10 P3 10PIN 1 2 3 4 5 6 7 8 9 10 P4 10PIN BAT+ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 P1 1 2 3 4 5 6 7 8 9 10 P2 2 1 3 SW8 SW 1-2 VCC ch_check R16 220R ch_check R19 22K R13 10K R12 10K VCC R7 2.2K R20 220R LED3 3R2SD GND 3 VCC 2 OUT 1 U2 RT9808-21CX BAT+ C7 0.1uF R15 22K C23 56pF C25 56pF R25 22K 1 2 3 Q5 KSC2223Y C4 0.1uF C5 0.1uF R2 47K R17 47K R26 1K R11 2.2K C27 1000pF 1 2 3 Q6 9014 C26 56pF C29 12pF VCC X2 27.195M X1 27.045M C9 100pF R29 47R CH1 TXD T16 1 2 3 Q7 KSC2223Y R27 22K R28 10R L6 S M D - 2 . 2 u H C31 30pF C32 30pF C33 30pF C28 220pF 1 2 3 Q8 KSC2223Y CH2 C30 22uF R1 22K R18 22K T4 T5 1 2 ANT1 C35 * C36 * C34 * T6 T7 T8 T9 T10 T11T12 T13 T14 T15 1 ANT2 L7 0410-6.8uH PDF created with FinePrint pdfFactory trial version http://www.fineprint.com

Produktsicherheit und –qualität Product Safety and Quality Prüfbericht - Nr.: Test Report No.: 16003124 001 Seite 2 von 15 Page 2 of 15 TEST SUMMARY 5.1 CONDUCTED EMISSION FOR FCC PART 15 PER SECTION 15.207(A) RESULT: n.a. 5.2 RADIATED EMISSION FOR FCC PART 15 PER SECTION 15.209(A) RESULT: ok 5.3 FUNDAMENTAL AND HARMONICS RADIATED EMISSION FOR FCC PART 15 PER SECTION 15.227 RESULT: ok Produktsicherheit und –qualität Product Safety and Quality Prüfbericht - Nr.: Test Report No.: 16003124 001 Seite 3 von 15 Page 3 of 15 Contents 1 GENERAL REMARKS................................................................................................................ 4 1.1 C OMPLEMENTARY MATERIALS.............................................................................................. 4 2 TEST SITES...............................................................................................................................4 2.1 TEST FACILITIES...................................................................................................................... 4 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS................................................................ 5 2.3 T RACE ABILITY........................................................................................................................ 5 2.4 CALIBRATION........................................................................................................................... 5 2.5 MEASUREMENT UNCERTAINTY............................................................................................... 6 2.6 LOCATION OF ORIGINAL DATA................................................................................................ 6 2.7 STATUS OF FACILITY USED FOR TESTING................................................................................ 6 3 G ENERAL PRODUCT INFORMATION........................................................................................ 6 3.1 PRODUCT FUNCTION AND INTENDED USE............................................................................... 7 3.2 R ATINGS AND SYSTEM DETAILS.............................................................................................. 7 3.3 INDEPENDENT OPERATION MODES......................................................................................... 7 3.4 SUBMITTED DOCUMENTS........................................................................................................ 8 4 T EST SET-UP AND OPERATION MODE..................................................................................... 8 4.1 P RINCIPLE OF CONFIGURATION SELECTION.......................................................................... 8 4.2 T EST OPERATION AND TEST SOFTWARE................................................................................ 8 4.3 S PECIAL ACCESSORIES AND AUXILIARY EQUIPMENT............................................................ 8 4.4 C OUNTERMEASURES TO ACHIEVE EMC COMPLIANCE......................................................... 8 4.5 T EST SET-UP............................................................................................................................. 9 5 TEST RESULTS E M I S S I O N .......................................................................................... 10 5.1 CONDUCTED EMISSION FOR FCC PART 15 PER SECTION 15.207(A) .................................. 10 5.2 RADIATED EMISSION FOR FCC PART 15 PER SECTION 15.209(A) ...................................... 11 5.3 FUNDAMENTAL AND HARMONICS RADIATED EMISSION FOR FCC PART 15 PER SECTION 15.227 ............................................................................................................................................... 12 6 P HOTOGRAPHS OF THE TEST SET-UP................................................................................... 13 7 LIST OF TABLES..................................................................................................................... 15 8 L IST OF PHOTOGRAPHS......................................................................................................... 15 Produktsicherheit und –qualität Product Safety and Quality Prüfbericht - Nr.: Test Report No.: 16003124 001 Seite 4 von 15 Page 4 of 15 1 General Remarks 1.1 Complementary Materials All attachments are integral parts of this test report. This applies especially to the following appendix: Appendix 1: Test result 2 Test Sites 2.1 Test Facilities Shenzhen SMQ Shenzhen Bureau of Quality Technical Supervision Shenzhen Academy of Metrology and Quality Inspection Bldg, of Shenzhen Academy of Metrology and Quality Inspection Longzhu Road, Nanshan, Shenzhen, P.R. China Produktsicherheit und –qualität Product Safety and Quality Prüfbericht - Nr.: Test Report No.: 16003124 001 Seite 5 von 15 Page 5 of 15 2.2 List of Test and Measurement Instruments Table 1: List of Test and Measurement Equipment Kind of Equipment Manufacturer Type S/N Calibrated until EMI Test Receiver Rohde & Schwarz ESI26 838786/013 29.01.2005 Signal Generator Rohde & Schwarz SMR20 100047 01.02.2005 Bilog Antenna Chase CBL6112B 2591 29.01.2005 3m Semi-anechoic chamber Albatross Projects 9X6X6 ---- 29.01.2005 Loop Antenna Schwarzbeck FMZB1516 113 31.01.2005 2.3 Trace ability All measurement equipment calibrations are traceable to NIST or where calibration is performed outside the United States, to equivalent nationally recognized standards organizations 2.4 Calibration Equipment requiring calibration is calibrated periodically by the manufacturer or according to manufacturer’s specifications. Additionally all equipment is verified for proper performance on a regular basis using in house standards or comparisons. Produktsicherheit und –qualität Product Safety and Quality Prüfbericht - Nr.: Test Report No.: 16003124 001 Seite 6 von 15 Page 6 of 15 2.5 Measurement Uncertainty The estimated combined standard uncertainty for conducted emissions measurements is ± 3 dB. The estimated combined s…

Text truncated - open the document above for the full version.

Produktsicherheit und –qualität Product Safety and Quality Prüfbericht - Nr.: Test Report No.: 16003124 001 Seite 13 von 15 Page 13 of 15 6 Photographs of the Test Set-Up Photograph 1: Set-up for Radiation Measurement Below 30MHz Produktsicherheit und –qualität Product Safety and Quality Prüfbericht - Nr.: Test Report No.: 16003124 001 Seite 14 von 15 Page 14 of 15 Photograph 2: Set-up for Radiation Measurement below 1GHz
