RF Wireless Multimedia Keyboard and Laser Mouse (PL7802) Desktop Instruction Manual - 1 - Thank you for your purchasing the RF Laser Mouse and Multimedia keyboard bundle. This USB combo is composed of 7-button Laser mouse with USB dongle receiver and 14-Multimedia key keyboard. INSTALLING BATTERIES The wireless Laser Mouse uses two AA batteries. The Multimedia keyboard uses two AA batteries. Installing batteries for the mouse and keyboard as follow: 1 Open the battery compartment cover. 2 Insert the AA MAXELL batteries into the mouse battery compartments as indicated by the polarity symbols (+and-) marked inside. Insert the AA batteries into the keyboard’s battery compartments as indicated by the polarity symbols (+and-) marked inside. 3 Replace the battery compartment covers. CONNECTING RECEIVER 1 Make sure your computer system is turned ON. 2 Plug the USB port of receiver into the USB port of your computer. 3 Set up the receiver at least 20CM (8 inches) away from other electronic devices. Such as monitor and external storage drives. SETTING UP THE ID WIRELESS LINK 1 Start up your computer. 2 Press “connect” of receiver the indicator will light on and the receiver is successful to connection. 3 Press “connect” of keyboard the connection indicator the Receiver indicator light goes off, the keyboard is working. 4 Press “connect” of receiver the indicator will light on and the receiver is successful to connection.0 5 Press “connect” of Mouse the Receiver connection indicator light goes off, the Mouse is working. a. Please repeat step 2 to step 3 and step 4 to step 5 for the first use or changing batteries. b. Keyboard and Mouse will have a set of ID CODE to avoid interference when a lot of RF products using in the same place, you should change the ID CODE as some occasionally interfering. (Please follow step2, step 3 and step4, step 5.) c. “ A ” light on your computer means Capital ON state,
1  light on your computer means Num Lock ON state. INSTALLING THE SOFTWARE You can achieve some function without software under system Win/Me /2000/XP. To take advantage of all the features of your laser Mouse and Multimedia keyboard, please install the software that comes with the product. 1 Turn on your computer and start Windows; 2 Insert the software of CD, run SETUP files of KEYBOARD and MOUSE. RF Wireless Multimedia Keyboard and Laser Mouse (PL7802) Desktop Instruction Manual - 2 - 3 Following the on–screen instructions. The wireless keyboard and mouse offer 1 channels. The receiver automatically detects the channel of the mouse and keyboard. CHECKING BATTERY POWER There are a low-power LED on Laser mouse. When the batteries are low, the LED will flash. Please change new battery for the Mouse. Note: The LED on Mouse can’t light when the batteries no power. The LED on the mouse will be off when the batteries are almost no power. And when you click the buttons of the mouse every time, the low-power LED will light. MULTIMEDIA FUNCTIONS The multimedia key can set-up by software as what you like, such as software what you like using can be set-up shortcut key. 1 If you use Windows 98, please be sure install the driver enclosed the package before connecting the keyboard and mouse. 2 You can achiever the multimedia function and not need to install the software if you use Microsoft Windows XP. Mouse wheel function
There is a wheel button on the mouse except left and right button. (the third key). It can be scroll. When you scroll the wheel the file or the Web will be rolled.
The key 4 is Page Up function of default setting.
The key 5 is Page Down function of default setting.
Press key 6 the Mouse is 1200DPI, green light.
Press key 7 the Mouse is 800 DIP, orange light. You can set-up function of the key3, key4, key5 when you install the driver. RF Wireless Multimedia Keyboard and Laser Mouse (PL7802) Desktop Instruction Manual - 3 - ADDITIONAL BUTTON OF MOUSE 1. There are two additional 4 and 5 on left side on mouse. The two buttons are using in page-up and page-down on acquiescence operating system. You can set-up this two button as you like when installing CD driver. 2. Key 6 and key 7 are PDI changing key. 3. Default DPI setting: 800DPI Mouse will be in sleep mode after the mouse stop working 1 minute. If you want to make it awake, please remove the mouse or click the buttons, the Mouse will be work. CLEANING MOUSE Please clean the mouse using cotton with disinfector Optical Mouse need not clean normally, but when your mouse did not moving as quickly please check back of mouse. If there is dust please cleaning lends with cotton, and do not using impregnant and disinfector. TROUBLES SHOOTING Please do not open mouse or keyboard if you cannot solve problems, please contact agent of location. A    Mouse or keyboard not detected. 1 Make sure the batteries installed correctly. 2 Make sure the batteries have enough power. 3 Make sure the receiver is correctly connected. 4 If your desktop are red or glass, please use normally mouse pad. 5  Check if there is dust on the back of mouse. 6  Please disconnect the connection between receiver and computer, and connect more one time. B    Mouse cursor moving un-agility 1 For 27MHZ performance, place the receiver at least 20CM (8 inches) away from other electronic devices, such as monitor or external storage drives. 2 Shorten the distance between the mouse and receiver. 3 Keep the receiver at least 20CM (8 inches) away from the mouse to avoid interference. Because interference will be appear as keyboard and mouse working in same time, if shorten distance between them to mouse, the mouse working will be infection. C    Keyboard missing-keys. 1 Make sure the batteries have enough power. 2 Keep the Receiver at least 20CM (8 inches) away from the keyboard to avoid interference, such as monitor or external storage drives. 3 Shorten the distance between receiver and keyboard. D    There are er…

Text truncated - open the document above for the full version.

1 1 2 2 3 3 4 4 5 5 6 6 DD CC BB AA Key Input Left Right Middle Scroll Input Data output VCC Data out Oscillator Power Amplification ANT Tx Power control Tx Power Control Connect key Sensor Detecting Movement Connect Movement VCC DC/DC Convertor BATTERY Crystal Display Memory Memory CH1: 27.145MHz Charge LED LED Charge BATTERY BATTERY 27.145MHz PL7802 Mouse Block Diagram 27.095MHz CH2: 27.095MHz K4 K5 K6 K7 PDF created with FinePrint pdfFactory trial version http://www.fineprint.com

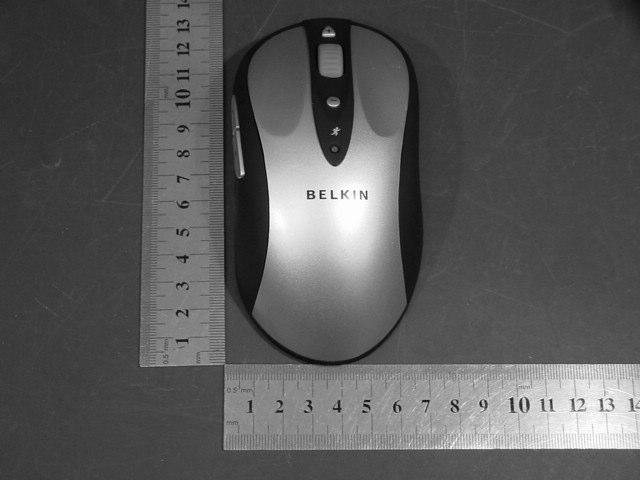

Wireless Mouse PL7802 external photo

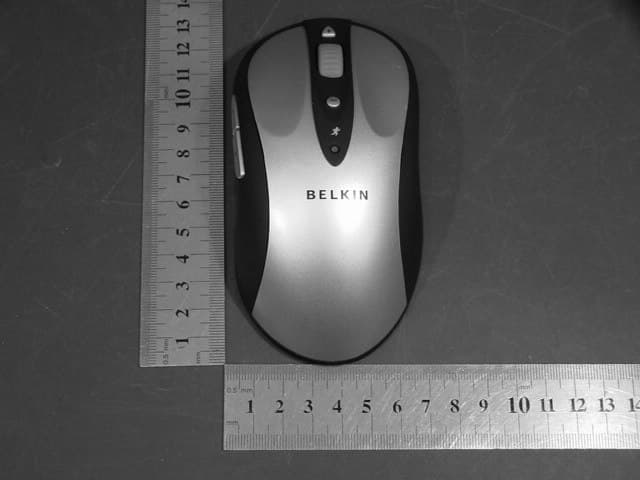

Wireless Mouse PL7802 internal photo

Page 1 of 1 Product Operation Description of PL7802 This product PL7802 is a wireless mouse, which has five buttons: left button, mid-button, fourth and fifth buttons. The mid-button (wheel) functions both as a wheel and a button. There is a low-power LED on Laser mouse. While the LED is flashing for low-battery indication, please change new battery for the Mouse. The main function of PL7802 is modulating pressing keys message, transmitting RF signal to associated receiver. PL7802 has two channels. The operation frequency range is 26.96 to 27.28MHz. The “CONNECT” key on PL7802 is used to setup of the wireless link between the mouse and its receiver at first time of use or while changing the battery. While the “CONNECT” key of the receiver is pressed, the indicator on the receiver will light on and the receiver is successfully prepared for connection. Then press “CONNECT” key of PL7802, the Receiver connection indicator light goes off, the Mouse is working. To setup the connection between the mouse and the receiver, place the receiver at least 20cm (8 inches) away from other electronics devices, such as monitor and external storage drives.

1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 DD CC BB AA Date:Filename: Drawn TITLE: PL7802-SCH Approved Confirmed by:by: by: Version V33 GT-D-R0101 NO. NCS 1 MISO 2 SCLK 3 MOSI 4 MOTION 5 NC 14 NC 17 NC 18 L_NEN 6 AGND 9 AGND 11 AVDD 10 GND 12 GND 13 GND 15 VDD 16 LGND 7 XY_L 8 U1 ADNS-7050 C16 10uF C3 0.1uF L1 PK0406-221K C20 100uF D1 1N5819 T1 C4 0.1uF C21 10uF LED2 VCSEL C24 100uF LX 3 G N D 1 OUT 2 U4 TP7330A-89 ZW3 T2 T4 V+3.0 R14220R CHAR_LEDR R4 51K R23 220K R24 1M V+3.0 /RESET XTAL1 XTAL2 A C B SW4 SW WHEEL R25 220K R26 220K V+3.0 C26 100P C27 100P WHL1 WHL2 C28 30pF C29 30pF Y1 6.0MHz CNTI 1 VDD 2 PB5/AD 3 VSS 4 PB4/AD 5 PB0/AD 6 PB1/AD 7 PB2/AD 8 PB3/AD 9 PA0 10 PA1 11 PA2 12 PC7 25 OSC2 26 PA5 15 PA6 16 PA7 17 PC0 18 PC1 19 PC2 20 PC3 21 PC4 22 PC5 23 PC6 24 PA3 13 PA4 14 OSC1 27 /ERST 28 U3 CR81P200 C6 0.1uF /RESET XTAL2 XTAL1 RF_TXD RF_CH1 SCLK M_KEY L_KEY ID_KEY SDA MOTION NCS EPSCLK DIP2_KEY WHL2 CHAR_LEDR V+3.0 DIP1_KEY BAT1 Ni-MH BAT2 NiMH VB+ R5220R 2 2 1 1 3 3 LED1 3RG9HWA-1-1 Zyy R33 200K RF_CH1 RF_CH2 R6 22K C7 100pF C8 100pF R19 220R C11 0.1uF 1 2 3 Q1 2SC2223A(F13) R43 47R R1 22K R11 100K R12 47K C17 1000pF 1 2 3 Q2 9014 C23 *39pF C34 *15pF V+3.0 X2 27.145M RF_TXD C37 C38 0.1uF L4 10uH C14 100pF C15 30pF C13 30pF L2 2.2uH (U) R7 22K C9 100pF C10 100pF R47 220R 1 ANT1 钢丝天线 1 2 3 Q3 2SC2223A(F13) R2 22K R13 100K R18 47K C19 1000pF 1 2 3 Q4 9014 C33 *39pF C36 15pF X3 27.095M R44 2.2K R46 R45 2.2K Q11 9015 R50 100K ID_KEY V+3.0VB+ RF_CH2 R_KEY K4 NCS EPSCLK SCLK MOTION SDA Q5 9015 V+3.0 C49 10uF C2 0.1uF V+3.0 C50 470pF 1 2 3 4 5 6 7 8 9 10 P1 SIP10 1 2 3 4 5 6 7 8 9 10 P2 SIP10 1 2 3 4 5 6 7 8 P3 SIP8 1 2 3 4 5 6 7 8 P4 SIP8 R_KEY M_KEY GND WHL2 WHL1 L_KEY NCS EPSCLK SCLK MOTION SDA CHAR_LEDG K5 GND GND V+3.0 GND D- D+ C5 0.1uF V+3.0 1 2 3 P7 SIP3 GND EPSCLK SDA R29 210K DIP1_KEY C31C32 T9 TP ZW1 R21 2 1 3 SW2 R 2 1 3 SW3 M 2 1 3 SW1 L 2 1 3 SW6 K4 2 1 3 SW7 K5 SW8 PU SW9 PD T8 DIP2_KEY K5 K4 R_KEY M_KEY L_KEY DIP1_KEY T3 E2P_P_C CHAR_LEDG WHL1 R9 47K ID_KEY V+3.0 SW5 ID_KEY R60 220R LED3 R59 100R A0 1 A1 2 A2 3 VSS 4 SDA 5 SCL 6 WP 7 VCC 8 U2 S-24CC02A C1 0.1uFEPSCLK SDA R55 22K R54 22K C53 30pF V+3.0 Q7 R3 R8 E2P_P_C R10 47K R16 47K R17 47K R20 47K R22 47K R27 47K R28 47K V+3.0 GND R31 000R R32 10K LED4 EC02-0603QGC/FV POWER POWER POWER C12 0.1uF PDF created with FinePrint pdfFactory trial version http://www.fineprint.com

Produkte Products Prüfbericht - Nr.: Test Report No.: 16008617 001 Seite 2 von 15 Page 2 of 15 TEST SUMMARY 5.1 CONDUCTED EMISSION FOR FCC PART 15 PER SECTION 15.207(A) RESULT: N/A 5.2 RADIATED EMISSION FOR FCC PART 15 PER SECTION 15.209(A) RESULT: Pass 5.3 FUNDAMENTAL AND HARMONICS RADIATED EMISSION FOR FCC PART 15 PER SECTION 15.227 RESULT: Pass Produkte Products Prüfbericht - Nr.: Test Report No.: 16008617 001 Seite 3 von 15 Page 3 of 15 Contents 1 GENERAL REMARKS.............................................................................................................. 4 1.1 COMPLEMENTARY MATERIALS............................................................................................ 4 2 TEST SITES............................................................................................................................. 4 2.1 TEST FACILITIES................................................................................................................... 4 2.2 L IST OF TEST AND MEASUREMENT INSTRUMENTS.............................................................. 5 2.3 TRACE ABILITY...................................................................................................................... 5 2.4 CALIBRATION........................................................................................................................ 5 2.5 M EASUREMENT UNCERTAINTY............................................................................................ 6 2.6 L OCATION OF ORIGINAL DATA.............................................................................................. 6 2.7 S TATUS OF FACILITY USED FOR TESTING.............................................................................. 6 3 GENERAL PRODUCT INFORMATION...................................................................................... 7 3.1 P RODUCT FUNCTION AND INTENDED USE............................................................................ 7 3.2 RATINGS AND SYSTEM DETAILS........................................................................................... 7 3.3 I NDEPENDENT OPERATION MODES...................................................................................... 7 3.4 SUBMITTED DOCUMENTS...................................................................................................... 8 4 TEST SET-UP AND OPERATION MODE.................................................................................. 8 4.1 P RINCIPLE OF CONFIGURATION SELECTION........................................................................ 8 4.2 TEST OPERATION AND TEST SOFTWARE.............................................................................. 8 4.3 S PECIAL ACCESSORIES AND AUXILIARY EQUIPMENT......................................................... 8 4.4 COUNTERMEASURES TO ACHIEVE EMC COMPLIANCE....................................................... 8 4.5 TEST SET-UP........................................................................................................................... 9 5 TEST RESULTS E MI S S I ON........................................................................................ 10 5.1 CONDUCTED EMISSION FOR FCC PART 15 PER SECTION 15.207(A) ................................ 10 5.2 RADIATED EMISSION FOR FCC PART 15 PER SECTION 15.209(A) .................................... 11 5.3 FUNDAMENTAL AND HARMONICS RADIATED EMISSION FOR FCC PART 15 PER SECTION 15.227 12 6 P HOTOGRAPHS OF THE TEST SET-UP................................................................................. 13 7 L IST OF TABLES................................................................................................................... 15 8 LIST OF PHOTOGRAPHS....................................................................................................... 15 Produkte Products Prüfbericht - Nr.: Test Report No.: 16008617 001 Seite 4 von 15 Page 4 of 15 1 General Remarks 1.1 Complementary Materials All attachments are integral parts of this test report. This applies especially to the following appendix: Appendix 1: Test result 2 Test Sites 2.1 Test Facilities Shenzhen SMQ Shenzhen Bureau of Quality Technical Supervision Shenzhen Academy of Metrology and Quality Inspection Bldg, of Shenzhen Academy of Metrology and Quality Inspection Longzhu Road, Nanshan, Shenzhen, P.R. China Produkte Products Prüfbericht - Nr.: Test Report No.: 16008617 001 Seite 5 von 15 Page 5 of 15 2.2 List of Test and Measurement Instruments Table 1: List of Test and Measurement Equipment Kind of Equipment Manufacturer Type S/N Calibrated until EMI Test Receiver Rohde & Schwarz ESI26 838786/013 29.01.2007 Signal Generator Rohde & Schwarz SMR20 100047 29.01.2007 Bilog Antenna Chase CBL6112B 2591 29.01.2007 3m Semi-anechoic chamber Albatross Projects 9X6X6 ---- 29.01.2007 Loop Antenna Schwarzbeck FMZB1516 113 29.01.2007 2.3 Trace ability All measurement equipment calibrations are traceable to NIST or where calibration is performed outside the United States, to equivalent nationally recognized standards organizations 2.4 Calibration Equipment requiring calibration is calibrated periodically by the manufacturer or according to manufacturer’s specifications. Additionally all equipment is verified for proper performance on a regular basis using in house standards or comparisons. Produkte Products Prüfbericht - Nr.: Test Report No.: 16008617 001 Seite 6 von 15 Page 6 of 15 2.5 Measurement Uncertainty The estimated combined standard uncertainty for conducted emissions measurements is ± 3 dB. The estimated combined standard uncertainty for radiated emissions measurements is ± 3 dB. 2.6 Location of original data The original copies of all test data taken during actual testing were attached at Appendix 1 of this report and delivered to the applicant. A copy has been retained in the TUV Rheinland (Guangzhou) file for certification follow-up purposes. 2.7 Status of facility used for testing Shenzhen Bureau of Quality Technic…

Text truncated - open the document above for the full version.

Produkte Products Prüfbericht - Nr.: Test Report No.: 16008617 001 Seite 13 von 15 Page 13 of 15 6 Photographs of the Test Set-Up Photograph 1: Set-up for Radiation Measurement Below 30MHz Produkte Products Prüfbericht - Nr.: Test Report No.: 16008617 001 Seite 14 von 15 Page 14 of 15 Photograph 2: Set-up for Radiation Measurement below 1GHz
