OO9TX168Wireless Keyboard

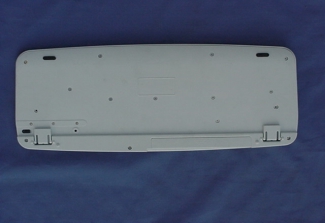

FIGURE 1. General Appearance of EUT, (Front View) FIGURE 2. General Appearance of EUT, (Rear View)

Label Location

FIGURE 1 Inside of the EUT FIGURE 2 Inside of the EUT FIGURE 3 PCB of the EUT, (Front View) FIGURE 4 PCB of the EUT, (Rear View)

FCC ID: OO9TX168 To active the keyboard, please refer to the method described as below: 1. press connect key in the receiver, LEDs turn on 2. click any key in the keyboard, LEDs turn off 3. at this time,you can use the keyboard just as usual keyboard sending data to receiver just when you press any key.

FCC ID: OO9TX168 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F01003 APPLICATION FOR CERTIFICATION On Behalf of G.Tech Technology. Ltd. Wireless Dual Channel Multimedia Keyboard Model : DTK01 Prepared for : G.Tech Technology. Ltd. 7/F, Dongqu Bld., 7, Hai Hong Rd., Xiang Zhou, Zhuhai Sze, Guangdong, China. Prepared By : Audix Technology (Shenzhen) Co., Ltd. No. 6 Ke Feng Rd., 52 Block, Shenzhen Science & Industrial Park, Nantou, Shenzhen, Guangdong, China Tel: (0755)663-9496 Report Number • ACS-F01003 Date of Test • Jan. 11/15, 2001 Date of Report • Jan. 15, 2001 FCC ID: OO9TX168 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F01003 TABLE OF CONTENTS DescriptionPage Test Report Certification 1.GENERAL INFORMATION ............................................................................................................. 1-1 1.1.Description of Device (EUT) ..............................................................................................................1-1 1.2.Tested Supporting System Details.......................................................................................................1-1 1.3.Test Facility......................................................................................................................................1-3 1.4.Measurement Uncertainty....................................................................................................................1-3 2.POWER LINE CONDUCTED EMISSION TEST............................................................................ 2-1 3.RADIATED EMISSION MEASUREMENT..................................................................................... 3-1 3.1.Test Equipment..................................................................................................................................3-1 3.2.Block Diagram of Test Setup ..............................................................................................................3-1 3.3.Radiated Emission Limit (Class B) ......................................................................................................3-2 3.4.EUT Configuration on Measurement....................................................................................................3-2 3.5.Operating Condition of EUT...............................................................................................................3-3 3.6.Test Procedure...................................................................................................................................3-3 3.7.Radiated Emission Noise Measurement Result .....................................................................................3-4 APPENDIX I(9 Pages) FCC ID: OO9TX168 Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F01003 TEST REPORT CERTIFICATION Applicant • G.Tech Technology. Ltd. Manufacturer • G.Tech Technology. Ltd. EUT Description • Wireless Dual Channel Multimedia Keyboard (A) MODEL NO. : DTK01 (B) SERIAL NO. : N/A (C) POWER SUPPLY : DC 4.5V Battery Measurement Procedure Used: FCC Rules and Regulations Part 15 Subpart C October 1998 & ANSI C63.4-1992 The device described above is tested by AUDIX TECHNOLOGY (SHENZHEN) CO., LTD. to determine the maximum emission levels emanating from the device. The maximum emission levels are compared to the FCC Part 15 Subpart C limits both radiated and conducted emissions. The measurement results are contained in this test report and AUDIX TECHNOLOGY (SHENZHEN) CO., LTD. is assumed full responsibility for the accuracy and completeness of these measurements. Also, this report shows that the Equipment Under Test (EUT) is to be technically compliant with the FCC requirements. This report applies to above tested sample only. This report shall not be reproduced in part without written approval of AUDIX TECHNOLOGY (SHENZHEN) CO., LTD. Date of Test :Jan. 11/15, 2001 FCC ID: OO9TX168 Page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F01003 1-1 1. GENERAL INFORMATION 1.1. Description of Device (EUT) Description:Wireless Dual Channel Multimedia Keyboard (This report is about transmitter and the receiver FCC DOC report please refer to AUDIX Number F01005.) Model Number:DTK01 Applicant:G.Tech Technology. Ltd. 7/F, Dongqu Bld., 7, Hai Hong Rd, Xiang Zhou, Zhuhai Sze, Guangdong, China Manufacturer:G.Tech Technology. Ltd. 7/F, Dongqu Bld., 7, Hai Hong Rd, Xiang Zhou, Zhuhai Sze, Guangdong, China Date of Test:Jan. 11 / 15, 2001 1.2. Tested Supporting System Details 1.2.1. PERSONAL COMPUTER Model Number • P2L97 Serial Number • No.1 FCC • Doc Manufacturer • Asus Computer International Co. Switching Power • Model FSP300-60GT SupplySparkle Power Int'l Ltd Floppy Driver • Teac Corp Model FC-235HF Hard Disk Driver • Quantum, Model 7218A2C Disk Ctrl Card • Within Mother Board Serial/Parallel Card • Within Mother Board Power Cord • Nonshielded, Detachable, 1.8m VGA CARD Model Number • DSV3365 Serial Number • E601604161 Manufacturer • Dataexpert CO.,LTD FCC ID:LUT-DSV3365 FCC ID: OO9TX168 Page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F01003 1-2 1.2.2. MONITOR Model Number • KS-M1421 Serial Number • 120954 FCC ID • KVCKS-M1421 Manufacturer • KSAI Electronics Co., Ltd. Data • Shielded, Undetachable,1.2m Power Cord • Nonshielded, Undetachable, 1.2m 1.2.3. PRINTER Model Number • 2225C+ Serial Number • 22937S56660 FCC ID • BS46XU2225C Manufacturer • Hewlett Packard Power Adapter • Hewlett Packard, Model 82241A Data Cable • Shielded, Detachable, 1.5m 1.2.4. MODEM#1 Model Number • MODEM 1414 Serial Number • 980013578 FCC ID • IFAXDM1414 Manufacturer • Aceex Data Cable • Shielded, Detachable, 1.5m AC Adapter • M/N: SCP41-91000A 1.2.5. MODEM#2 Model Number • MODEM 1200AT Serial Number • AT 112153 FCC ID • EF56A5 1200AT Manufacturer • Team Technology, Inc. Data Cable • Shielded, Detachable, 1.5m Power Adapter • Team, Model DV-1215A FCC ID: OO9TX168 Page Audix Technology (Shenzhen) Co., Ltd. Report No. ACS-F01003 1-3 1.3. Test Facility Site …

Text truncated - open the document above for the full version.

1.1. Photos of Radiated Emission Test FRONTVIEW OF RADIATED EMISSION TEST REARVIEW OF RADIATED EMISSION TEST
