700 MHz Band Power Amplifier PA700-T740_746 INSTALLATION AND OPERATION GUIDE FOR SYSTEM OPERATORS VCom Inc. PA700 Manual; ml_pa700_03 (January 2005) Approved: C.H. ii Proprietary to VCom Inc. All rights reserved. No part of this publication may by reproduced in any form or by any means or used to make any derivative work (such as translation, transformation or adaptation) without written permission from VCom Inc. VCom Inc. reserves the right to revise this publication and to make changes in content from time to time without obligation on the part of VCom Inc. to provide notification of such revision or change. VCom Inc. provides this guide without warranty of any kind, either implied or expressed, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. VCom Inc. may make improvements or changes in the product(s) described in this manual at any time. PA700 Manual; ml_pa700_01 (November 2004); Approved: C.H. Specifications subject to change without notice — Printed in Canada VCom Inc. PA700 Manual; ml_pa700_03 (January 2005) Approved: C.H. iii















Thank-you for purchasing this product and welcome to VCom! You have chosen an innovative solution from a leading technology design center in the ongoing TV & data delivery revolution. No doubt you’ve been thinking that the future of your television delivery system includes new technologies such as Digital TV, Internet Over Cable, Wireless Cable. By selecting VCom, you are benefiting from the same design powerhouse that since 1988 has created custom RF and digital products for technology leaders such as AT&T, Cisco Systems, Cogeco, Comcast, and Cox Communications. VCom designs and manufactures:



Agile CATV Modulators



256 QAM Upconverters



Digital Video Modulators



Frequency Translators



Spread Spectrum Devices



MMDS Transceivers



Off Air/CATV Demodulators



Wireless Cable MMDS



Wireless Cable LMDS



Video On Demand Products and more! Designs to fill the market needs of the CATV industry – both foreign and domestic. For additional product or corporate information, contact us: On the web at: www.vcom.com By sending email to: [email protected] By telephone: (306) 955-7075 By fax: (306) 955-9919 By snail mail: VCom Inc. 150 Cardinal Place Saskatoon, SK Canada S7L 6H7 VCom's Corporate Mandate is to be a leading worldwide designer and manufacturer of state- of-the-art communications equipment and components. Through the remarkable success of our customers and business partners, VCom innovations are achieving this goal. VCom Inc. PA700 Manual; ml_pa700_03 (January 2005) Approved: C.H. iv SAFETY PRECAUTIONS 1. Before installing and operating this equipment, read all Safety, Installation and Operating sections. Retain this manual for future reference. 2. Follow all instructions — Failure to do so may result in damage to the unit or severe personal injury. 3. Servicing should not be attempted by the user. There are no user serviceable parts inside. Refer all servicing to factory qualified personnel. 4. Cleaning — Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning. Warning Do not work on the system or connect or disconnect cables during periods of lightning activity. LES PRÉCAUTIONS DE SÉCURITÉ 1. Avant d'installer ou d'opérer cet équipement, lisez, toutes les sections de sécurités, d'installations et d'opérations. Gardez ce manuel comme source de référence. 2. Suivez toutes instructions - si non, vous risquez d'endommager la machine ou de vous blesser sérieusement. 3. N'essayez, pas de réparer cet équipement vous même. Référez toutes revisions nécessaire au personnel qualifié de la manufacture. 4. Le nettoyage - n'utilisez pas de nettoyeurs aérosols ou liquides. Utilisez un tissu humide pour nettoyer. Attention Ne pas travailler sur le système ni brancher ou débrancher les câbles pendant un orage du foudre. * Important Installation Instructions VCom Inc. PA700 Manual; ml_pa700_03 (January 2005) Approved: C.H. v INDEX 1.0 GENERAL INFORMATION ......................................................................................................... 6 1.1 Functional Overview................................................................................................................................6 1.2 Features.....................................................................................................................................................6 1.2.1 Amplifier Features:...............................................................................................................................6 1.2.2 System Features (with UCD4940): ......................................................................................................6 2.0 INSTALLATION.......................................................................................................................... 11 2.1 Unpacking the Unit ................................................................................................................................11 2.2 Installing the Unit...................................................................................................................................11 3.0 Connection With MSM................................................................................................................. 13 5.0 WARRANTY STATEMENT AND SERVICE POLICY ............................................................ 16 5.1 Warranty Statement ..............................................................................................................................16 5.2 Service Policies: How to Return an Item for Service:.........................................................................16 5.3 Repair Charges and Warranty Exemptions ........................................................................................17 VCom Inc. PA700 Manual; ml_pa700_03 (January 2005) Approved: C.H. 6
…

Text truncated - open the document above for the full version.

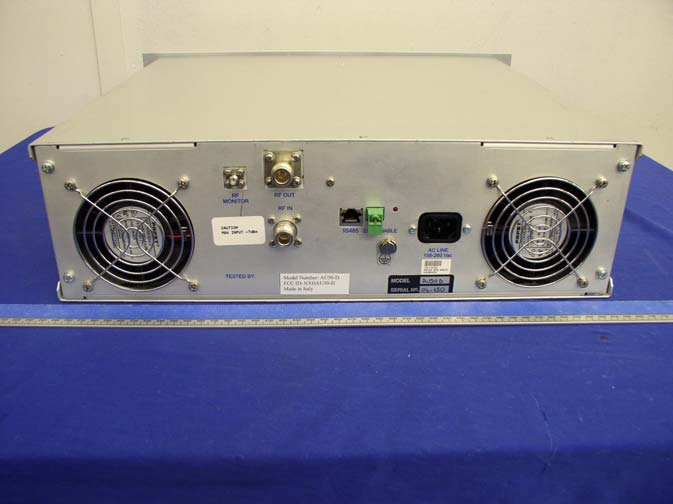

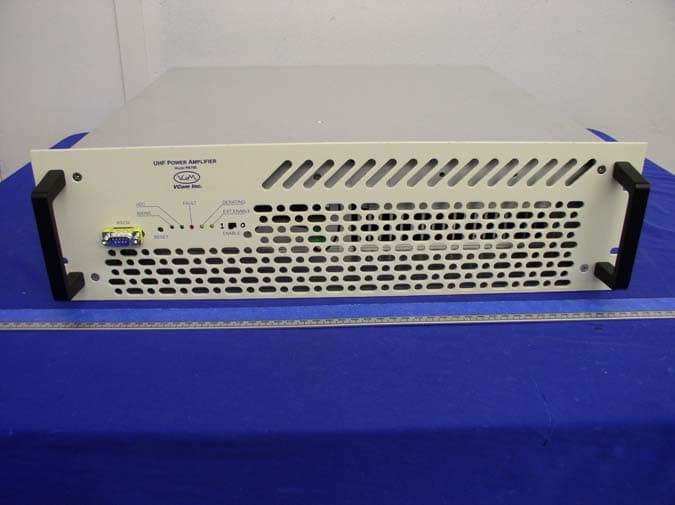

EXHIBIT C - EUT EXTERNAL PHOTOGRAPHS EUT – Chassis Front View EUT – Chassis Rear View

EXHIBIT A - FCC ID LABELING AND WARNING STATEMENT Proposed FCC ID Label Specifications: Text is black or white in color and is left justified. Labels are silk-screened and shall be “permanently affixed” at a conspicuous location on the EUT. Proposed Label Location on EUT EUT Rear View of the EUT/Proposed ID Label Location FCC Warning Statement A FCC Warning Statement is provided in the product manual. FCC ID: OPPPA700

PA700 Operational Description RF INPUT CONTROLLER PREDRIVER AMPLIFIER DRIVER AMPLIFIER FINAL STAGE AMPLIFIER DIRECTIONAL COUPLER AC/DC SUPPLY BOARD COOLING FANS LOGIC RF IN RF MONITOR RF OUT Figure 1 - PA700 Block Diagram PA700 Operational Description Figure 1 shows the block diagram for the PA700. The PA700 accepts an RF input from a modulated source and amplifies to +49 dBm (80W) average power for transmission in the 740-746 MHz frequency range. Internal logic and serial port connection provide for monitor and control functions of the amplifier including detected output power and on/off control. An RF monitor port is provided to facilitate low power monitoring of the output signal. No processing or frequency conversion is done to the signal and channel bandwidths/center frequencies must be configured from the input source. VCom Inc.Page 1 of 1December 6, 2004

VCom Inc. PA700 Manual; ml_pa700_02 (January 2005) Approved: C.H. 11  "
&./%& Carefully remove the equipment from its packing material and set it on a solid surface, such as a table or desk. If it appears damaged in any way, notify the carrier, and keep all packing materials for inspection by the carrier’s agent.  /%& Note: This unit should be installed by qualified service personnel only. Diagram 2.2 details the input and output connections for the PA700. 1. Carefully identify between the electrical ground of the AC power supply and the station ground that is common to the antenna system, other RF components and the transmitter rack cabinet. Ensure that the PA700 and the CMTS ground points are connected to the station ground and not the electrical ground. 2. If installing the PA700 into an equipment rack, use the 4 mounting holes on the front of each cabinet. It is also important to connect the rear side of the PA700 chassis to the same rack cabinet using a rear support bracket (not supplied). 3. It is suggested that a heavy gauge line cord (No. 10 AWG stranded) with connector be used in most applications for connection to the AC power supply. The AC power connector and station ground stud are located on the rear panel (refer to Diagram 1.4B). 4. Prior to connection, please ensure that the frequency, modulation and BW of the CMTS or CMTS/upconverter are set for the application. PA700 type approval for the US lower 700 MHz band under FCC Part 27 is only valid for the following input frequency and modulation combinations and only when the VCom duplexer is connected between the output and the antenna. Carrier Bandwidth Center Frequency Range Modulation 2 MHz 741-745 MHz QPSK, 16QAM, 64QAM 6 MHz 743 MHz only QPSK, 16QAM, 64QAM 5. Adjust the input level so that the input power to the unit is nominally -7 dBm. 6. Connect both upconverter/CMTS to unit and duplexer/antenna assembly 7. Adjust input level so that output power is +48 to +49 dBm as reported by MSM server or the UCD4940. Opeartion below this level will result in less than optimal performance and operation above this level may violate regulatory emissions requirements. WARNING! Maintain a distance of at least 10mm (3/8 “) between PA700 units when mounting several units in a rack. The rear air outlets should be unobstructed. VCom Inc. PA700 Manual; ml_pa700_02 (January 2005) Approved: C.H. 12 DIAGRAM 2.2: PA700 SYSTEM CONNECTIONS
