OPPTRX2526Y2.5 GHz Subscriber Transceiver

Installation and Operation Guide TR2526+ 2.5 - 2.6 GHZ SERIES BROADBAND WIRELESS TRANSCEIVER A Member of the BWIN™ Family of Products Document Name: TR2526+ Broadband Wireless Transceiver Installation and Operation Guide - r02 Approval: G.V. Document ID: MLTR2526+-02 Last modified: 23 September 2011 © Vecima Networks Inc. Vecima® is a registered trademark of Vecima Networks Inc. All Rights Reserved. Permission to Reproduce Except as otherwise specifically noted, the information in this publication may be reproduced, in part or in whole and by any means, without charge or further permission from Vecima Networks Inc., provided that due diligence is exercised in ensuring the accuracy of the information reproduced; that Vecima Networks Inc. is identified as the source; and that the reproduction is not represented as an official version of the information reproduced. Wa rr a n t y Vecima Networks Inc. provides this guide without warranty of any kind, either implied or expressed, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Any representation(s) in this document concerning performance of Vecima Networks product(s) are for informational purposes only and are not warranties of future performance, either express or implied. Vecima Networks Inc. reserves the right to revise this publication and to make changes in content from time to time without obligation on the part of Vecima Networks Inc. to provide notification of such revision or change. Vecima Networks Inc. 4210 Commerce Circle Victoria, BC, Canada V8Z 6N6 Published in Canada Specifications subject to change without notice. Contents Preface ............................................................................................................................ ii About this Document ..................................................................................................................ii Safety Precautions ....................................................................................................................iv Getting Support ..........................................................................................................................v Warranty and Service Policies ..................................................................................................vi 1.0 Introduction ................................................................................................................ 1 1.1 Functional Overview ........................................................................................................... 1 1.2 Module Features & Benefits ................................................................................................1 2.0 Installation ................................................................................................................. 3 2.1 Unpacking the Unit .............................................................................................................. 3 2.2 Mounting the TR2526+ .......................................................................................................4 2.3 Mounting the Antenna ......................................................................................................... 5 2.4 Connecting the Antenna .....................................................................................................6 2.5 Connecting the IF Cable ..................................................................................................... 7 2.6 Water Proofing Connections ............................................................................................... 8 2.7 Connecting the Power Inserter ........................................................................................... 9 2.8 Aligning the Antenna ......................................................................................................... 10 Appendix A: Specifications ............................................................................................ 11 This page intentionally left blank Preface TR2526+ Installation and Operation Guide - r02i Thank you for purchasing this product from Vecima Vecima Networks designs, manufactures and sells products that enable broadband access to cable, wireless and telephony networks. Vecima’s hardware products incorporate original embedded software to meet the complex requirements of next-generation, high-speed digital networks. Service providers use Vecima solutions to deliver services to a converging worldwide broadband market, including what are commonly known as "triple play" (voice, video and data) and "quadruple play" (voice, video, data and wireless) services. For additional product or corporate information, please contact Vecima Networks at: Vecima Networks Inc. 150 Cardinal Place Saskatoon, SK Canada S7L 6H7 Tel: (888) 292-8266 / (306) 955-7075 Fax: (306) 955-9919 Web: www.vecima.com Email: [email protected]   iiTR2526+ Installation and Operation Guide - r02 Preface This Installation and Operation Guide introduces TR2526+ and describes how it works. It is intended for engineers and technicians who are responsible for provisioning and maintaining TR2526+ and are familiar with wireless products and technology. About this Document The major sections of this manual are as follows: •Chapter 1—Provides general information on the TR2526+ Broadband Wireless Transceiver. •Chapter 2—Describes how to install and tune the TR2526+ Broadband Wireless Transceiver. •Appendix A—Lists the TR2526+ Broadband Wireless Transceiver specifications. Note: The information contained in this manual is subject to change without notice. TR2526+ Installation and Operation Guide - r02iii Document Conventions This manual uses the following special formats to emphasize key information. Be aware of all warnings and cautions before you begin to use TR2526+. WARNING! Whenever you see this icon and heading, the associated text addresses or discusses a…

Text truncated - open the document above for the full version.

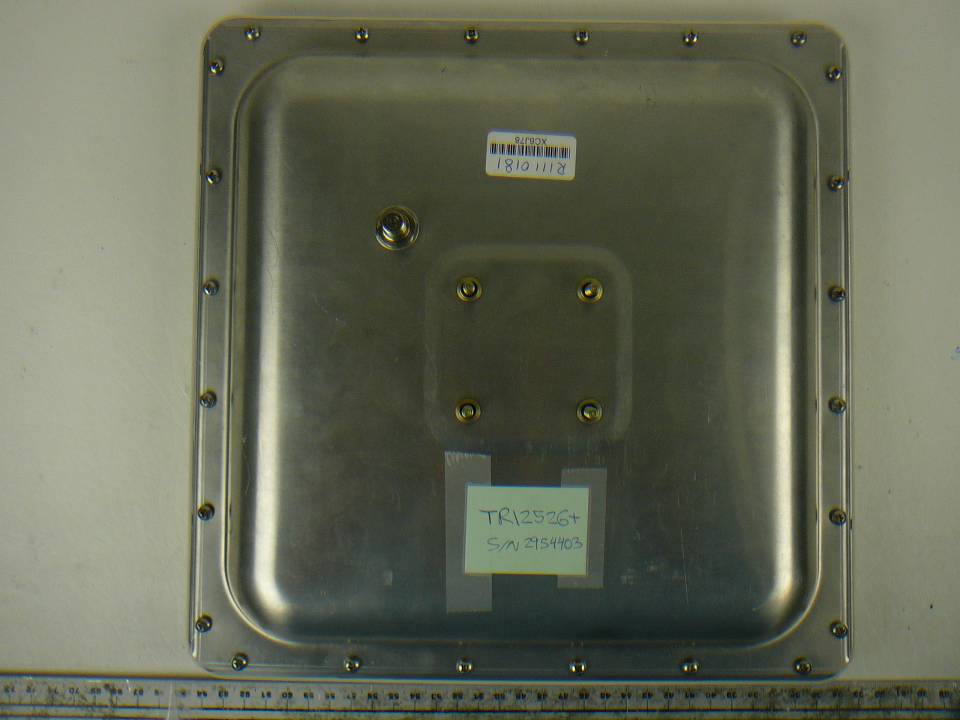

Vecima Networks Inc. FCC ID: OPPTRX2526Y Report Number: R1110181-27 Page 63 of 68 FCC Part 27 Test Report 14 EXHIBIT C - EUT PHOTOGRAPHS 14.1 EUT – TR2526+ Rear View 14.2 EUT - TR2526+ Front View Vecima Networks Inc. FCC ID: OPPTRX2526Y Report Number: R1110181-27 Page 64 of 68 FCC Part 27 Test Report 14.3 EUT – TRI2526+ Front View 14.4 EUT - TRI2526+ Rear View Vecima Networks Inc. FCC ID: OPPTRX2526Y Report Number: R1110181-27 Page 65 of 68 FCC Part 27 Test Report 14.5 EUT – Power Inserter View 14.6 EUT – AC/DC Power Supply View

Vecima Networks Inc. FCC ID: OPPTRX2526Y Report Number: R1110181-27 Page 66 of 68 FCC Part 27 Test Report 14.7 EUT – TR2526+ Cover off View 14.8 EUT – TRI2526+ Cover off View Vecima Networks Inc. FCC ID: OPPTRX2526Y Report Number: R1110181-27 Page 67 of 68 FCC Part 27 Test Report 14.9 EUT –Main PCB Board View 14.10 EUT – TRI2526+ Antenna View

Vecima Networks Inc. FCC ID: OPPTRX2526Y Report Number: R1110181-27 Page 56 of 68 FCC Part 27 Test Report 11 FCC §1.1307(b), §27.52 & §2.1091 - RF EXPOSURE INFORMATION 11.1 Applicable Standard According to FCC §1.1310 and §2.1091 (Mobile Devices) RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 1 (100) 30 1.34-30 824/f 2.19/f 1 (180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz 1 = Plane-wave equivalent power density 11.2 MPE Prediction Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Model: TRI2526+ Maximum peak output power at antenna input terminal (dBm):22.92 Maximum peak output power at antenna input terminal (mW):195.884 Prediction distance (cm):150 Prediction frequency (MHz):2510 Antenna Gain, typical (dBi):18 Maximum Antenna Gain (numeric):63.10 Power density at predication frequency and distance (mW/cm 2 ):0.0437 MPE limit for uncontrolled exposure at predication frequency (mW/cm 2 ):1.0 Vecima Networks Inc. FCC ID: OPPTRX2526Y Report Number: R1110181-27 Page 57 of 68 FCC Part 27 Test Report Model: TR2526+ Maximum peak output power at antenna input terminal (dBm):22.92 Maximum peak output power at antenna input terminal (mW):195.884 Prediction distance (cm):150 Prediction frequency (MHz):2510 Antenna Gain, typical (dBi):24 Maximum Antenna Gain (numeric):251.19 Power density at predication frequency and distance (mW/cm 2 ):0.1741 MPE limit for uncontrolled exposure at predication frequency (mW/cm 2 ):1.0 Test Result To Compliant with the FCC RF Exposure requirements in section 1.1037, a minimum separation distance of 150 cm is required between the antenna and all persons.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 27 TEST AND MEASUREMENT REPORT For Vecima Networks Inc. 150 Cardinal Place, Saskatoon, SK, Canada S7L 6H7 FCC ID: OPPTRX2526Y Model: TR2526+, TRI2526+ Report Type: Original Report Product Type: 2.5 GHz Subscriber Transceiver Test Engineer: Lionel Lara Report Number: R1110181-27 Report Date: 2011-12-16 Reviewed By: Victor Zhang EMC/RF Lead Prepared By: (SP) Bay Area Compliance Laboratories Corp. 1274 Anvilwood Avenue, Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732 9164 Vecima Networks Inc. FCC ID: OPPTRX2526Y Report Number: R1110181-27 Page 2 of 68 FCC Part 27 Test Report TABLE OF CONTENTS 1 GENERAL INFORMATION ............................................................................................................................... 5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)........................................................................... 5 1.2 MECHANICAL DESCRIPTION.............................................................................................................................. 5 1.3 OBJECTIVE......................................................................................................................................................... 5 1.4 RELATED SUBMITTAL(S)/GRANT(S)................................................................................................................... 5 1.5 TEST METHODOLOGY........................................................................................................................................ 5 1.6 MEASUREMENT UNCERTAINTY.......................................................................................................................... 6 1.7 TEST FACILITY................................................................................................................................................... 6 2 SYSTEM TEST CONFIGURATION .................................................................................................................. 7 2.1 JUSTIFICATION................................................................................................................................................... 7 2.2 EUT EXERCISE SOFTWARE................................................................................................................................7 2.3 EQUIPMENT MODIFICATIONS............................................................................................................................. 7 2.4 LOCAL SUPPORT EQUIPMENT AND SOFTWARE LIST AND DETAILS.................................................................... 7 2.5 EUT INTERNAL CONFIGURATIONS OF EUT ....................................................................................................... 7 2.6 INTERFACE PORTS AND CABLES........................................................................................................................ 7 2.7 TEST SETUP BLOCK DIAGRAM........................................................................................................................... 8 3 SUMMARY OF TEST RESULTS........................................................................................................................ 9 4 FCC §2.1046 & §27.50 – RF OUTPUT POWER............................................................................................... 10 4.1 APPLICABLE STANDARD.................................................................................................................................. 10 4.2 TEST PROCEDURE............................................................................................................................................ 10 4.3 TEST EQUIPMENT LIST AND DETAILS.............................................................................................................. 10 4.4 TEST ENVIRONMENTAL CONDITIONS............................................................................................................... 10 4.5 TEST RESULTS................................................................................................................................................. 11 5 FCC §2.1047 - MODULATION CHARACTERISTIC..................................................................................... 12 5.1 APPLICABLE STANDARD.................................................................................................................................. 12 5.2 TEST RESULT................................................................................................................................................... 12 6 FCC §2.1049 & §27.53 - OCCUPIED BANDWIDTH ......................................................................................13 6.1 APPLICABLE STANDARD.................................................................................................................................. 13 6.2 TEST PROCEDURE............................................................................................................................................ 13 6.3 TEST EQUIPMENT LIST AND DETAILS.............................................................................................................. 13 6.4 TEST ENVIRONMENTAL CONDITIONS............................................................................................................... 13 6.5 TEST RESULTS................................................................................................................................................. 14 7 FCC §2.…

Text truncated - open the document above for the full version.

Vecima Networks Inc. FCC ID: OPPTRX2526Y Report Number: R1110181-27 Page 60 of 68 FCC Part 27 Test Report 13 EXHIBIT B - TEST SETUP PHOTOGRAPHS 13.1 Radiated Emissions - Front View (TR2526+) 13.2 Radiated Emissions 30 MHz to 1 GHz- Rear View (TR2526+) Vecima Networks Inc. FCC ID: OPPTRX2526Y Report Number: R1110181-27 Page 61 of 68 FCC Part 27 Test Report 13.3 Radiated Emissions above 1 GHz- Rear View (TR2526+) 13.4 Radiated Emissions - Front View (TRI2526+) Vecima Networks Inc. FCC ID: OPPTRX2526Y Report Number: R1110181-27 Page 62 of 68 FCC Part 27 Test Report 13.5 Radiated Emissions 30 MHz to 1 GHz- Rear View (TRI2526+) 13.6 Radiated Emissions above 1 GHz- Rear View (TRI2526+)
