OPPTR700BTR700B UHF Transceiver

UHF Transceiver TR700B INSTALLATION AND OPERATION GUIDE FOR SYSTEM OPERATORS VCom Inc. TR700B Manual; ml_tr700B_02 (March 2004) Approved: C.H. ii Proprietary to VCom Inc. All rights reserved. No part of this publication may by reproduced in any form or by any means or used to make any derivative work (such as translation, transformation or adaptation) without written permission from VCom Inc. VCom Inc. reserves the right to revise this publication and to make changes in content from time to time without obligation on the part of VCom Inc. to provide notification of such revision or change. VCom Inc. provides this guide without warranty of any kind, either implied or expressed, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. VCom Inc. may make improvements or changes in the product(s) described in this manual at any time. TR700B Manual; ml_700B_02 (March 2004); Approved: C.H. Specifications subject to change without notice — Printed in Canada VCom Inc. TR700B Manual; ml_tr700B_02 (March 2004) Approved: C.H. iii















Thank-you for purchasing this product and welcome to VCom! You have chosen an innovative solution from a leading technology design center in the ongoing TV & data delivery revolution. No doubt you’ve been thinking that the future of your television delivery system includes new technologies such as Digital TV, Internet Over Cable, Wireless Cable. By selecting VCom, you are benefiting from the same design powerhouse that since 1988 has created custom RF and digital products for technology leaders such as AT&T, Cisco Systems, Cogeco, Comcast, and Cox Communications. VCom designs and manufactures: 4 44 4Agile CATV Modulators 4 44 4256 QAM Upconverters 4 44 4Digital Video Modulators 4 44 4Frequency Translators 4 44 4Spread Spectrum Devices 4 44 4Off-Air Demodulators 4 44 4Video-On-Demand Products 4 44 4Wireless Cable MMDS 4 44 4Wireless Cable LMDS 4 44 4Frequency Stackers 4 44 4MMDS Transceivers 4 44 4Satellite Receivers and more! Designs to fill the market needs of the CATV industry – both foreign and domestic. For additional product or corporate information, contact us: On the web at: www.vcom.com By sending email to: [email protected] By telephone: (306) 955-7075 By fax: (306) 955-9919 By snail mail: VCom Inc. 150 Cardinal Place Saskatoon, SK Canada S7L 6H7 VCom's Corporate Mandate is to be a leading worldwide designer and manufacturer of state- of-the-art communications equipment and components. Through the remarkable success of our customers and business partners, VCom innovations are achieving this goal. VCom Inc. TR700B Manual; ml_tr700B_02 (March 2004) Approved: C.H. iv SAFETY PRECAUTIONS 1. Before installing and operating this equipment, read all Safety, Installation and Operating sections. Retain this manual for future reference. 2. Follow all instructions — Failure to do so may result in damage to the unit or severe personal injury. 3. Servicing should not be attempted by the user. There are no user serviceable parts inside. Refer all servicing to factory qualified personnel. 4. Shock Hazard — An electrical shock hazard exists when the chassis cover is removed as is required to set internal controls. Always disconnect power from the unit before removing the cover. 5. Cleaning — Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning. Warning Do not work on the system or connect or disconnect cables during periods of lightning activity. CAUTION: To comply with FCC RF exposure requirements in section 1.1307, a minimum separation distance of 1.5 meters is required between this antenna and all persons. LES PRÉCAUTIONS DE SÉCURITÉ 1. Avant d'installer ou d'opérer cet équipement, lisez, toutes les sections de sécurités, d'installations et d'opérations. Gardez ce manuel comme source de référence. 2. Suivez toutes instructions - si non, vous risquez d'endommager la machine ou de vous blesser sérieusement. 3. N'essayez, pas de réparer cet équipement vous même. Référez toutes revisions nécessaire au personnel qualifié de la manufacture. 4. Risque de choc - Il y a un risque de décharge électrique qui existe quand la couverture du châssis est enlevée, comme est nécessaire pour ajuster les contrôlcs internes. Il faut toujours couper l'électricité avant d'enlever le couvercle pour faire aucun ajustage. 5. Le nettoyage - n'utilisez pas de nettoyeurs aérosols ou liquides. Utilisez un tissu humide pour nettoyer. Attention Ne pas travailler sur le système ni brancher ou débrancher les câbles pendant un orage du foudre. CAUTION: To comply with FCC RF exposure requirements in section 1.1307, a minimum separation distance of 1.5 meters is required between this antenna and all persons. * Important Installation Instructions VCom Inc. TR700B Manual; ml_tr700B_02 (March 2004) Approved: C.H. v INDEX 1.0 GENERAL INFORMATION .....................................................................................................6 1.1 Functional Overview ...................................................................................................................................... 6 1.2 Module Features ............................................................................................................................................. 6 1.3 Specifications ................................................................................................................................................... 7 2.0 INSTALLATION .......................................................................................................................8 2.1 Unpacking the Unit ......................................................................................................................................... 8 2.2 Mounting the Unit........................................................................................................................................... 8 2.2.1 Mounting the TR700B ........................…

Text truncated - open the document above for the full version.

VCom Inc. 150 Cardinal Place Saskatoon, SK Canada S7L 6H7 Tel: (306) 955-7075 Fax: (306) 955-9919 Website: www.vcom.com March 12, 2004 Letter Stating Differences In Models TR700B 700 MHz Subscriber Transceiver FCCID: OPPTR700B The TR700B uses a transmit IF of 36-42 MHz (band edges) while the TR700B-IF1 uses a transmit IF of 44.375-50.375 MHz (band edges) while still maintaining the same transmit RF frequency of 710-716 MHz. The local oscillator used internally for the upconversion is 674 MHz for the TR700B and 665.625 MHz for the TR700B-IF1. The firmware is also different because of the local oscillator change. Colin Howlett

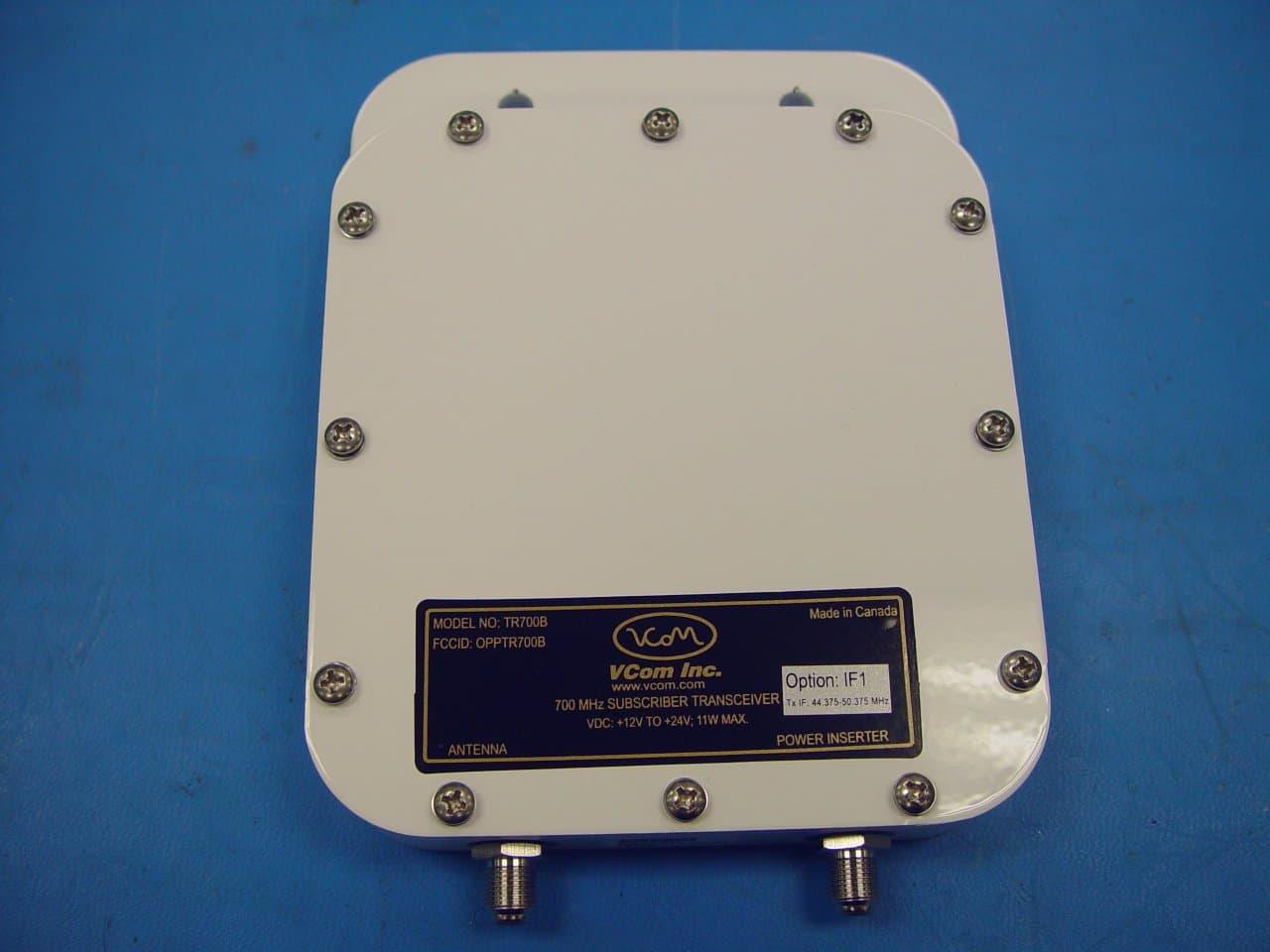

T HE VC OM TR700B 700 MH Z S UBSCRIBER T RANSCEIVER The VCom TR700Bis a UHF Transceiver for use in broadband wireless networks. The TR700B integrates an up-converter, a power amplifier, RF and IF diplexers to provide a single unit solution for two-way wireless RF communications. The TR700B circuitry is field hardened over a broad temperature range and is contained in weather proof housing. The unit is ready to mount next to and connect directly to an antenna. The TR700B is then connected to an indoor modem by standard low cost RG-59 cable. The transceiver is configured to work with standard DOCSIS TM cable modem frequency plans and levels, permitting direct connection. The transceiver also includes an RF mute function to reduce power consumption and broadband noise emissions. br_tr700b_01 (Nov 2003) Features - Benefits • High gain and compression - allows for high system gain for N-LOS • Embedded microprocessor control - guarantees performance • Unique VCom design - lowers cost without performance reduction • Automatic transmit RF mute - reduces power consumption - eliminates noise accumulation • Fully weatherized enclosure - allows installation to be either indoor or outdoor VCom Inc. (formerly WaveCom Electronics Inc.) 150 Cardinal Place Saskatoon, Sk, Canada S7L 6H7 TEL: (306) 955-7075 FAX: (306) 955-9919 Website: www.vcom.com E-mail: [email protected] Distributed by: Specifications subject to change without notice — Printed in Canada br_tr700b_01 (Nov 2003) The DOCSIS TM acronym belongs to CableLabs® 150 C ARDINALPLACE, SASKATOON, SKS7L 6H7 T EL: (306) 955-7075 FAX: (306) 955-9919 E-MAIL: [email protected]: WWW.VCOM.COM Specifications subject to change without notice. - Printed in Canada. S PECIFICATIONS —VC OM TR700B 700 MHz Subscriber Transceiver T RANSMITTER IF Input Frequency36 to 42 MHz RF Output Frequency710 to 716 MHz Linear Output Power+24 dBm at RF port Output P1dB+27 dBm at RF port Spectral MaskFCC CFR 47 Part 27.53 Gain20 ± 2 dB at 23°C Gain Flatness (Frequency Response)± 1.0 dB over 710 to 716 MHz Phase Noise<-87 dBc/Hz @ +/- 10 kHz Spectral inversionNo spectral inversion IF Level for RF Activation-45 dBm maximum RF Activation/Mute Response Time<2 microseconds RECIEVER Frequency740 to 746 MHz Gain24 ± 2 dB at 23°C Gain Flatness (Frequency Response)± 1.0 dB over 740 to 746 MHz Noise Figure<5 dB typical, 6.0 dB maximum RF PORT RF Connector (to antenna)F female, 75 ohms RF Return Loss2:1 (transmit and receive RF bands) RF Spurious EmissionsFCC CFR 47 Part 27 IF PORT IF ConnectorF female, 75 ohms DC Supply Voltage+18 to +28 VDC (+24V nominal) DC Power Consumption10W maximum IF Return Loss2:1 (transmit and receive RF bands) GENERAL Frequency Stability± 20 kHz (-30 to +60°C) EMCFCC Part 15 Operating Ambient Temperature-40 to +60°C Size4.9" x 6.8" x 1.1" (12.4 x 17.1 x 2.7 cm) MountingPole mount, 1" to 1.75" diameter pole Weight0.5 kg

RF Safety Exhibit Revision: 01 Date: 09 Mar 2004 Equipment: VCom TR700B 700 MHz Transceiver FCC ID: OPPTR700B For radio transmitters in the 698 to 746 MHz band, paragraph 1.1310 limits maximum permissible exposure (MPE) to (f in MHz/1500) mW/cm 2 or 0.473 mW/cm 2 considering our lowest operating frequency of 710 MHz for uncontrolled environments. The maximum safe distance from the antenna at which MPE is met or exceeded is calculated from the equation relating field strength in V/m, transmit power in Watts, transmit antenna gain, and separation distance in meters: Basis of calculations (FCC OET bulletin 65, 97-01, August 1997): Power Density [W/m 2 ]= EIRP [Watts]/(4*pi*(distance[m])^2) Safe Distance meters for 0.473mW/cm 2 MPE = 0.1297*(EIRP Watts )^0.5 Transceiver Power [Watts] [dBm] Antenna Type Antenna Gain [dBi] Safe Distance [meters] 0.25 +24 Yagi 10 dBi 0.206 0.25 +24 Flat planar array 9 dBi 0.183 0.25 +24 Window mount planar array 7 dBi 0.146 Installation Requirements: The TR700B is used with a user-supplied antenna. A self-adhesive RF exposure label is supplied with each TR700B unit for the user to affix to their antenna. Installation of the TR700B and affixing of the RF exposure label to the antenna is described in the user manual, which is supplied with each TR700B. See section 2.2.2 on page 9 of “INSTALLATION AND OPERATION GUIDE FOR SYSTEM OPERATORS” The following statement is included in the user manual and on the label to be attached to the antenna: “CAUTION: To comply with FCC RF exposure requirements in section 1.1307, a minimum separation distance of 1.5 meters is required between this antenna and all persons.”

Master: FCC Part22H Date: February 13, 2002 Test Report: 4W07972 Applicant: Vcom Inc. 150 Cardinal Place Saskatoon, Saskatchewan S7L 6H7 Canada Equipment Under Test: TR700B UHF (EUT) Transceiver FCC ID: OPPTR700B In Accordance With: FCC Part 27, Subpart C Tested By: Nemko Canada Inc. 303 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By: Glen Westwell, Wireless Specialist Date: March 26, 2004 Total Number of Pages: 30 Nemko Canada Inc. FCC PART 27, SUBPART C PROJECT NO.:4W07972 EQUIPMENT: TR700B UHF Transceiver Page 2 of 30 Table of Contents Section 1. Summary of Test Results ...................................................................................... 3 Section 2. General Equipment Specification......................................................................... 5 Section 3. RF Power Output ................................................................................................... 8 Section 4. Occupied Bandwidth ..............................................................................................9 Section 5. Spurious Emissions at Antenna Terminals ....................................................... 13 Section 6. Field Strength of Spurious Radiation ................................................................ 23 Section 7. Frequency Stability.............................................................................................. 25 Section 8. Block Diagrams .................................................................................................... 27 Section 9. Test Equipment List ............................................................................................ 30 Nemko Canada Inc. FCC PART 27, SUBPART C PROJECT NO.:4W07972 EQUIPMENT: TR700B UHF Transceiver Page 3 of 30 Section 1. Summary of Test Results General All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with FCC Part 27, Subpart C. THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. TESTED BY: Russell Grant DATE: March 23, 2004 Nemko Canada Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko Canada Inc. FCC PART 27, SUBPART C PROJECT NO.:4W07972 EQUIPMENT: TR700B UHF Transceiver Page 4 of 30 Summary Of Test Data Name Of Test Para. No. Result RF Power Output 2.1046 Complies: 0.250 watt Modulation Characteristics 2.1047 N/A* Occupied Bandwidth 2.1049 Complies: 99% 350-1430 kHz Spurious Emissions at Antenna Terminals 2.1051 Complies: -16 dBm at 710 MHz low band edge Field Strength of Spurious Radiation 2.1053 Complies: –72.3 dBm ERP at 1426 MHz Frequency Stability 2.1055 Complies: –1.527, +7.930 kHz * This equipment does not have any provision for conventional AM/FM analogue audio processing circuits. All modulations are digital. Test Conditions: Indoor Temperature: 24°C Humidity: 11% Outdoor Temperature: 5°C Humidity: 6% . Nemko Canada Inc. FCC PART 27, SUBPART C PROJECT NO.:4W07972 EQUIPMENT: TR700B UHF Transceiver Page 5 of 30 Section 2. General Equipment Specification Manufacturer: VCom Inc. Model No.: TR700B Model Variants: TR700B-IF1 *(See description of model variants below.) Serial No.: 339782 Date Received In Laboratory: March 11, 2004 Nemko Identification No.: 1 Supply Voltage Input: 120 VAC to 24 VDC Adaptor Frequency Band: 27.5(c)(1) Block C: 710 – 716 MHz Frequency Range of EUT: Frequency range is dependent upon symbol rate. See attached channel plan. 710.6 – 715.4 MHz for 320 ksps 711.0 – 715.0 MHz for 640 ksps 711.4 – 714.6 MHz for 1280 ksps RF Power Output: 0.250 watt Type of Modulation: QPSK, QAM Data Rate: 320, 640, 1280 ksps Emission Designator: 400KG1W, 400KD1W 800KG1W, 800KD1W 1M60G1W, 1M60D1W Antenna Information: Typical: Yagi 10dBi gain * Model Varients: The TR700B uses a transmit IF of 36 - 42 MHz while the TR700B-IF1 uses a transmit IF of 44.375 – 50.375 MHz while still maintaining the same transmit RF frequency of 710 – 716 MHz. Both models use identical electronics. The local oscillator used internally for the up conversion is 674 MHz for the TR700B and 665.625 MHz for the TR700B-IF1. Different firmware is used to change the local oscillator frequency. Nemko Canada Inc. FCC PART 27, SUBPART C PROJECT NO.:4W07972 EQUIPMENT: TR700B UHF Transceiver Page 6 of 30 Channel Plan QPSK 320 ksps 710.6 711 711.4 711.8 712.2 712.6713 713.4 713.8 714.2 714.6 715 715.4 LO 36.6 37 37.4 37.8 38.2 38.639 39.4 39.8 40.2 40.6 41 41.4 16 QAM 320 ksps 710.6 711 711.4 711.8 712.2 712.6 713 713.4 713.8 714.2 714.6 715 715.4 LO 36.6 37 37.4 37.8 38.2 38.639 39.4 39.8 40.2 40.6 41 41.4 QPSK 640 ksps 711 711.8 712.6 713.4 714.2 715 LO 37 37.8 38.6 39.4 40.241 16 QAM 640 ksps 711 711.8 712.6 713.4 714.2 715 LO 37 37.8 38.6 39.4 40.241 QPSK 1280 ksps 711.4 713 714.6 LO 37.4 39 40.6 16 QAM 1280 ksps 711.4 713 714.6 LO 37.4 39 40.6 Nemko Canada Inc. FCC PART 27, SUBPART C PROJECT NO.:4W07972 EQUIPMENT: TR700B UHF Transceiver Page 7 of 30 Configuration Block Diagram Equipment Under Test: (EUT) Model TR700B UHF Transceiver Power Block: Model DDU240075 supplied with EUT Power Inserter: TAIWAN supplied with EUT 50/75 Ohm minimum loss pads for test purposes only, 5.5 dB insertion loss, INMET model 9079 supplied by VCom. The minimum loss pads were calibrated (2 back to back) up to 8GHz for insertion loss. This was included in the reference level offset for the power meter and spectrum an…
