OPPTR850850 MHz Subscriber Transceiver

AMPS Band Transceiver TR850 INSTALLATION AND OPERATION GUIDE FOR SYSTEM OPERATORS VCom Inc. TR850 Manual; ml_tr850_01 (January 2005) Approved: C.H. ii Proprietary to VCom Inc. All rights reserved. No part of this publication may by reproduced in any form or by any means or used to make any derivative work (such as translation, transformation or adaptation) without written permission from VCom Inc. VCom Inc. reserves the right to revise this publication and to make changes in content from time to time without obligation on the part of VCom Inc. to provide notification of such revision or change. VCom Inc. provides this guide without warranty of any kind, either implied or expressed, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. VCom Inc. may make improvements or changes in the product(s) described in this manual at any time. TR850 Manual; ml_850_01 (January 2005); Approved: C.H. Specifications subject to change without notice — Printed in Canada VCom Inc. TR850 Manual; ml_tr850_01 (January 2005) Approved: C.H. iii















Thank-you for purchasing this product and welcome to VCom! You have chosen an innovative solution from a leading technology design center in the ongoing TV & data delivery revolution. No doubt you’ve been thinking that the future of your television delivery system includes new technologies such as Digital TV, Internet Over Cable, Wireless Cable. By selecting VCom, you are benefiting from the same design powerhouse that since 1988 has created custom RF and digital products for technology leaders such as AT&T, Cisco Systems, Cogeco, Comcast, and Cox Communications. VCom designs and manufactures:



Agile CATV Modulators



256 QAM Upconverters



Digital Video Modulators



Frequency Translators



Spread Spectrum Devices



Off-Air Demodulators



Video-On-Demand Products



Wireless Cable MMDS



Wireless Cable LMDS



Frequency Stackers



MMDS Transceivers



Satellite Receivers and more! Designs to fill the market needs of the CATV industry – both foreign and domestic. For additional product or corporate information, contact us: On the web at: www.vcom.com By sending email to: [email protected] By telephone: (306) 955-7075 By fax: (306) 955-9919 By snail mail: VCom Inc. 150 Cardinal Place Saskatoon, SK Canada S7L 6H7 VCom's Corporate Mandate is to be a leading worldwide designer and manufacturer of state- of-the-art communications equipment and components. Through the remarkable success of our customers and business partners, VCom innovations are achieving this goal. VCom Inc. TR850 Manual; ml_tr850_01 (January 2005) Approved: C.H. iv SAFETY PRECAUTIONS 1. Before installing and operating this equipment, read all Safety, Installation and Operating sections. Retain this manual for future reference. 2. Follow all instructions — Failure to do so may result in damage to the unit or severe personal injury. 3. Servicing should not be attempted by the user. There are no user serviceable parts inside. Refer all servicing to factory qualified personnel. 4. Shock Hazard — An electrical shock hazard exists when the chassis cover is removed as is required to set internal controls. Always disconnect power from the unit before removing the cover. 5. Cleaning — Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning. Warning Do not work on the system or connect or disconnect cables during periods of lightning activity. CAUTION: To comply with FCC RF exposure requirements in section 1.1307, a minimum separation distance of 1.5 meters is required between this antenna and all persons. LES PRÉCAUTIONS DE SÉCURITÉ 1. Avant d'installer ou d'opérer cet équipement, lisez, toutes les sections de sécurités, d'installations et d'opérations. Gardez ce manuel comme source de référence. 2. Suivez toutes instructions - si non, vous risquez d'endommager la machine ou de vous blesser sérieusement. 3. N'essayez, pas de réparer cet équipement vous même. Référez toutes revisions nécessaire au personnel qualifié de la manufacture. 4. Risque de choc - Il y a un risque de décharge électrique qui existe quand la couverture du châssis est enlevée, comme est nécessaire pour ajuster les contrôlcs internes. Il faut toujours couper l'électricité avant d'enlever le couvercle pour faire aucun ajustage. 5. Le nettoyage - n'utilisez pas de nettoyeurs aérosols ou liquides. Utilisez un tissu humide pour nettoyer. Attention Ne pas travailler sur le système ni brancher ou débrancher les câbles pendant un orage du foudre. CAUTION: To comply with FCC RF exposure requirements in section 1.1307, a minimum separation distance of 1.5 meters is required between this antenna and all persons. * Important Installation Instructions VCom Inc. TR850 Manual; ml_tr850_01 (January 2005) Approved: C.H. v INDEX 1.0 GENERAL INFORMATION ......................................................................................................... 6 1.1 Functional Overview................................................................................................................................6 1.2 Module Features.......................................................................................................................................6 1.3 Specifications ............................................................................................................................................7 2.0 INSTALLATION............................................................................................................................ 8 2.1 Unpacking the Unit ..................................................................................................................................8 2.2 Mounting the Unit....................................................................................................................................8 2.2.1 Mounting the TR850.......................................…

Text truncated - open the document above for the full version.

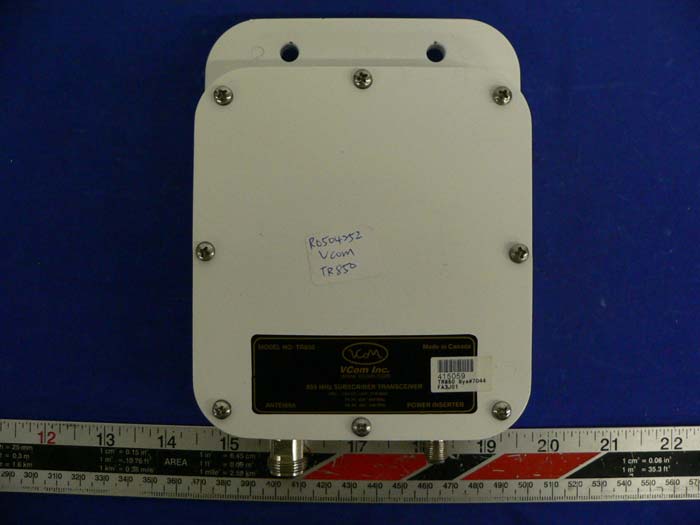

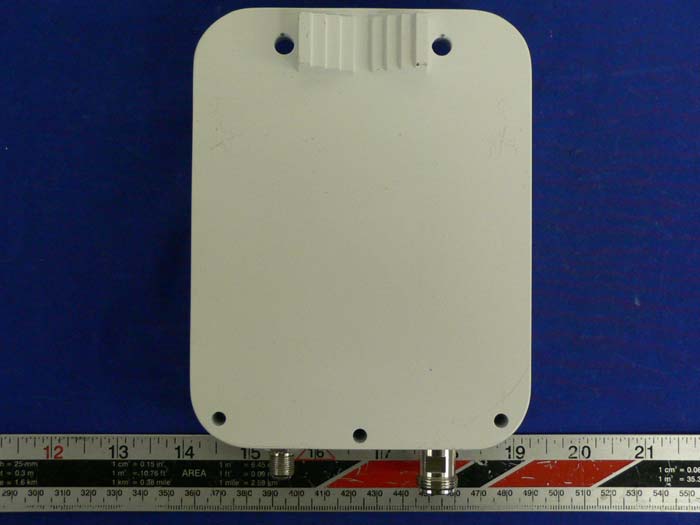

EXHIBIT C - EUT EXTERNAL PHOTOGRAPHS EUT - Front View EUT – Rear View EUT – Port View

EXHIBIT A - FCC ID LABELING AND WARNING STATEMENT Proposed FCC ID Label Specifications : Text is black or white in color and is left justified. Labels are silk-screened and shall be “permanently affixed” at a conspicuous location on the EUT. Proposed Label Location on EUT Rear View of the EUT/Proposed ID Label Location FCC Warning Statement A FCC Warning Statement is provided in the product manual. FCC ID: OPPTR850 Trade Name Model Number

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Uncovered View EUT – Component View EUT – Component View without Shielding EUT – Solder View EUT – Inserter

§1.1310 and §2.1091 - RF EXPOSURE According to §1.1307, systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density MPE Prediction Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal: 24.5 (dBm ) Maximum peak output power at antenna input terminal: 282 (mW) Prediction distance: 150 (cm) Predication frequency: 850 (MHz) Antenna Gain (typical): 10 (dBi) antenna gain: 10 (numeric) Power density at predication frequency at 150 cm: 0.01 (mW/cm 2 ) MPE limit for uncontrolled exposure at prediction frequency: 0.57 (mW/cm 2 ) Test Result The power density level at 150 cm is 0.01mW/cm², which is below the uncontrolled exposure limit of 0.57mW/cm² at 850 MHz.

Note: The test report is specially limited to the above company and this particular sample only. It may not be duplicated without prior written consent of Bay Area Compliance Laboratory Corporation. This report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST or any agency of the US Government. FCC PART 22 TYPE APPROVAL EMI MEASUREMENT AND TEST REPORT For VCom Inc. 150 Cardinal Place Saskatoon, SK Canada S7L 6H7 FCC ID: OPPTR850 This Report Concerns: Original Report Equipment Type: 850MHz Subscriber Transceiver Test Engineer: Daniel Deng / Report No.: R0504252 Report Date: 2005-06-17 Reviewed By: Richard Lee / Prepared By: Bay Area Compliance Laboratory Corporation (BACL) 230 Commercial Street Sunnyvale, CA 94085 Tel: (408) 732-9162 Fax: (408) 732 9164 VCom Inc. FCC ID: OPPTR850 Report # R0504252Rpt-aRpt Page 2 of 46 FCC Part 22 Type Approval Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ....................................................................................4 OBJECTIVE...................................................................................................................................................................4 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................4 TEST METHODOLOGY..................................................................................................................................................4 TEST FACILITY.............................................................................................................................................................5 SYSTEM TEST CONFIGURATION ..........................................................................................................................6 JUSTIFICATION.............................................................................................................................................................6 BLOCK DIAGRAM.........................................................................................................................................................6 EQUIPMENT MODIFICATIONS.......................................................................................................................................6 SUPPORT EQUIPMENT LIST AND DETAILS....................................................................................................................6 POWER SUPPLY INFORMATION.....................................................................................................................................6 INTERFACE PORTS AND CABLING.................................................................................................................................6 TEST SETUP BLOCK DIAGRAM.....................................................................................................................................7 SUMMARY OF TEST RESULTS ...............................................................................................................................8 §15.107 - CONDUCTED EMISSIONS ........................................................................................................................9 MEASUREMENT UNCERTAINTY....................................................................................................................................9 EUT SETUP..................................................................................................................................................................9 SPECTRUM ANALYZER SETUP......................................................................................................................................9 TEST EQUIPMENT LIST AND DETAILS...........................................................................................................................9 TEST PROCEDURE........................................................................................................................................................9 TEST RESULTS SUMMARY..........................................................................................................................................10 CONDUCTED EMISSIONS TEST DATA.........................................................................................................................10 PLOTS OF CONDUCTED EMISSION..............................................................................................................................10 §2.1047 - MODULATION CHARACTERISTIC .....................................................................................................13 APPLICABLE STANDARD............................................................................................................................................13 TEST PROCEDURE......................................................................................................................................................13 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................13 ENVIRONMENTAL CONDITIONS..................................................................................................................................13 TEST RESULTS...........................................................................................................................................................13 §2.1053 – SPURIOUS RADIATED EMISSIONS.....................................................................................................17 APPLICABLE STANDARD..................................................................................................................................…
