RLX-IHW-OEM Industrial Hotspot 802.11a, b, g User Guide September 06, 2007 Contents RLX-IHW-OEM ? 802.11a, b, g Industrial Hotspot ProSoft Technology, Inc. Page 2 of 6 September 6, 2007 Compliance Statement The following statements must be included in the product documentation for the end device in which the radio module is embedded: *This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This Class A digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada. CAUTION: Changes or modifications to this radio module not expressly approved by its manufacturer may void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Product Labeling This radio module is labeled with an FCC ID number and a Canadian Certification Number. If this label is not visible when installed in an end-device, the outside of the device MUST also display a label referring to the enclosed radio module. Use wording on the label similar to the following: "Transmitter Module FCC ID: OQ7IHW, Canada 3656AIHW". OR "This device contains Transmitter Module FCC ID: OQ7IHW, Canada 3656AIHW" Radio Frequency Interference Requirements For the channels in the frequency band 5.15 to 5.25 GHz operation is limited to indoor use only due to FCC and Canada requirements. Antenna spacing requirements for user safety Contents RLX-IHW-OEM ? 802.11a, b, g Industrial Hotspot ProSoft Technology, Inc. Page 3 of 6 September 6, 2007 It is important to keep the radio’s antenna a safe distance from the user. To meet the requirements of FCC part 2.1091 for radio frequency radiation exposure, the following information must be provided to the end user: “In order too comply with FCC RF exposure requirements, this device must be operated in such a way that a minimum 20cm separation distance is maintained between the antenna, and all persons, during normal operation.” The installer of this radio equipment must ensure that the antenna is located or pointed such that it does not emit RF fields in excess of Health Canada limits for the general population; consult Safety Code 6, obtainable from Health Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (EIRP) is not more than that required for successful communication. Approved Antennas Two antenna port connections (for diversity) are provided. The radio uses SMT Ultra Miniature Coax Connector, Hirose, CL331-0471-0-10 (U.FL-R-SMT). An adaptor cable or interface board is used to connect to the approved antennas. The following antennas are approved for use with this module: Frequency Bands Type Gain Connector Freq Part# Omni 2 SMA-RP 2.4,5.2,5.8 A2505S-OA Omni 2 F-RP 2.4,5.2,5.8 - Omni 2 RP-SMA 2.4 A2402S-OA Omni 2 RP-SMA 2.4 A2402S-OS Omni 2 RP-SMA 2.4 A2402S-OSLP Omni 3 N 2.4 A2403NJ-OCD Omni 4 N 2.4 A2404NBHB-O Omni 4 N 2.4 A2404NBHW-O Omni 4 N 2.4 A2404NJ-OC Omni 5 RP-SMA 2.4 A2405S-OA Omni 5 RP-SMA 2.4 A2405S-OM Omni 5 RP-SMA 2.4 A2405S-OS Omni 6 N 2.4 A2406NJ-OC Omni 6 N 2.4 A2406NJ-OCD Omni 6 N 5.8 A5006NJ-OC Omni 6,8 N 2.4,5.8 A2506NJ-OC Patch 8 N 2.4 A2408NJ-DP Patch 8,9 N 2.4,5.8 A2508NJ-DP Parabolic 29 N 5.8 A5829NJ-DB Contents RLX-IHW-OEM ? 802.11a, b, g Industrial Hotspot ProSoft Technology, Inc. Page 4 of 6 September 6, 2007 Installation The Radiolinx IHW-OEM module fits into a MiniPCI connector. The diagram below shows the dimensions of a MiniPCI TypeIIIA card. The diagram below shows inseration and removal of the Mini-PCI card. Digital connection is through Mini PCI type III defined by the Mini PCI Specification document published by the PCI Special Interest Group. As a recommendation, the Molex 67315-0011 can be used. Pin Signal Pin Signal Pin Signal Pin Signal Contents RLX-IHW-OEM ? 802.11a, b, g Industrial Hotspot ProSoft Technology, Inc. Page 5 of 6 September 6, 2007 1 TIP 2 RING 63 3.3V 64 FRAME# Key Key 3 8PMJ-3 3, 4 4 8PMJ-1 3, 4 65 CLKRUN# 66 TRDY# 5 8PMJ-6 3, 4 6 8PMJ-2 3, 4 67 SERR# 68 STOP# 7 8PMJ-7 3, 4 8 8PMJ-4 3, 4 69 GROUND 70 3.3V 9 8PMJ-8 3, 4 10 8PMJ-5 3, 4 71 PERR# 72 DEVSEL# 11 LED1_GRNP 12 LED2_YELP 73 C/BE[1]# 74 GROUND 13 LED1_GRNN 14 LED2_YELN 75 AD[14] 76 AD[15] 15 CHSGND 16 RESERVED 77 GROUND 78 AD[13] 17 INTB# 18 5V 79 AD[12] 80 AD[11] 19 3.3V 20 INTA# 81 AD[10] 82 GROUND 21 RESERVED 22 RESERVED 83 GROUND 84 AD[09] 23 GROUND 24 3.3VAUX 85 AD[08] 86 C/BE[0]# 25 CLK 26 RST# 87 AD[07] 88 3.3V 27 GROUND 28 3.3V 89 3.3V 90 AD[06] 29 REQ# 30 GNT# 91 AD[05] 92 AD[04] 31 3.3V 32 GROUND 93 RESERVED 94 AD[02] 33 AD[31] 34 PME# 95 AD[03] 96 AD[00] 35 AD[29] 36 RESERVED 97 5V 98 RESERVED_WIP 5 37 GROUND 38 AD[30] 99 AD[01] 100 RESERVED_WIP 5 39 AD[27] 40 3.3V 101 GROUND 102 GROUND 41 AD[25] 42 AD[28] 103 AC_SYNC 104 M66EN 43 RESERVED 44 AD[26] 105 AC_SDATA_IN 106 AC_SDATA_OUT 45 C/BE[3]# 46 AD[24] 107 AC_BIT_CLK 108 AC_CODEC_ID0# 47 AD[23] 48 IDSEL 109 AC_CODEC_ID1# 110 AC_RESET# 49 GROUND 50 GROUND 111 MOD_AUDIO_MON 112 RESERVED 51 AD[21] 52 AD[22] 113 AUDIO_GND 114 GROUND 53 AD[19] 54 AD[20] 115 SYS_AUDIO_OUT 116 SYS_AUDIO_IN 55 GROUN…

Text truncated - open the document above for the full version.

Corporate Office: 1675 Chester Avenue Fourth Floor Bakersfield, CA 93301 USA +1 661-771-5100 +1 661-716-5101 [email protected] September 6, 2007 Federal Communications Commission Equipment Authorization Branch 7435 Qakland Mills Road Columbia, MD 21046 To whom it may concern: This is a letter of authorization to accept PC Test Lab as an agent for ProSoft Technology, Inc. hereinafter referred to as ProSoft, for a period of one year, to sign applications before the Commission on behalf of ProSoft, to make representations to the Commission on behalf of ProSoft and to receive and exchange data between ProSoft and the Commission in connection with the certification of the following ProSoft product: Product: Radiolinx RLX-IHW-OEM 802.11 miniPCI OEM radio module FCC ID: OQ7IHW Under FCC Docket Number 20780 and General Docket Number 80-284 pursuant to Part 15 of FCC Rules and Regulations. ProSoft is a privately held corporation. This letter further attests that ProSoft nor any of its officers, directors, managers or persons holding 5% or more ownership in the company have been denied federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1998, 21 U.S.C. §862 because of conviction for possession or distribution of a controlled substance. Questions or requests for further information should be directed to Jim Weikert. Sincerely, Jim Weikert RadioLinx Development Lead Prosoft Technology, Inc. 661-716-5271 [email protected]

Corporate Office: 1675 Chester Avenue Fourth Floor Bakersfield, CA 93301 USA +1 661-771-5100 +1 661-716-5101 [email protected] September 6, 2007 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: Prosoft Technology, Inc. FCC ID: OQ7IHW Modular Transmitter Approval To Whom It May Concern: With regards to our application for equipment authorization of the Mini PCI module, listed below are the modular approval requirements with which the EUT complies: a) The modular transmitter has its own RF shielding. The shield is made of steel, tin coated. This is intended to ensure that the modules do not have to rely upon the shielding provided by the device into which it is installed in order for all modular coupling between the RF circuitry of the module and any wires or circuits in the device into which the module is installed. Such coupling may result in non-compliant operation. b) The modular transmitter has buffered modulation/data inputs to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. This is taken care of the Baseband Processor (BBP) chipset used. c) The modular transmitter has its own power supply regulation provided by voltage regulator ISL6414IR. This is intended to ensure that the module will comply with Part 15 requirements regardless of the power supplying circuitry in the device into which the module is installed. d) The modular transmitter complies with the antenna requirements or Section 15.203 and 15.204(c). A proprietary miniature pcb connector is used on the module, and a proprietary cable is used to connect to antennas with reverse polarity sma connectors. e) The modular transmitter has been tested in a stand-alone configuration, i.e. the module was completely uncovered attached to a bare host pc board during testing. This demonstrates that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. The transmitter Corporate Office: 1675 Chester Avenue Fourth Floor Bakersfield, CA 93301 USA +1 661-771-5100 +1 661-716-5101 [email protected] module complies with the AC line conducted requirements found in Section 15.207. The antenna cable connected to the module does not contain ferrites. f) The modular transmitter is labeled with its own FCC ID number, and the OEM is instructed to provide an exterior label to be placed on the device into which the EUT is installed. g) There are no specific rules or operating requirements applicable to the transmitter with respect to user operation. h) The modular transmitter complies with the applicable RF exposure requirements, as specified in Section 15.247. The EUT is a mobile device. The installation instructions caution the user to install and operate the EUT in such a way that a minimum 20 cm separation distance is maintained between the antenna and all persons during normal operation. Sincerely, Jim Weikert RadioLinx Development Lead Prosoft Technology, Inc. 661-716-5271 [email protected]

To: Gregory Czumak Subject: RE: Questions Regarding FCC ID: OQ7IHW From: Mr. Gregory Czumak/ PCTEST TCB RE: FCC ID: OQ7IHW Applicant: ProSoft Technologies Inc. Correspondence Reference Number: OQ77609 Confirmation Number: 707060609 Date of Original Email: November 26, 2007 Subject: Request for additional information In regards to your recent TCB application referenced above, we kindly request that you provide the following additional information. 1. Please verify that the EUT will be marketed only to OEM installers. The EUT will only be marketed to OEM installers. We received modular approval so that we could have the flexibility of putting the module in several of our own products, so we are the OEM. 2. The Datasheet lists conducted output power levels up to 18 dBm, while the highest level measured in the test report is about 8 dBm. Please explain. We purchased the module from a company called Eazix. We had the testing done so that we could use antennas with gain higher than the 2dBi antennas in the original filing. The datasheet is from Eazix and apparently they were able to use 18 dm output power in their measurements. PC Test did the original filing for Eazix . If you have any questions on that filing, I believe Greg has it. 3. The Datasheet and the User’s Manual both list potential U.S. operating frequencies not documented in the test report. Please address. When Eazix originally did the filing, the card was usable in the 5.25 and 5.47 bands. Since then the FCC rules have changed so we did not test those bands. We restrict use of those bands in our product. 4.Please revise the Confidentiality Request letter so that it only references documents that have actually been submitted (e.g., no Parts List was submitted, nor is one required for the EUT, but it is, nonetheless, listed in the Confidentiality Request letter). Certainly, I will do this once I return. The items indicated above must be submitted before processing can continue on the above referenced application. Sincerely, Gregory Czumak Senior Certification Engineer Quality Manager PCTEST Engineering Laboratory, Inc. 6660-B Dobbin Road Columbia, MD 21045 410-290-6652 410-290-6654 (Fax) [email protected] This communication and its attachments contain information from PCTEST Engineering Laboratory, Inc., and is intended for the exclusive use of the recipient (s) named above. It may contain information that is confidential and/or legally privileged. Any unauthorized use that may compromise that confidentiality via distribution or disclosure is prohibited. Please notify the sender immediately if you receive this communication in error, and delete it from your computer system. Usage of PCTEST email addresses for non-business related activities is strictly prohibited. No warranty is made that the e-mail or attachment(s) are free from computer virus or other defect. Thank you.

Corporate Office: 1675 Chester Avenue Fourth Floor Bakersfield, CA 93301 USA +1 661-771-5100 +1 661-716-5101 [email protected] January 28, 2008 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re: Prosoft Technology, Inc. FCC ID: OQ7IHW Request for Confidentiality To whom it may concern: Pursuant to Paragraphs §0.457 and §0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, ProSoft Technology, Inc. requests confidentiality of the Block Diagram, Circuit Diagrams, Circuit Description and Operational Description attachments for the subject application. These documents detailed system and equipment description and related information about the product, which the manufacturer considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, the manufacturer considers that this information would be of benefit to it’s competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Jim Weikert RadioLinx Development Lead Prosoft Technology, Inc. 661-716-5271 [email protected]

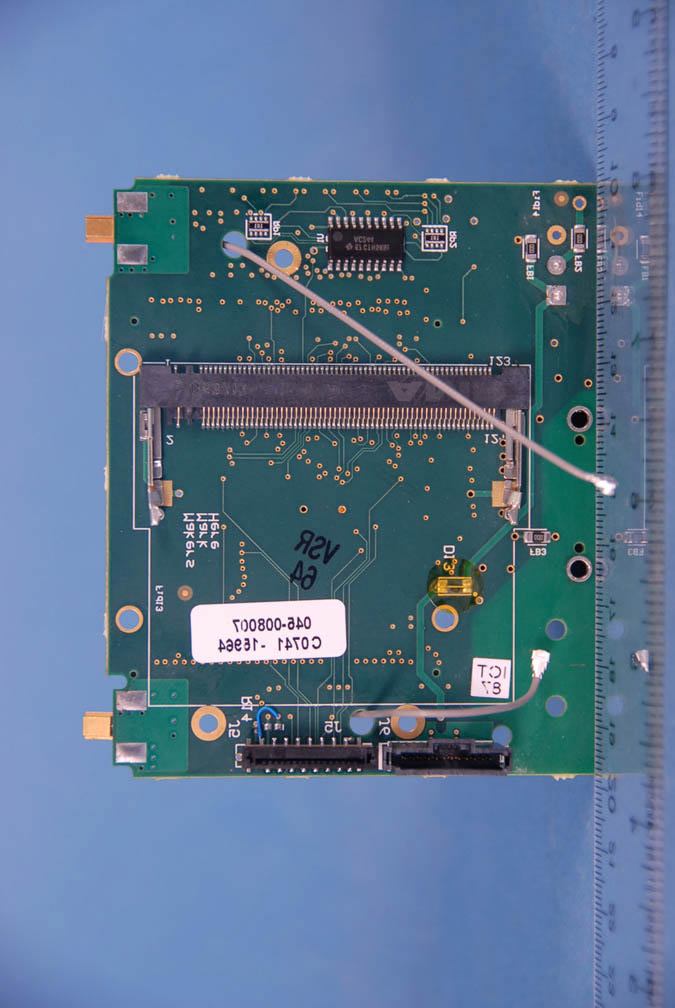

PROSOFT FCC ID: OQ7IHW EUT Photographs © 2008 PCTEST Lab. 802.11 a/b/g Transmitter Model: RLX-IHW PROSOFT FCC ID: OQ7IHW EUT Photographs © 2008 PCTEST Lab. 802.11 a/b/g Transmitter Model: RLX-IHW

Labeling Requirements Sample Label & Location New Labeling Requirements Per 2.1074 & 15.19, Docket 95-19 The sample label shown below shall be permanently affixed at a conspicuous location on the device; instruction manual or pamphlet supplied to the user and be readily visible to the purchaser at the time of purchase. However, when the device is so small wherein placement of the label with specified statement is not practical, only the trade name, FCC ID, and the FCC logo must be displayed on the device per Section 15.19 (b)(2). Label: Location:

PROSOFT FCC ID: OQ7IHW EUT Photographs © 2008 PCTEST Lab. 802.11 a/b/g Transmitter Model: RLX-IHW PROSOFT FCC ID: OQ7IHW EUT Photographs © 2008 PCTEST Lab. 802.11 a/b/g Transmitter Model: RLX-IHW PROSOFT FCC ID: OQ7IHW EUT Photographs © 2008 PCTEST Lab. 802.11 a/b/g Transmitter Model: RLX-IHW PROSOFT FCC ID: OQ7IHW EUT Photographs © 2008 PCTEST Lab. 802.11 a/b/g Transmitter Model: RLX-IHW PROSOFT FCC ID: OQ7IHW EUT Photographs © 2008 PCTEST Lab. 802.11 a/b/g Transmitter Model: RLX-IHW

Reviewed by: FCC ID: OQ7IHW MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0707060701.OQ7 September 4, 2007 802.11a/b/g Transmitter Page 1 of 7 © 2007 PCTEST Engineering Laboratory, Inc. REV 3.0MPE 03/09/07 Applicant Name: Date of Testing: ProSoft Technology, Inc. September 4, 2007 1675 Chester Ave 4th Floor Test Site/Location: Bakersfield, CA 93301 PCTEST Lab, Columbia, MD, USA Test Report Serial No.: 0707060701.OQ7 FCC ID: OQ7IHW APPLICANT: ProSoft Technology, Inc. EUT Type: 802.11a/b/g Transmitter FCC Rule Part(s): FCC Part 1 (§1.1310) and Part 2 (§2.1091) FCC Classification: Digital Transmission System (DTS) Test Procedure: OET Bulletin 65 The device bearing the FCC Identifier specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and has been tested in accordance with the measurement procedures specified in FCC OET Bulletin 65 (See Test Report). These measurements were performed with no deviation from the standards. I authorize and attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com RF EXPOSURE EVALUATION (MAXIMUM PERMISSIBLE EXPOSURE) Reviewed by: FCC ID: OQ7IHW MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0707060701.OQ7 September 4, 2007 802.11a/b/g Transmitter Page 2 of 7 © 2007 PCTEST Engineering Laboratory, Inc. REV 3.0MPE 03/09/07 TABLE OF CONTENTS 1.0 RF EXPOSURE EVALUATION – MAXIMUM PERMISSIBLE EXPOSURE (MPE) .........................3 1.1 INTRODUCTION ................................................................................................................................... 3 1.2 EUT DESCRIPTION .............................................................................................................................. 3 1.3 MPE REQUIREMENTS OVERVIEW..................................................................................................... 4 1.4 PROCEDURE........................................................................................................................................ 5 1.5 SUMMARY OF RESULTS ..................................................................................................................... 6 2.0 CONCLUSION..................................................................................................................................7 Reviewed by: FCC ID: OQ7IHW MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0707060701.OQ7 September 4, 2007 802.11a/b/g Transmitter Page 3 of 7 © 2007 PCTEST Engineering Laboratory, Inc. REV 3.0MPE 03/09/07 1.0 RF EXPOSURE EVALUATION – MAXIMUM PERMISSIBLE EXPOSURE (MPE) 1.1 Introduction This document is prepared on behalf of ProSoft Technology, Inc. to show compliance with the RF Exposure requirements as required in §1.1310 of the FCC Rules and Regulations and RSS-102 of Industry Canada. The limit for Maximum Permissible Exposure (MPE), specified in FCC §1.1310, is listed in Table 1-1. According to FCC §1.1310 and RSS-102: the criteria listed in the following table shall be used to evaluate the environmental impact of human exposure to radio-frequency (RF) radiation as specified in §1.1307(b). Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits For Occupational / Control Exposures (f = frequency) 30-300 61.4 0.163 1.0 6 300-1500 ... ... f/300 6 1500-100,000 ... ... 5.0 6 (B) Limits For General Population / Uncontrolled Exposure (f = frequency) 30-300 27.5 0.073 0.2 30 300-1500 ... ... f/1500 30 1500-100,000 ... ... 1.0 30 Table 1-1. Limits for Maximum Permissible Exposure (MPE) 1.2 EUT Description The ProSoft Model: is an 802.11a/b/g transmitter with an integrated Eazix WLAN Mini PCI module, previously certified under FCC ID: R5Y-EZWFM06ER. For this MPE evaluation, the device is set to transmit using multiple external antennas in both the 2.4GHz and 5.8GHz bands. The RF exposure of the transmitter is evaluated with each individual antenna. EUT: Model: Grantee: ProSoft Technology, Inc. FCC ID: OQ7IHW Antenna Gains: 8dBi – 2.4GHz (Mast Mount Directional Panel Antenna) 6dBi – 2.4GHz, 8dBi – 5.8GHz (Omni-directional Monopole Antenna) 29dBi – 5.8GHz (Parabolic Grid Antenna) Reviewed by: FCC ID: OQ7IHW MAXIMUM PERMISSIBLE EXPOSURE (MPE) DATA REPORT Quality Manager Test Report S/N: Test Dates: EUT Type: 0707060701.OQ7 September 4, 2007 802.11a/b/g Transmitter Page 4 of 7 © 2007 PCTEST Engineering Laboratory, Inc. REV 3.0MPE 03/09/07 1.3 MPE Requirements Overview Three different categories of transmitters are defined by the FCC in OET Bulletin 65. These categories are fixed installation, mobile, and portable and are defined as follows: o Fixed Installations: fixed location means that the device, including its antenna, is physically secured at a permanent location and is not able to be easily moved to another location. Additionally, distance to humans from the antenna is maintained to at least 2 meters. o Mobile Devices: a mobile device is defined as a transmitting device designed to be used in other than fixed locations and to be generally used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter's radiating structures and the body of the user or nearby persons. Transmitt…

Text truncated - open the document above for the full version.

Reviewed by: FCC ID: OQ7IHW FCC Pt. 15.247 WLAN 802.11a/b/g MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0707060700.OQ7 August 28 - 29, 2007 802.11a/b/g Transmitter Page 1 of 56 © 2007 PCTEST Engineering Laboratory, Inc. REV 2.5WFC 06/07/07 Applicant Name: Date of Testing: ProSoft Technology, Inc. August 28 - 29, 2007 1675 Chester Ave 4th Floor Test Site/Location: Bakersfield, CA 93301 PCTEST Lab, Columbia, MD, USA Test Report Serial No.: 0707060700.OQ7 FCC ID: OQ7IHW APPLICANT: ProSoft Technology, Inc. Model(s): RLX-IHW EUT Type: 802.11a/b/g Transmitter Max. RF Output Power: 6.64 mW (8.22 dBm) Conducted (b) 6.34 mW (8.02 dBm) Conducted (g) 2.79 mW (4.46 dBm) Conducted (a) Frequency Range: 2412 - 2462 MHz (DSSS/OFDM) 5745 – 5825 MHz (OFDM) FCC Classification: Digital Transmission System (DTS) FCC Rule Part(s): Part 15.247 Test Device Serial No.: N/A This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C-63.4-2003. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Grant Conditions: Listed output power is conducted. PCTEST certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. PCTEST ENGINEERING LABORATORY, INC. 6660-B Dobbin Road, Columbia, MD 21045 USA Tel. 410.290.6652 / Fax 410.290.6554 http://www.pctestlab.com CERTIFICATE OF COMPLIANCE FCC PART 15.247 Certification Reviewed by: FCC ID: OQ7IHW FCC Pt. 15.247 WLAN 802.11a/b/g MEASUREMENT REPORT (CERTIFICATION) Quality Manager Test Report S/N: Test Dates: EUT Type: 0707060700.OQ7 August 28 - 29, 2007 802.11a/b/g Transmitter Page 2 of 56 © 2007 PCTEST Engineering Laboratory, Inc. REV 2.5WFC 06/07/07 TABLE OF CONTENTS FCC PART 15.247 MEASUREMENT REPORT...................................................................................3 1.0 INTRODUCTION......................................................................................................................................4 1.1 EVALUATION PROCEDURE..................................................................................................................... 4 1.2 SCOPE....................................................................................................................................................... 4 1.3 PCTEST TEST LOCATION........................................................................................................................ 4 2.0 PRODUCT INFORMATION .....................................................................................................................5 2.1 EQUIPMENT DESCRIPTION..................................................................................................................... 5 2.2 EMI SUPPRESSION DEVICE(S)/MODIFICATIONS.................................................................................. 5 2.3 LABELING REQUIREMENTS .................................................................................................................... 5 3.0 DESCRIPTION OF TEST ........................................................................................................................6 3.1 CONDUCTED EMISSIONS........................................................................................................................ 6 3.2 RADIATED EMISSIONS ............................................................................................................................ 7 4.0 ANTENNA REQUIREMENTS ..................................................................................................................8 5.0 TEST EQUIPMENT CALIBRATION DATA..............................................................................................9 6.0 TEST RESULTS ....................................................................................................................................10 6.1 SUMMARY ............................................................................................................................................... 10 6.2 6DB BANDWIDTH MEASUREMENT – 802.11A/B/G.............................................................................. 11 6.3 OUTPUT POWER MEASUREMENT – 802.11B...................................................................................... 17 6.4 OUTPUT POWER MEASUREMENT – 802.11G...................................................................................... 18 6.5 OUTPUT POWER MEASUREMENT – 802.11A (5.8GHZ) ...................................................................... 19 6.6 POWER SPECTRAL DENSITY (802.11A/B/G)........................................................................................ 20 6.7 OUT OF BAND EMISSIONS AT THE BAND EDGE................................................................................ 26 6.8 OUT OF BAND EMISSIONS .................................................................................................................... 29 6.9 RADIATED SPURIOUS EMISSION MEASUREMENTS.......................................................................... 35 6.10 RADIATED RESTRICTED BAND EDGE MEASUREMENTS .................................................................. 48 6.11 LINE-CONDUCTED TEST DATA............................................................................................................. 50 7.0 CONCLUSION .......................................................................................................................................56 Reviewed by: FCC ID: OQ7IHW FCC Pt. 15.247 WLAN 802.11a/b/g MEASUREMENT REPORT (CERTIFIC…
