OQ7SR71ARLX2-IHNF, RLX2-IHN-W, RLX2-IHN-WC

RLX2‐IHx Series 802.11a, b, g, n Industrial Hotspots 802.11abg, RLX2‐IHW 802.11abgn, Fast, RLX2‐IHNF 802.11g, High Power, RLX2‐IHG 802.11a, High Power, RLX2‐IHA 802.11abgn, Weatherproof IP66/67, RLX2‐IHNF‐W/WC Firmware version V35 and later February 5, 2015 USER MANUAL Your Feedback Please We always want you to feel that you made the right decision to use our products. If you have suggestions, comments, compliments or complaints about our products, documentation, or support, please write or call us. How to Contact Us ProSoft Technology 5201 Truxtun Ave., 3rd Floor Bakersfield, CA 93309 +1 (661) 716‐5100 +1 (661) 716‐5101 (Fax) www.prosoft‐technology.com support@prosoft‐technology.com Copyright © 2015 ProSoft Technology, Inc. All rights reserved. RLX2 Series User Manual February 5, 2015 ProSoft Technology ® , ProLinx ® , inRAx ® , ProTalk ® , and RadioLinx ® are Registered Trademarks of ProSoft Technology, Inc. All other brand or product names are or may be trademarks of, and are used to identify products and services of, their respective owners. In an effort to conserve paper, ProSoft Technology no longer includes printed manuals with our product shipments. User Manuals, Datasheets, Sample La dder Files, and Configuration Files are provided on the enclosed DVD, and are available at no charge from our web site: http://www.prosoft‐technology.com Content Disclaimer This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications. It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products wit h respect to the relevant specific application or use thereof. Neither ProSoft Technology nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein. Information in this document including illustrations, specifications and dimensions may contain technical inaccuracies or typographical errors. ProSoft Technology makes no warranty or r epresentation as to its accuracy and assumes no liability for and reserves the right to correct such inaccuracies or errors at any time without notice. If you have any suggestions for improvements or amendments or have found errors in this publication, please notify us. No part of this document may be reproduced in any form or by an y means, electronic or mechanical, including photocopying, without express written permission of ProSoft Technology. All pertinent state, regional, and local safety regulations must be observed when installing and using this product. For reasons of safety and to help ensure compliance with documented system data, only the manufac turer should perform repairs to components. When devices are used for applications with technical safety requirements, the relevant instructions must be followed. Failure to use ProSoft Technology software or approved software with our hardware products may result in injury, harm, or improper operating results. Failure to observe this information can result in injury or equipment da mage. © 2015 ProSoft Technology, Inc. All rights reserved. Important Safety Information The following Information and warnings pertaining to the radio module must be heeded: WARNING – EXPLOSION HAZARD – DO NOT REPLACE ANTENNAS UNLESS POWER HAS BEEN SWITCHED OFF OR THE AREA IS KNOWN TO BE NON‐HAZARDOUS. "THIS DEVICE CONTAINS ONE TRANSMITTER MODULE: FCC ID: OQ7SR71A PLEASE SEE FCC ID LABEL ON BACK OF DEVICE." "THIS DEVICE USES AN INTERNAL COMPACT FLASH RADIO MODULE AS THE PRIMARY RADIO COMPONENT. THE COMPACT FLASH RADIO MODULE DOES NOT HAVE AN FCC ID LABEL. THE COMPACT FLASH RADIO MODULE HAS NO US ER SERVICEABLE PARTS." "THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION." "CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY TH E PARTY RESPONSIBLE FOR COMPLIANCE COULD VOID THE USER’s AUTHORITY TO OPERATE THE EQUIPMENT." “THIS DEVICE IS CONFIGURED FOR OPERATION IN THE USA DURING MANUFACTURING. THESE CONFIGURATION CONTROLS ARE NOT PRESENT IN THE SOFTWARE WITH WHICH THE UNIT IS SHIPPED; THEREFORE THE END USER CANNOT CHANGE THE MAX POWER SETTI NGS OR THE COUNTRY/REGION. THE MODELS SOLD & SHIPPED WITHIN THE U.S. ARE IDENTIFIED WITHIN THE MODEL NUMBER WITH –A AS PART OF THE IDENTIFIER.” Industry Canada Requirements: "THIS DEVICE HAS BEEN DESIGNED TO OPERATE WITH AN ANTENNA HAVING A MAXIMUM GAIN OF 24 dB. AN ANTENNA HAVING A HIGHER GAIN IS STRICTLY PROHIBITED PER REGULATIONS OF INDUSTRY CANADA. THE REQUIRED ANTENNA IMPEDANCE IS 50 OHMS." "TO REDUCE POTENTIAL RADIO INTERFERENCE TO OTHER USERS, THE ANTENNA TYPE AND ITS GAIN SHOULD BE CH OSEN SUCH THAT THE EQUIVALENT ISOTROPICALLY RADIATED POWER (EIRP) IS NOT MORE THAN THAT REQUIRED FOR SUCCESSFUL COMMUNICATION." "THE INSTALLER OF THIS RADIO EQUIPMENT MUST INSURE THAT THE ANTENNA IS LOCATED OR POINTED SUCH THAT IT DOES NOT EMIT RF FIELD IN EXCESS OF HEALTH CANADA LIMITS FOR TH E GENERAL POPULATION; CONSULT SAFETY CODE 6, OBTAINABLE FROM HEALTH CANADA." RLX2‐IHNF, RLX2‐IHA, RLX2‐IHG, RLX2‐IHW 1. This equipment is Suitable For Use in Class I, Division2, Groups A, B, C, D or Non‐Hazardous Location Only. 2. WARNING – EXPLOSION HAZARD – Substitution of Any Components May Impair Suitability for Class I, Division 2. 3. WARNING – EXPLOSION HAZARD – Do not disconnect equipment unless power has bee n removed or the area is known to be non‐hazardous. 4. The unit is to be connected only to PoE networks without routing to the outside plant. 5. WARNING – EXPLOSION HAZARD – The SIM Card/Personality Module connection is for initial setup and maintenance only. Do not use, connect, or disconne ct unless area is known to be non‐hazardous. Connection or disconnec…

Text truncated - open the document above for the full version.

15 October 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Subject: Original Application FCC ID: OQ7SR71A Dear Application Examiner: ProSoft Technology, Inc. is submitting this application for certification of their SR71A radio module under FCC ID: OQ7SR71A. It will be used in ProSoft WLAN access points Models RLX2-IHNF, RLX2-IHNF-W, RLX2-IHNF- WC. The SR71A module is an 802.11 a/b/g/n radio. Limited modular approval is sought under FCC 15.247 and FCC 15.407. This device has shown compliance with the new rules adopted under Docket No. 13-49. Models RLX-IHNF-W and RLX2-IHNF-WC are identical except for the DC power entry. The RLX2-IHNF is a different host device and was tested separately. The access points can only be used 20 cm or greater from the user’s head or torso so MPE estimates were made to demonstrate compliance to FCC 2.1091 requirements. The radio cannot operate in the DFS frequency bands. It operates as a master device only. The device is professionally installed so it meets the requirements of FCC 15.203. The digital portion has been FCC Class A verified. The following is a summary of the reports submitted with this application: Type / Purpose of the Test Reports  System level testing of the SR71A module installed in the RLX2-IHNF access point. Used to demonstrate compliance to FCC 15.407 in the 5.2 GHz band. NWEMC Report – PROS0219 Rev 01  System level testing of the SR71A module installed in the RLX2-IHNF access point. Used to demonstrate compliance to FCC 15.407 in the 5.8 GHz band. NWEMC Report – PROS0221.1  System level testing of the SR71A module installed in the RLX2-IHNF access point. Used to demonstrate compliance to FCC 15.247 in the 2.4 GHz band. NWEMC Report – PROS0222.2 Rev 01  System level testing of the SR71A module installed in the RLX2-IHNF-W access point (also covers Model RLX2-IHNF-Wxx). Used to demonstrate compliance to 15.247 spurious radiated emissions in the 2.4 GHz band and AC Powerline Conducted emissions. NWEMC Report - PROS0226  System level testing of the SR71A module installed in the RLX2-IHNF-W access point (also covers Model RLX2-IHNF-WC). Used to demonstrate compliance with 15.407 spurious radiated emissions in the 5.2 and 5.8 GHz bands; and AC Powerline Conducted emissions. NWEMC Report - PROS0226.2 Your efforts in reviewing this application are greatly appreciated. Best regards, Frank Hardy ProSoft Technology, Inc.

June 4, 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 To whom it may concern, I hereby authorize Michael Taylor of Ubiquiti Networks to act on our behalf only for signing the Request for Confidentiality letter for this filing FCC ID: OQ7SR71A. The exhibits being held confidential are the intellectual property of Ubiquiti Networks. This authorization is limited to only the signing of the Request for Confidentiality letter. This authorization shall expire 12 months from original date. Sincerely, Frank Hardy Compliance/Regulatory Engineer

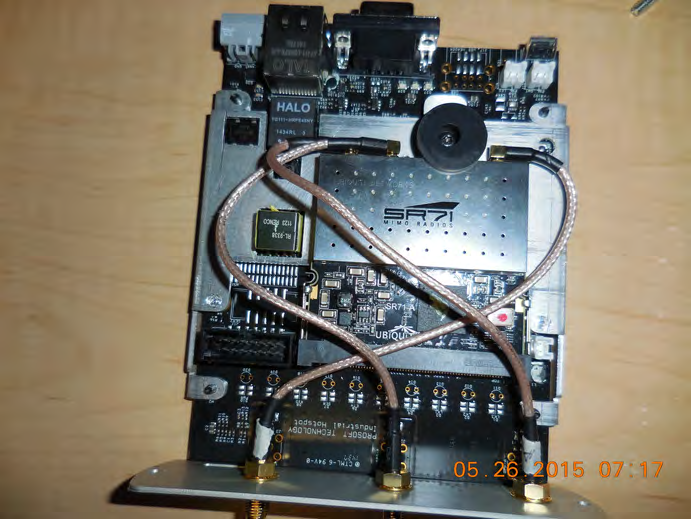

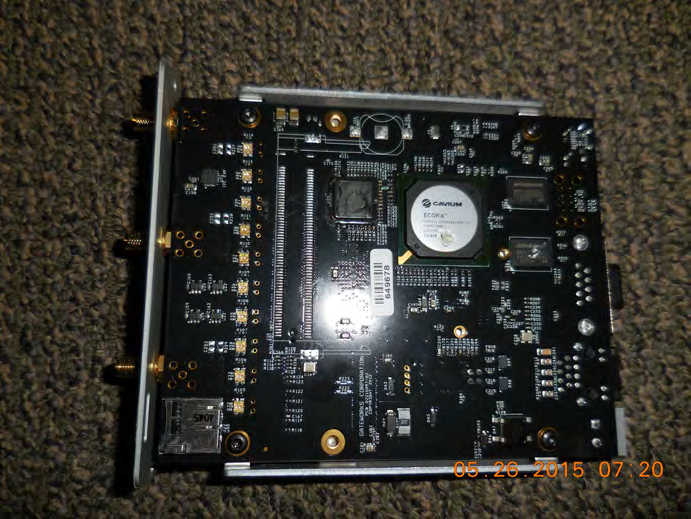

8/12/2015 Dear Application Examiner: ProSoft Technology, Inc. is submitting this application for certification of their SR71A radio module, FCC ID: OQ7SR71A under FCC 15.247 and 15.407. It will be used in ProSoft WLAN access points Models RLX2-IHNF, RLX2-IHNF-W, RLX2-IHNF-WC. The radio meets the requirements for limited modular approval as detailed in FCC 15.212. Compliance to each of the requirements is described below: 1. “The modular transmitter must have its own RF shielding.” The radio portion of the module is contained in its own RF shielding. The shielding is installed at the factory. Please see the Internal Photos exhibit. 2. “The modular transmitter must have buffered modulation/data inputs.” The EUT has buffered data inputs to insure compliance with Part 15 requirements under conditions of excessive data rates or over- modulation. Please see the Schematics exhibit. 3. “The modular transmitter must have its own power supply regulation.” The EUT has its own power supply regulation to insure compliance with Part 15 requirements regardless of the quality or level of external DC supplying the module from the host unit. Please see Schematics exhibit. Also, the technical report exhibit contains AC power line conducted emissions data taken with the EUT powered from a linear power supply that contains no EMC suppression components. 4. “The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c).” The EUT meets the FCC antenna requirements. Please see Antenna information exhibit and internal photos exhibit. 5. “The modular transmitter must be tested in a stand-alone configuration.” The EUT was tested in two host devices, the Prosoft model RLX2-IHNF and RLX2-IHN-W (also covers RLX2-IHN-Wxx). This is why limited modular approval is sought. Please see test setup photos exhibit and technical report exhibit. 6. “The modular transmitter must be labeled with its own FCC ID number.” The EUT is labeled with its own FCC ID number. Please see FCC ID label & location exhibit. If the FCC ID number will not be visible when the module is installed inside a host device, another label with the FCC ID will be applied to the exterior of the host device. 7. “The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements.” The EUT is compliant with all applicable FCC rules. Detail instructions for maintaining compliance are given in the User Manual. 8. “The modular transmitter must comply with any applicable RF exposure requirements.” The EUT is compliant with all applicable RF exposure requirements. Please see RF Exposure Exhibit. Please contact me if you have additional questions. Your attention to this matter is greatly appreciated. Best regards, Frank Hardy – Compliance/Regulatory Engineer

June 3, 2015 Northwest EMC, Inc. 22975 NW Evergreen Parkway, Suite 400 Hillsboro, OR 97124 RE: CONFIDENTIALITY REQUEST FOR RLX2-IHNF , FCC ID: OQ7SR71A To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the following documents required to be submitted with this application be permanently withheld from public review.  Block Diagram  Schematics  Theory of Operation These documents contain detailed system and equipment descriptions and related information about the product, which manufacturer/applicant considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, manufacturer/applicant feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Michael Taylor Compliance Manager 2580 Orchard Parkway San Jose, CA 95131, USA 408-942-3085 [email protected]

25 October 2015 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 Subject: FCC ID: OQ7SR71A To whom it may concern, We hereby respectfully request that under the provision of 47 CFR 0.459 and 0.457(d), the documents listed below and attached with this application for certification be provided with confidential status.  Operational Description Any exhibit / information for which we have requested confidentiality, but which may not be accorded such treatment by the FCC, should be returned to us. The documents listed above contain trade secrets that are treated as confidential by us. Substantial competitive harm to us could result should they be made available to the public. Best regards, Frank Hardy ProSoft Technology, Inc.

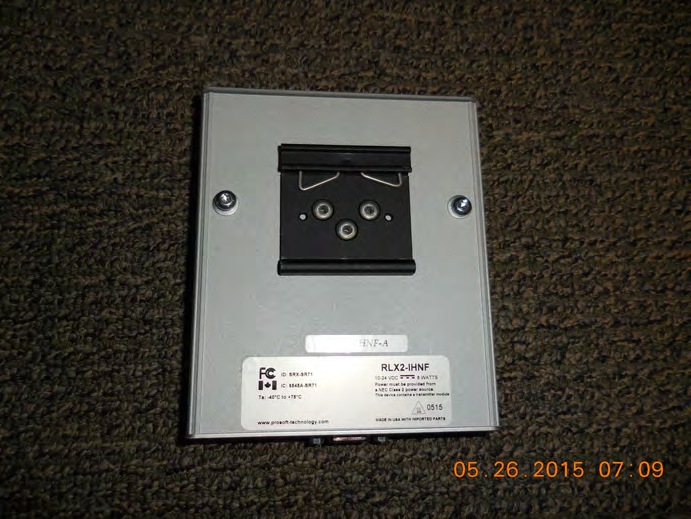

II 3 G Ex nA IIC T4 X -40° C < Temp < 75° C 661-716-5100 www.prosoft-technology.com RLX2-IHNF 62XN Class I, Div 2,Gps A, B, C, D T4 CSA C22.2 No. 213-M1987 Telemetering device for use in Hazardous Locations This device contains a transmitter module FCC ID: OQ7SR71A Canada IC: 5265A-SR71A

INFRASTRUCTURE ANTENNAS Omnidirectional MMO Series Mast Mount Omnidirectional (MMO) Antennas The MMO series base antenna provides outstanding coverage in a rugged U.V. stable, plastic radome with an aluminum base that is ideal for indoor or outdoor applications. Features • Elevation radiation pattern shaped to direct energy where it is needed, while suppressing the misdirected upper and lower sidelobe energy. • Pipe mount is included for added convenience. • Multiple band coverage supports 2.4 GHz and 5.15-5.8 GHz broadband networks, eliminating the need for a second or third antenna in POP locations where mounting space is limited or costly. (MMO24580608 model). Technical Data Maximum Power: 25 watts Polarization: Vertical linear Normal Impedance: 50 ohms VSWR: < 2.0:1 Wind Survival: 125 mph Radome Material: White UV stable plastic Connector: N female or N male. 12” or 36” RG-58/U pigtail with RP-TNC plug connector (MMO24005 series only). Other connector options available (MMO24005 series only). Mounting Method: Pipe mount (included). Multiple band MMO24580608 omnidirectional antenna RF/Electrical Specifi cations Model Frequency Range Nominal Gain H-plane Beamwidth E-plane Beamwidth MMO24005PTNF2.4-2.485 GHz5.5 dBi +/-0.5360°32° MMO24005PTRPC2.4-2.485 GHz5.5 dBi +/-0.5360°32° MMO24005PT36RPBN2.4-2.485 GHz5.5 dBi +/-0.5360°32° MMO24005PT36RPC2.4-2.485 GHz5.5 dBi +/-0.5360°32° MMO24580608NF 2.4-2.48/ 5.15-5.85 GHz 6 dBi/ 8 dBi 360° 22°/ 15° Mechanical Specifi cations Model Antenna Height Weight (Mass) Bending Moment at Rated Wind Lateral Thrust at Rated Wind Equivalent Flat Plane Area MMO24005PTNF 11.3” (287 mm) 0.5 lbs (0.23 kg) 2.2 ft-lbs4.6 lbs0.5 ft 2 MMO24005PTRPC 11.3” (287 mm) 0.5 lbs (0.23 kg) 2.2 ft-lbs4.6 lbs0.5 ft 2 MMO24005PT36RPBN 11.3” (287 mm) 0.5 lbs (0.23 kg) 2.2 ft-lbs4.6 lbs0.5 ft 2 MMO24005PT36RPC 11.3” (287 mm) 0.5 lbs (0.23 kg) 2.2 ft-lbs4.6 lbs0.5 ft 2 MMO24580608NF 26” (660.4 mm) 0.50 lbs (0.226 kg) 11.5 ft-lbs10.6 lbs0.12 ft 2 112 PCTEL, Inc. WEB: www.antenna.com

This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government of the United States of America. This Report may only be duplicated in its entirety ProSoft Technology, Inc. RLX2-IHNF FCC 2.1091:2015 Report # PROS0222.1 NVLAP Lab Code: 201049-0 CERTIFICATE OF EVALUATION 2014-12-10 Product compliance is the responsibility of the client; therefore, the tests and equipment modes of operation represented in this report were agreed upon by the client, prior to testing. The results of this test pertain only to the sample(s) tested. The specific description is noted in each of the individual sections of the test report supporting this certificate of test. This report reflects only those tests from the referenced standards shown in the certificate of test. It does not include inspection or verification of labels, identification, marking or user information. Last Date of Test: June 15, 2015 ProSoft Technology, Inc. Model: RLX2-IHNF Radio Equipment Testing Standards Specification Method FCC 2.1091:2015 KDB 447498 D01 General RF Exposure Guidance v05r02 Results Method Clause Test Description Applied Results Comments 7.1 Maximum Permissible Exposure Yes Pass Deviations From Test Standards None Approved By: Don Facteau, IT Manager Report No. PROS0222.12/9 REVISION HISTORY REV 2014.10.14 Revision Number Description Date Page Number 00 None Report No. PROS0222.13/9 ACCREDITATIONS AND AUTHORIZATIONS REV 2015.2.19 United States FCC - Designated by the FCC as a Telecommunications Certification Body (TCB). Certification chambers, Open Area Test Sites, and conducted measurement facilities are listed with the FCC. A2LA - Accredited by A2LA to ISO / IEC 17065 as a product certifier. This allows Northwest EMC to certify transmitters to FCC and IC specifications. NVLAP - Each laboratory is accredited by NVLAP to ISO 17025 Canada IC - Recognized by Industry Canada as a Certification Body (CB). Certification chambers and Open Area Test Sites are filed with IC. European Union European Commission – Validated by the European Commission as a Conformity Assessment Body (CAB) under the EMC directive and as a Notified Body under the R&TTE Directive. Australia/New Zealand ACMA - Recognized by ACMA as a CAB for the acceptance of test data. Korea MSIP / RRA - Recognized by KCC’s RRA as a CAB for the acceptance of test data. Japan VCCI - Associate Member of the VCCI. Conducted and radiated measurement facilities are registered. Taiwan BSMI – Recognized by BSMI as a CAB for the acceptance of test data. NCC - Recognized by NCC as a CAB for the acceptance of test data. Singapore IDA – Recognized by IDA as a CAB for the acceptance of test data. Israel MOC – Recognized by MOC as a CAB for the acceptance of test data. Hong Kong OFCA – Recognized by OFCA as a CAB for the acceptance of test data. Vietnam MIC – Recognized by MIC as a CAB for the acceptance of test data. SCOPE For details on the Scopes of our Accreditations, please visit: http://www.nwemc.com/accreditations/ http://gsi.nist.gov/global/docs/cabs/designations.html Report No. PROS0222.14/9 FACILITIES REV 2015.2.19 California Labs OC01-13 41 Tesla Irvine, CA 92618 (949) 861-8918 Minnesota Labs MN01-08, MN10 9349 W Broadway Ave. Brooklyn Park, MN 55445 (612)-638-5136 New York Labs NY01-04 4939 Jordan Rd. Elbridge, NY 13060 (315) 554-8214 Oregon Labs EV01-12 22975 NW Evergreen Pkwy Hillsboro, OR 97124 (503) 844-4066 Texas Labs TX01-09 3801 E Plano Pkwy Plano, TX 75074 (469) 304-5255 Washington Labs NC01-05 19201 120 th Ave NE Bothell, WA 9801 (425)984-6600 NVLAP NVLAP Lab Code: 200676-0 NVLAP Lab Code: 200881-0 NVLAP Lab Code: 200761-0 NVLAP Lab Code: 200630-0 NVLAP Lab Code:201049-0 NVLAP Lab Code: 200629-0 Industry Canada 2834B-1, 2834B-3 2834E-1 N/A 2834D-1, 2834D-2 2834G-1 2834F-1 BSMI SL2-IN-E-1154R SL2-IN-E-1152R N/A SL2-IN-E-1017 SL2-IN-E-1158R SL2-IN-E-1153R VCCI A-0029 A-0109 N/A A-0108 A-0201 A-0110 Recognized Phase I CAB for ACMA, BSMI, IDA, KCC/RRA, MIC, MOC, NCC, OFCA US0158 US0175 N/A US0017 US0191 US0157 Report No. PROS0222.15/9 PRODUCT DESCRIPTION 2014-12-10 Client and Equipment Under Test (EUT) Information Company Name: ProSoft Technology, Inc. Address: 5201 Truxtun Ave., 3rd Floor City, State, Zip: Bakersfield, CA 93309 Test Requested By: Frank Hardy Model: RLX2-IHNF First Date of Test: June 15, 2015 Information Provided by the Party Requesting the Test Functional Description of the EUT: Fast Industrial Hotspot - 802.11abgn, 3x3 MIMO radio operating on three available antenna ports with one antenna type. Testing Objective: To demonstrate compliance with FCC requirements for RF exposure for 2.1091 mobile devices. Report No. PROS0222.16/9 MAXIMUM PERMISSIBLE EXPOSURE (MPE) WTD.2014.12.17 OVERVIEW Human exposure to RF emissions from mobile devices (47 CFR §2.1091) may be evaluated based on the MPE limits adopted by the FCC for electric and magnetic field strength and/or power density, as appropriate, since exposures are assumed to occur at distances of 20 cm or more from persons. ANSI C95.1-2005 specifies a minimum separation distance of 20 cm for performing reliable field measurements to determine adherence to MPE limits. If the minimum separation distance between a transmitter and nearby persons is more than 20 cm under normal operating conditions, compliance with MPE limits may be determined at such distance from the transmitter. When applicable, operation instructions and prominent warning labels may be used to alert the exposed persons to maintain a specified distance from the transmitter or to limit their exposure durations and usage conditions to ensure compliance. If the use of warning labels on a transmitter is not effective or desirable, the alternative of performing SAR evaluation with the device at its closest range to persons under normal operating conditions may be used. The field strength and power density limits adopted by the FCC are based on whole-body averaged exp…

Text truncated - open the document above for the full version.

This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government of the United States of America. This Report may only be duplicated in its entirety ProSoft Technology, Inc. RLX2-IHNF RLX2-IHNF-W RLX2‐IHNF‐WC FCC 15.207:2015 FCC 15.209:2015 FCC 15.407:2015 Report # PROS0219 Rev. 1 NVLAP Lab Code: 200676-0 CERTIFICATE OF TEST 2014-12-10 Product compliance is the responsibility of the client; therefore, the tests and equipment modes of operation represented in this report were agreed upon by the client, prior to testing. The results of this test pertain only to the sample(s) tested. The specific description is noted in each of the individual sections of the test report supporting this certificate of test. Last Date of Test: June 10, 2015 ProSoft Technology, Inc. Model: RLX2-IHNF Radio Equipment Testing Standards Specification Method FCC 15.207:2015 ANSI C63.10:2009 FCC 15.209:2015 ANSI C63.10:2009 FCC 15.407:2015 ANSI C63.10:2009 Results Method Clause Test Description Applied Results Comments 6.2 AC Powerline Conducted Emissions Yes Pass 6.5, 6.6 Spurious Radiated Emissions Yes Pass 6.8 Frequency Stability Yes Pass 6.9.1 Emission Bandwidth Yes Pass 6.10.3 Peak Transmit Power Yes Pass 6.11.1 Peak Power Spectral Density Yes Pass 7.5 Duty Cycle Yes N/A Characterization of radio operation. Deviations From Test Standards None Approved By: Victor Ratinoff, Operations Manager Report No. PROS0219 Rev 012/141 REVISION HISTORY REV 2014.10.14 Revision Number Description Date Page Number 01 Updated model from RLX2‐IHNF‐Wxx to RLX2‐IHNF‐WC 10/9/2015 1, 7 01 Delete Peak Excursion testing, due to new rule 10/9/2015 1, 11, 105-139 01 Deleted configuration 3 10/9/2015 10 Report No. PROS0219 Rev 013/141 ACCREDITATIONS AND AUTHORIZATIONS REV 2015.2.19 United States FCC - Designated by the FCC as a Telecommunications Certification Body (TCB). Certification chambers, Open Area Test Sites, and conducted measurement facilities are listed with the FCC. A2LA - Accredited by A2LA to ISO / IEC 17065 as a product certifier. This allows Northwest EMC to certify transmitters to FCC and IC specifications. NVLAP - Each laboratory is accredited by NVLAP to ISO 17025 Canada IC - Recognized by Industry Canada as a Certification Body (CB). Certification chambers and Open Area Test Sites are filed with IC. European Union European Commission – Validated by the European Commission as a Conformity Assessment Body (CAB) under the EMC directive and as a Notified Body under the R&TTE Directive. Australia/New Zealand ACMA - Recognized by ACMA as a CAB for the acceptance of test data. Korea MSIP / RRA - Recognized by KCC’s RRA as a CAB for the acceptance of test data. Japan VCCI - Associate Member of the VCCI. Conducted and radiated measurement facilities are registered. Taiwan BSMI – Recognized by BSMI as a CAB for the acceptance of test data. NCC - Recognized by NCC as a CAB for the acceptance of test data. Singapore IDA – Recognized by IDA as a CAB for the acceptance of test data. Israel MOC – Recognized by MOC as a CAB for the acceptance of test data. Hong Kong OFCA – Recognized by OFCA as a CAB for the acceptance of test data. Vietnam MIC – Recognized by MIC as a CAB for the acceptance of test data. SCOPE For details on the Scopes of our Accreditations, please visit: http://www.nwemc.com/accreditations/ http://gsi.nist.gov/global/docs/cabs/designations.html Report No. PROS0219 Rev 014/141 MEASUREMENT UNCERTAINTY TMU.2014.12.03 Measurement Uncertainty When a measurement is made, the result will be different from the true or theoretically correct value. The difference is the result of tolerances in the measurement system that cannot be completely eliminated. To the extent that technology allows us, it has been our aim to minimize this error. Measurement uncertainty is a statistical expression of measurement error qualified by a probability distribution. A measurement uncertainty estimation has been performed for each test per our internal quality document WP 342. The estimation is used to compare the measured result with its "true" or theoretically correct value. The expanded measurement uncertainty (K=2) for each test is on each data sheet. Our measurement data meets or exceeds the measurement uncertainty requirements of the applicable specification; therefore, the test data can be compared directly to the specification limit to determine compliance. The calculations for estimating measurement uncertainty are based upon ETSI TR 100 028 (or CISPR 16-4-2 as applicable), and are available upon request. The following table represents the Measurement Uncertainty (MU) budgets for each of the tests that may be contained in this report. Test + MU - MU Frequency Accuracy (Hz) 0.0007% -0.0007% Amplitude Accuracy (dB) 1.2 dB -1.2 dB Conducted Power (dB) 0.3 dB -0.3 dB Radiated Power via Substitution (dB) 0.7 dB -0.7 dB Temperature (degrees C) 0.7°C -0.7°C Humidity (% RH) 2.5% RH -2.5% RH Voltage (AC) 1.0% -1.0% Voltage (DC) 0.7% -0.7% Field Strength (dB) 4.7 dB -4.7 dB AC Powerline Conducted Emissions (dB) 2.9 dB -2.9 dB Report No. PROS0219 Rev 015/141 FACILITIES REV 2015.2.19 California Labs OC01-13 41 Tesla Irvine, CA 92618 (949) 861-8918 Minnesota Labs MN01-08, MN10 9349 W Broadway Ave. Brooklyn Park, MN 55445 (612)-638-5136 New York Labs NY01-04 4939 Jordan Rd. Elbridge, NY 13060 (315) 554-8214 Oregon Labs EV01-12 22975 NW Evergreen Pkwy Hillsboro, OR 97124 (503) 844-4066 Texas Labs TX01-09 3801 E Plano Pkwy Plano, TX 75074 (469) 304-5255 Washington Labs NC01-05 19201 120 th Ave NE Bothell, WA 9801 (425)984-6600 NVLAP NVLAP Lab Code: 200676-0 NVLAP Lab Code: 200881-0 NVLAP Lab Code: 200761-0 NVLAP Lab Code: 200630-0 NVLAP Lab Code:201049-0 NVLAP Lab Code: 200629-0 Industry Canada 2834B-1, 2834B-3 2834E-1 N/A 2834D-1, 2834D-2 2834G-1 2834F-1 BSMI SL2-IN-E-1154R SL2-IN-E-1152R N/A SL2-IN-E-1017 SL2-IN-E-1158R SL2-IN-E-1153R VCCI A-0029 A-0109 N/A A-0108 A-0201 A-…

Text truncated - open the document above for the full version.

This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government of the United States of America. This Report may only be duplicated in its entirety ProSoft Technology, Inc. RLX2-IHNF RLX2-IHNF-W RLX2‐IHNF‐WC FCC 15.207:2015 FCC 15.247:2015 Report # PROS0222.2 Rev. 01 NVLAP Lab Code: 201049-0 CERTIFICATE OF TEST 2014-12-10 Product compliance is the responsibility of the client; therefore, the tests and equipment modes of operation represented in this report were agreed upon by the client, prior to testing. The results of this test pertain only to the sample(s) tested. The specific description is noted in each of the individual sections of the test report supporting this certificate of test. This report reflects only those tests from the referenced standards shown in the certificate of test. It does not include inspection or verification of labels, identification, marking or user information. Last Date of Test: June 24, 2015 ProSoft Technology, Inc. Model: RLX2-IHNF Radio Equipment Testing Standards Specification Method FCC 15.207:2015 ANSI C63.10:2009 FCC 15.247:2015 ANSI C63.10:2009 Results Method Clause Test Description Applied Results Comments 6.2 Powerline Conducted Emissions Yes Pass 6.5, 6.6 Spurious Radiated Emissions Yes Pass 6.7 Band Edge Compliance Yes Pass 6.7 Spurious Conducted Emissions Yes Pass 6.9.1 Occupied Bandwidth Yes Pass 6.10.2 Output Power Yes Pass 6.11.2 Power Spectral Density Yes Pass 7.5 Duty Cycle Yes N/A Characterization of radio operation. Deviations From Test Standards None Approved By: Jeremiah Darden, Operations Manager …
