OQH-000000-06-007Wireless Weather Station (433.9MHz Tx)

MULTI-CHANNEL CABLE FREE REMOTE THERMO-HYGRO SENSOR MODEL: C-8201 USER’S MANUAL INTRODUCTION Thanks for your purchasing of the Remote Sensor. The Remote Sensor is used with the Chung’s 433MHz multi-channel In-Out wireless weather station to monitor the temperature and humidity changes of remote or outdoor sites. Operation is easy and no wire installation is required. MAIN FEATURES 1. LED INDICATOR Flashing when the sensor transmitting a reading. 2.CHANNEL SLIDE SWITCH Designate the channel of the sensor to Channel 1, Channel 2 or Channel 3. 3.RESET BUTTON Reset all settings to default values 4.°C/°F 3 2 5 6 7 8 1 4 Switches between °C/°F. 5.BATTERY COMPARTMENT Contains 2 AA size batteries. 6.BATTERY DOOR Covers the battery compartment 7.WALL-MOUNT HOLDER Support the sensor on wall 8.FOLDING TABLE STAND For standing the unit on a flat surface TRANSMITTER: 1. Remove the removable stand and screws the back cover off the transmitter. 2. Insert 2 x AA batteries into the battery compartment. Be sure to insert them the right way round (see polarity information +/- in the battery compartment). 3.The receiver can receive humidity and temperature data from up to 3 transmitters. Assign the channel to each transmitter, Channel 1, 2 or 3 respectively by sliding the switch besides the battery compartment. 4. Press the reset key of the transmitter individually by a pin to confirm the channel setting. 5. Select the temperature unit by sliding the °C/°F switch besides the battery compartment. NOTE: 1. Once the channel is assigned to a transmitter, you can only change it by removing the batteries or resetting the unit. 2. Avoid placing the transmitter in direct sunlight, rain or snow. CHANGE CHANNEL Once a channel is assigned to a transmitter, you can change it by removing the batteries and repeating the above procedure, the other way is to select the designated channel and then reset the transmitter. LOW BATTERY WARNING When the low battery indicator displays in the sensor, it will show up in the main unit under the represented channel, replace with 2 new AA batteries at once. OPERATION Once batteries are inserted, the transmitter will start transmitting samplings at 60-64 seconds intervals. The transmitter’s LED are flashing. The temperature unit °C / °F shows in the receiver is determined by the setting on the receiver. THE RESET BUTTON Refer to the main unit’s manual for further information. This button is used to reset all settings to default values, when changing the channel or malfunctioning. Use a blunt wire to hold down the button to reset it. HOW TO USE THE TABLE STAND OR WALL MOUNTING The transmitter comes with a wall-mount holder and folding stand. Use either to set up the unit. CAUTIONS This unit is engineered to give you years of satisfactory service if you handle it carefully. Follows are a few cautions: 1. Do not immerse the unit in water. 2. Do not leave disabled battery in the watch for a long time and be sure to replace it with new ones. If battery fluid leaks out, it may damage movement components. 3. Avoid rough using or dropping the unit. 4. To clean the unit, use a dry soft cloth or a soft cloth moistened in a solution of water and a mild neutral detergent. Never use solvents (such as benzene, spray cleanser). 5. Always read the user’s manual thoroughly before operating the unit. SPECIFICATIONS Our temperature measuring range: -20 °C to +60 °C Recommended operating range: -20 °C to +55°C Temperature resolution: 0.1 °C / 1°F (above 0 °C) 1 °C / °F (below 0 °C) RF Transmission Frequency: 433MHz No of remote unit: up to 3 units RF Transmission Range: Maximum 30 meters Temperature sensing cycle: around 60 ~ 64 seconds Pressure measuring range: 800mb to 1050mb Pressure sampling cycle: 15 minutes Moon phase scanner range: From 2000 to 2050 Radio controlled signal: DCF77, MCF, WWVB, JJY Power: 3 V, use 2 x AA 1.5V alkaline battery Weight: 53gm Dimension: 40(W) x 131(H) x 23.5(D) mm FCC Remarks: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. MULTI-CHANNEL CABLE FREE REMOTE THERMO-HYGRO SENSOR MODEL: C-8202 USER’S MANUAL INTRODUCTION Thanks for your purchasing of the Remote Sensor. The Remote Sensor is used with the Chung’s 433MHz multi-channel In-Out wireless weather station to monitor the temperature and humidity changes of remote or outdoor sites. Operation is easy and no wire installation is required. MAIN FEATURES 1.LCD Displays the current temperature and humidity monitored by the remote unit alternately. 2.CHANNEL SLIDE SWITCH Designate the channe…

Text truncated - open the document above for the full version.

CHUNG’S ELECTRONIC CO.,LTD. Figure 1 C8201FCC Block diagram CHUNG’S EECTRONIC CO.,LTD Description name Block diagram Model C8201(FCC) File No TX8201-BD Date 6/7/06 MCU8722 433.9 MHz RF narrowband modulation Temperature Humidity sensor Channel select 433.92MHz SAW Resonator PCB antenna Built-in 3V battery C/F select 433.9 MHz band-pass filter LED CHUNG’S ELECTRONIC CO.,LTD. Figure 1 C8202FCC Block diagram CHUNG’S EECTRONIC CO.,LTD Description name Block diagram Model C8202(FCC) File No TX8202-BD Date 6/7/06 MCU8722 433.9 MHz RF narrowband modulation Temperature Humidity sensor Channel select 433.92MHz SAW Resonator PCB antenna Built-in 3V battery LCD C/F select 433.9 MHz band-pass filter CHUNG’S ELECTRONIC CO.,LTD. Figure 1 C8203FCC Block diagram CHUNG’S EECTRONIC CO.,LTD Description name Block diagram Model C8203(FCC) File No TX8203-BD Date 6/7/06 MCU8722 433.9 MHz RF narrowband modulation External Temperature sensor Channel select 433.92MHz SAW Resonator PCB antenna Built-in 3V battery C/F select 433.9 MHz band-pass filter LED

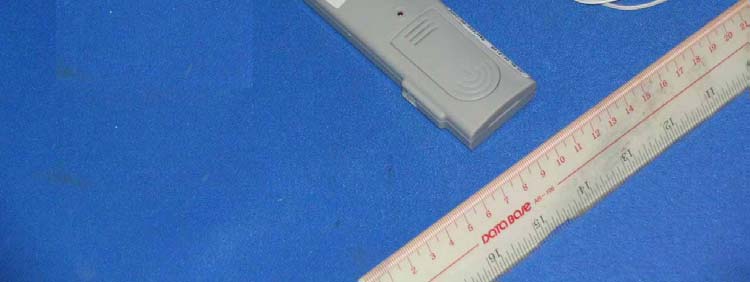

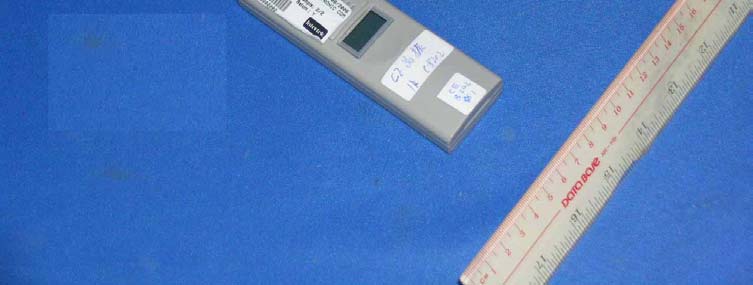

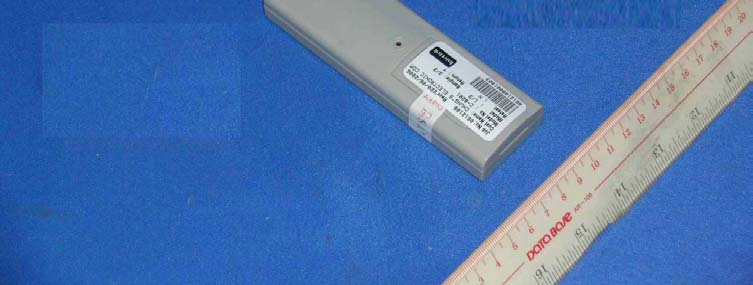

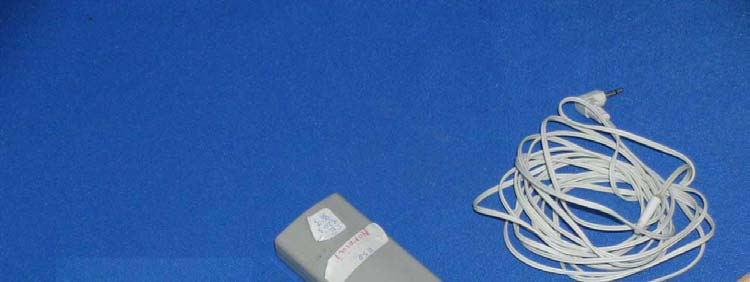

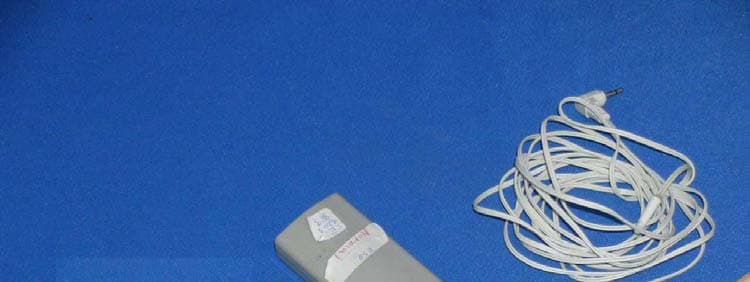

External Photo (Model: C-8201) FCC ID : OQH-000000-06-007 External Photo - front External Photo - rear External Photo (Model: C-8202) FCC ID : OQH-000000-06-007 External Photo - front External Photo - rear External Photo (Model: C-8203) FCC ID : OQH-000000-06-007 External Photo - front External Photo - rear

Internal Photo (Model: C-8201) FCC ID : OQH-000000-06-007 Internal Photo - 1 Internal Photo - 2 Internal Photo (Model: C-8201) FCC ID : OQH-000000-06-007 Internal Photo - 3 Internal Photo - 4 Internal Photo (Model: C-8202) FCC ID : OQH-000000-06-007 Internal Photo - 5 Internal Photo - 6 Internal Photo (Model: C-8202) FCC ID : OQH-000000-06-007 Internal Photo - 7 Internal Photo - 8 Internal Photo (Model: C-8203) FCC ID : OQH-000000-06-007 Internal Photo - 9 Internal Photo - 10 Internal Photo (Model: C-8203) FCC ID : OQH-000000-06-007 Internal Photo - 11 Internal Photo - 12

C-8201(FCC) TECHNICAL DESCRIPTION A. CIRCIUT OPERATION 1. Temperature sensor and humidity sensor. Provide temperature data for MCU 2. MCU The micro controller unit (MCU) are encoding and manipulating temperature data. 3. SAW Resonator Stable RF transmitter Oscillator frequency. 4. RF narrowband modulation . Convert MCU encoded data to RF OOK modulated signals. 5. LED Transmit indicator. 6. 433.9MHz band-pass filter 433.9MHz frequency band-pass only . B. COMPONENT DESCRIPTION CATEGORY COMPONENT NAME DESCRIPTION Resonator 433.92MHz SAW Resonator Stable RF transmitter Oscillator frequency. Transistor 2D RF Transistor 433.92MHz oscillation Transistor 2D RF Transistor 433.92MHz buffer. Band-pass filter 1UH, 3.5T spring coil ,20pf,6pf,22pf 433.9MHz Band-pass filter 433.9MHz Band-pass only Transistor 2SC1623 L6 or L7 Low battery detect MCU TM8722 Micro controller unit Encoding and manipulating temperature data Crystal 32.768KHz 3*8 Quartz Stable MCU master clock Sensor CL-HQM3R Humidity sensor Provide Humidity data for MCU Sensor 103AT Temperature sensor Provide temperature data for MCU LED LED LED Transmit indicator CHUNG’S ELECTRONIC CO.,LTD Name TECHNICAL DESCRIPTION Model C8201(FCC) File No RF8201 Date 6/7/06 C-8203(FCC) TECHNICAL DESCRIPTION A. CIRCIUT OPERATION 1. Temperature sensor Provide temperature data for MCU 2. MCU The micro controller unit (MCU) are encoding and manipulating temperature data. 3. SAW Resonator Stable RF transmitter Oscillator frequency. 4. RF transmitter Convert MCU encoded data to RF OOK modulated signals. 5. LED Transmit indicator. 6. 433.9MHz band-pass filter 433.9MHz frequency band-pass only . B. COMPONENT DESCRIPTION CATEGORY NUMBER NAME DESCRIPTION Resonator 433.92MHz SAW Resonator Stable RF transmitter Oscillator frequency. Transistor 2D RF Transistor 433.92MHz oscillation Transistor 2D RF Transistor 433.92MHz buffer. Band-pass filter 1UH, 3.5T spring coil ,20pf,6pf,2 2pf 433.9MHz Band-pass filter 433.9MHz Band-pass filter only Transistor 2SC1623 L6 or L7 Low battery detect MCU TM8722 Micro controller unit Encoding and manipulating temperature data Crystal 32.768KHz 3*8 Quartz Stable MCU master clock Sensor 103AT Temperature sensor Provide temperature data for MCU LED LED LED Transmit indicator CHUNG’S ELECTRONIC CO.,LTD Name TECHNICAL DESCRIPTION Model C8203(FCC) File No RF8203 Date 9/7/06 C-8202(FCC) TECHNICAL DESCRIPTION A. CIRCIUT OPERATION 1. Temperature sensor and humidity sensor. Provide temperature data for MCU 2. MCU The micro controller unit (MCU) are encoding and manipulating temperature data. 3. SAW Resonator Stable RF transmitter Oscillator frequency. 4. RF narrowband modulation . Convert MCU encoded data to RF OOK modulated signals. 5. LCD Display Humidity & Temperature. 6. 433.9MHz band-pass filter 433.9MHz frequency band-pass only . B. COMPONENT DESCRIPTION CATEGORY COMPONENT NAME DESCRIPTION Resonator 433.92MHz SAW Resonator Stable RF transmitter Oscillator frequency. Transistor 2D RF Transistor 433.92MHz oscillation Transistor 2D RF Transistor 433.92MHz buffer. Band-pass filter 1UH, 3.5T spring coil ,20pf,6pf,22pf 433.9MHz Band-pass filter 433.9MHz Band-pass only Transistor 2SC1623 L6 or L7 Low battery detect MCU TM8722 Micro controller unit Encoding and manipulating temperature data Crystal 32.768KHz 3*8 Quartz Stable MCU master clock Sensor CL-HQM3R Humidity sensor Provide Humidity data for MCU Sensor 103AT Temperature sensor Provide temperature data for MCU Display IS-085202E01 C8102LCD Display time/temperature/humidity/channel CHUNG’S ELECTRONIC CO.,LTD Name TECHNICAL DESCRIPTION Model C8202(FCC) File No RF8202 Date 6/7/06

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2371 0521 Website: www.hk.intertek-etlsemko.com Chung's Electronic Co., Ltd. Application For Certification (FCC ID: OQH-000000-06-007) Transmitter 0609656 BC/ Sandy Lee August 10, 2006 INTERTEK TESTING SERVICES FCC ID: OQH-000000-06-007 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: OQH-000000-06-007 ii MEASUREMENT/TECHNICAL REPORT Chung's Electronic Co., Ltd. - MODEL: CHUNG'S C-8201 CHUNG'S C-8202 CHUNG'S C-8203 FCC ID: OQH-000000-06-007 August 10, 2006 This report concerns (check one:) Original Grant X Class II Change Equipment Type: Low Power Transmitter (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [04-05-05 Edition] provision. Report prepared by: Chow Chi Ming, Billy Intertek Testing Services Hong Kong Ltd. 2/F., Garment Center, 576, Castle Peak Road, Kowloon, Hong Kong. Phone: 852-2173-8528 Fax: 852-2371-0521 INTERTEK TESTING SERVICES FCC ID: OQH-000000-06-007 iii Table of Contents 1.0 General Description............................................................................................ 2 1.1 Product Description ............................................................................................ 2 1.2 Related Submittal(s) Grants ............................................................................... 2 1.3 Test Methodology............................................................................................... 3 1.4 Test Facility........................................................................................................ 3 2.0 System Test Configuration ................................................................................. 5 2.1 Justification ........................................................................................................ 5 2.2 EUT Exercising Software.................................................................................... 5 2.3 Special Accessories ........................................................................................... 5 2.4 Equipment Modification ...................................................................................... 6 2.5 Measurement Uncertainty .................................................................................. 6 2.6 Support Equipment List and Description ............................................................. 6 3.0 Emission Results ................................................................................................ 8 3.1 Field Strength Calculation................................................................................... 9 3.2 Radiated Emission Configuration Photograph................................................... 11 3.3 Radiated Emission Data ................................................................................... 12 4.0 Equipment Photographs ................................................................................... 17 5.0 Product Labelling.............................................................................................. 19 6.0 Technical Specifications................................................................................... 21 7.0 Instruction Manual ............................................................................................ 23 8.0 Miscellaneous Information ............................................................................... 25 8.1 Measured Bandwidth........................................................................................ 26 8.2 Discussion of Pulse Desensitization.................................................................. 27 8.3 Calculation of Average Factor........................................................................... 28 8.4 Emissions Test Procedures .............................................................................. 29 INTERTEK TESTING SERVICES FCC ID: OQH-000000-06-007 iv List of attached file Exhibit type File Description filename Test Report Test Report report.pdf Operation Description Technical Description descri.pdf Test Setup Photo Radiated Emission radiated photos.doc Test Report Bandwidth Plot bw.pdf External Photo External Photo external photos.doc Internal Photo Internal Photo internal photos.doc Block Diagram Block Diagram block.pdf Schematics Circuit Diagram circuit.pdf ID Label/Location Label Artwork and Location label.pdf User Manual User Manual manual.pdf Test Report Timing Diagram timing.pdf INTERTEK TESTING SERVICES FCC ID: OQH-000000-06-007 1 EXHIBIT 1 GENERAL DESCRIPTION INTERTEK TESTING SERVICES FCC ID: OQH-000000-06-007 2 1.0 General Description 1.1 Product Description The Equipment Under Test (EUT) is a Transmitter operating at 433.9MHz. The EUT is powered by 3.0V d.c. (2 x 1.5V “AA” size batteries). During normal use, it meas…

Text truncated - open the document above for the full version.

Test Setup FCC ID : OQH-000000-06-007 Radiated - front Radiated - rear
