OQKGM825Licensed Portable

1 GM 825 USER'S MANUAL INTRODUCTION We thank you for your custom. Please read this user's manual carefully so you can fully appreciate the advanced features of your phone. This dual-band GSM phone operates entirely automatically on the dual frequency band (GSM 900-1800 MHz, as long as the network provider offers this service), thereby ensuring high quality conversation and better coverage for the radio signal. It can be used in all European Union member countries, in other countries that have implemented GSM networks and wherever (e.g. United States) a GSM-compatible 1900 MHz network has been implemented. In addition, the phone has a WAP Browser to access Internet web sites with a data call, besides an advanced messaging system (E M S) that revolutionizes the conventional SMS message. The GM825 user interface is designed to be friendly and easy to use; just reading the first few pages of this manual will however allow you to use the phone's basic functions immediately. CE CONFORMITY MARK The phone conforms to European Union standards EN 60950 ETS 300342 And it has been manufactured in compliance with the following European directives: 99/5/EC 89/336/EEC 73/23/EEC In order to make continual improvements, the specifications, design and other information given in this manual may change without notice. © 2001 Telit Mobile Terminals S.p.A. All rights reserved. English English 2 INTRODUCTION 1 INSTALLING THE SIM CARD 8 Installing the SIM card 8 RECHARGING THE BATTERY 11 Low battery indicator 12 Recharging trouble 12 PRESENTING THE PHONE 13 KeysDescription 13 Indicators on the display 14 MAIN FUNCTIONS 17 Switching On 17 Switching Off 17 Emergency Calls 17 How to send a call 18 Correcting typing errors 18 International calls 18 Automatic repetition 18 Quickly send a call to a number in the phonebook 18 Answering a call 19 Automatic answer ^ 19 Answer calls by pressing any key 19 Quickly turning off the ringer 19 Information on missed calls 19 Adjusting the volume 20 Turning the microphone on and off during a con- versation 20 3 Noting down a number during a call 20 Keypad protection _ 20 Passwords 20 Security code (6 digits) 20 Autoblock 21 PIN and PIN2 codes (from 4 to 8 digits) 21 PUK and PUK2 codes (8 digits) 21 MENU - GUIDE TO THE USER INTERFACE 22 Dialogue method 22 Number method 22 MENU LAYOUT 23 main menu (overall view) 23 USING THE CALL LOG 29 Last missed calls (Menu 3-2) 29 Last calls sent 30 USING THE PHONEBOOK 31 Saving a phone number with the associated name 31 Retrieving a phone number from the phonebook 32 Using the data in the phonebook 32 Phonebook Menu 32 MANAGING CALLS 34 Options during a call 34 Turning off the ringer when the phone rings and re- jecting a call 35 Sending DTMF tones 35 The EMS standard 37 4 Default animations: list and meanings 39 MESSAGES – MENU LAYOUT 40 SMS messages (Menu 2-1) 42 New (Menu 2-1-1) 42 Entering text with the conventional method t 43 Entering text with method s 44 T9 / EMS menu 45 Ins. object 45 Phonebook 46 Language 47 T9 help 47 Sending the message 47 Received (Menu 2-1-2) 48 Receiving and reading an EMS containing sounds or images 48 50 Class 0 SMS messages 50 Written (Menu 2-1-3) 50 Parameters (Menu 2-1-4-X) 50 Name (2-1-4-X-1) 50 SMS Centre Number (2-1-4-X-2) 50 Validity (2-1-4-X-3) 51 Destination (2-1-4-X-4) 51 Protocol (2-1-4-X-5) 51 Set default (2-1-4-X-6) 51 Automatic deletion (Menu 2-1-5) 51 Reply path (Menu 2-1-6) 51 5 Confirm (Menu 2-1-7) 51 Information (Menu 2-1-8) 52 Cell Broadcast (Menu 2-2) 52 Activation (Menu 2-2-1) 52 Subject (Menu 2-2-2) 52 Call mailbox (Menu 2-3) 53 INTERNET WITH WAP 54 Interned access (Menu 12-1) 54 Internet configuration (Menu 12-2) 56 Browser menu 58 Preferred (menu 12-3) 62 ALL THE MENUS AND FUNCTIONS, DEFINITIONS AND USE 63 Network services (Menu 0) 63 Phonebook (Menu 1) 63 Messages (Menu 2) 63 Calls (Menu 3) 63 Audio (Menu 4) 64 Settings (Menu 5) 66 Display (Menu 5-1) 66 Language (Menu 5-2) 67 Call waiting (Menu 5-3) 68 Keys lock (Menu 5-4) 68 Answer mode (Menu 5-5) 68 Internet (Menu 5-6) 68 Call control (Menu 6) 68 Beep every 60 seconds (Menu 6-1) 68 6 Call length (Menu 6-2) 68 Costs (Menu 6-3) 68 Send number (Menu 6-4) 69 Clock (Menu 7) 69 Adjustment (7-1) 69 Alarm (Menu 7-2) 69 Date format (Menu 7-3) 69 Information on the phone (Menu 8) 69 Personal number (Menu 8-1) 69 IMEI (Menu 8-2) 69 Software (Menu 8-3) 70 Information on the SIM card (Menu 8-4) 70 Total life (Menu 8-5) 70 Security (Menu 9) 70 PIN (Menu 9-1) 70 Phone (Menu 9-2) 70 Call block (Menu 9-3) 70 Fixed dialling numbers (Menu 9 4) 71 Call divert (Menu 10) 71 Always divert (Menu 10-1) 71 Missed calls (Menu 10-2) 71 Cancel (Menu 10-3) 71 GSM networks (Menu 11) 71 Network search (Menu 11-1) 71 Selection (Menu 11-2) 72 Network list (Menu 11-3) 72 Own network (Menu 11-4) 72 7 Select Band (Menu 11-5) 72 Internet (Menu 12) 72 ACCESSORIES 73 TROUBLESHOOTING 74 IMPORTANT NOTICES 77 QUICK HELP 79 How to make your first call 79 How to answer a call 79 How to save a number to the phonebook 79 How to retrieve a position from the phonebook 80 How to send an EMS message 80 How to reach the first SMS message 81 7 IMEI ______________________________________ Security code ___________________________ Autoblock code _________________________ Phone no. ____________________________ Phone no. ____________________________ Personal notes Note: The above data are needed to use the phone. Keep this manual in a safe place. 8 INSTALLING THE SIM CARD Installing the SIM card To be able to use the phone it is necessary to have a valid “plug-in” (small) SIM card. This SIM card is supplied by the network operator or service provider. 1 Switch off the phone and take off the battery cover on the back, pulling the release towards the bottom of the phone. 2 Take the battery out, paying attention not to pull on the cable connecting it to the phone. Free the sim-card holder flap by moving the metal clip towards the top of the phone and take it out. 3Insert the SIM card into th…

Text truncated - open the document above for the full version.

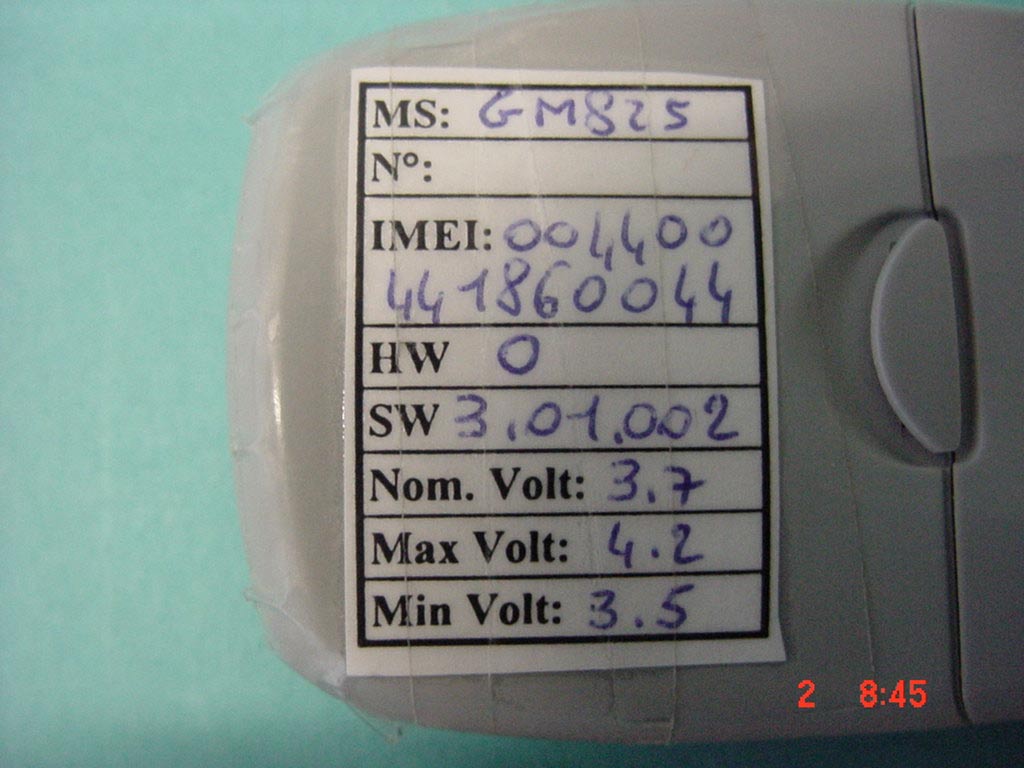

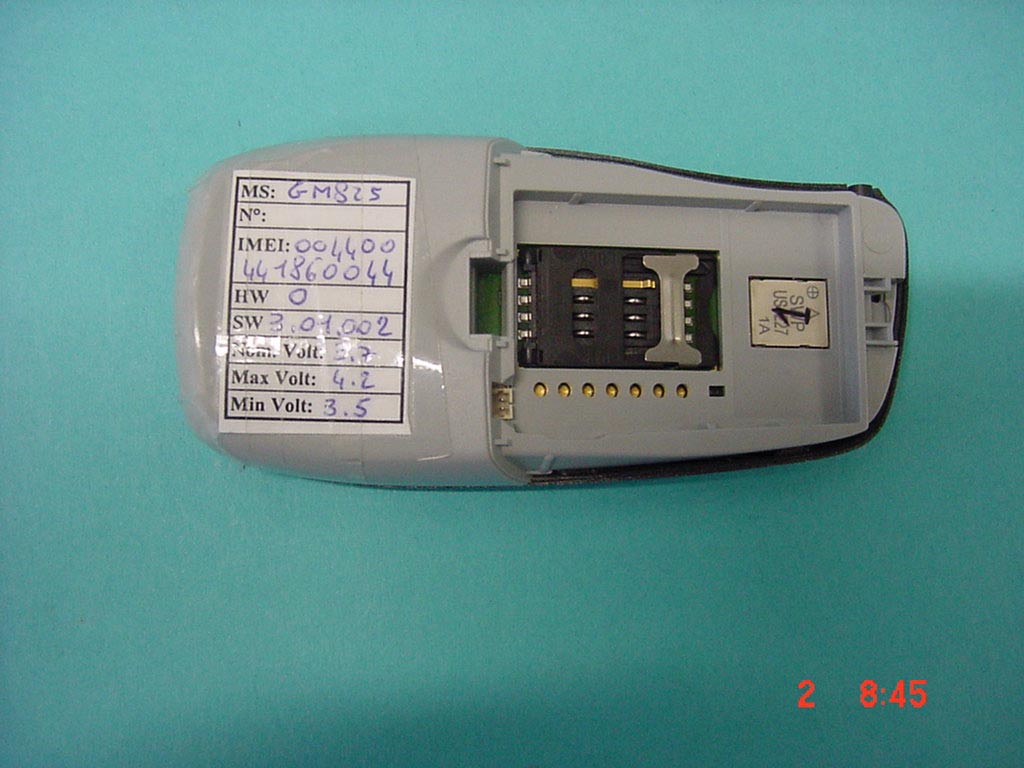

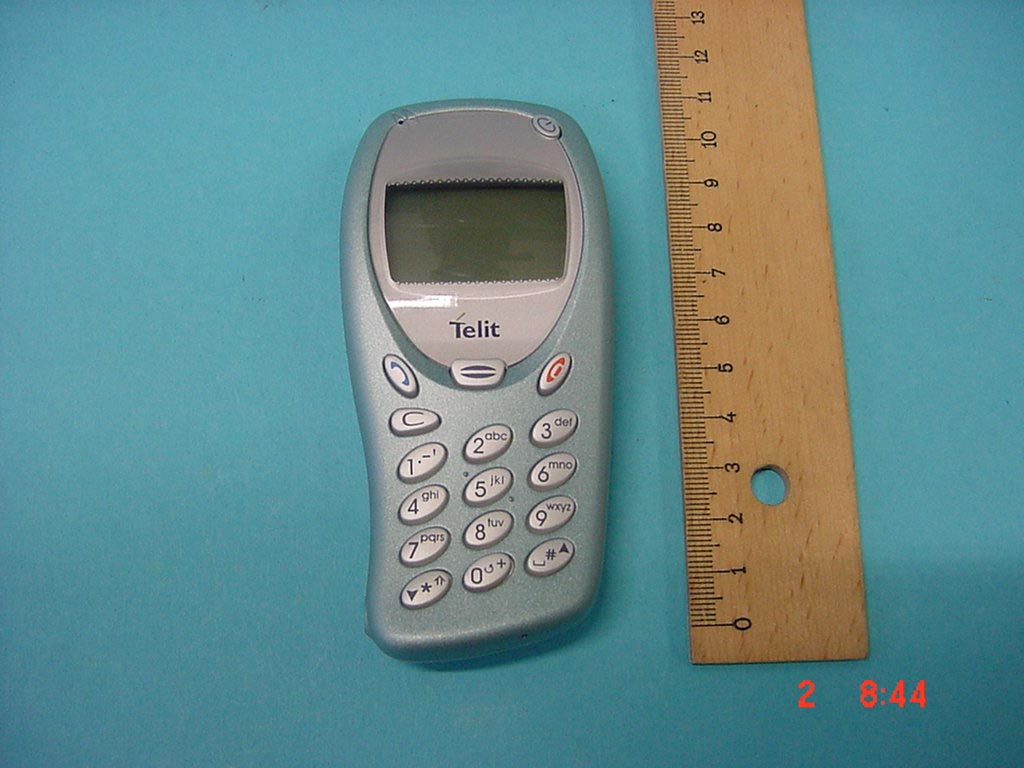

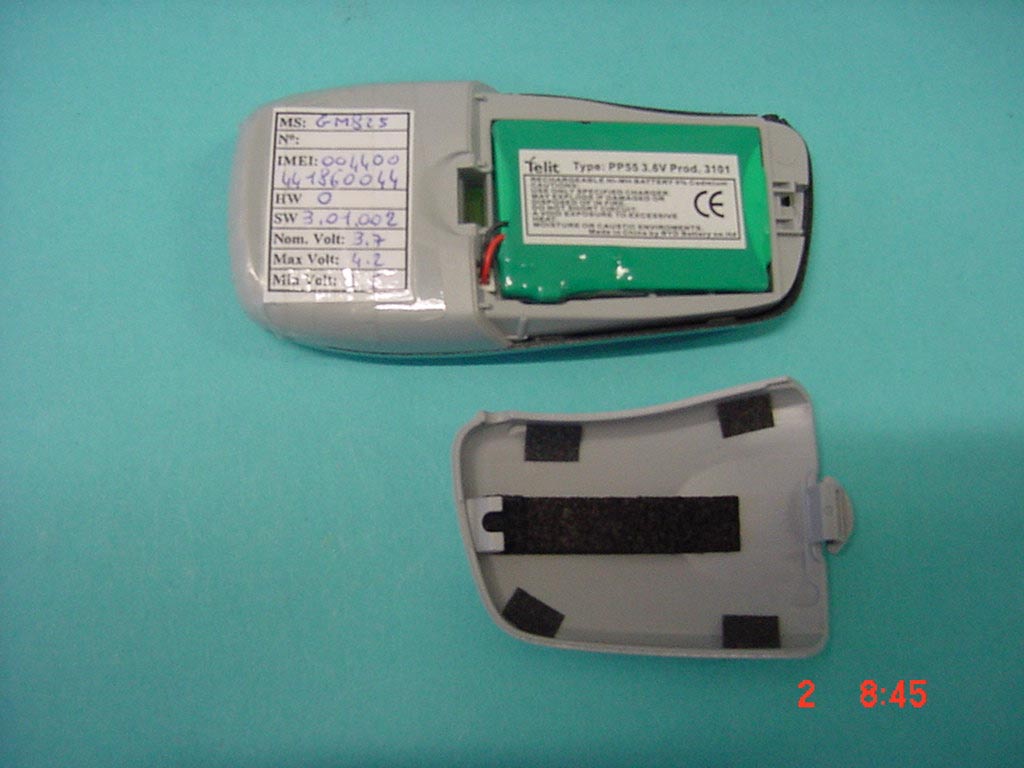

CETECOM ICT Services GmbH Test report nr.:4-0471-01-02/01Issue date:02.11.2001Page 51 (59) Photographs of the equipment Photograph no.: 1 CETECOM ICT Services GmbH Test report nr.:4-0471-01-02/01Issue date:02.11.2001Page 52 (59) Photographs of the equipment Photograph no.: 2 CETECOM ICT Services GmbH Test report nr.:4-0471-01-02/01Issue date:02.11.2001Page 53 (59) Photographs of the equipment Photograph no.: 3 CETECOM ICT Services GmbH Test report nr.:4-0471-01-02/01Issue date:02.11.2001Page 54 (59) Photographs of the equipment Photograph no.: 4 CETECOM ICT Services GmbH Test report nr.:4-0471-01-02/01Issue date:02.11.2001Page 55 (59) Photographs of the equipment Photograph no.: 5

Exhibit 1 Labels and its placementPage 1 of 3 Mobile Terminals S.p.A. EXHIBIT 1 Labels and its placement Exhibit 1 Labels and its placementPage 2 of 3 Mobile Terminals S.p.A. Label for the GM825 PCS phone Exhibit 1 Labels and its placementPage 3 of 3 Mobile Terminals S.p.A. Label placement

CETECOM ICT Services GmbH Test report nr.:4-0471-01-02/01Issue date:02.11.2001Page 56 (59) Photographs of the equipment Photograph no.: 6 CETECOM ICT Services GmbH Test report nr.:4-0471-01-02/01Issue date:02.11.2001Page 57 (59) Photographs of the equipment Photograph no.: 7 CETECOM ICT Services GmbH Test report nr.:4-0471-01-02/01Issue date:02.11.2001Page 58 (59) Photographs of the equipment Photograph no.: 8 CETECOM ICT Services GmbH Test report nr.:4-0471-01-02/01Issue date:02.11.2001Page 59 (59) Photographs of the equipment Photograph 9:

CETECOM ICT Services GmbH Untertuerkheimer Str. 6-10, 66117 Saarbruecken, Germany Phone: +49 (0) 681 598-0 Fax: -9075 SAR-Laboratory Phone: +49 (0) 681 598-8454 Fax: -8475 Test report no.: 4-0471/01_1_3 Type identification : Telit GM825 Accredited EMC-Test-Laboratory accredited by: Regulatory Authority for Telecommunications and Posts (Reg TP) DAR-No.: TTI-P-G-166/98 Federal Motor Transport Authority (KBA) DAR registration number: KBA-P 00070-97 from January –19-1999 Listed by FEDERAL COMMUNICATIONS COMMISSION (FCC ) Registration Number: 90462 FCC Website: WWW.FCC.GOV CETECOM ICT Services GmbH Test report no.: 4-0471/01_1_3 date: 19.11.01 Page 2 of 28 Table of Content 1 General Information ........................................................................................... 3 1.1 Notes ................................................................................................................................. 3 1.2 Statement of Compliance.................................................................................................. 3 1.3 Testing laboratory ............................................................................................................. 4 1.4 Details of applicant ........................................................................................................... 4 1.5 Application details ............................................................................................................ 4 1.6 Test item ........................................................................................................................... 5 1.7 Test specifications ............................................................................................................ 5 1.7.1 RF exposure limits..................................................................................................... 5 2 Technical test...................................................................................................... 6 2.1. Summary of test results....................................................................................................6 2.2 Test environment .............................................................................................................. 6 2.3 Test equipment used .........................................................................................................6 2.4 Test results (Head SAR) ................................................................................................... 7 2.5 Test results (Body SAR) ................................................................................................... 7 2.6 Tissue dielectric properties ...............................................................................................8 2.7 Tissue parameters ............................................................................................................. 8 2.8 Measurement uncertainties ............................................................................................... 9 2.9 System validation............................................................................................................ 10 Appendix 1: System performance verification ................................................... 11 Appendix 2: Measurement results (printout from DASY TM )............................. 12 Appendix 3: Photo documentation...................................................................... 18 Appendix 4: Calibration parameters of E-field probe ........................................ 27 CETECOM ICT Services GmbH Test report no.: 4-0471/01_1_3 date: 19.11.01 Page 3 of 28 1 General Information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.6. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. 1.2 Statement of Compliance The SAR values found for the GM825 GSM 1900 mobile phone are below the maximum recommended levels of 1.6 W/Kg as averaged over any 1 g tissue according the FCC rule §2.1093, the ANSI/IEEE C 95.1:1992 and the NCRP Report Number 86 for uncontrolled environment. Tester operator: 16.11.2001 Fabien Coulet Date Name Signature Technical responsibility for area of testing: 16.11.2001 Bernd Rebmann Date Name Signature CETECOM ICT Services GmbH Test report no.: 4-0471/01_1_3 date: 19.11.01 Page 4 of 28 1.3 Testing laboratory CETECOM ICT Services GmbH Untertürkheimer Straße 6-10, D-66117 Saarbrücken Germany Telephone: +49 681 598 - 0 Fax: + 49 681 598 - 8475 e-mail: [email protected] Internet: http://www.cetecom.com State of accreditation: The Test laboratory SAR is accredited according to DIN EN 45001. DAR-No.:TTI-P-G-166/98 Test location, if different from CETECOM ICT Services GmbH Name: --- Street: --- Town: --- Country: --- Phone: --- Fax: --- 1.4 Details of applicant Name: Telit Mobile Terminals S.p.A. Street: Viale Stazione Prosecco. 5/b Town: 34010 Sgonico - Trieste Country: Italy Phone: +39 040 4192 262 Fax: +39 040 2512 57 Contact: Mr. Tomaz Petaros Phone: +39 040 4192 262 1.5 Application details Date of receipt of application: October 22, 2001 Date of receipt of test item: October 22, 2001 Date of test: October 23- November 7, 2001 Person who have been present during the test: --- CETECOM ICT Services GmbH Test report no.: 4-0471/01_1_3 date: 19.11.01 Page 5 of 28 1.6 Test item Description of test item: GSM 1900 mobile phone Type designation: GM825 IMEI No: 004400441860044 HW version: 0 SW version: 3.01.002 Frequency: 1850.2 MHz (channel 512) to 1909.8 MHz (channel 810) Used battery: 3.6 V DC battery Ni-Mh PP55 Ancillary equipment: Earpiece SN001 Manufact…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Radio Satellite Communication Untertürkheimer Straße 6-10 . D-66117 Saarbrücken Telefon: +49 (0)681 598-9100Telefax: -9075 RSC14issue test report consist of 59 PagesPage 1 (59) Accredited Bluetooth™ Test Facility (BQTF) Test report no.:4-0471-01-02/01 FCC Part 24 Handportable TELIT GM825 CETECOM – ICT Services GmbH Untertürkheimerstr. 6-10 66117 Saarbrücken, Germany Telephone: + 49 (0) 681 / 598-0 Fax: + 49 (0) 681 / 9075 BLUETOOTH is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM Accredited Testing Laboratory DAR-Registration number: TTI-P-G 166/98-20 CETECOM ICT Services GmbH Test report nr.:4-0471-01-02/01Issue date:02.11.2001Page 2 (59) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalisations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. 1.2Testing laboratory CETECOM ICT Services GmbH Untertürkheimer Straße 6 - 10 66117 Saarbrücken Germany Telefone: + 49 681 598 - 0 Telefax : + 49 681 598 - 9075 E-mail : [email protected] Internet : www.cetecom.de Accredited testing laboratory DAR-registration number : TTI-P-G 166/98-20 CETECOM ICT Services GmbH Test report nr.:4-0471-01-02/01Issue date:02.11.2001Page 3 (59) 1.3Details of applicant Name : TELIT MOBILE TERMINAKS S.p.A. Street : Viale Stazione Prosecco n. 5/b City : I-34010 SGONICO – TRIESTE Country : ITALY Telephone : +39 040 4192 262 Telefax : +39 040 2512 57 Contact : Mr. Tomaz Petaros Telephone : +39 040 4192 262 1.4Application details Date of receipt of application : 24.10.01 Date of receipt of test item : 24.10.01 Date of test : 24.10 – 31.10.01 1.5Test item Type of equipment : GSM 900/1800/1900 Mobile Phone Type designation: GM825 Manufacturer:applicant Street: City: Country: IMEI:004400441860044 / 004400441860002 Additional informations: : Frequency:1850 - 1910 MHz Type of modulation:300KGXW Number of channels :300 Antenna:integral antenna and socket Power supply:3.6 VDC accu Ni-Mh Output power:28.54 dBm Peak cond./ ERP : 24.8 dBm (Burst); EIRP: 26.9 dBm (Burst) Type of equipment:Temperature range : -30°C - +60°C FCC – ID: Hardware:0 Software:3.01.002 1.6Test standards: FCC Part 24 CETECOM ICT Services GmbH Test report nr.:4-0471-01-02/01Issue date:02.11.2001Page 4 (59) 2 Technical test 2.1Summary of test results No deviations from the technical specification(s) were ascertained in the course of the tests performed. FINAL VERDICT: PASS Technical responsibility for area of testing : 08.11.01RSC 8411 Berg M. DateSectionNameSignature Technical responsibility for area of testing : 08.11.01RSC8414Ames DateSectionNameSignature CETECOM ICT Services GmbH Test report nr.:4-0471-01-02/01Issue date:02.11.2001Page 5 (59) 2.2Testreport TEST REPORT Testreport no. : 4-0471-01-02/01 CETECOM ICT Services GmbH Test report nr.:4-0471-01-02/01Issue date:02.11.2001Page 6 (59) TEST REPORT REFERENCE LIST OF MEASUREMENTS PARAMETER TO BE MEASURED ParagraphPAGE POWER OUTPUT SUBCLAUSE § 24.2327 FREQUENCY STABILITY SUBCLAUSE § 24.23512 EMISSIONS LIMITS §24.23814 CONDUCTED SPURIOUS EMISSIONS31 OCCUPIED BANDWIDTH §2.98940 CONDUCTED EMISSIONS § 15.107/20744 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS46 TEST SITE48 PHOTOGRAPHS OF THE EQUIPMENT51 CETECOM ICT Services GmbH Test report nr.:4-0471-01-02/01Issue date:02.11.2001Page 7 (59) REFERENCE NUMBER(S) OF TEST EQUIPMENT USED (for reference numbers see test equipment listing) 64 POWER OUTPUT SUBCLAUSE § 24.232 Summery: This paragraph contains both average , peak output powers and EIRP measurements for the mobile station. In all cases, the peak output power is wthin the required mask (this mask is specified in the JTC standarts, TIA PN3389 Vol. 1 Chap 7, and is no FCC requirement). Method of Measurements: The mobile was set up for the max. output power with pseudo random data modulation. The power was measured with R&S Spectrum Analyzer FSIQ 26 ( peak and average) This measurements were done at 3 frequencies, 1850,2 MHz, 1880,0 MHz and 1909,8 MHz (bottom, middle and top of operational frequency range) Limits: Power StepNominal Peak Output Power (dBm) Tolerance (dB) 0+30 ± ±± ± 2 Power Measurements: Conducted: Frequency (MHz) Power Step Peak Output Power (dBm) Average Output Power (dBm) 1850.2028.2719.27 1880.0028.3019.30 1909.8028.5419.54 Measurement uncertainty ± ±± ±0.5 dB CETECOM ICT Services GmbH Test report nr.:4-0471-01-02/01Issue date:02.11.2001Page 8 (59) REFERENCE NUMBER(S) OF TEST EQUIPMENT USED (for reference numbers see test equipment listing) 64 Power output: 1850.2 MHz A Unit dBm TG Lvl -20 dBm SWT 100 ms RF Att 0 dBRBW 1 MHz VBW 1 MHz 1MAX1MA Ref Lvl 29.5 dBm Ref Lvl 29.5 dBm 40.5 dB Offset40.5 dB Offset 437.5 kHz/Center 1.85 GHzSpan 4.375 MHz -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1] 28.27 dBm 1.85020604 GHz 1 [T1] 28.27 dBm 1.85020604 GHz Date: 31.OCT.2001 10:08:55 CETECOM ICT Services GmbH Test report nr.:4-0471-01-02/01Issue date:02.11.2001Page 9 (59) REFERENCE NUMBER(S) OF TEST EQUIPMENT USED (for reference numbers see test equipment listing) 64 Power output: 1880.0 MHz A Unit dBm TG Lvl -20 dBm SWT 100 ms RF Att 0 dBRBW 1 MHz Ref Lvl 29.5 dBm Ref Lvl 29.5 dBm 40.5 dB Offset40.5 dB Offset 1MAX VBW 1 MHz 1MA 437.5 kHz/Center 1.88 GHzSpan 4.375 MHz -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1] 28.30 dBm 1.87999562 GHz 1 [T1] 28.30 dBm 1.87999562 GHz Date: 31.OCT.2001 10:10:25 CETECOM…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Test report nr.:4-0471-01-02/01Issue date:02.11.2001Page 48 (59) Test site RADIATED EMISSIONS CETECOM ICT Services GmbH Test report nr.:4-0471-01-02/01Issue date:02.11.2001Page 49 (59) Test site RADIATED EMISSIONS CETECOM ICT Services GmbH Test report nr.:4-0471-01-02/01Issue date:02.11.2001Page 50 (59) Test site CONDUCTED EMISSIONS
