OQKSAT550TELITAL SAT 550 DUAL MODE PORTABLE MOBILE EARTH ST

Telit Mobile Terminals S.p.A.
TELITAL SAT 550 DUAL MODE PORTABLE MOBILE EARTH ST - FCC ID OQKSAT550 - Telit Mobile Terminals S.p.A.
Click to zoom

Application Details

Equipment Class
TNE - Licensed Non-Broadcast Transmitter Held to Ear
Date of Grant
Apr 04, 2000
Application Purpose
Original Equipment
Date of Application
Sep 27, 1999
Equipment Note
TELITAL SAT 550 DUAL MODE PORTABLE MOBILE EARTH ST
Frequency Range
1610.00000000 - 1626.50000000
Company
Telit Mobile Terminals S.p.A.
Country
Italy

Documents & Files

Select a file to view

Users Manual

β†—
β†—
β†—
β†—

Attestation Statements

Block Diagram

Cover Letter(s)

β†—
β†—

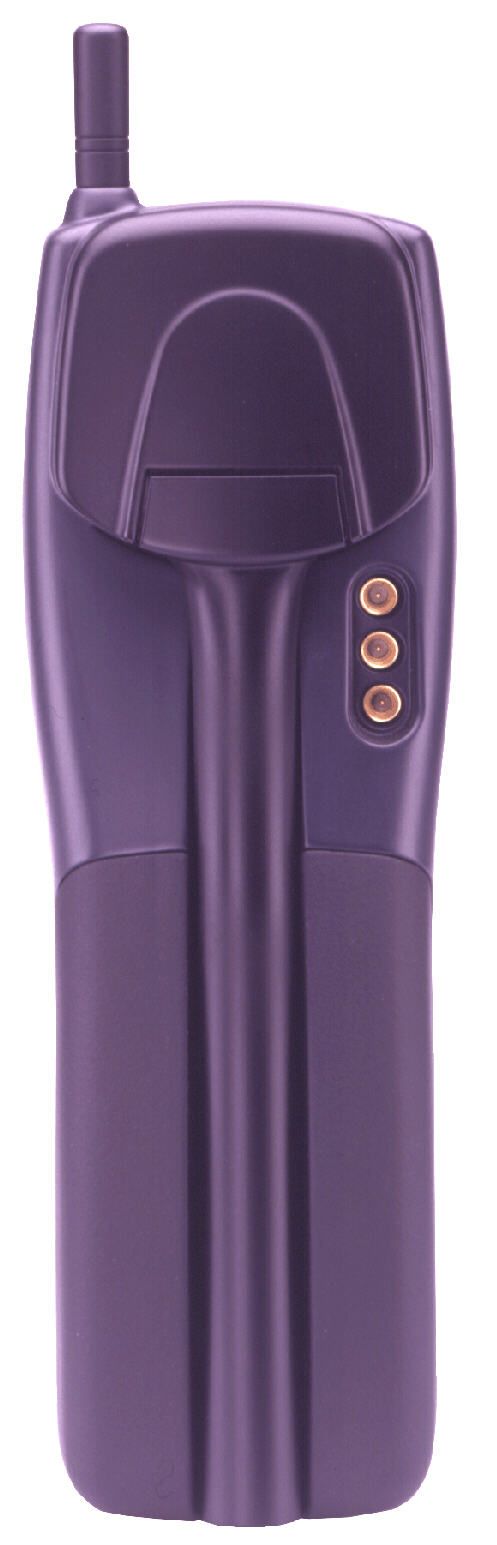

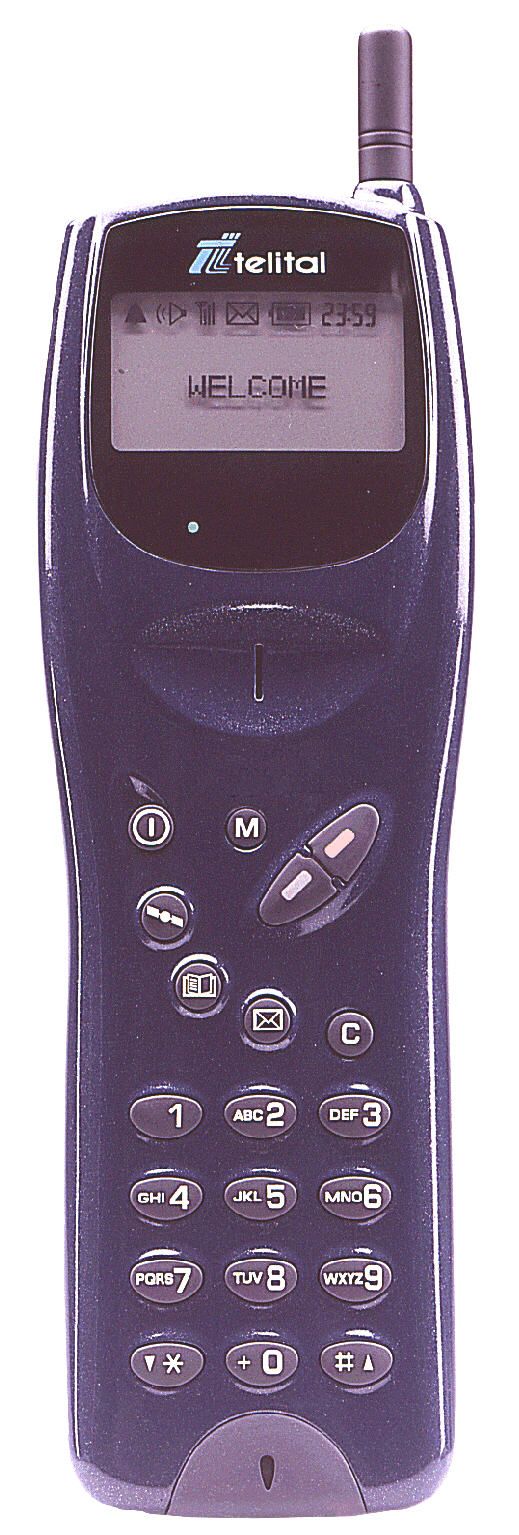

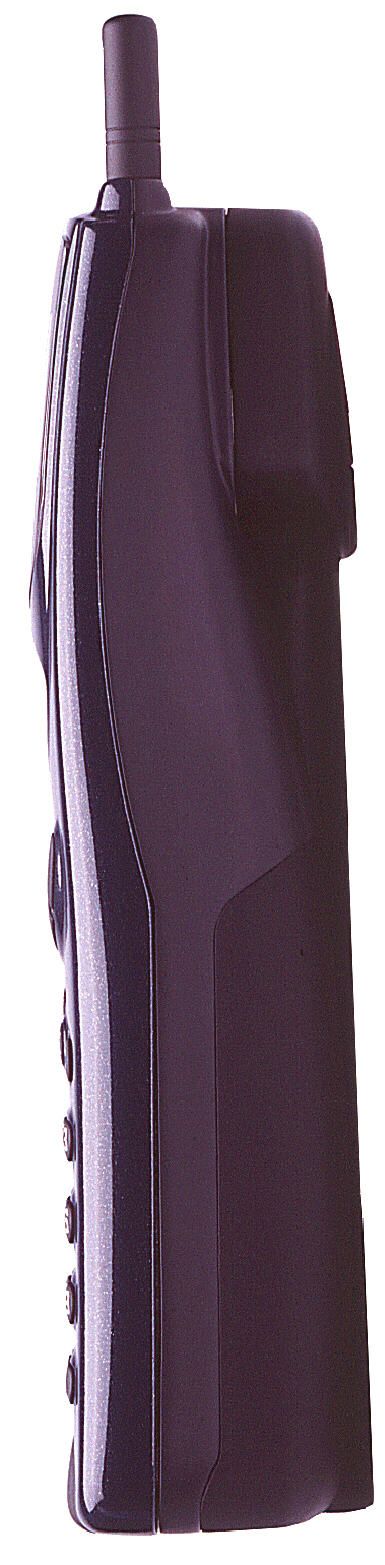

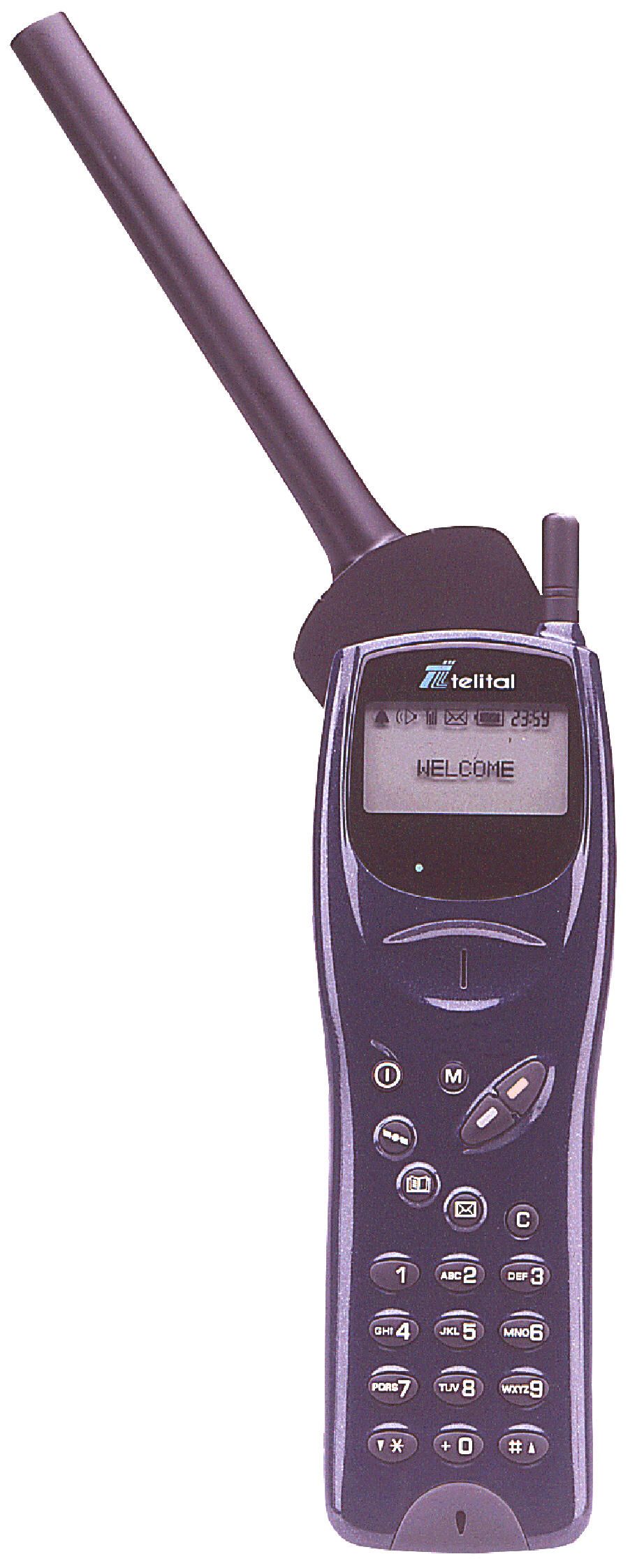

External Photos

β†—
β†—
β†—
β†—

ID Label/Location Info

β†—
β†—
β†—

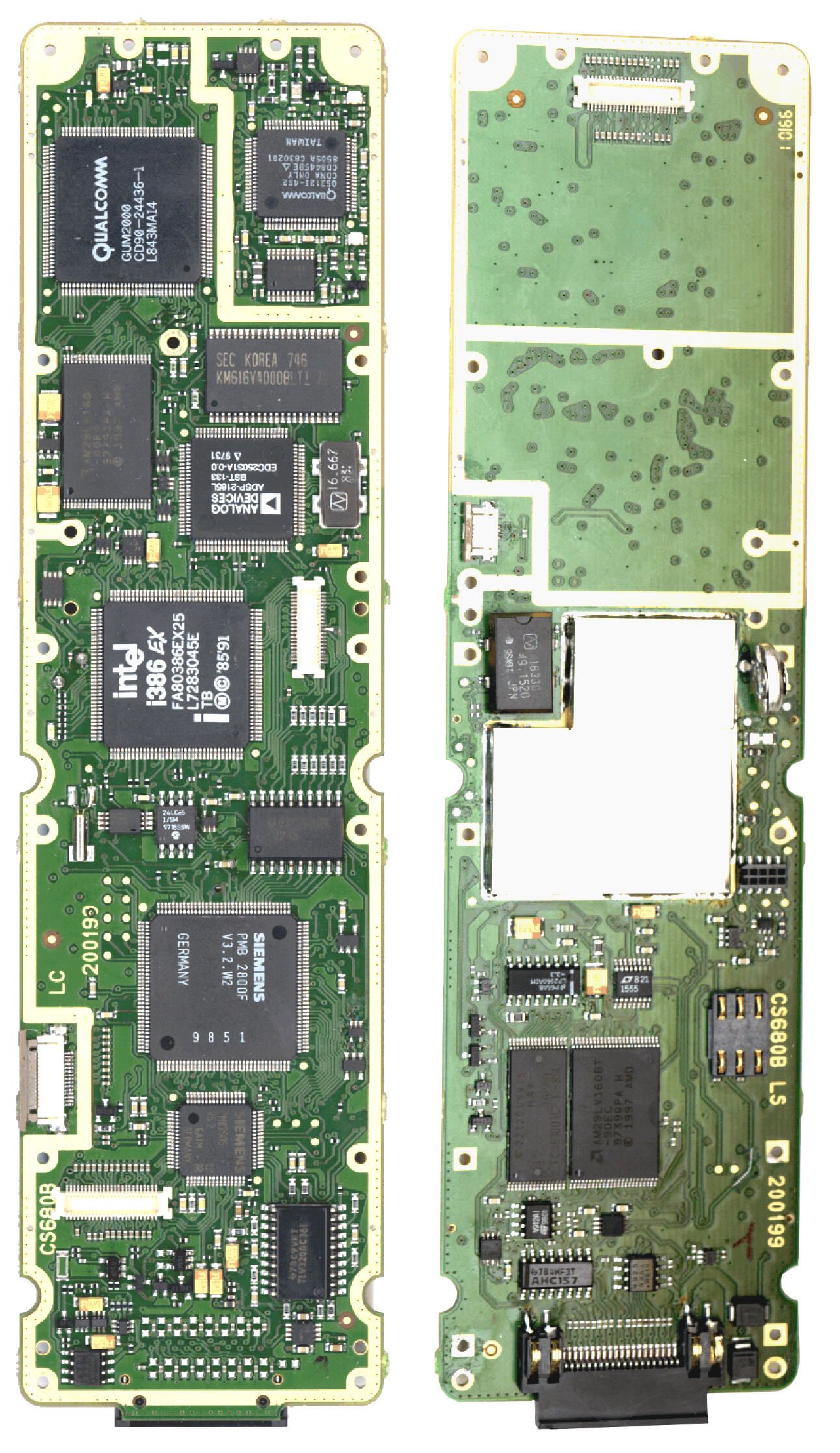

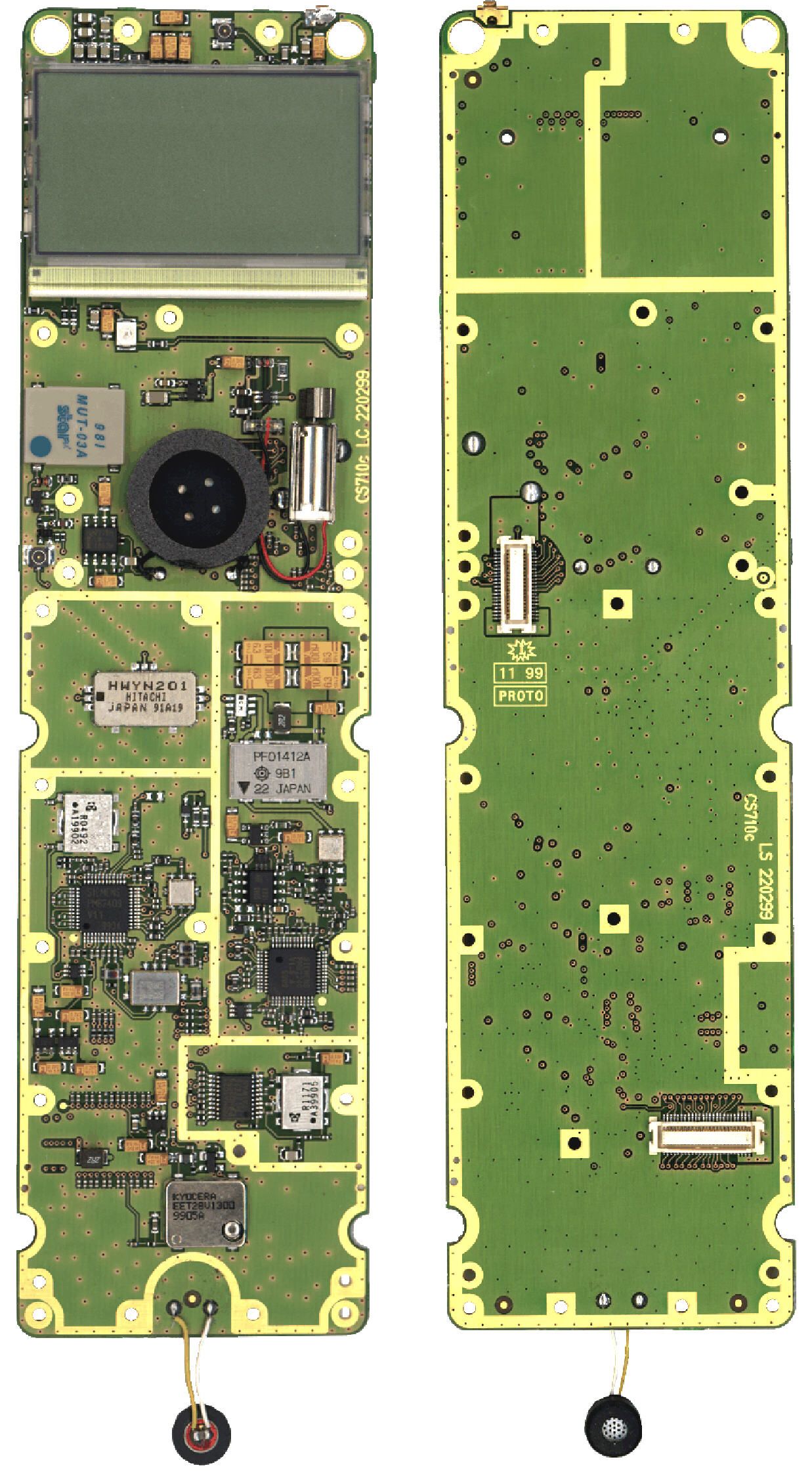

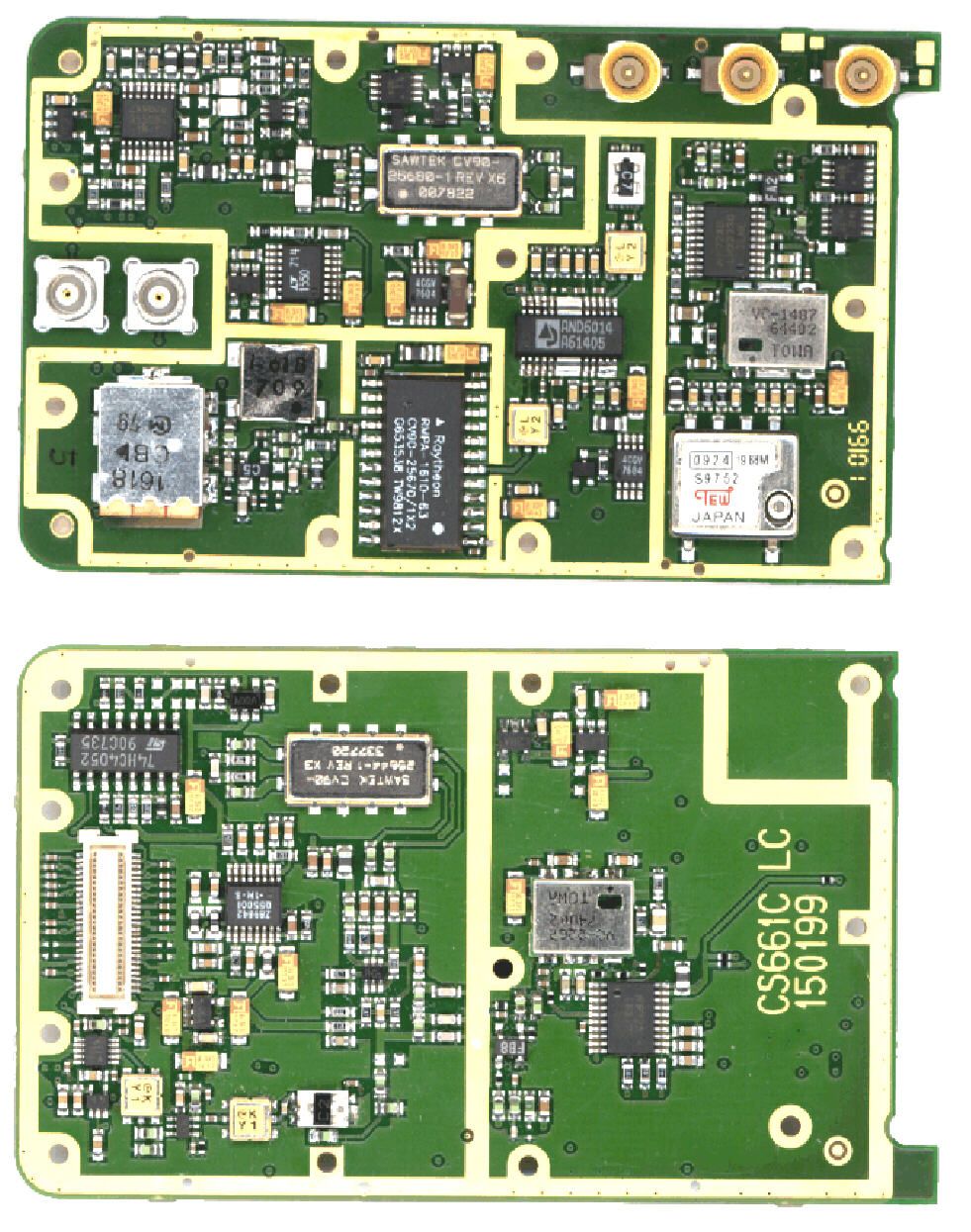

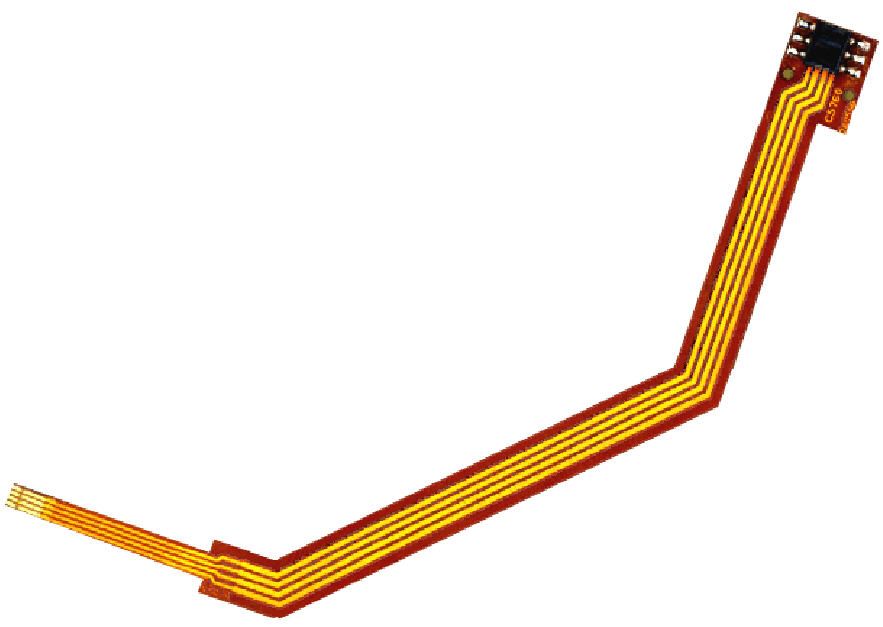

Internal Photos

β†—
β†—
β†—
β†—

Parts List/Tune Up Info

β†—
β†—
β†—
β†—

RF Exposure Info

β†—
β†—

Test Report

β†—
β†—
β†—
β†—
β†—
β†—
β†—
β†—
β†—
β†—
β†—

Test Setup Photos

β†—
β†—
β†—
β†—

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Rev. 0Telital S.p.A. TECHNICAL MANUAL GS/GSM DUAL MODE USER TERMINAL Page 1 of 1 9USER GUIDE Telital DMUT User Guide TECHNICAL MANUAL GS/GSM DUAL MODE USER TERMINAL Rev. 0 Telital S.p.A. o 9.1 General This guide provides all the necessary information for the correct use of the GS–GSM DMUT. Figure 1 show the DMUT with a brief description of keys function. Figure 1 End Phone Book ScrollScroll Clear Menu Send Power SMS GS/GSM mode selection GS/GSM Status Led Soft Keys TECHNICAL MANUAL GS/GSM DUAL MODE USER TERMINAL Rev. 0 Telital S.p.A. o 9.1.1 Display and indications The display show all status and menu of GS–GSM DMUT during the operations. Icons and bitmaps tells to the user all situations and operating modes, telephone numbers, messages, battery charge status, time and other useful informations (see fig. 2). Figure 2 GRAPHIC AREA 9.1.1.1 Icons This icon indicates a programmed alarm. This icon blinking, indicates an alarm time–out This icon indicates an Hands–free device (car kit) connected. This icon indicates the received signal intensity both in GS and GSM mode. The number of active bar indicates the signal intensity. This icon displayed in the graphic area indicates an active conversation. This icon indicates the SMS function activation and voice mailbox messages presence. This icon indicates the battery charge status. Clock TECHNICAL MANUAL GS/GSM DUAL MODE USER TERMINAL Rev. 0 Telital S.p.A. Page3of12 9.1.1.2 Status indications The status of the dual mode telephone will be given by a led on the front panel and icons on LCD display graphic area. LED status ON = GS operating mode; LED status OFF = GSM operating mode; Icon on Display for the ”GS Maintenance Required” indication; Icon on Display for the ”GS Lock” indication. 9.1.2 Battery charger The DMUT have a rechargeable Lithium ion battery pack and a battery charger. When the battery charge level becomes low, the icon shows this status and when the icon empty is blinking, is necessary to connect the battery charger to the DMUT. The graphic symbol is shown when the telephone is operating during a battery charge operation. The bitmap . is shown during a battery charge operation with the DMUT turned off. 9.1.3 Car kit The car kit option allows to connect the DMUT to the vehicle with battery charge and hands free functionality. 9.1.4 Operation 9.1.4.1 Minimal functionality The following operations allows to turn on the DMUT, place a call and then turn off the DMUT.  Insert your plug–in SIM card into the slot Press (POWER) for 1 second to switch on the unit If PIN is enabled: PIN> SOS If inserted PIN is correct the unit starts network auto search. In G* mode the following will be displayed: SearchingGW ... In GSM mode the following will be displayed: NetSearch **GS/GSMDMUT** at the end of the search the following will be displayed: TECHNICAL MANUAL GS/GSM DUAL MODE USER TERMINAL Rev. 0 Telital S.p.A. Page4of12 Net Provider ** GS/GSM DMUT ** where the first line indicates the antenna icon (flashing during network auto search) followed by radio signal intensity (up to 4 bars) and the second line the name of the network operator, or the gateway ID and then the service provider name in G* mode. If inserted PIN is wrong the following will be displayed: PIN> Remain X retries where X on the second line indicates the number of possibilities left to retry correct PIN entering. If the wrong PIN is entered for three times the following will be displayed: PUK> Remain X retries Key in * 05 *, the 8 PUK digits provided by the network operator, press * (new PIN) * (new PIN) and then #. Warning: If you cannot remember your PUK code or you enter a wrong one for 10 times, you have no other possibility but that of contacting the network operator who issued your SIM card. If you inserted the correct PUK appeares a success graphic symbol that indicates that PUK is valid and then the operative mask. Now you can place and receive calls. To switch off the unit: press and release (POWER). The following ”Good Bye” graphic screen will be displayed: Good Bye! To place a call: dial the number and press(SEND). Mistakes in digiting have to be corrected by pressing shortly "" key. If you keep "" key pressed for longer time, all digits will be cancelled. Emergency calls can be placed also if the SIM card is not inserted. To receive a call: Press (SEND) or any other key if programmed in the menu. When using the handset: pick up the handset. To end a call: Press (END). To adjust listening level: Press andlong during conversation. TECHNICAL MANUAL GS/GSM DUAL MODE USER TERMINAL Rev. 0 Telital S.p.A. Page5of12 Mute function: Keep pressed (POWER) for mor ethan 1 s econd during conversation. Keypad lock: Keep # pressed for 2 seconds: selected function will be displayed by lock symbol. Keep press the same key for 2 seconds and press the key "5" to unlock keypad. Net Provider 9.1.5 Phone book 9.1.5.1 Storing a number Key in the number to be stored. By pressing "" th elast digit will b ecanc ell ed; if you press "" for longer time all digits will be cancelled. Press . The following screen will be displayed: Enter name Key in the name: keep the alphanumeric key pressed until the desired letter appears on the display. Key " 1 " contains the space and special characters, whereas key"*"switches between capital and small letters. Press (SEND) to store your selection in the first free memory location and press (SEND) to confirm. Press (END) to exit from phon ebook without sav eany numb er. 9.1.5.2 Recalling a number from phone book Press XX and #, where XX is the desired memory location number, or: Press and withorscroll through all the allocated memories in alphabetical order or by telephone number order or by memory location order. The search criteria is defined by pressing the "M" key corresponding to ">>"symbol on display. The following screen will be displayed during a phone book operations: Nam em em Number TECHNICAL MANUAL GS/GSM DUAL MODE…

Text truncated - open the document above for the full version.

Users Manual

 (QJOLVK (QJOLVK   (QJOLVK INTRODUCTION Thank you for choosing this product. Read the entire manual carefully to make the best use of your phone. This dual mode telephone allows you to make and receive calls all over the world, as it uses - where suitable - terrestrial GSM 900 MHz networks (subject to a greements si gned between your network operator and the network you are working on) and elsewhe- re the Globalstar satellite network. Despite its advanced functionalit y, the use of the SAT 550 is extremely simple: on one hand it grants all the functions of a common GSM telephone whilst, on the other, by usin g a easy menu it enables you to access to the Globalstar satellite service with its world-wide covera ge. Just readin g the first sections of this manual you will be able to make calls, to sa- ve and store phone numbers and to send and receive short text messa ges (SMS). CE MARK The telephone complies with the following EU standards: CTR 19, CTR 20 and CTR 41; ETS 300342 and ETS 300831; EN 60950 in accordance with the pro- visions of the following European directives: 91/263/EEC 89/336/EEC 73/23/EEC 93/97/EC and with the USA standards: FCC part 2 FCC part 15 FCC part 25 UL 1492 UL 1950 UL 2089 In accordance with ongoing improvements the specifications, design and other descriptions in the present manual are subject to modifications without notice. (QJOLVK  PATENT INFORMATION This product is manufactured under license to the following patents of QUAL- COMM Incorporated (other patents pending): 4,901,307 5,487,175 5,603,096 5,056,109 5,490,165 5,604,730 5,099,204 5,497,395 5,617,060 5,101,501 5,499,280 5,621,784 5,103,459 5,504,773 5,621,853 5,107,225 5,506,865 5,625,876 5,109,390 5,509,015 5,627,857 5,228,054 5,511,067 5,629,955 5,257,283 5,511,073 5,629,975 5,265,119 5,528,593 5,633,881 5,267,261 5,544,196 5,638,412 5,267,262 5,546,459 5,640,414 5,283,536 5,561,618 5,642,398 5,289,527 5,566,000 5,644,591 5,307,405 5,566,206 5,644,596 5,309,474 5,566,357 5,646,991 5,339,046 5,568,483 5,652,599 5,341,456 5,572,172 5,654,979 5,373,259 5,574,773 5,655,220 5,383,219 5,576,662 5,657,420 5,392,287 5,577,022 5,666,122 5,396,516 5,577,025 5,673,259 5,408,697 5,581,575 5,675,644 5,414,796 5,588,043 5,687,229 5,416,797 5,590,069 5,689,557 5,426,392 5,590,406 5,691,974 5,442,627 5,590,408 5,692,006 5,452,473 5,592,481 5,461,639 5,592,548 5,469,115 5,594,718 5,475,870 5,596,570 5,479,475 5,600,754 5,485,486 5,602,833  (QJOLVK CONTENTS 1 Description ---------------------------------------------------------------------------------------------- 10 Keys Description ------------------------------------------------------------------------------------------- 10 Display indicators ------------------------------------------------------------------------------------------ 11 Satellite antenna ------------------------------------------------------------------------------------------- 13 Positioning of the antenna during use ---------------------------------------------------------------- 13 Positioning of the antenna in stand-by --------------------------------------------------------------- 13 Plugs for car-kit device ----------------------------------------------------------------------------------- 13 2 Quick starting guide --------------------------------------------------------------------------------- 14 How to make the first call -------------------------------------------------------------------------------- 14 How to receive the first call ------------------------------------------------------------------------------ 14 Satellite communications ------------------------------------------------------------------------------- 14 Personalising the menu ---------------------------------------------------------------------------------- 14 How to store a number in the phone-book ---------------------------------------------------------- 15 How to recall a phone-book location ------------------------------------------------------------------ 15 How to send the first text message (SMS) ---------------------------------------------------------- 16 How to read the first text message (SMS) ----------------------------------------------------------- 16 3 Important warnings ----------------------------------------------------------------------------------- 17 4 Inserting the SIM card and connecting the battery ---------------------------------------- 18 Inserting the SIM card ------------------------------------------------------------------------------------ 18 Connecting the battery ----------------------------------------------------------------------------------- 18 5 Charging the battery ---------------------------------------------------------------------------------- 19 Charging the battery -------------------------------------------------------------------------------------- 19 Faults during charging ------------------------------------------------------------------------------------ 19 Battery low alarm ------------------------------------------------------------------------------------------ 19 6 Main functions ------------------------------------------------------------------------------------------ 20 Switching on ------------------------------------------------------------------------------------------------- 20 Switching off ------------------------------------------------------------------------------------------------- 20 Access codes ----------------------------------------------------------------------------------------------- 20 Security code (6 digits) ----------------------------------------------------------------------------------- 20 PIN and PIN2 codes (from 4 to 8 digits) ------------------------------------------------------------- 20 (QJOLVK  PUK and PUK2 codes (8 digits) ------------------------------------------------------------------------ 21 Phone lock password ------------------------------------------------------------------------------------- 21 How to make a call -------…

Text truncated - open the document above for the full version.

Users Manual

Telital GS/GSM DUAL MODE USER TERMINAL TECHNICAL MANUAL Code: 1–vv0300361 Rev. 1 Jul. 19, 1999 REV SUBJECT OF MODIFICATION DATESIGNATURE REVISION INDEX TECHNICAL MANUAL Telital GS/GSM DUAL MODE USER TERMINAL MOD.  a W ii INDEX CAP TITLE REV 1INTRODUCTION1 2MECHANICAL VIEW0 3TECHNICAL SPECIFICATIONS1 4LIST OF MODIFICATIONS1 5BLOCK DIAGRAMS0 6ELECTRIC DIAGRAMS1 7PARTS LIST0 8PHOTOS AND ASSEMBLIES0 9USER GUIDE0 TECHNICAL MANUAL GS/GSM DUAL MODE USER TERMINAL Rev. 1Telital S.p.A. TECHNICAL MANUAL GS/GSM DUAL MODE USER TERMINAL Page 1 of 2 1INTRODUCTION The Telital GS/GSM Dual Mode User Terminal is an handheld cellular radiotelephone operating under the terrestrial GSM 900 MHz / satellite Globalstar system at frequen- cies over 1,5GHz at public radiotelephone network. The design and development of the Telital GS/GSM Dual Mode User Terminal is in line with the following documents: TBR19 - Editon 5 – European digital cellular telecommunications system (Phase II); Attachment requirements for Global System for Mobile communications (GSM) mobile stations; access. TBR20 - Editon 3 – European digital cellular telecommunications system (Phase II); Attachment requirements for Global System for Mobile communications (GSM) mobile stations; Telephony. TBR41 - Edition 1 – Satellite Personal Communications Networks (S–PCN); Mobile Earth Stations (MESs), including handheld earth stations, for S–PCN in the 1,6/2,4 GHz bands under the Mobile Satellite Service (MSS); Terminal essential requirements. Qualcomm specifications 80–25015–1 X6 date 07.09.97 This apparatus is composed of the following accessories: – Universal Battery charger; – Data Terminal Adapter; – Car Kit. These accessories are described on dedicated user manuals. Rev. 1Telital S.p.A. TECHNICAL MANUAL GS/GSM DUAL MODE USER TERMINAL Page 2 of 2 1.1 DIFFERENCES BETWEEN HW REVISION 0 AND HW REVISION 1 The differences between the HW release 0 and the HW release 1 are the following: CS710CChanged microphone from Electret to BOSUNG; The following components are added: C166, C164. CS680BThe following components are changed: C18, C19, R25, C113, R31, U11 The following components are added: R133, C64, R130, TP42, TP43. For a detailed description of changes see Parag.4 List of modifications. Rev. 0Telital S.p.A. TECHNICAL MANUAL GS/GSM DUAL MODE USER TERMINAL Page 1 of 1 2MECHANICAL VIEW 2.1 Mechanical view Telital GS/GSM Dual Mode User Terminal Dis. Verif. Progetto Denominazione dell’oggetto: CODICE N.fogli Sostituisce il N. Foglio Valido da: Data MODIFICA Scala: DATA Toll.gen. Materiale: Annotazioni: Il presente disegno a termini di legge non deve essere utilizzato per la costruzione del particolare ne’ riprodotto o reso pubblico senza il nostro permesso scritto. 0080 LucΓ  26.03.99 1:1 11 MECHANICAL VIEW TELITAL GS/GSM DMUT 40080NT10032 AA B B SECTION A–A SECTION B–B 198 50 65.5 224 Rev. 1Telital S.p.A. TECHNICAL MANUAL GS/GSM DUAL MODE USER TERMINAL Page 1 of 13 3TECHNICAL SPECIFICATIONS The scope of this document is to summarize the technical characteristics of the Telital GS/GSM Dual Mode User Terminal. For detailed informations refer to TECHNICAL SPECIFICATION code 30080ST10010A. Rev. 1Telital S.p.A. TECHNICAL MANUAL GS/GSM DUAL MODE USER TERMINAL Page 2 of 13 3.1 Operating frequencies 3.1.1 GSM The GSM operating frequencies are: TX frequencies:890.2  914.8 MHz RX frequencies:935.2  959.8 MHz The channel (ARFCN) are numbered from 1 to 124 and frequency offset between TX and RX frequency is 45 MHz. 3.1.2 GLOBALSTAR The satellite operating frequencies are the standard Globalstar frequencies. TX frequencies:1618.11 MHz Bandwidth:15.99MHz Channel bandwidth:1.23MHz Minimum channel shift:30KHz Number of shift:0  511 Number of preferred channels:13 Preferred channels:4, 45, 86, 127, 168, 209, 250, 291, 332, 373, 414, 455, 496. Rx frequencies:2491.77 MHz Bandwidth:15.99MHz Channel bandwidth:1.23MHz Minimum channel shift:123KHz Number of shift:0  127 Number of preferred channels:13 Preferred channels:3, 13, 23, 33, 43, 53, 63, 73, 83, 93, 103, 113, 123. 3.2 Transmitter output power 3.2.1 GSM a) RF power on 50 Ohm The GSM section of the DMUT is a class 4 radiotelephone according to standard ETSI reg- ulation that fix the limit at 2 Watts (+33dBm) on 50 Ohm; In normal test conditions the transmitter nominal power range is between +31.5 dBm and +32.5 dBm on 50 Ohm. With a supply voltage range between 6.7V and 8.4V and temperature range between –10Β°C and +55Β°C the transmitter power range is between +30.5 dBm and +32.5 dBm on 50 Ohm. b) ERP power Not supplied in the GSM specification. The EIRP power will be measured in anechoic chamber. Rev. 1Telital S.p.A. TECHNICAL MANUAL GS/GSM DUAL MODE USER TERMINAL Page 3 of 13 3.2.2 GLOBALSTAR Output power>23 dBm +26 dBm 3.3 Reference sensitivity 3.3.1 GSM Sensitivity on 50 Ohm The sensitivity is according to the GSM specification for the class 4 portable terminal; The standard ETSI regulation para 6 fix a limit of –102dBm. The goal limit is –104 dBm for an Rx Quality < 0.2 – 0.4%. 3.3.2 GLOBALSTAR Ref. Qualcomm specifications 80–25015–1 X6. 3.4 Antenna 3.4.1 GSM The antenna for the GSM band is ALLGON 3576.2 3.4.2 Globalstar The antenna for the satellite Globalstar band is composed of more parts and is assembled on the telephone in way that can rotate on 4 positions. The satellite antenna in its rotating stalk contains an LNA for the Rx section, the receiving part Rx and the transmitting part Tx. An optical sensor assembled on the body of the telephone under the antenna rotor, acti- vates the satellite transmission when the antenna is rotated in the positions 1, 2 and 3. In the intermediary positions the transmitter of the satellite section is always disabled. In the position 0 the telephone works only on the GSM band. The rotation of the antenna is prevented over the position 3. 3.5 Audio characteristics 3.5.1 Microphone The telephone uses a microphone PRIMO type EM131S2B2. This is inserted in a r…

Text truncated - open the document above for the full version.

Users Manual

Rev. 1Telital S.p.A. TECHNICAL MANUAL GS/GSM DUAL MODE USER TERMINAL Page 1 of 13 3TECHNICAL SPECIFICATIONS The scope of this document is to summarize the technical characteristics of the Telital GS/GSM Dual Mode User Terminal. For detailed informations refer to TECHNICAL SPECIFICATION code 30080ST10010A. Rev. 1Telital S.p.A. TECHNICAL MANUAL GS/GSM DUAL MODE USER TERMINAL Page 2 of 13 3.1 Operating frequencies 3.1.1 GSM The GSM operating frequencies are: TX frequencies:890.2  914.8 MHz RX frequencies:935.2  959.8 MHz The channel (ARFCN) are numbered from 1 to 124 and frequency offset between TX and RX frequency is 45 MHz. 3.1.2 GLOBALSTAR The satellite operating frequencies are the standard Globalstar frequencies. TX frequencies:1618.11 MHz Bandwidth:15.99MHz Channel bandwidth:1.23MHz Minimum channel shift:30KHz Number of shift:0  511 Number of preferred channels:13 Preferred channels:4, 45, 86, 127, 168, 209, 250, 291, 332, 373, 414, 455, 496. Rx frequencies:2491.77 MHz Bandwidth:15.99MHz Channel bandwidth:1.23MHz Minimum channel shift:123KHz Number of shift:0  127 Number of preferred channels:13 Preferred channels:3, 13, 23, 33, 43, 53, 63, 73, 83, 93, 103, 113, 123. 3.2 Transmitter output power 3.2.1 GSM a) RF power on 50 Ohm The GSM section of the DMUT is a class 4 radiotelephone according to standard ETSI reg- ulation that fix the limit at 2 Watts (+33dBm) on 50 Ohm; In normal test conditions the transmitter nominal power range is between +31.5 dBm and +32.5 dBm on 50 Ohm. With a supply voltage range between 6.7V and 8.4V and temperature range between –10Β°C and +55Β°C the transmitter power range is between +30.5 dBm and +32.5 dBm on 50 Ohm. b) ERP power Not supplied in the GSM specification. The EIRP power will be measured in anechoic chamber. Rev. 1Telital S.p.A. TECHNICAL MANUAL GS/GSM DUAL MODE USER TERMINAL Page 3 of 13 3.2.2 GLOBALSTAR Output power>23 dBm +26 dBm 3.3 Reference sensitivity 3.3.1 GSM Sensitivity on 50 Ohm The sensitivity is according to the GSM specification for the class 4 portable terminal; The standard ETSI regulation para 6 fix a limit of –102dBm. The goal limit is –104 dBm for an Rx Quality < 0.2 – 0.4%. 3.3.2 GLOBALSTAR Ref. Qualcomm specifications 80–25015–1 X6. 3.4 Antenna 3.4.1 GSM The antenna for the GSM band is ALLGON 3576.2 3.4.2 Globalstar The antenna for the satellite Globalstar band is composed of more parts and is assembled on the telephone in way that can rotate on 4 positions. The satellite antenna in its rotating stalk contains an LNA for the Rx section, the receiving part Rx and the transmitting part Tx. An optical sensor assembled on the body of the telephone under the antenna rotor, acti- vates the satellite transmission when the antenna is rotated in the positions 1, 2 and 3. In the intermediary positions the transmitter of the satellite section is always disabled. In the position 0 the telephone works only on the GSM band. The rotation of the antenna is prevented over the position 3. 3.5 Audio characteristics 3.5.1 Microphone The telephone uses a microphone PRIMO type EM131S2B2. This is inserted in a rubber gasket. 3.5.1.1 Microphone sensitivity The typical level is 3mV typical with a –4.7dBPa signal SPL at f=1kHz 3.5.1.1.1 Microphone electric level The typical level is >570mVrms with signal AF of 3mV @ f=1kHz. Rev. 1Telital S.p.A. TECHNICAL MANUAL GS/GSM DUAL MODE USER TERMINAL Page 4 of 13 3.5.1.1.2 Microphone distorsion The typical level is <2% with range of frequency 300Hz to 3400Hz. 3.5.1.2 Buzzer The Buzzer used into the DMUT is the MUT–03A STAR. 3.5.1.2.1 Acoustic pressure of the buzzer The value of acoustic pressure is –41dBV. 3.6Device voltage supply Nominal voltage 7.4 V Working range 7 V  8.4 V Power off voltage range: 6.8V 3.6.1 Power consumption The following table lists the estimated current that flows from the 7.2V battery with a switching circuit efficiency =0.85. The values are expressed in mA. GSM BasebandG*BasebandGSM RadioG* RadioTotal GSM Mode : RxTx @ Tx level=5 833.842620.84349.68 GSM Mode : idle10.23.841.40.8416.28 G* Mode : RxTx60219.61.56664.44945.0 G* Mode : idle @slot=110.21291.5697.44238.2 G* Mode : idle @slot=0.210.226.41.5619.4457.6 3.6.2 Battery pack and battery life The DMUT will be power supplied by a PP35 1350mAh battery pack composed of two Li Ion rechargeable serial elements. 3.6.2.1 Battery life in GSM mode ÁÁÁÁÁÁÁÁÁÁÁÁÁ Á ÁÁÁÁÁÁÁÁÁÁÁÁ ÁÁÁÁÁÁÁÁÁÁÁÁÁ Operative mode ÁÁÁÁÁ Á ÁÁÁÁ ÁÁÁÁÁ Rx/Tx* ÁÁÁÁÁ Á ÁÁÁÁ ÁÁÁÁÁ Idle ÁÁÁÁÁÁÁÁÁÁÁÁÁ ÁÁÁÁÁÁÁÁÁÁÁÁÁ Battery life ÁÁÁÁÁ ÁÁÁÁÁ 3.86h ÁÁÁÁÁ ÁÁÁÁÁ 83h * @ Tx level=5 3.6.2.2 Battery life in Globalstar mode ÁÁÁÁÁÁÁÁÁÁÁÁÁ Á ÁÁÁÁÁÁÁÁÁÁÁÁ ÁÁÁÁÁÁÁÁÁÁÁÁÁ Operative mode ÁÁÁÁÁ Á ÁÁÁÁ ÁÁÁÁÁ Rx/Tx ÁÁÁÁÁÁÁÁ Á ÁÁÁÁÁÁÁ ÁÁÁÁÁÁÁÁ Idle ÁÁÁÁÁÁÁÁÁÁÁÁÁ ÁÁÁÁÁÁÁÁÁÁÁÁÁ Battery life ÁÁÁÁÁ ÁÁÁÁÁ 1.43h ÁÁÁÁÁÁÁÁ ÁÁÁÁÁÁÁÁ 5.66h @slot = 1 ÁÁÁÁÁÁÁÁÁÁÁÁÁ ÁÁÁÁÁÁÁÁÁÁÁÁÁ ÁÁÁÁÁ ÁÁÁÁÁ ÁÁÁÁÁÁÁÁ ÁÁÁÁÁÁÁÁ 23.43h @slot = 0.2 In conversation: 5.5 hrs In idle: 70 hrs Rev. 1Telital S.p.A. TECHNICAL MANUAL GS/GSM DUAL MODE USER TERMINAL Page 5 of 13 3.7 Keypad The keypad is composed by 20 keys and lighted with 12 leds. The key functions, related to the specific operative conditions, are shortly listed on the table below. Key Function END function to terminate a call; SEND function to answer an incoming call; Mode Switch to define the DMUT operating mode; MFunction MENU to enter in the DMUT operative menu; Character and number cancellation in edit mode; Note Book function; SMS menu; DMUT power ON/OFF; Menu scroll–up function; Menu scroll–down function; 1...9Alphanumeric keys 3.8 Display Type SEK1054B5A EPSON LCD, FSTN, positive, reflective, graphic. The display will be backlighted with six leds. 3.9 Data service Use of a Data Terminal Adapter for the following functions: Full emulation of analog modem to allows the compatibility with the existent data commu- nication programs. Class 1 (EIA/TIA 578) and class 2 (TR29.2) command for compatibility with fax. Max data rate 9600 bit/s. In Globalstar mode the D…

Text truncated - open the document above for the full version.

Parts List/Tune Up Info

Rev. 0Telital S.p.A. TECHNICAL MANUAL GS/GSM DUAL MODE USER TERMINAL Page 1 of 1 7PARTS LIST Bill of materials GSM Radio & display assy cs710ccode: 2–000100267 Bill of materials BB Globalstar & GSM assy cs680bcode: 2–000100256 Bill of materials Radio GS assy cs661ccode: 2–000100257 Bill of materials Optical Sensor cs760code: 2–000100201 TELITAL SpA ESPLOSIONE CON RIFERIMENTI SCHEMA (da ATBTEL30) PAG. 1 Data creazione distinta 22/02/99 Data di stampa 29/03/99 Data ultima modifica 22/02/99 Data di validita’ 29/03/99 Revisione Validitaβ€˜ Liv. Cv Codice Telital Descrizione C.Costrut./Nr.Disegno Um Quantitaβ€˜ Riferimento schema PdM ––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– Assieme 01 2000100267 MODULO RADIO&DISP GSM CS710C VERS 22.02.99 Nr. progetto: 0080 1 01 2000400267 MODULO RADIO&DISP GSM CS710C VERS 22.02.99 LATO PTH PZ 1,00000 rif. dis. 1 .2 01 2000200267 MODULO RADIO&DISP GSM CS710C VERS 22.02.99 LATO PRIM SMD PZ 1,00000 rif. dis. 1 ..3 01 2000300267 MODULO RADIO&DISP GSM CS710C VERS 22.02.99 LATO SEC SMD PZ 1,00000 rif. dis. 1 ...4 01 1ff0100710c BASETTA C/S RADIO & DISP GSM VERS 22.02.99 PZ 1,00000 rif. dis. 1 ...4 01 1vv0200268fpe ETICHETTA ACRILATO BIANCO H6 L20 3 PISTE TT.26.0002 PZ 1,00000 rif. dis. 2 ...4 01 1ff0600089ml CONN F CSTP 50 VIE VERT SMD P–0.5 52991–0508 PZ 1,00000 SO4 ...4 01 1ff0600129ml CONN F CSTP 40 VIE VERT SMD P–0.5 52991–0408 PZ 1,00000 SO3 ..3 01 1aa0100106ky RES SMD 0 OHM JUMPER1/16W 0603 CJ10–000–D PZ 1,00000 R1 ..3 01 1aa0100111ky RES SMD 33 R 5% 1/16W 0603 CR10–330J–T PZ 1,00000 R30 ..3 01 1aa0100113ky RES SMD 100 R 5% 1/16W 0603 CR10–101J–T PZ 4,00000 R66 R67 R69 R70 ..3 01 1aa0100203ky RES SMD 56 R 5% 1/10W 0805 CR21–560J–T PZ 1,00000 R71 ..3 01 1aa0100361ky RES SMD 10 R 5% 1/16W 0402 CR05–100J–H PZ 13,00000 R5 R18 R25 R26 R29 R37 R42 R46 R47 R48 R55 R58 R60 ..3 01 1aa0100362ky RES SMD 22 R 5% 1/16W 0402 CR05–220J–H PZ 3,00000 R31 R36 R59 ..3 01 1aa0100364ky RES SMD 33 R 5% 1/16W 0402 CR05–330J–H PZ 2,00000 R45 R93 ..3 01 1aa0100365ky RES SMD 47 R 5% 1/16W 0402 CR05–470J–H PZ 1,00000 R20 ..3 01 1aa0100370ky RES SMD 220 R 5% 1/16W 0402 CR05–221J–H PZ 3,00000 R33 R49 R62 ..3 01 1aa0100373ky RES SMD 560 R 5% 1/16W 0402 CR05–561J–H PZ 2,00000 R12 R77 ..3 01 1aa0100374ky RES SMD 1 K 5% 1/16W 0402 CR05–102J–H PZ 6,00000 R8 R35 R38 R39 R94 R157 ..3 01 1aa0100375ky RES SMD 1.8 K 5% 1/16W 0402 CR05–182J–H PZ 4,00000 R51 R52 R53 R54 ..3 01 1aa0100376ky RES SMD 2.7 K 5% 1/16W 0402 CR05–272J–H PZ 1,00000 R65 ..3 01 1aa0100377ky RES SMD 4.7 K 5% 1/16W 0402 CR05–472J–H PZ 2,00000 R14 R24 ..3 01 1aa0100378ky RES SMD 5.6 K 5% 1/16W 0402 CR05–562J–H PZ 3,00000 R11 R23 R44 ..3 01 1aa0100379ky RES SMD 6.8 K 5% 1/16W 0402 CR05–682J–H PZ 1,00000 R2 ..3 01 1aa0100380ky RES SMD 10 K 5% 1/16W 0402 CR05–103J–H PZ 4,00000 R21 R57 R78 R79 ..3 01 1aa0100382ky RES SMD 15 K 5% 1/16W 0402 CR05–153J–H PZ 1,00000 R27 ..3 01 1aa0100388ky RES SMD 47 K 5% 1/16W 0402 CR05–473J–H PZ 2,00000 R4 R80 *** SEGUE *** TELITAL SpA ESPLOSIONE CON RIFERIMENTI SCHEMA (da ATBTEL30) PAG. 2 Data creazione distinta 22/02/99 Data di stampa 29/03/99 Data ultima modifica 22/02/99 Data di validita’ 29/03/99 Revisione Validitaβ€˜ Liv. Cv Codice Telital Descrizione C.Costrut./Nr.Disegno Um Quantitaβ€˜ Riferimento schema PdM ––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– Assieme 01 2000100267 MODULO RADIO&DISP GSM CS710C VERS 22.02.99 Nr. progetto: 0080 ..3 01 1aa0100390ky RES SMD 100 K 5% 1/16W 0402 CR05–104J–H PZ 3,00000 R9 R10 R17 ..3 01 1aa0100394ky RES SMD 470 K 5% 1/16W 0402 CR05–474J–H PZ 1,00000 R16 ..3 01 1aa0100395ky RES SMD 560 K 5% 1/16W 0402 CR05–564J–H PZ 1,00000 R15 ..3 01 1aa0100398ky RES SMD 100 R 5% 1/16W 0402 CR05–101J–H PZ 3,00000 R3 R89 R90 ..3 01 1aa0100400ky RES SMD 3.9 K 5% 1/16W 0402 CR05–392J–H PZ 4,00000 R6 R61 R63 R76 ..3 01 1aa0100406ky RES SMD 8.2 K 5% 1/16W 0402 CR05–822J–H PZ 1,00000 R22 ..3 01 1aa0100407ky RES SMD 0 OHM JUMPER1/16W 0402 CJ05–000J–H PZ 10,00000 R28 R34 R40 R41 R56 R68 R73 R74 R75 R96 ..3 01 1aa0100432ky RES SMD 20.0 K 1% 1/16W 0603 CR10–2002F–T PZ 1,00000 R13 ..3 01 1aa0100462ky RES SMD 39.0 K 1% 1/16W 0603 CR10–3902F–T PZ 1,00000 R166 ..3 01 1aa0100463ky RES SMD 47.0 K 1% 1/16W 0603 CR10–4702F–T PZ 1,00000 R19 ..3 01 1aa0100465ky RES SMD 2.2 K 5% 1/16W 0402 CR05–222J–H PZ 1,00000 R7 ..3 01 1aa0100485ky RES SMD 82 R 5% 1/16W 0402 CR05–820J–H PZ 1,00000 R91 ..3 01 1aa0100555ky RES SMD 390 K 5% 1/16W 0603 CR10–394J–T PZ 1,00000 R43 ..3 01 1aa0100556ky RES SMD 680 K 5% 1/16W 0603 CR10–684J–T PZ 1,00000 R72 ..3 01 1bb0100072av COND CER SMD 39 pF COG 0603 5% 50V 06035A390JAT4A PZ 1,00000 C180 ..3 01 1bb0100083ky COND CER SMD 10 nF X7R 0603 10% 50V CM105X7R103K50AL PZ 2,00000 C161 C169 ..3 01 1bb0100084ky COND CER SMD 22 nF X7R 0603 10% 25V CM105X7R223K25AL PZ 1,00000 C64 ..3 01 1bb0100117av COND CER SMD 12 pF COG 0603 5% 50V 06035A120JAT2L PZ 1,00000 C182 ..3 01 1bb0100166ky COND CER SMD 100 nF X7R 0805 10% 25V CM21X7R104K25AT PZ 1,00000 C179 ..3 01 1bb0100185av COND CER SMD 100 nF Y5V 0603 20% 16V 0603YG104MAT2L PZ 2,00000 C170 C193 ..3 01 1bb0100188ky COND CER SMD 1.5pF COG 0402 +–0.25pF 50V CM05CG1R5C50AH PZ 2,00000 C10 C138 ..3 01 1bb0100190ky COND CER SMD 10 pF COG 0402 +–0.5pF 50V CM05CG100D50AH PZ 6,00000 C95 C97 C105 C106 C140 C189 ..3 01 1bb0100192ky COND CER SMD 22 pF COG 0402 5% 50V CM05CG220J50AH PZ 64,00000 C6 C11 C13 C14 C16 C17 C18 C19 C21 C35 C45 C46 C49 C54 C55 C57 C58 C59 C65 C66 C69 C70 C71 C72 C73 C74 C75 C76 C77 C82 C83 C84 C85 C93 C96 C98 C99 C104 C108 C110 C111 C114 C115 C120 C121 C122 C123 *** SEGUE *** TELITAL SpA ESPLOSIONE CON RIFERIMENTI SCHEMA (da ATBTEL30) PAG. 3 Data creazione distinta 22/02/99 Data di stampa 29/03/99 Data ultima modifica 22/02/99 Data di valid…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Mario Fragiacomo(Technical Director)
39 040 4192244Fax: 39 040 251257

Technical Contact

TUV PRODUCT SERVICEMARY T WASHINGTON
[email protected]858 546 3999

10040 MESA RIM ROAD Β· SAN DIEGO, California Β· United States

Non-Technical Contact

TUV PRODUCT SERVICEJUDY F EVANS
[email protected]858 546 3999

Test Firm

TUV AmericaJames Owen
[email protected]858-678-1435Fax: 858-546-0364

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
1251.61 GHz - 1.63 GHz400.00 mW1M23G9W10.0000000000 ppm
Confidentiality
Long Term

Other Applications from Telit Mobile Terminals S.p.A.

AMP - Amplifier - FCC ID OQKSAT551 - Telit Mobile Terminals S.p.A.
OQKSAT551

AMP - Amplifier

Jun 11, 2002

Equipment Class

AMP - Amplifier
Mobile Phone for Satellite Reception - FCC ID OQKSAT600 - Telit Mobile Terminals S.p.A.
OQKSAT600

Mobile Phone for Satellite Reception

May 27, 2002

Equipment Class

TNE - Licensed Non-Broadcast Transmitter Held to Ear
Licensed Portable - FCC ID OQKGM825 - Telit Mobile Terminals S.p.A.
OQKGM825

Licensed Portable

Feb 25, 2002

Equipment Class

PCE - PCS Licensed Transmitter held to ear
