OR7-GL-3000FreeBoard 2F Transmitter

LABEL Format: This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC ID : OR7-GL-3000 Model No.: FreeBoard 2F LABEL Size : 60 X 30 mm LABEL Position: LABEL

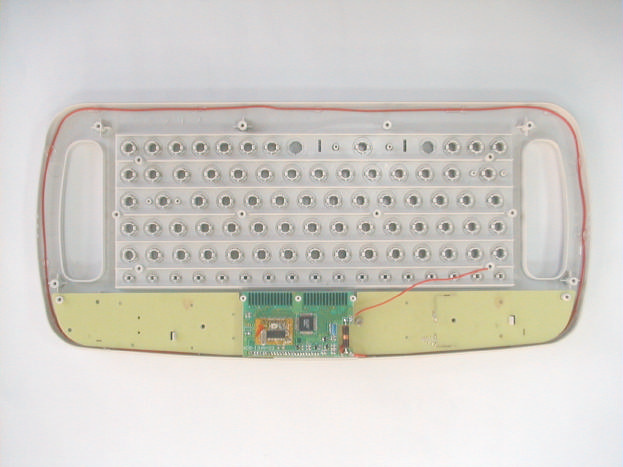

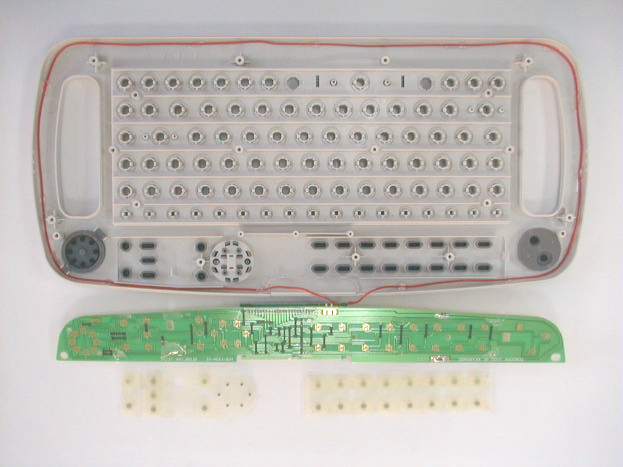

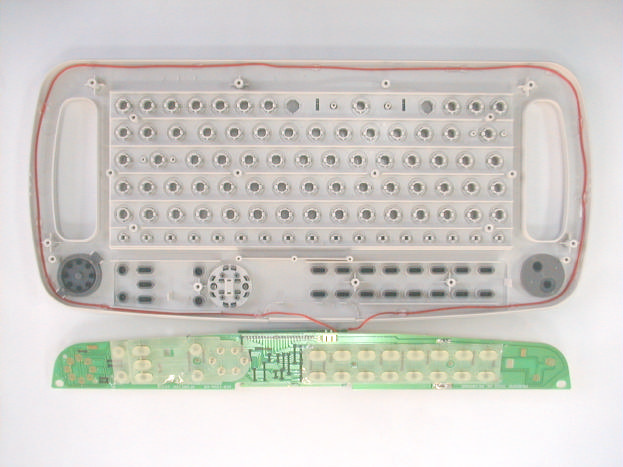

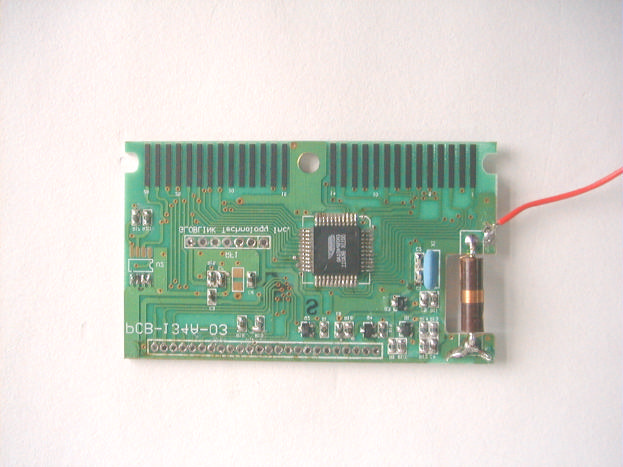

EXHIBIT F Photographs of EUT

Radiated Emission Test Result:(Vertical) Frequency Reading Amplitude Ant. Height Table Correction Factors Corrected Amplitude Class B Limit Margin MHz dBμV m degree dB/m dBμV/m dBμV/m dB 26.98 68.24 1.03 128 -21.56 46.68 80.00 -33.32 53.97 45.42 1.03 178 -20.59 24.83 40.00 -15.17 80.95 43.67 1.03 209 -23.27 20.40 40.00 -19.60 134.91 38.99 1.03 203 -22.15 16.84 43.52 -26.68 161.90 44.59 1.03 113 -23.47 21.12 43.52 -22.40 188.93 43.26 2.45 281 -24.68 18.58 43.52 -24.94 527.999 48.16 0.99 16 -17.47 30.69 46.00 -15.31 581.955 53.68 0.99 236 -17.01 36.67 46.00 -9.33 ***

EXHIBIT B Test Report Test Report ------------------------------------------------------------------------------ 2/13 Report No.: G2815035 Training Research Co., Ltd., TEL: 886-2-26461146, Fax: 886-2-26461778 Contents Chapter 1 Introduction Description of EUT....................................................................................................................3 Configuration of Test Setup........................................................................................................4 List of Support Equipment..........................................................................................................5 Chapter 2 Conducted Emission Test Test Condition and Setup...........................................................................................................7 Conducted Test Placement.........................................................................................................8 Chapter 3 Radiated Emission Test Test Condition and Setup...........................................................................................................9 Radiated Test Placement...........................................................................................................10 Appendix A : Conducted test result.................................................................................................................11 Appendix B : Radiated test result....................................................................................................................12 Test Report ------------------------------------------------------------------------------ 3/13 Report No.: G2815035 Training Research Co., Ltd., TEL: 886-2-26461146, Fax: 886-2-26461778 Chapter 1Introduction Description of EUT: This Transmitter is a wireless keyboard made for PC . Its relative receiver has been approved by DOC. It has 6 communication channels with pointing device on the right upper corner of the keyboard. The EUT is powered by two new 1.5V AAA batteries and the operating frequency is generated by a local oscillator 10.24MHz . The frequencies are 26.985MHz, 27.010MHz, 27.035MHz, 27.210MHz, 27.235MHz, and 27.260 MHz. This is tested according to FCC 15.227 regulation. Connections of EUT: The EUT has no external cable connected , only put on the test table as test configuration showed. Test method: Pretest was found that the emission of transmitting mode is worse than standby mode. So, The final test is made at the transmitting mode. During testing, the keyboard was sending a letter “H” continuously. The test placement as the photographs showed is the worst case emission placed. (If the emission is close to the ambient, the resolution BW and view resolution will be reduced and the data will be recorded by detection of maximum hold peak mode.) The testing configuration of test setup is showing in the next page. Test Report ------------------------------------------------------------------------------ 4/13 Report No.: G2815035 Training Research Co., Ltd., TEL: 886-2-26461146, Fax: 886-2-26461778 Configuration of test setup Connections: PC: *Serial port --- via a 76 cm shielded RS32 cable is connected with an external modem *Printer port --- a printer with 1.2m length data cable *Monitor port --- a monitor with 0.7m long of data cable *USB port A --- a joystick with 1.5m long, shielded and no ferrite bead data cable *USB port B --- a joystick with 1.5m long, shielded and no ferrite bead data cable *PS/2 Port--- the receiver via a 1.48m long ,non-shield, no ferrite bead, 1 to 2 PS/2 cable to PS/2 Ports of the PC. (Each port on PC is connected with suitable device) EUT : *Power by two size AAA 1.5V batteries. Power Source modem PC Monitor EUT Printer USB Joystick USB Joystick PC Receiver Test Report ------------------------------------------------------------------------------ 7/13 Report No.: G2815035 Training Research Co., Ltd., TEL: 886-2-26461146, Fax: 886-2-26461778 Chapter 2Conducted emission test Test condition and setup: All the equipment is placed and setup according to the ANSI C63.4 - 1992. The EUT is assembled on a wooden table that is 80 cm high, is placed 40 cm from the back-wall that is a vertical conducting plane. One LISN is for EUT, the other LISN is for support equipment. They are all placed on the conductive ground. The EUT’s LISN connect a line switch box for selecting L1 or L2, then connect to a preamplifier and spectrum. The spectrum scans from 450KHz to 30MHz. Conducted emission levels are detected at max. peak mode. But if the max. peak mode failed or over average limit, it will be measured by average detection mode. While testing, there is the worst-emission plot printed at peak detection mode, and there are more than 6 highest emissions relative to limit recorded. The plot is kept as the original data, not included in test report. List of test Instrument : Calibration Date Instrument Name Model No. Brand Serial No. Last time Next time Spectrum analyzer8594EMH P3710A0019806/29/0006/29/01 LISN (EUT)3825/2EMCO9411-228406/10/0006/10/01 LISN (Support E.)3825/2EMCO9210-200705/31/0005/31/01 PreamplifierEQ3-006TRC- - - - - - - - -05/15/0005/15/01 Line switch boxEQ3-007TRC- - - - - - - - -05/15/0005/15/01 The level of confidence of 95% , the uncertainty of measurement of conducted emission is ± 2.4 dB . Test Result: Pass (Appendix A) Test Report ------------------------------------------------------------------------------ 8/13 Report No.: G2815035 Training Research Co., Ltd., TEL: 886-2-26461146, Fax: 886-2-26461778 Conducted Test Placement: (Photographs) Test Report ------------------------------------------------------------------------------ 9/13 Report No.: G2815035 Training Research Co., Ltd., TEL: 886-2-26461146, Fax: 886-2-26461778 Chapter 3 Radiated emission test Test condition and setup : Pretest: Prior to the final test (OATS test), the EUT is placed in a shielded enclosure, and scan from 30MHz to 1GHz. This is done to ensure the radiatio…
