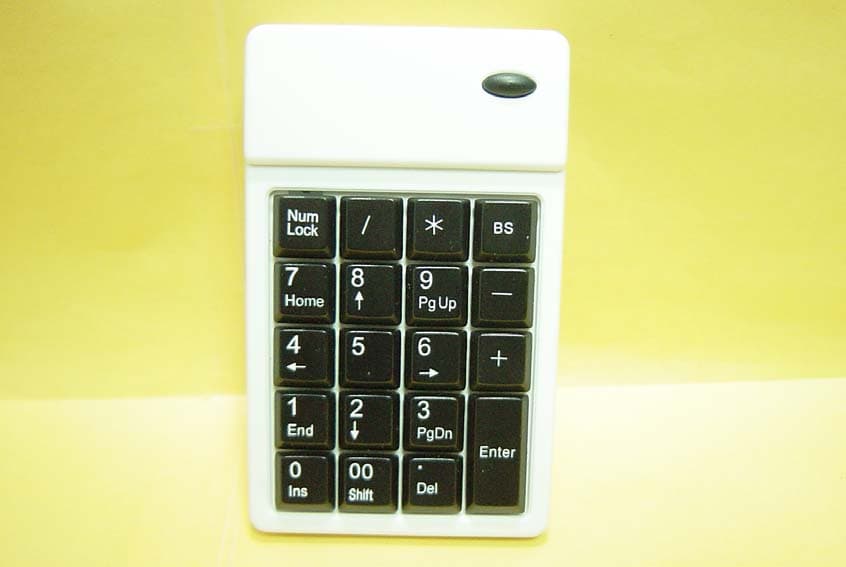

OR710KEY910Wireless 10-key Keyboard

2F., 101 Feenliau Street Nei-Hu (114) Taipei Taiwan Tel : (886) 2-8797 2919 Fax: (886) 2-8797 2918 URL : www.globlink.com.tw GT-910 Battery Installation 1. Install Batteries to Your Key Pad 1.1 Remove Battery compartment Located under the Key Pad. 1.2 Insert attached two AAA size batteries, ensuring they are in correct pole direction. 1.3 Click the cover back, and make sure it is well moun ● Noted : Please use alkaline batteries for longer battery life. ted. 2.Hardware Installation To plug the RF receiver into computer’s USB port. ● Noted: For desktop PC, would not suggest to have this receiver plug into PC USB port directly. To plug extension USB cable into the PC USB port as well as to have the RF receiver plug into the other end of this extension USB cable. 3. Set up the RF communication ID Code 1.1 Point the key pad to the receiver within 1 feet 1.2 Switch off the LED of receiver to unlock the receiver 1.3 Press the ID button located on the key pad, when the “lock” light on the receiver is lit, the key pad is set up and the receiver is locked. De/Activate Number Lock 1.1 Activate “Number Lock” ● Noted : The factory default is to activate “Number Lock” function Definition of the keys Num 7 8 45 1 2 0 /* BS + ID 2F., 101 Feenliau Street Nei-Hu (114) Taipei Taiwan Tel : (886) 2-8797 2919 Fax: (886) 2-8797 2918 URL : www.globlink.com.tw Num Lock / * BS 7 8 9 - 4 5 6 + 1 2 3 0 00 . Enter 1.2 De-activate Number Lock Definition of the keys Num Lock * BS HOME PgUp - + END PgDn INS Shift DEL Enter 1.4 Deactivate “Num Lock “ , press “Shift” and one of the key simultaneously, the definition of the keys becomes: 2F., 101 Feenliau Street Nei-Hu (114) Taipei Taiwan Tel : (886) 2-8797 2919 Fax: (886) 2-8797 2918 URL : www.globlink.com.tw Num Lock & % BS ( : ) $ < , > F1 € TAB Ins Space Shift = F2 Product Specification/Models Description & Commodity wireless ten key for computer Total Key 19 Switch Life 1,000,000 Power consumption z <10 mA @ working mode at 3 Vdc z <20 uA @ idle mode at 3 Vdc Security ID lock Security ID lock function and indication at receiver RF output power > 0 dBm Power supply 2* AAA alkaline battery Channel 1 channel with 1024 bit security ID Dimension 75W * 125L *28H mm Weight z 100g without battery z 120g with battery Receiver power consumption < 25 mA System Requirement IBM PC compatible Storage temperature -10 ~ 85 °C Working temperature 0 ~ 40 °C Type Approval CE, FCC Remark z CANNOT be used in Apple or iMac z USB at Win 98SE,ME,2000 compatible 2F., 101 Feenliau Street Nei-Hu (114) Taipei Taiwan Tel : (886) 2-8797 2919 Fax: (886) 2-8797 2918 URL : www.globlink.com.tw Information to User Notice 1 You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. Notice 2 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

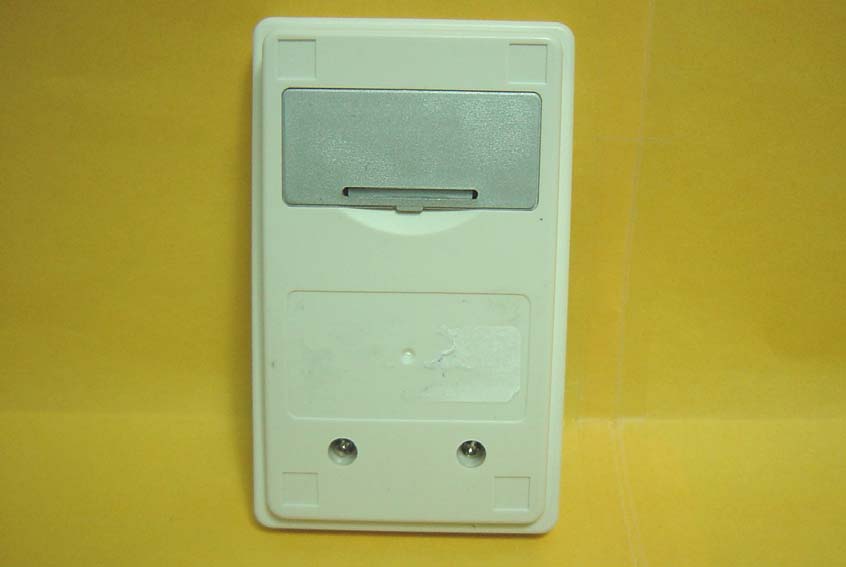

C&C Laboratory Co. Ltd. REPORT NO: 020076-RF-ID FCC ID: OR710KEY910 DATE: 11/12/2002 APPENDIX 2 EXTERNAL PHOTOGRAPHS OF EUT C&C Laboratory Co. Ltd. REPORT NO: 020076-RF-ID FCC ID: OR710KEY910 DATE: 11/12/2002 Front View of EUT Back View of EUT

FCC ID LABEL FORMAT AND LOCATION Applicant: Globlink Technology Inc. FCC ID: OR710KEY910 FCC ID: OR710KEY910 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABEL AREA

C&C Laboratory Co. Ltd. REPORT NO: 020076-RF-ID FCC ID: OR710KEY910 DATE: 11/12/2002 APPENDIX 3 INTERNAL PHOTOGRAPHS OF EUT C&C Laboratory Co. Ltd. REPORT NO: 020076-RF-ID FCC ID: OR710KEY910 DATE: 11/12/2002 Internal of EUT – Open Internal of EUT – Front C&C Laboratory Co. Ltd. REPORT NO: 020076-RF-ID FCC ID: OR710KEY910 DATE: 11/12/2002 Internal of EUT – Back

C&C Laboratory Co. Ltd. REPORT NO: 020076-RF-ID FCC ID: OR710KEY910 DATE: 11/12/2002 Page 1 of 18 Rev. 00 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF Wireless 10-KEY Keyboard MODEL No.: GT-910 BRAND NAME: ONE TAKE FCC ID: OR710KEY910 REPORT NO: 020076-RF-ID ISSUE DATE: Nov. 12, 2002 Prepared for Globlink Technology Inc. 2F1., 101 Feenliau Street ,Nei-hu, (114) Taipei, Taiwan, R. O. C. Prepared by C&C LABORATORY, CO., LTD. #B1, 1 st Fl., Universal Center, No. 183, Sec. 1, Tatung Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. TEL: (02)8642-2071~3 FAX: (02)8642-2256 C&C Laboratory Co. Ltd. REPORT NO: 020076-RF-ID FCC ID: OR710KEY910 DATE: 11/12/2002 Page 2 Rev. 00 Table of Contents 1. GENERAL INFORMATION ............................................................................................... 3 1.1 PRODUCT DESCRIPTION........................................................................................................................ 3 1.2 R ELATED S UBMITTAL ( S ) / G RANT ( S )................................................................................................... 3 1.3 T EST M ETHODOLOGY ............................................................................................................................ 3 1.4 TEST FACILITY...................................................................................................................................... 3 1.5 S PECIAL A CCESSORIES .......................................................................................................................... 3 1.6 E QUIPMENT M ODIFICATIONS ................................................................................................................ 3 2. SYSTEM TEST CONFIGURATION .................................................................................. 4 2.1 EUT CONFIGURATION........................................................................................................................... 4 2.2 EUT E XERCISE ...................................................................................................................................... 4 2.3 T EST P ROCEDURE .................................................................................................................................. 4 2.4 LIMITATION........................................................................................................................................... 5 2.5 C ONFIGURATION OF T ESTED S YSTEM ................................................................................................... 6 3. SUMMARY OF TEST RESULTS ....................................................................................... 8 4. DESCRIPTION OF TEST MODES .................................................................................... 8 5. CONDUCTED EMISSIONS TEST (NOT APPLICABLE IN THIS REPORT).......... 9 5.1 M EASUREMENT P ROCEDURE : ............................................................................................................... 9 5.2 T EST SET-UP (B LOCK D IAGRAM OF C ONFIGURATION ) ....................................................................... 9 5.3 M EASUREMENT E QUIPMENT U SED : ...................................................................................................... 9 5.4 M EASUREMENT R ESULT : ...................................................................................................................... 9 5.5 C ONDUCTED M EASUREMENT P HOTOS :................................................................................................. 9 6. RADIATED EMISSION TEST .......................................................................................... 10 6.1 M EASUREMENT P ROCEDURE ............................................................................................................... 10 6.2 T EST SET-UP (B LOCK D IAGRAM OF C ONFIGURATION ) ..................................................................... 11 6.3 M EASUREMENT E QUIPMENT U SED : .................................................................................................... 12 6.4 F IELD S TRENGTH C ALCULATION ........................................................................................................ 12 6.5 M EASUREMENT R ESULT ..................................................................................................................... 13 7. OCCUPIED BANDWIDTH................................................................................................ 17 7.1 M EASUREMENT P ROCEDURE ............................................................................................................... 17 7.2 T EST SET-UP (B LOCK D IAGRAM OF C ONFIGURATION ) ..................................................................... 17 7.3 M EASUREMENT E QUIPMENT U SED : .................................................................................................... 17 7.4 M EASUREMENT R ESULTS :................................................................................................................... 17 C&C Laboratory Co. Ltd. REPORT NO: 020076-RF-ID FCC ID: OR710KEY910 DATE: 11/12/2002 Page 3 Rev. 00 1. GENERAL INFORMATION 1.1 Product Description The Globlink Technology Inc. Model: GT-910 (referred to as the EUT in this report) The EUT is an short range, lower power, wireless Keyboard designed as an " Input Device. It is designed by way of utilizing the FSK modulation achieves the system operating. A major technical descriptions of EUT is described as following: A). Operation Frequency: 27.12 MHz, one channel. B). Modulation : Frequency Shifting Key (FSK) Modulation C). Antenna Designation: Non-User Replaceable (Fixed) D). Power Supply: 3 Vdc by AAA *2 battery. 1.2 Related Submittal(s) / Grant (s) This submittal(s) (test report) is intended for FCC ID : OR710KEY910 Filing to comply with Section 15.227 of the FCC Part 15, Subpart C Rules. The composi…
