OR7GF-88Wireless FM Sender

Information to User Notice 1 You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. Notice 2 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

From: Eva Kao [[email protected]] Sent: Friday, February 07, 2003 1:05 AM To: Mike Kuo; [email protected] Subject: Re: Globlink Technology Inc., FCC ID:OR7GF-88, AN03T2565 Hi Mike, A1#: Attached please find the revised ID Label. A2#: Attached please find the revised test report. A3#: Typing error. Attached please find the revised test report. A3#: We had already finish spurious emission test again. Attached please find the revised test report. Thank you! Eva ----- Original Message ----- From: "Mike Kuo" <[email protected]> To: <[email protected]> Cc: "Eva Kao (E-mail)" <[email protected]> Sent: Tuesday, February 04, 2003 5:29 AM Subject: FW: Globlink Technology Inc., FCC ID:OR7GF-88, AN03T2565 > > > -----Original Message----- > From: CERTADM > Sent: Monday, February 03, 2003 1:29 PM > To: '[email protected]' > Subject: Globlink Technology Inc., FCC ID:OR7GF-88, AN03T2565 > > > Notice_content > ------------- > Question #1: The proposed FCC ID label is located on the base which is not > the part of transmitter. Please revise your FCC ID label location on the > USB remote. > > Question #2: Section 2.3.1 of test report indicated the AC line conducted > test is not applicable to this test report but AC line conducted test is one > of required test item. Please revise your test report. > > Question #3: Page 14 of test report : AC line conducted tabular data. The > average reading is higher than the QP readings. Please explain. > > Question #4: Page 19, 21 and 22 of test report, the spurious emission field > strength are higher than the fundamental emission field strength. Please > address this non-compliance issue per section 15.215( b ) of FCC rules. > > Best Regards > > Mike Kuo > The items indicated above must be submitted before processing can continue > on the above referenced application. Failure to provide the requested > information within 60 days of the original e-mail date may result in > application dismissal and forfeiture of the filing fee. Also, please note > that partial responses increase processing time and should not be submitted. > Any questions about the content of this correspondence should be directed to > the e-mail address listed below the name of the sender.

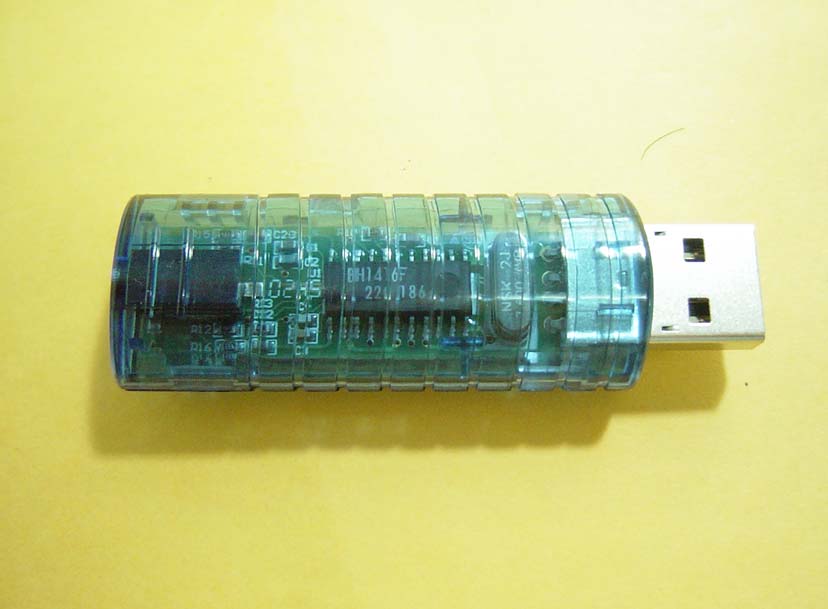

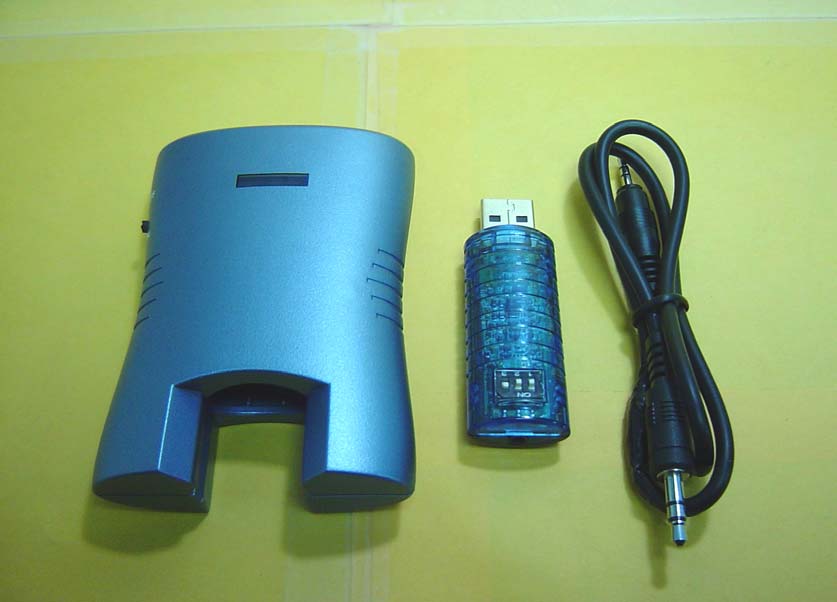

C&C Laboratory Co. Ltd. REPORT NO: 020101-RF-ID FCC ID: OR7GF-88 DATE: 12/18/2002 APPENDIX 2 EXTERNAL PHOTOGRAPHS OF EUT C&C Laboratory Co. Ltd. REPORT NO: 020101-RF-ID FCC ID: OR7GF-88 DATE: 12/18/2002 All of EUT Front of TX C&C Laboratory Co. Ltd. REPORT NO: 020101-RF-ID FCC ID: OR7GF-88 DATE: 12/18/2002 Back of TX Top of TX C&C Laboratory Co. Ltd. REPORT NO: 020101-RF-ID FCC ID: OR7GF-88 DATE: 12/18/2002 Front of Battery pad Back of Battery pad

FCC ID LABEL FORMAT AND LOCATION Applicant: Globlink Technology Inc. FCC ID: OR7GF-88 FCC ID: OR7GF-88 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABEL AREA

C&C Laboratory Co. Ltd. REPORT NO: 020101-RF-ID FCC ID: OR7GF-88 DATE: 12/18/2002 APPENDIX 3 INTERNAL PHOTOGRAPHS OF EUT C&C Laboratory Co. Ltd. REPORT NO: 020101-RF-ID FCC ID: OR7GF-88 DATE: 12/18/2002 Open of EUT Inside View of EUT-1 C&C Laboratory Co. Ltd. REPORT NO: 020101-RF-ID FCC ID: OR7GF-88 DATE: 12/18/2002 Inside View of EUT-2 Inside View of EUT-3 C&C Laboratory Co. Ltd. REPORT NO: 020101-RF-ID FCC ID: OR7GF-88 DATE: 12/18/2002 Inside View of EUT-4 Inside View of EUT-5

C&C Laboratory Co. Ltd. REPORT NO: 020101-RF-ID FCC ID: OR7GF-88 DATE: 12/18/2002 Page 1 of 24 Rev. 01 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF Wireless FM Sender MODEL No.: GF-88 BRAND NAME: I-free FCC ID: OR7GF-88 REPORT NO: 020101-RF-ID ISSUE DATE: JAN. 09, 2003 Prepared for Globlink Technology Inc. 2F1, 101 Feenliau Street, Nei-hu, (114) Taipei, Taiwan, R. O. C. Prepared by C&C LABORATORY, CO., LTD. #B1, 1 st Fl., Universal Center, No. 183, Sec. 1, Tatung Rd., Hsi Chih, Taipei Hsien, Taiwan, R.O.C. TEL: (02)8642-2071~3 FAX: (02)8642-2256 C&C Laboratory Co. Ltd. REPORT NO: 020101-RF-ID FCC ID: OR7GF-88 DATE: 12/18/2002 Page 2 Rev. 01 Table of Contents 1. GENERAL INFORMATION ............................................................................................... 3 1.1 P RODUCT D ESCRIPTION ........................................................................................................................ 3 1.2 RELATED SUBMITTAL(S) / GRANT (S)................................................................................................... 3 1.3 T EST M ETHODOLOGY ............................................................................................................................ 3 1.4 T EST F ACILITY ...................................................................................................................................... 3 1.6 EQUIPMENT MODIFICATIONS................................................................................................................ 3 2. SYSTEM TEST CONFIGURATION .................................................................................. 4 2.1 EUT C ONFIGURATION ........................................................................................................................... 4 2.2 EUT E XERCISE ...................................................................................................................................... 4 2.3 TEST PROCEDURE.................................................................................................................................. 4 2.4 L IMITATION ........................................................................................................................................... 5 2.5 C ONFIGURATION OF T ESTED S YSTEM ................................................................................................... 7 3. SUMMARY OF TEST RESULTS ....................................................................................... 9 4. DESCRIPTION OF TEST MODES .................................................................................... 9 5. CONDUCTED EMISSION TEST ..................................................................................... 10 5.1 S TANDARD A PPLICABLE ............................................................................................................................ 10 5.2 EUT S ETUP ................................................................................................................................................. 10 5.3 M EASUREMENT P ROCEDURE ...................................................................................................................... 10 5.4M EASUREMENT E QUIPMENT U SED : ............................................................................................................ 11 5.5 M EASUREMENT R ESULT ............................................................................................................................. 11 6. RADIATED EMISSION TEST .......................................................................................... 16 6.1 M EASUREMENT P ROCEDURE ............................................................................................................... 16 6.2 T EST SET-UP (B LOCK D IAGRAM OF C ONFIGURATION ) ..................................................................... 17 6.3 M EASUREMENT E QUIPMENT U SED : .................................................................................................... 18 6.4 F IELD S TRENGTH C ALCULATION ........................................................................................................ 18 6.5 M EASUREMENT R ESULT ..................................................................................................................... 19 7. OCCUPIED BANDWIDTH................................................................................................ 23 7.1 MEASUREMENT PROCEDURE............................................................................................................... 23 7.2 T EST SET-UP (B LOCK D IAGRAM OF C ONFIGURATION ) ..................................................................... 23 7.3 M EASUREMENT E QUIPMENT U SED : .................................................................................................... 23 7.4 M EASUREMENT R ESULTS :................................................................................................................... 23 C&C Laboratory Co. Ltd. REPORT NO: 020101-RF-ID FCC ID: OR7GF-88 DATE: 12/18/2002 Page 3 Rev. 01 GENERAL INFORMATION 1.1 Product Description The Globlink Technology Inc. Model: GF-88 (referred to as the EUT in this report), The EUT is an short range, lower power, FM Sender designed as an " Input Device. It is designed by way of utilizing the FSK modulation achieves the system operating. A major technical descriptions of EUT is described as following: A). Operation Frequency: 88.20 MHz~89.40MHz, six channel. B). Modulation: Frequency Modulation C). Antenna Designation: Non-User Replaceable (Fixed) D). Power Supply: 3 Vdc by AAA *2 battery./12dc ADAPTOR 1.2 Related Submittal(s) / Grant (s) This submittal(s) (test report) is intended for FCC ID: OR7GF-88 filing to comply with Section 15.239 of the FCC Part 15, Subpart C Rules. The composite system (receiver) is compliance with Subpart B is authorized under a DoC pr…

Text truncated - open the document above for the full version.

C&C Laboratory Co. Ltd. REPORT NO: 020101-RF-ID FCC ID: OR7GF-88 DATE: 12/18/2002 APPENDIX 1 PHOTOGRAPHS OF SET UP C&C Laboratory Co. Ltd. REPORT NO: 020101-RF-ID FCC ID: OR7GF-88 DATE: 12/18/2002 Page 26 Rev. 00 Radiated Emission Setup Photos POWER FROM PC Front Back C&C Laboratory Co. Ltd. REPORT NO: 020101-RF-ID FCC ID: OR7GF-88 DATE: 12/18/2002 POWER FROM ADAPTOR Front Back C&C Laboratory Co. Ltd. REPORT NO: 020101-RF-ID FCC ID: OR7GF-88 DATE: 12/18/2002 CONDUCTED Emission Setup Photos POWER FROM PC Front Back C&C Laboratory Co. Ltd. REPORT NO: 020101-RF-ID FCC ID: OR7GF-88 DATE: 12/18/2002 POWER FROM ADAPTOR Front Back
