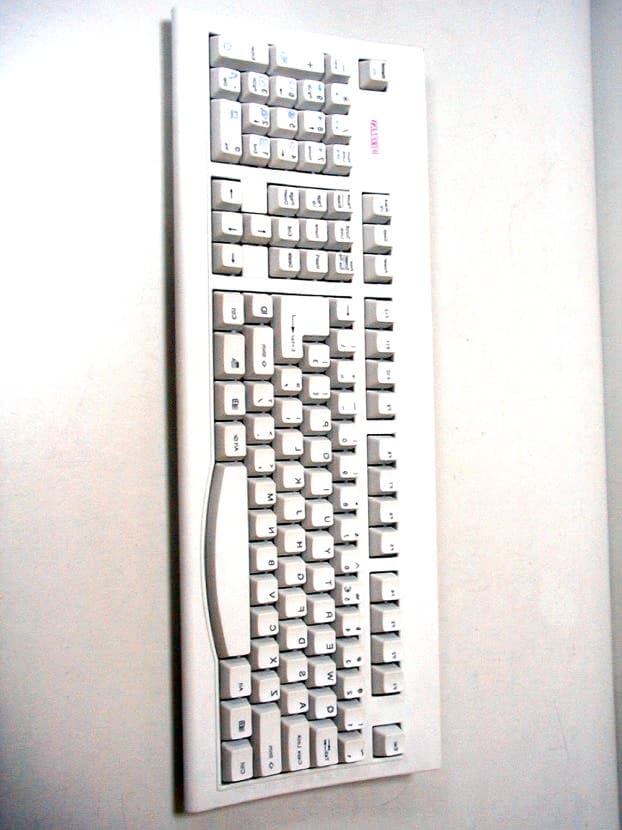

OR7GL2000Wireless Keyboard

From: jack [[email protected]] Sent: Sunday, October 14, 2001 6:39 PM To: Mike Kuo Subject: Re: GLOBLINK TECHNOLOGY INC., FCC ID:OR7GL2000, AN01T1492 See attachment. Jack Tsai ----- Original Message ----- From: Mike Kuo <[email protected]> To: 'julian_trc' <[email protected]>; <[email protected]> Cc: <[email protected]> Sent: Saturday, October 13, 2001 6:37 AM Subject: FW: GLOBLINK TECHNOLOGY INC., FCC ID:OR7GL2000, AN01T1492 > > > -----Original Message----- > From: CERTADM > Sent: Friday, October 12, 2001 3:36 PM > To: Mike Kuo > Subject: GLOBLINK TECHNOLOGY INC., FCC ID:OR7GL2000, AN01T1492 > > > Notice_content > ------------- > Question #1: Please provide operational description per 2.1033(b)(4) of FCC > rules. Please note: User Manual does not consider as operational > description. > > Best Regards > > Mike Kuo / TCB Certifier > The items indicated above must be submitted before processing can continue > on the above referenced application. Failure to provide the requested > information within 60 days of the original e-mail date may result in > application dismissal and forfeiture of the filing fee. Also, please note > that partial responses increase processing time and should not be submitted. > Any questions about the content of this correspondence should be directed to > the e-mail address listed below the name of the sender.

Test Report -------------------------------------------------------------------------------- 2/15 Report No.: G2815147T Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Contents Chapter 1 Introduction Description of EUT...................................................................................................................3 Configuration of Test Setup......................................................................................................4 List of Support Equipment........................................................................................................5 Chapter 2 Conducted Emission Test Test Condition and Setup..........................................................................................................7 Chapter 3 Radiated Emission Test Test Condition and Setup..........................................................................................................8 Radiated Test Placement..........................................................................................................10 Appendix A : Radiated test result...................................................................................................................11 Appendix B : Band Edge of Measurement.....................................................................................................14 Test Report -------------------------------------------------------------------------------- 3/15 Report No.: G2815147T Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Chapter 1Introduction Description of EUT: EUT:Free bard 1B Model No.:GL2000 FCC ID:OR7GL2000 Frequency Range:26.96 – 27.28 MHz Power Type:Powered by two 1.5VDC batteries This wireless keyboard use advanced transmission technology to allow comfortable use. However, occasionally outside sources may cause interference. Test method: All measurements contained in this report were performed according to the techniques described in Measurement procedure ANSI C63.4 – 1992. Pretest was found that the emission of operating mode is worse than standby mode. So, The final test is made at the operating mode. While testing, the EUT was made to transmit continuously and adjusted at a position, which transmitted the maximum emission. The test placement as the photographs showed is the worst case emission placed. (If the emission is close to the ambient, the resolution BW and view resolution will be reduced and the data will be recorded by detection of maximum hold peak mode.) The testing configuration of test setup is showing in the next page. Test Report -------------------------------------------------------------------------------- 4/15 Report No.: G2815147T Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Configuration of Test Setup Connections: EUT: Put two UM-3 AA size, 1.5V battery into the battery cell of EUT, powers the subject device. The EUT does not be connected with any product. EUT (Tx) Support Equipment Located Remotely EUT (Rx) USB Mouse Mouse Monitor Modem PrinterPC Power USB Joystick Test Report -------------------------------------------------------------------------------- 5/15 Report No.: G2815147T Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 List of Support Equipment: Conducted (Radiated) test: PC:HP Brio 85xx 6/350 Model No.:D6928A Serial No. :SG91801552 FCC ID:N/A, Doc Approved :3872H013 Power type:100 ~ 230VAC / 50 ~ 60Hz, 5A, Switching Power cord :Non-shielded, 2.33m long, Plastic, No ferrite core Monitor :HP 15’ Color Monitor Model No.:D2827A Serial No.:KR91379759 FCC ID:C5F7NFCMC1518X :3872B039 Power type:100 ~ 240 VAC / 50 ~ 60 Hz, Switching Power cord:Shielded, 1.80m long, No ferrite core Data cable :Shielded, 1.50m long, with two ferrite cores Rx:GLOBLINK TECHNOLOGY INC. Model No.:GL2000 FCC ID:N/A, Doc Approved Power type:Powered by PC Data cable :Non-shielded, 1.40m long, no ferrite core Printer:HP Model No.:C2184A Serial No.:SG55T1P1KY FCC ID:N/A, Doc Approved Power type:Linear Power cord:Non-shielded, 1.90m long, No ferrite core Data cable :Shielded, 1.8m long, No ferrite core Test Report -------------------------------------------------------------------------------- 6/15 Report No.: G2815147T Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Modem:ACEEX Model No.:XDM41414 Serial No.:964111217 FCC ID:IFAXDM1414 Power type:Linear Power cord:Non-shielded, 1.9m long, No ferrite cord Data cable :RS232, Shielded, 1.2m long, No ferrite core RJ11C x 2, 7’ long non-shielded, No ferrite core USB Mouse:Logitech Model No.:M-BA47 Serial No.:LZE92250027 FCC ID:N/A, Doc Approved :4872A220 Power type:Powered by PC Power Cable:Shielded, 1.5m long, Plastic hoods, No ferrite bead USB Joystick:Padix Model No.:QF-305U Serial No.:8100848 FCC ID: N/A, Doc Approval Power type:Powered by PC Power Cable:Shielded, 1.5m long, No ferrite bead data cable Mouse:HP Model No.:M-S34 Serial No.:LZB90910464 FCC ID:DZL211029 :4862A011 Power type:By PC Power cord:Non-shielded, 1.88m long, No ferrite core Test Report -------------------------------------------------------------------------------- 7/15 Report No.: G2815147T Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Chapter 2Conducted Emission Test Test Condition and Setup: All the equipment is placed and setup according to the ANSI C63.4 – 1992. The EUT is assembled on a wooden table, which is 80 cm high, is placed 40 cm from the back-wall, which is a vertical conducting plane. One LISN is for EUT, the other LISN is for support equipment. They are all placed on the conductive ground. The EUT’s LISN connect a line switch box for selecting L1 or L2, then connect to a preamplifier and spectrum. The spectrum scans from 150KHz to 30MHz. Conducted emission levels are detected at max. peak mode . But if the max. peak mode failed or over average limit, it will be measured by average detection mode. While testing, there is the worst-emissio…

Text truncated - open the document above for the full version.

Test Report --------------------------------------------------------------------------------- 1/3 Report No.: G2815147T Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 FCC ID: OR7GL2000 Peak Power Measurement of Fundamental Frequency Test Setup 3M EUT 1M Ground Plane HP 8546A Spectrum Analyzer Figure 1 Test Procedure a. The EUT was setup in the anechoic chamber as shown above. b. The loop antenna was located upon its plane vertical, 3-meter distance from the EUT. The center of the loop is 1-meter above the ground plane. c. In order to find the maximum radiation, the EUT was rotated 360. The measuring antenna was rotated about its axis at each azimuth about the EUT. List of Test Instruments Instrument NameModel No.BrandSerial No.Last timeNext time EMI Receiver8546AH P3520A0024206/29/0106/29/02 RF Filter Section85460AH P3448A0021706/29/0106/29/02 Active Loop Antenna6502EMCO277707/20/0107/20/02 Test Result : Pass (Appendix A) Test Report --------------------------------------------------------------------------------- 2/3 Report No.: G2815147T Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Radiated Emission Test Result: Frequency: 27.000 MHz (CH 1) Antenna Polarity Reading Amplitude Correction Factors Corrected Amplitude Limit Margin H / V dBμVdB/mdBμV/mdBμV/mdB Horizontal -13.0059.8380 Horizontal > Vertical Radiated Emission Test Result: Frequency: 27.259 MHz (CH 6) Antenna Polarity Reading Amplitude Correction Factors Corrected Amplitude Limit Margin H / V dBμVdB/mdBμV/mdBμV/mdB Horizontal -13.0059.6280 Horizontal > Vertical Test Report --------------------------------------------------------------------------------- 3/3 Report No.: G2815147T Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Band Edge of Measurement: (Frequency Band: 26.96 ~ 27.28) Harmonic and Spurious Emission Test Result: (Horizontal) Horizontal > Vertical Test Conditions: Testing room : Temperature : 24 ° C Humidity : 63 % RH Testing site : Temperature : 24 ° C Humidity : 65 % RH FrequencyReading Amplitude Ant. Height TableCorrection Factors Corrected Amplitude Class B Limit Margin MHzdBμVmdegreedB/mdBμV/mdBμV/mdB 26.9609.481.00254-13.0022.4849.54-27.06 27.28012.331.00143-13.0025.3349.54-24.21 --- Note: 1. Margin = Amplitude – limit, if margin is minus means under limit. 2. Corrected Amplitude = Reading Amplitude – Correction Factors 3. Correction factor = Antenna factor + ( Cable Loss – Amplitude gain) (For example : 30MHz correction factor = 15.5 + (–15.26) = 0.24 dB/m)

Test Report -------------------------------------------------------------------------------- 10/15 Report No.: G2815147T Training Research Co., Ltd., TEL: 886-2-26935155, Fax: 886-2-26934440 Radiated Test Placement: (Photographs)
