Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
EXHIBIT C User Manual Copyright & Regulatory Information This manual and software described in it are copyrighted with all rights reserved. This manual may not be copied, in whole or in part, without written consent. All product names are trademarks and or registered trademarks of their respective companies. FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measure: - Reorient or relocated the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into a different outlet circuit from than the receiver. - Consult an experienced radio/TV technician for help. CAUTION: Any changes of modifications not expressly approved by the grantee of this device could void the users authority to operate the equipment.
EXHIBIT E Block Diagram
From: trc168 [[email protected]] Sent: Monday, November 12, 2001 6:24 PM To: Mike Kuo Subject: Re: Globlink Technology Inc. FCC ID:OR7GL2001, AN01T1555 Dear Mike : Sorry for my misunderstanding. Attached file illustrated the function of the device. Hope can be accepted. If no further problem, please speed up this case , Because my client is quite upset. Thank you ! TRC Jacob Lin ----- Original Message ----- From: Mike Kuo <[email protected]> To: 'trc168' <[email protected]> Sent: Tuesday, November 13, 2001 10:03 AM Subject: RE: Globlink Technology Inc. FCC ID:OR7GL2001, AN01T1555 > Dear Jacob: > > Your answer to question #2 is not acceptable. Requested information is > operational description as required under section 2.1033(b)(4) of FCC Rules > not the measurement procedure as you indicated in your e-mail. > > Best Regards > > Mike Kuo > > -----Original Message----- > From: trc168 [mailto:[email protected]] > Sent: Monday, November 12, 2001 12:23 AM > To: Mike Kuo > Subject: Re: Globlink Technology Inc. FCC ID:OR7GL2001, AN01T1555 > > > Mike : > > Here are the required information : > > #1. Below 30MHz > RBW=10KHz & VBW=10KHz > Detector : AV > 30MHz ~1GHz > RBW=100KHz & VBW=100KHz > Detector : QP > > #2 Below 30MHz > <1> Set the Loop ANT. height 1m. ,Vertical ,and rotate the ANT > to find the azimuth of the highest emission and record the > reading. > <2>Keep the ANT. azimuth and turn the EUT 360 degree and record > the highest emission. > <3>Raise the ANT to 2 meters and repeat set <1> <2>. > <4>Change the ANT Horizontal and repeat <1> ~<3> > <5>Record the most highest reading in test report. > > 30MHz~1GHz > Please refer to page 6 of test report. > > Thank you for your attention ! > Best Regards > > TRC > Jacob Lin > > > > ----- Original Message ----- > From: Mike Kuo <[email protected]> > To: <[email protected]> > Sent: Thursday, November 08, 2001 11:54 AM > Subject: FW: Globlink Technology Inc. FCC ID:OR7GL2001, AN01T1555 > > > > > > > > -----Original Message----- > > From: CERTADM > > Sent: Wednesday, November 07, 2001 7:53 PM > > To: '[email protected]' > > Subject: Globlink Technology Inc. FCC ID:OR7GL2001, AN01T1555 > > > > > > Notice_content > > ------------- > > Question #1: Please provide instrument settings used during Radiated > > emission tests ( page 8 and 9 of test report). > > > > Question #2: Please provide Operational Description. > > > > Best Regards > > > > Mike Kuo / TCB Certifier > > The items indicated above must be submitted before processing can continue > > on the above referenced application. Failure to provide the requested > > information within 60 days of the original e-mail date may result in > > application dismissal and forfeiture of the filing fee. Also, please note > > that partial responses increase processing time and should not be > submitted. > > Any questions about the content of this correspondence should be directed > to > > the e-mail address listed below the name of the sender. > > >
List of Exhibit EXHIBIT A Sample Label EXHIBIT B Test Report EXHIBIT C User Manual EXHIBIT D Circuit Diagram EXHIBIT E Block Diagram EXHIBIT F Photographs of EUT EXHIBIT A Sample Label LABEL Format: This device complies with Part 15 of the FCC Rules Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC ID : OR7GL2001 Model No.: GL2001 LABEL Size: 35 X18 mm LABEL Position: LABEL

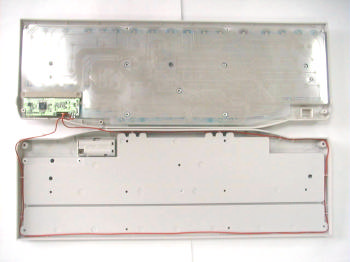

EXHIBIT F Photographs of EUT
Equipment Identification Trade Name GLOBLINK Model Number GL2001 System Configuration ( ) Narrow Band System ( X ) Wide Band System Temperature range Category III (indoor use), 0Β°C to +55Β°C Function Wireless Keyboard Designed to Convey Data Power Supply ( X ) Battery ( ) Adaptor Antenna Type ( X ) Internal ( ) Antenna Connector ( ) Integral Antenna Frequency Band Lower Limit: 26.96 MHz, Upper Limit: 27.28 MHz Channel Number 6 * Channel Spacing 25KHz(1-2-3, 4-5-6) Product Standard RF: ETSI 300-220-3 EMC: ETSI 300-489-3 Transmitter Specification Type of Modulation FSK Designation of Emission mW Transmit Power Class ( X ) 5a ( ) 7a ( ) 8 ( ) 9 ( )11 ( ) 12 Duty Cycle Class ( ) 1.<0.1% ( ) 2.<1% ( ) 3.<10% ( X ) Up to 100% Mode of Operation ( ) Duplex ( ) Simplex ( ) Periodic ( X ) Continuous Receiver Specification Receiver Class ( ) Class 1 ( ) Class 2 ( X ) Class 3 *This EUT has six channels (each with 16 ID): 1. 26.985 MHz 2. 27.010 MHz 3. 27.035 MHz 4. 27.210 MHz 5. 27.235 MHz 6. 27.260 MHz
EXHIBIT D Circuit Diagram
EXHIBIT B Test Report Test Report ---------------------------------------------------------------------------- 1/11 Report No.: G2815481 Training Research Co., Ltd., TEL: 886-2-26461146, Fax: 886-2-26461778 Report No. G2815481 FCC ID OR7GL2001 Specifications FCC Part 15, Class B Test Method ANSI C63.4 1992 Applicant 2Fl., No. 101, Feenlian Street, Nei-Hu 114, address Taipei, Taiwan Applicant GLOBLINK TECHNOLOGY INC. Items tested Wireless Keyboard Product name Free Board 3FX Model No. GL2001 (Sample # G28480) Frequency Range 26.96 β 27.28 MHz Results Compliance (As detailed within this report) Date 08/03/2001 (month / day / year)(Sample received) 08/27/2001 (month / day / year)(Tested) Prepared by Project Engineer Authorized by V.General Manager (Jacob Lin) Issue date (month / day / year) Modifications None Tested by Training Research Co., Ltd. Office at 2, Lane 194, Huan-Ho Street, Hsichih, Taipei Hsien 221, Taiwan Open site at No. 15, Lane 530, Pa-Lian RD., Sec. 1, Hsichih City, Taipei Hsien, Taiwan, R.O.C. Conditions of issue : (1) This test report shall not be reproduced except in full, without written approval of TRC. And the test result contained within this report only relate to the sample submitted for testing. (2) This report must not be used by the client to claim product endorsement by NVLAP or any agency of U.S. Government. NVLAP LAB CODE: 200174-0 Test Report ---------------------------------------------------------------------------- 2/11 Report No.: G2815481 Training Research Co., Ltd., TEL: 886-2-26461146, Fax: 886-2-26461778 Contents Chapter 1 Introduction Description of EUT...................................................................................................................3 Configuration of Test Setup......................................................................................................4 Chapter 2 Peak Power Measurement (Frequency Band: 26.96 ~ 27.28) Test Setup..................................................................................................................................5 Test Procedure...........................................................................................................................5 Chapter 3 Radiated Emission Test Test Condition and Setup..........................................................................................................6 Radiated Test Placement...........................................................................................................7 Appendix A : Peak Power and Radiated test result.........................................................................................8 Appendix B : Band Edge of Measurement.....................................................................................................10 Test Report ---------------------------------------------------------------------------- 3/11 Report No.: G2815481 Training Research Co., Ltd., TEL: 886-2-26461146, Fax: 886-2-26461778 Chapter 1 Introduction Description of EUT: This wireless keyboard with track ball use advanced transmission technology to allow comfortable use. However, occasionally outside sources may cause interference. The EUT power by two 1.5VDC batteries *This EUT has six channels (each with 16 ID): 1. 26.985 MHz 2. 27.010 MHz 3. 27.035 MHz 4. 27.210 MHz 5. 27.235 MHz 6. 27.260 MHz Test method: All measurements contained in this report were performed according to the techniques described in Measurement procedure ANSI C63.4 β 1992. Pretest was found that the emission of operating mode is worse than standby mode. So, The final test is made at the operating mode. While testing, the EUT was made to transmit continuously and adjusted at a position, which transmitted the maximum emission. The test placement as the photographs showed is the worst case emission placed. (If the emission is close to the ambient, the resolution BW and view resolution will be reduced and the data will be recorded by detection of maximum hold peak mode.) The testing configuration of test setup is showing in the next page. Test Report ---------------------------------------------------------------------------- 4/11 Report No.: G2815481 Training Research Co., Ltd., TEL: 886-2-26461146, Fax: 886-2-26461778 Configuration of Test Setup Connections: EUT: Put two AAA size, 1.5V battery into the battery cell of EUT, powers the subject device. The EUT does not be connected with any product. EUT (Tx) Test Report ---------------------------------------------------------------------------- 5/11 Report No.: G2815481 Training Research Co., Ltd., TEL: 886-2-26461146, Fax: 886-2-26461778 Chapter 2 Peak Power Measurement (Frequency Band: 26.96 ~ 27.28) Test Setup: 1. Test Setup: 2. Test Procedure: a. The EUT was setup in the anechoic chamber as shown above. b. The loop antenna was located upon its plane vertical, 3-meter distance from the EUT. The center of the loop is 1-meter above the ground plane. c. In order to find the maximum radiation, the EUT was rotated 360Β°. The measuring antenna was rotated about its axis at each azimuth about the EUT. List of test Instrument : Calibration Date Instrument Name Model No. Brand Serial No. Last time Next time RECEIVER SCR3502 SCHAFFNER 210 12/01/00 12/01/01 Control Box TWR95-4 TRC C9001-2 12/01/00 12/01/01 Active Loop Antenna 6502 EMCO 2777 07/20/01 07/20/02 Open test side (Antenna, Amplify, cable calibrated together) 05/15/01 05/15/02 The level of confidence of 95% , the uncertainty of measurement of radiated emission is Β± 4.96 dB . Test Result : Appendix A EUT 1M 3M Spectrum Test Report ---------------------------------------------------------------------------- 6/11 Report No.: G2815481 Training Research Co., Ltd., TEL: 886-2-26461146, Fax: 886-2-26461778 Chapter 3 Radiated Emission Test Test Condition and Setup: Pretest : Prior to the final test ,the EUT is placed in an anechoic chamber, and scan from 30MHz to 1GHz. The devices rotated through three orthogonal axes to determine whichβ¦
Text truncated - open the document above for the full version.
Test Report ---------------------------------------------------------------------------- 7/11 Report No.: G2815481 Training Research Co., Ltd., TEL: 886-2-26461146, Fax: 886-2-26461778 Radiated Test Placement: (Photographs)
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 26.985 MHz - 27.26 MHz | - |
