OR7GP201Wireless Mouse

AirMouse GP-201 Specifications: z 2.4GHz RF wireless transmission technology z 8 channels with 1024 IDs per channel z Patented optical trackball design z Built–in laser pointer z Mouse left and right function keys z Page-up and page-down keys z Error detection ability z Auto power saving mode design z Windows 98SE/Me/2000/XP compatible z FCC & CE approvals Installation method 1. Battery Installation: As in Fig. 1, push and slide open the cover of battery compartment. Please assure to install the batteries correctly in place. Replace the cover. Fig. 1 2. Plug the receiver to the USB port of the computer. The LED light turns on showing that the computer has detected the new device. 3. Press and release the Setup button on receiver to turn off the LED light. (Fig.2) Battery cover Setup button Battery compartment 4. Press the setup button located at the bottom of the device. The receiver’s LED resumes glowing indicating that the setup has been completed. Fig. 2 Functions This device can be used as both handheld presenter and desktop trackball mouse. It has three function modes: Presentation, Mouse and Off modes. LED Setup Button Presentation mode Off mode Mouse mode Fig. 3 Handheld Presentation Mode: Fig. 4 Desktop Trackball Mouse Mode: Fig. 5 Off Mode Switch to Off mode position and the power will be off. Entering off mode will save power consumption. Mouse Left Key Mouse Right Key Page-up Key Page-down Key Laser button Mouse Left Key Mouse Right Key Page-up Key Page-down Key Laser Button Laser pointer Laser Pointer FEDERAL COMMUNICATIONS COMMISSION This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user‘s authority to operate the equipment. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter

REPORT NO. : FR4O2010 SPORTON International Inc. PAGE NUMBER : A1 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 30, 2004 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT REPORT NO. : FR4O2010 SPORTON International Inc. PAGE NUMBER : A2 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 30, 2004 FAX : 886-2-2696-2255

Label Location

REPORT NO. : FR4O2010 SPORTON International Inc. PAGE NUMBER : A3 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 30, 2004 FAX : 886-2-2696-2255 REPORT NO. : FR4O2010 SPORTON International Inc. PAGE NUMBER : A4 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 30, 2004 FAX : 886-2-2696-2255 REPORT NO. : FR4O2010 SPORTON International Inc. PAGE NUMBER : A5 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 30, 2004 FAX : 886-2-2696-2255 REPORT NO. : FR4O2010 SPORTON International Inc. PAGE NUMBER : A6 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 30, 2004 FAX : 886-2-2696-2255 REPORT NO. : FR4O2010 SPORTON International Inc. PAGE NUMBER : A7 OF A7 TEL : 886-2-2696-2468 ISSUED DATE : Nov. 30, 2004 FAX : 886-2-2696-2255

FCC ID: OR7GP201 Issued on Nov. 30, 2004 Report No.: FR4O2010 SPORTON International Inc. TEL : 886-2-2696-2468 FAX : 886-2-2696-2255 FCC TEST REPORT CATEGORY : Portable PRODUCT NAME : Air Mouse FCC ID. : OR7GP201 FILING TYPE : Certification BRAND NAME : GLOBLINK, TARGUS, HAMA, TRUST, SKYWAY, VIVANCO, MASTER CHOICE, CENTRIOS, MOTOROLA, LEADERSHIP, OFFICE DEPOT, CENTRIOS, PLANT21 MODEL NAME : GP-201 APPLICANT : Globlink Technology Inc. 2Fl., 101 Rui-hu Street Nei-hu Taipei Taiwan MANUFACTURER : The same as applicant ISSUED BY : SPORTON INTERNATIONAL INC. 6F, No. 106, Sec. 1, Hsin Tai Wu Rd., His Chih, Taipei Hsien, Taiwan, R.O.C. Statements: The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. Certificate or Test Report could not be used by the applicant to claim the product endorsement by CNLA, NVLAP or any agency of U.S. government. The test equipment used to perform the test are calibrated and traceable to NML/ROC or NIST/USA. Dr. Alan Lane Vice General Manager Sporton International Inc. Lab Code: 200079-0 FCC ID: OR7GP201 Issued on Nov. 30, 2004 Report No.: FR4O2010 SPORTON International Inc. Page No. : i TEL : 886-2-2696-2468 Issued Date : Nov. 30, 2004 FAX : 886-2-2696-2255: Table of Contents History of this test report....................................................................................................................................ii CERTIFICATE OF COMPLIANCE.......................................................................................................................iii 1. General Description of Equipment under Test.............................................................................................1 1.1. Applicant ......................................................................................................................................................................................... 1 1.2. Manufacturer ................................................................................................................................................................................... 1 1.3. Basic Description of Equipment under Test.................................................................................................................................... 1 1.4. Features of Equipment under Test ................................................................................................................................................. 1 1.5. Table for Carrier Frequencies ......................................................................................................................................................... 1 2. Test Configuration of the Equipment under Test.........................................................................................2 2.1. Connection Diagram of Test System .............................................................................................................................................. 2 2.2. The Test Mode Description............................................................................................................................................................. 2 2.3. Description of Test Supporting Units .............................................................................................................................................. 2 3. General Information of Test............................................................................................................................3 3.1. Test Facility ..................................................................................................................................................................................... 3 3.2. Test Conditions ............................................................................................................................................................................... 3 3.3. Standards for Methods of Measurement......................................................................................................................................... 3 3.4. DoC Statement ............................................................................................................................................................................... 3 3.5. Frequency Range Investigated ....................................................................................................................................................... 3 3.6. Test Distance .................................................................................................................................................................................. 3 3.7. Test Software .................................................................................................................................................................................. 3 4. List of Measurements......................................................................................................................................4 4.1. Summary of the Test Results.......................................................................................................................................................... 4 5. Test Result .......................................................................................................................................................5 5.1. Test of Maximum Carrier Field Strength ......................................................................................................................................... 5 5.2. Test of Band Edges Emission......................................................................................................................................................... 7 5.3. Test of AC Power Line Conducted Emission ..................................................................…

Text truncated - open the document above for the full version.

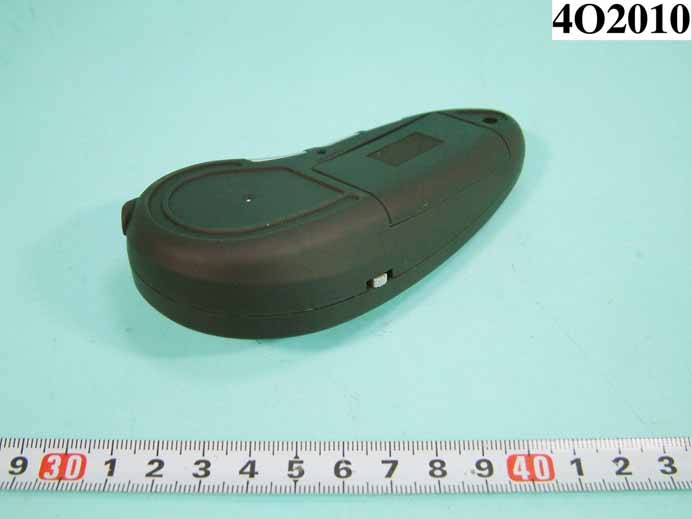

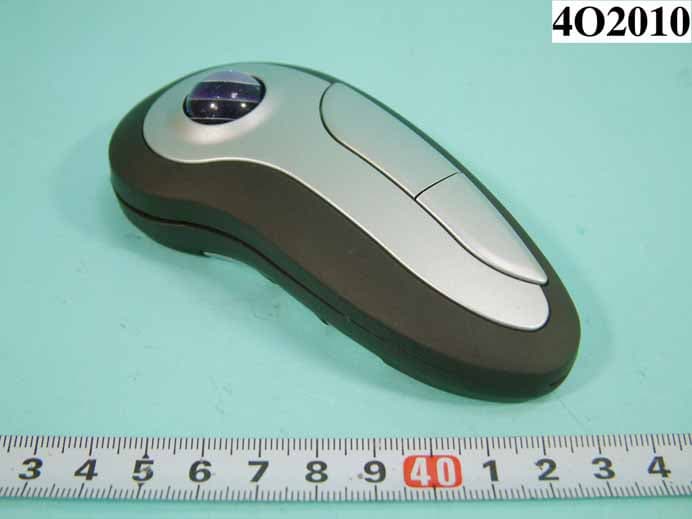

FRONT VIEW REAR VIEW
