ORF-OVATIONRF ID Tag Reader

06255-10 Ovation Information to User per FCC 15.21 (To be added under the existing FCC information.) Warning! Any change or modification to the electronics of this product not expressly approved by Dresser Wayne could void the user's authority to operate the device. ***

̧ INSTALLATION Ovation Dispensers OPERATION February 2006Part No. 920559 Rev D READ THIS MANUAL BEFORE YOU BEGIN Dispensers have both electricity and a hazardous, flammable and potentially explosive liquid. Failure to follow the below precautions and the Warning and Caution instructions in this manual may result in serious injury. Follow all rules, codes and laws that apply to your area and installa- tion. SAFETY PRECAUTIONS - INSTALLATION AND MAINTENANCE Always make sure ALL power to the dispenser is turned OFF before you open the dispenser cab- inet for maintenance. Physically lock, restrict access to, or tag the circuit breakers you turn off when servicing the dispenser. Be sure to trip (close) the emergency valve(s) under the dispenser BEFORE beginning maintenance. Make sure that you know how to turn OFF power to the dispenser and submersible pumps in an emergency. Have all leaks or defects repaired immediately. EQUIPMENT PRECAUTIONS Be sure to bleed all air from product lines of remote dispensers and prime suction pumps before dispensing product, otherwise, damage to the equipment may occur. Always use the approved method for lifting the dispenser. Never lift by the nozzle boot, sheet metal, valance, etc., other- wise equipment damage or personal injury may occur. HOW TO CONTACT WAYNE Trouble with the installation and operation of the dispenser should be referred to your authorized Wayne service personnel or Wayne Technical Support (1-800-926-3737). INDICATORS AND NOTATIONS Danger indicates a hazard or unsafe practice which, if not avoided, will result in severe injury or possibly death. Warning indicates a hazard or unsafe practice which, if not avoided, may result in severe injury or possibly death. Caution indicates a hazard or unsafe practice which, if not avoided, may result in minor injury. NOTE: Important information to consider, otherwise, improper installation and/or damage to compo- nents may occur. DANGER DANGER WARNING CAUTION February 2006Part No. 920559 Rev D Ovation Series Dispensers Installation & Operation February 2006Part No. 920559 Rev D Table of Contents TitlePage iii February 2006Part No. 920559 Rev D 1INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 1.1Dispensers Covered . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 1.2Local, State, and Federal Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 1.3Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 2INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 2.1Inspect the Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 2.2Island Construction, Dispenser Anchoring, and Piping . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 2.3Emergency Shut-off Valves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 2.4Vapor Return Piping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 2.5Lifting and Installing the Dispenser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 2.6Electrical Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 2.6.1 General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 2.6.2 Dispenser to Control System Wiring Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 2.6.3 Field Wiring for Dispensers Without a Junction Box. . . . . . . . . . . . . . . . . . . . . . . . 9 2.6.4 Full Service (Stand-Alone) Dispenser Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 2.6.5 Multiple Dispenser Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 2.6.6 Optional Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 2.6.7 Non-Dispenser Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 2.7Hose Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 2.8Bleeding Product Lines (Remote Dispensers). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 2.9iMeter Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 2.10Balance Vapor Recovery System Installation Requirements . . . . . . . . . . . . . . . . . . . . . 16 2.10.1 Dynamic Back Pressure Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 2.10.2 Back Pressure System Check List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 2.10.3 Nozzles Approved for Balance System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17 2.11Wayne Vac Vapor Recovery System Installation Requirements . . . . . . . . . . . . . . . . . . 18 2.11.1 Dispenser Vacuum Decay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 2.11.2 Wayne Pressure/Vacuum Tester . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 3START-UP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 3.1Initial Checkout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 3.2Logical Nozzle/Hose Position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 3.3IR Remote Control . …

Text truncated - open the document above for the full version.

IC: 6363A-OVATION Based on a measured maximum emission from the device referenced above, the calculated power using the FRIIS formula yields a power of -37 dBm. According to RSS-102e section 2.5.1 this emission level is exempt from SAR evaluation. ***

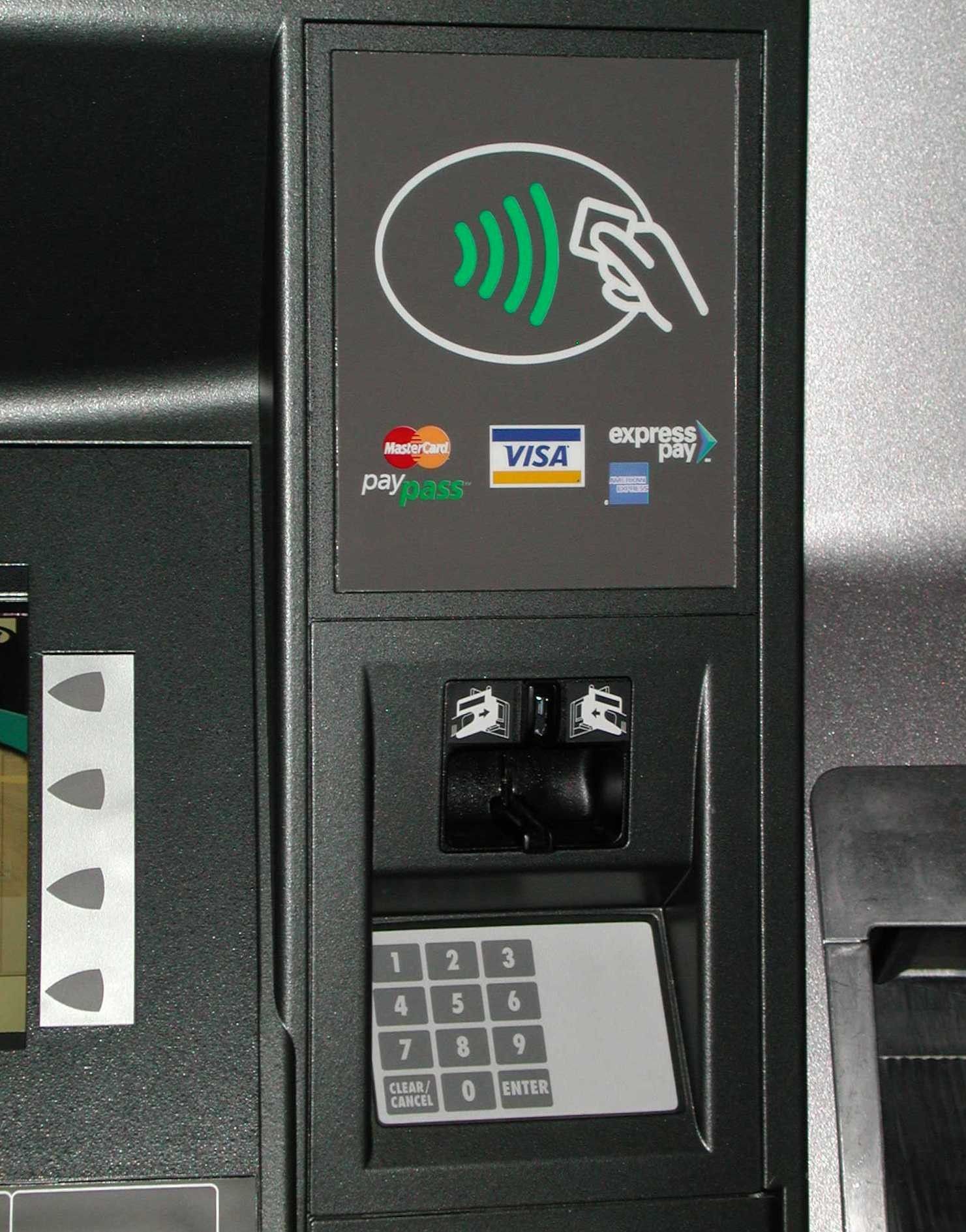

06255-10 Ovation External Photograph (EUT is highlighted by white ellipse drawn in photograph.)

Label Location Photograph (FCC/IC label is located at bottom of the cabinetry, the third label from the left.)

06255-10 Label Art, Ovation, Revised 2006-05-25

1601 FM 1460, Suite B Round Rock, TX 78664 e-mail: [email protected] (512)244-3371 Fax: (512)244-1846 May 17, 2006 Phil Katselnik Dresser Wayne 3814 Jarrett Way Austin, TX 78728 Dear Mr. Katselnik: Enclosed is the Electromagnetic Compatibility Test Report for Dresser Wayne, Ovation. This report covers two variants of the bill acceptor subassembly. This report can be utilized to demonstrate compliance with FCC Part 15, Class B on the part of the RFID transmitter. The entire host fuel delivery system meets FCC Class A. If you have any questions, please contact me. Sincerely, Michael A. Royer EMC Department Manager Enclosure Projects: 06255-10, 06207-10 Dresser Wayne Ovation Electromagnetic Compatibility Test Report Prepared for: Dresser Wayne 3814 Jarrett Way Austin, TX 78728 By Professional Testing (EMI), Inc. 1601 FM 1460, Suite B Round Rock, Texas 78664 MAY 17, 2006 Reviewed by Written by Michael Royer EMC Department Manager Eric Lifsey EMC Engineer 06255-10 06207-10 May 17, 2006 Page 2 of 30 TABLE OF CONTENTS Title Page ...................................................................................................................................................... 1 Table of Contents.......................................................................................................................................... 2 Certificate of Compliance............................................................................................................................. 5 1.0 EUT Description ..................................................................................................................5 1.1 Applicable Rule Parts ......................................................................................................5 1.2 EUT Operation.................................................................................................................5 1.3 Test Facility......................................................................................................................5 2.0 Powerline Conducted Emissions..........................................................................................6 2.1 Test Procedure .................................................................................................................6 2.2 Test Criteria .....................................................................................................................6 2.3 Test Results ......................................................................................................................6 2.4 Test Equipment ................................................................................................................7 3.0 Carrier Field Strength...........................................................................................................7 3.1 Test Procedure .................................................................................................................7 3.2 Test Criteria .....................................................................................................................7 3.3 Test Results ......................................................................................................................7 3.4 Test Equipment ................................................................................................................8 4.0 Spurious and Harmonic Radiated Emissions .......................................................................8 4.1 Test Procedure .................................................................................................................8 4.2 Test Criteria .....................................................................................................................8 4.3 Test Results ......................................................................................................................8 4.4 Test Equipment ................................................................................................................9 5.0 Frequency Tolerance ............................................................................................................9 5.1 Test Procedure .................................................................................................................9 5.2 Test Criteria .....................................................................................................................9 5.3 Test Results ......................................................................................................................9 5.4 Test Equipment ................................................................................................................9 6.0 Emissions Mask ...................................................................................................................9 6.1 Test Procedure .................................................................................................................9 6.2 Test Criteria ...................................................................................................................10 6.3 Test Results ....................................................................................................................10 7.0 Occupied Bandwidth..........................................................................................................10 7.1 Test Procedure ...............................................................................................................10 7.2 Test Criteria ...................................................................................................................10 7.3 Test Results ....................................................................................................................10 7.4 Test Equipment ..............................................................................................................10 8.0 Modifications ............................................................…

Text truncated - open the document above for the full version.

06255-10 Ovation Setup Photographs Spurious Fundamental Conducted Frequency Stability
