ORV-FCHRCFLEXCAT Handheld Remote Control

User Manual Flexible Audio for Group Learning TABLE OF CONTENTS SECTION 1: 4Important Safety Instructions Overview5System Components and Unpacking 6Optional Components 7Charge Base Indicators 8Charge Base Connections 9Student Group Speaker Controls and Connections 12 Teacher Belt-pack Controls and Functions 13Remote Control Functions and Indicators 14Headset Functions SECTION 2:161. Determine Set-up Location Initial Set-up172. Connect the Base Station 183. Charge the FLEXCAT Components 194. Power On All Components 195. Ensure All Components Are Ready 206. Wearing the Headset 217. Determine Placement Location of Desktop Speakers SECTION 3:221. Operating the FLEXCAT Daily Operation23Using the Remote SECTION 4:241. Tips and Tricks to Successful Use Additional Information252. Multimedia Audio Integration 273. Connection to Assistive Listening Devices 284. Using Optional Speakers #5-6 SECTION 5:29Registration of Replacement or Additional Equipment Maintenance & Troubleshooting 30Group Speaker Registration Process 33Belt-Pack Registration 34Remote Registration 36Battery Replacement 39Troubleshooting SECTION 6:41Safety & Specifications Maintenance & Troubleshooting 42Safety Warnings and Certifications 43System Specifications 4 IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use the apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding- type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments/ accessories specified by the manufacturer. 12. Use only with a cart, stand, tripod, bracket or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over. 13. Unplug this apparatus during lightning storms or when unused for long periods of time. 14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 15. When the mains plug or appliance coupler used as the disconnect device, it shall remain readily operable. 16. Please keep the unit in a good ventilation environment. 5 1. Overview 2. Initial Set-up 3. DaiIy Operation 4. Additional Information 5. Maintenance & Troubleshooting 6. Safety & Specifications SECTION 1: OVERVIEW SYSTEM COMPONENTS AND UNPACKING The standard configuration of the FLEXCAT will contain: Teacher belt-pack (1) Teacher headset (1) Teacher remote control (1) Charging base station with power supply Student group speakers (x4) POWER REGISTER SPEAKERS LINK REMOTES REGISTER MULTIPACKS REGISTERLINK Vol Vol Mute 6 5 1 All 3 2 4 6 1. Overview 2. Initial Set-up 3. DaiIy Operation 4. Additional Information 5. Maintenance & Troubleshooting 6. Safety & Specifications OPTIONAL COMPONENTS Equipment which may be part of your FLEXCAT: Additional student group speakers Standard Components FCCBFLEXCAT charging base station with power supply FCGSFLEXCAT student group speaker with rechargeable battery pack FCTTFLEXCAT team-teacher kit (belt-pack, headset & remote control) FCBPFLEXCAT teacher belt-pack with rechargeable battery pack FCHRCFLEXCAT handheld remote control with rechargeable battery pack HS-FCOEFLEXCAT over-ear headset NH12V12V NiMH rechargeable battery pack for group speakers NH2.5V2.5V NiMH rechargeable battery pack for belt-pack and remote Optional Accessories CA-16VCCDC charging cable for optional group speakers #5-6 HS-MX500CFLEXCAT under-ear headset CA-MMC35353.5mm-3.5mm stereo audio cable Team teaching kit: 2nd belt-pack, headset and remote control Vol Vol Mute 6 5 1 All 3 2 4 7 1. Overview 2. Initial Set-up 3. DaiIy Operation 4. Additional Information 5. Maintenance & Troubleshooting 6. Safety & Specifications CHARGING BASE INDICATORS 1. Power Switch and LED: turns the FLEXCAT system power on or off. The LED will glow blue when the system is on. 2. Student Group Speaker Register and Link a. Register: press this button if there is a new speaker to be registered. b. Registration in progress: this LED will turn yellow to indicate the base station is searching for a speaker. c. Link established (1-6): these LEDs light up in green to indicate there is an audio link established with the corresponding group speaker. 3. Teacher belt-pack Register and Link a. Register: press this button if there is a new teacher belt-pack to be registered. b. Registration in progress: this LED will turn yellow to indicate the base station is searching for a teacher belt-pack. c. Link established (1-2): these LEDs light up in green to indicate there is an audio link established with the corresponding teacher belt- pack. 4. Teacher Remote Link Button and Indicator a. Register: press this button to search for a new teacher remote. b. Registration in progress: this LED will turn yellow to indicate the base station is searching for a teacher remote. 5. Student group speaker charging slots (1-4): insert each of the group speakers into these slots for daily recharging. 6. Belt-pack/Remote charging s…

Text truncated - open the document above for the full version.

G Liql:tsp**# The trusted provider in classroom audio so/utions- September 1, 2011 To whom it may concern, Letter of Agency l, an officer of Liqhtspeed Technoloqies lnc. do hereby authorize lnteftek Testing Services (Mr. Ken Sit/Mr. Melvin Nip) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to cer.tification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in S1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U S.C ., 862. Compliance Engineer Regards, John Chabot LIGHTSPEEDTECHNOLOGIESi ll5O9SWHERfulANROAD/TUALATIN,OR97062 /1WJ32.8999/\ffNA#.LIGHTSPEED-TEK.CCM

1) FCC ID: ORV-FCCB 2) FCC ID: ORV-FCGS 3) FCC ID: ORV-FCBP 4) FCC ID: ORV-FCHRC

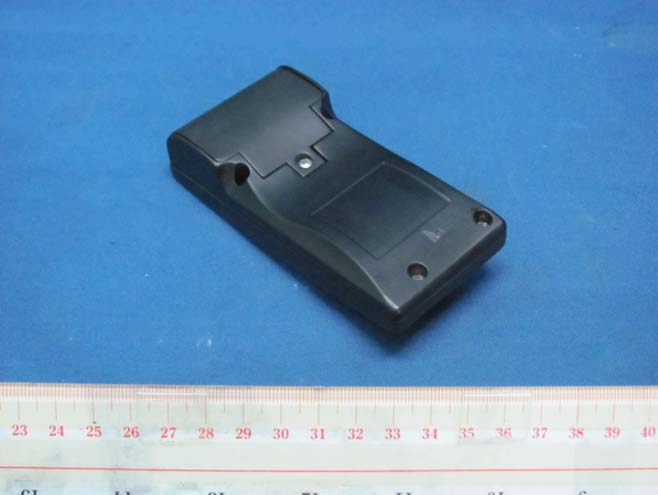

INTERTEK TESTING SERVICE Report No.: HK11100126-1 FCC ID: ORV-FCHRC IC: 1732B-FCHRC Equipment Photographs Model : FCHRC (External)

DO NOT SCALE DRAWING PTC NOTES: UNLESS OTHERWISE SPECIFIED. +DFT 4.240 .738 REVREFDESCRIPTION OF CHANGE CHK BY DATE LightSPEED Technologies, INC. 11509 SW HERMAN ROAD TUALATIN, OR 97062 USA SIGNATUREDATE RELEASED FOR PRODUCTION TOOLING DWN TN DIMENSIONS ARE IN INCHES TOLERANCES: UNLESS OTHERWISE SPECIFIED - ENGR TN DECANLR CHKR .005 SCALEFIRST USED ON PROD NONE DAS MATERIAL PC/ABS - LIGHTSPEED BLACK FINISH SEE NOTES TITLE COVER, BOTTOM, DAS REMOTE CODE IDENT NOSIZEPART NUMBERREV C 395-0041-00 SH1 OF1 01 15. ALL OUTSIDE SURFACES: TEXTURE MOLD-TECH MT 11010 14. UL REQUIRED MARKINGS & DOCUMENTATION FOR SUBPARTS WITH UL REQUIREMENTS, MUST BE INCLUDED WITH EACH SHIPMENT. 13. PARTS MUST BE FABRICATED/MOLDED BY A UL RECOGNIZED FABRICATOR/MOLDER. MATERIAL AND PROCESS MUST BE UL RECOGNIZED. 12 MOLD REVISION DATE CODE AND REVISION NUMBER TO BE ENGRAVED IN THIS AREA. 11 PLASTIC RECYCLING CODE ">PC/ABS<" THIS AREA. RAISED/RECESSED TEXT HEIGHT .094 X .003/.006 10. ALL MATERIALS AND PROCESSES SHALL BE ROHS COMPLIANT 9. MOLD DESIGN TO BE APPROVED BY LIGHTSPEED INC. 8. COSMETIC GRADE B ALL SURFACES 7. UL 94 HB FLAME RATED 6. CORNERS AND FILLETS MODELED SHARP: R .005 MAX 5. SINK: .005MAX 4. FLASH: .008 MAX 3. EJECTOR MARKS: +.xxx/-.yyy MAX 2. DEGATE: +.008/-.008 1. DIMENSIONING AND TOLERANCING PER ASME Y14.5M - 1994 11 12 +DFT2.040 1.25” 1.0913” AC-FCHRC-110601-0232 SN: 1.25” 0.5” AC-FCHRC-110601-0232 SN: AC-FCHRC-110601-0232 SN: 2:1 0.002” RECESS TO LABEL MEASUREMENT ! MODEL: FCHRC (FLEXCAT REMOTE) LABEL PLACEMENT Model: FCHRC FCC ID: ORV-FCHRC IC ID: 1732B-FCHRC LABEL P/N: 334-0041-00 Model: FCHRC FCC ID: ORV-FCHRC IC ID: 1732B-FCHRC LABEL P/N: 334-0041-00 Model: FCHRC FCC ID: ORV-FCHRC IC ID: 1732B-FCHRC LABEL P/N: 334-0041-00 Model: FCHRC FCC ID: ORV-FCHRC IC : 1732B-FCHRC LABEL P/N: 334-0041-00 210 Model: FCHRC FCC ID: ORV-FCHRC IC : 1732B-FCHRC LABEL P/N: 334-0041-00 210 Model: FCHRC FCC ID: ORV-FCHRC IC : 1732B-FCHRC LABEL P/N: 334-0041-00 210 .002 Label SpecificationLabel P/N:Units: 334-0041-00 Inches Date: 08/23/11Dederick LIGHTSPEED TECHNOLOGIES, INC.www.lightspeed-tek.com800.732.8999 LABEL SPECIFICATIONS334-0040-00_FCHRC_NAMEPLATE LABEL PART: REVISION: DATE: MATERIAL: ADHESIVE: WIDTH: HEIGHT: 334-0041-00028/23/2011POLYESTER, GLOSSUL APPROVED1.250 INCHES1.0913 INCHES THICKNESS: 2 MIL UL REQUIREMENTS: UL APPROVED PROCESS FOR MAT/ADH COLORS: PANTONE 327-2 BACKGROUND, WHITE TEXT SUBSTRATES: ENVIRONMENT: ABSINDOOR USE APPLICATION: SERIALIZED: SHEETS - APPLIED BY LIGHTSPEEDNO REGULATORY REQUIREMENTS: TOLERANCES: UL, RoHS0.002 INCH MATERIAL:OVERLAY: POLYESTERGLOSSSEMI-GLOSSMATTETEXTURED LEXAN X B ackgr o un d Co l o r t o b e: P ant o n e 327-2 PAN T ONE 327-2 SW A T CH Mode l : FCHRC FCC ID: ORV-FCHRC IC : 1 732B-FCHRC LABEL P/N: 334-004 1 -00 1. 2 5 1. 0 91 3 210

INTERTEK TESTING SERVICE Report No.: HK11100126-1 FCC ID: ORV-FCHRC IC: 1732B-FCHRC Equipment Photographs Model : FCHRC (Internal) INTERTEK TESTING SERVICE Report No.: HK11100126-1 FCC ID: ORV-FCHRC IC: 1732B-FCHRC Equipment Photographs Model : FCHRC (Internal) INTERTEK TESTING SERVICE Report No.: HK11100126-1 FCC ID: ORV-FCHRC IC: 1732B-FCHRC Equipment Photographs Model : FCHRC (Internal)

INTERTEK TESTING SERVICE RF Exposure Evaluation For Specific Absorption Rate (SAR) evaluation of the Transmitter Unit, with reference to TCB Exclusions List revised on Feb 24, 2011, portable transmitters with output power less than low threshold and operating within 2.5cm from person’s body can be certified by TCB without the SAR evaluation. The output power for portable transmitters is defined as the higher of the conducted or radiated (EIRP) source-based time averaging output power. And the low threshold is equal to (60/fGHz) mW for d < 2.5cm, where fGHz is mid-band frequency in GHz, and d is the distance from the portable transmitter to a person’s body, excluding hands, wrists, feet, and ankles. For the Module of the tested model of FCHRC, the measured peak conducted power was 0.671 mW. The maximum source-based time averaging duty factor is 100%. The conducted source-based time averaging output power =(0.671*1) mW =0.671 mW The measured maximum field strength (FS) was 98.6 dBμV/m. The distance (D) between the antenna and the equipment under test (EUT) was 3 meters. From these data, the radiated (EIRP) source-based time-averaging output power can be calculated by: The radiated power = (FS*D)² / 30 mW =2.173 mW The radiated (EIRP) source-based time-averaging output power =(2.713*1) mW = 2.173 mW The low threshold in the 2400~2483.5MHz band is 24.57 mW. From the above calculation, output power obtained in both method is less than low threshold, it is concluded that the handset can be certified by TCB without the SAR evaluation. FCC ID: ORV-FCHRC

INTERTEK TESTING SERVICES Report No.: HK11100126-1 Sample No.: 2/2 Code: FCC15C_f / Effective Date: 24 Jun 2011 ( of ) Minimum 6dB Bandwidth Plot – Pursuant to FCC Part 15 Section 15. 247 Requirement Plot H2A Plot H2B INTERTEK TESTING SERVICES Report No.: HK11100126-1 Sample No.: 2/2 Code: FCC15C_f / Effective Date: 24 Jun 2011 ( of ) Minimum 6dB Bandwidth Plot – Pursuant to FCC Part 15 Section 15. 247 Requirement Plot H2C

INTERTEK TESTING SERVICES Report No.: HK11100126-1 Sample No.: 2/2 Code: FCC15C_f / Effective Date: 24 Jun 2011 ( of ) Maximum Output Power at Antenna terminal Plot – Pursuant to FCC Part 15 Section 15. 247 Requirement Plot H1A Plot H1B INTERTEK TESTING SERVICES Report No.: HK11100126-1 Sample No.: 2/2 Code: FCC15C_f / Effective Date: 24 Jun 2011 ( of ) Maximum Output Power at Antenna terminal Plot – Pursuant to FCC Part 15 Section 15. 247 Requirement Plot H1C

INTERTEK TESTING SERVICES Report No.: HK11100126-1 Sample No.: 2/2 Code: FCC15C_f / Effective Date: 24 Jun 2011 ( of ) Maximum Power Density Plot – Pursuant to FCC Part 15 Section 15. 247 Requirement Plot H3A Plot H3B INTERTEK TESTING SERVICES Report No.: HK11100126-1 Sample No.: 2/2 Code: FCC15C_f / Effective Date: 24 Jun 2011 ( of ) Maximum Power Density Plot – Pursuant to FCC Part 15 Section 15. 247 Requirement Plot H3C

INTERTEK TESTING SERVICES Report No.: HK11100126-1 Sample No.: 2/2 Code: FCC15C_f / Effective Date: 24 Jun 2011 ( of ) Out band Antenna Conducted Emission Plot – Pursuant to FCC Part 15 Section 15. 247 Requirement Plot H4A1 Plot H4A2 INTERTEK TESTING SERVICES Report No.: HK11100126-1 Sample No.: 2/2 Code: FCC15C_f / Effective Date: 24 Jun 2011 ( of ) Out band Antenna Conducted Emission Plot – Pursuant to FCC Part 15 Section 15. 247 Requirement Plot H4B1 Plot H4B2 INTERTEK TESTING SERVICES Report No.: HK11100126-1 Sample No.: 2/2 Code: FCC15C_f / Effective Date: 24 Jun 2011 ( of ) Out band Antenna Conducted Emission Plot – Pursuant to FCC Part 15 Section 15. 247 Requirement Plot H4C1 Plot H4C2 INTERTEK TESTING SERVICES Report No.: HK11100126-1 Sample No.: 2/2 Code: FCC15C_f / Effective Date: 24 Jun 2011 ( of ) Out band Antenna Conducted Emission Plot – Pursuant to FCC Part 15 Section 15. 247 Requirement Plot H4D1 Plot H4D2

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report No.: HK11100126-1 Lightspeed Technologies Inc. Application For Certification (Original Grant) (FCC ID: ORV-FCHRC) (IC: 1732B-FCHRC) Transceiver Prepared and Checked by: Approved by: Signed On File Wong Kwok Yeung, Kenneth Lead Engineer Chan Chi Hung, Terry Assistant Supervisor Date: November 30, 2011 INTERTEK TESTING SERVICES Report No.: HK11100126-1 FCC ID: ORV-FCHRC IC: 1732B-FCHRC i GENERAL INFORMATION Lightspeed Technologies Inc. BRAND NAME: Lightspeed, MODEL: FCHRC FCC ID: ORV-FCHRC IC: 1732B-FCHRC Grantee: Lightspeed Technologies Inc. Grantee Address: 11509 SW Herman Rd., Tualatin, OR 97062, USA. Contact Person: John Chabot Tel: 503-684-5538 Fax: 503-684-3197 e-mail: [email protected] Manufacturer: Lightspeed Technologies Inc. Manufacturer Address: 11509 SW Herman Rd., Tualatin, OR 97062, USA. Brand Name: Lightspeed Model: FCHRC Type of EUT: Transceiver Description of EUT: FLEXCAT Handheld Remote Control Serial Number: N/A FCC ID / IC ORV-FCHRC / 1732B-FCHRC Date of Sample Submitted: October 04, 2011 Date of Test: October 11, 2011 Report No.: HK11100126-1 Report Date: November 30, 2011 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Report No.: HK11100126-1 FCC ID: ORV-FCHRC IC: 1732B-FCHRC ii SUMMARY OF TEST RESULT Lightspeed Technologies Inc. BRAND NAME: Lightspeed, MODEL: FCHRC FCC ID: ORV-FCHRC IC: 1732B-FCHRC TEST SPECIFICATION REFERENCE RESULTS Maximum Peak Output Power 15.247(b), (c) / RSS-210 A8.4 Pass 6 dB Bandwidth 15.247(a)(2) / RSS-210 A8.2 Pass Maximum Power Density 15.247(e) / RSS-210 A8.2 Pass Out of Band Antenna Conducted Emission 15.247(d) / RSS-210 A8.5 Pass Radiated Emission in Restricted Bands 15.247(d) Pass Radiated Spurious Emissions 15.247(d) / RSS-210 A8.5 Pass Antenna Requirement 15.203 Pass (See Note 1) Receiver Radiated Emissions RSS-210 2.5 Pass Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the previsions of this section. INTERTEK TESTING SERVICES Report No.: HK11100126-1 FCC ID: ORV-FCHRC IC: 1732B-FCHRC iii Table of Contents 1.0 General Description...................................................................................... 1 1.1 Product Description ......................................................................................... 1 1.2 Related Submittal(s) Grants ............................................................................ 1 1.3 Test Methodology ............................................................................................ 1 1.4 Test Facility ..................................................................................................... 1 2.0 System Test Configuration........................................................................... 2 2.1 Justification...................................................................................................... 2 2.2 EUT Exercising Software................................................................................. 2 2.3 Special Accessories ........................................................................................ 2 2.4 Equipment Modification ................................................................................... 2 2.5 Measurement Uncertainty ............................................................................... 2 2.6 Support Equipment List and Description ......................................................... 2 3.0 Emission Results ........................................................................................... 3 3.1 Field Strength Calculation................................................................................ 3 3.2 Radiated Emission Configuration Photograph ................................................. 4 3.3 Radiated Emission Data .................................................................................. 4 4.0 Measurement Results ................................................................................... 5 4.1 Maximum Conducted Output Power at Antenna Terminals................................. 5 4.2 Minimum 6 dB RF Bandwidth .......................................................................... 5 4.3 Maximum Power Density Reading................................................................... 6 4.4 Out of Band Conducted Emissions.................................................................. 6 4.5 Out of Band Radiated Emissions (for emissions in 4.4 above that are less than 20dB below carrier) ................. 7 4.6 Transmitter Radiated Emissions in Restricted Bands ...................................... 7 4.7 Radiated Spurious Emissions....................................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: HK11100126-1 FCC ID: ORV-FCHRC IC: 1732B-FCHRC Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : FCHRC Radiated Emission Model: FCHRC Job: HK11100126-1 A5B… INTERTEK TESTING SERVICE Report No: HK11100126-1 FCC ID: ORV-FCHRC IC: 1732B-FCHRC Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : FCHRC Radiated Emission Model: FCHRC Job: HK11100126-1 A…B5
