ORV-LSALAccess Link

*Preliminary* User Manual Wireless Audio Hub AUDIO INMICROPHONETONE POWER MIN 1 MAXMINMAXTREBLEBASS 2 TABLE OF CONTENTS SECTION 1: Overview SECTION 2: Set-up & Use/ Dail Operation SECTION 3: Optional Accessories SECTION 4: Maintenance & Troubleshooting SECTION 5: Warranty & Specifications IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use the apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding- type plug. A polarized plug has two blades with one wider than the other. A grounding- type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments/ accessories specified by the manufacturer. 13. Unplug this apparatus during lightning storms or when unused for long periods of time. 14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 15. When the mains plug or appliance coupler is used as the disconnect device, it shall remain readily operable. 16. Please keep the unit in a good ventilation environment. 17. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. 18. Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus. 19. Warning - battery pack shall not be exposed to excessive heat such as sunshine, fire or the like. 12. Use only with a cart, stand, tripod, bracket or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 5 1. Overview 2. Set Up & Use / Daily Operation 3. Optional Accessories 4. Maintenance & Troubleshooting 5. Warranty, Safety & Specifications SECTION 1: OVERVIEW SYSTEM COMPONENTS AND UNPACKING The standard configuration of the Access Link will contain: Wall Charger & Charging Cable Flexmike Classroom Microphone 1 2 AUDIO INMICROPHONETONE POWER MIN 1 MAXMINMAXTREBLEBASS 2 Access Link and USB Power Supply PLEASE NOTE: The Access Link and any wireless components (microphones, Media Connector, pods) are registered together at the factory and are labeled as such with ID numbers. Please keep all components together as a system. Moving them from one system or room to another will result in the need to re-register them to function. Additional system labels are included in the back of this manual should you add components, or if one of your original components should need to be replaced. 6 1. Overview 2. Set Up & Use / Daily Operation 3. Optional Accessories 4. Maintenance & Troubleshooting 5. Warranty, Safety & Specifications Standard Accessories ALAccess Link wireless audio hub USB2-NAUSB AC Power adapter, U.S. and Canada USB3DCInternational USB power adapter with international power supply USB-MCBUSB Type A-Micro B power cable for Access Link FMFlexmike classroom microphone with battery pack andlanyard NH2.4VAA NiMH rechargeable battery pack for Flexmike, one per Flexmike FLFlexmike lavaliere cord Optional Accessories FCAD-4Flexcat for small group instruction* SMHandheld microphone with battery pack BA-NH2APKAA NiMH rechargeable battery pack for Sharemike, one per Sharemike USBDC-5Charging cable for Sharemike MCAMedia Connector with Access USB2-NATransmitter wall charger, power supply, U.S. and Canada USB-MCBUSB Type A-Micro B power cable for Media Connector AD-USB3DCInternational transmitter charging adaptor 5V-1.0-_5V charging power supply RCWBWall mounting power supply bracket RCSBSecurity bracket 4 4 3 3 *For further information on Flexcat for small group instruction, please visit www.lightspeed-tek.com 7 1. Overview 2. Set Up & Use / Daily Operation 3. Optional Accessories 4. Maintenance & Troubleshooting 5. Warranty, Safety & Specifications FRONT PANEL INDICATORS AUDIO INMICROPHONETONE POWER MIN 1 MAXMINMAXTREBLEBASS 2 1. POWER LIGHT: This light will turn blue when power is on. 2. POWER BUTTON: Press and hold this push button to turn the system power on or off. 3. MICROPHONE VOLUME CONTROL: Controls the volume level of the microphones. 4. AUDIO IN VOLUME CONTROL: Controls the volume level of the audio source connected to the audio input on back of the Access Link. 5. TONE CONTROL: Adjusts the audio tone adding more bass or treble for a more rich or more crisp tone. 6. MIC 1 & MIC 2: Microphone link and registration indicators. a. Solid green indicates an audio link has been established. b. Flashing amber indicates registration is in process. 7. SYSTEM ID LABEL: On bottom of unit (not shown) to identify it with registered components. 5 1 2 4 2 3 6 2 7 8 1. Overview 2. Set Up & Use / Daily Operation 3. Optional Accessories 4. Maintenance & Troubleshooting 5. Warranty, Safety & Specifications REAR PANEL CONTROLS AND CONNECTIONS REGISTER USB POWER 5V/0.2A +  AUDIO INBAL. AUDIO OUT AUDIO OUT MIC LINE AUDIO OUT/DC IN 1. REGISTRATION: Press this button if there is a new component, such as a microphone, to be registered. 2. USB POWER INPUT: Plug the micro USB end of the power cable into this USB port. 3. A…

Text truncated - open the document above for the full version.

Electronics Testing Center, Taiwan No.8, Lane 29, Wenming RD., LeShan Tsuen, GuiShan Shiang, Taoyuan County 33383, Taiwan, R.O.C. TEL: 886-3-3276173 FAX: 886-3-3276188 1 Authorization Letter FCC ID: ORV-LSAL Device Name: Access Link Model No.: AL Date: 11/12/2014 Federal Communications Commission To whom it may concern: I, the undersigned, hereby authorize Jacko Yang of ELECTRONICS TESTING CENTER, TAIWAN and hereafter referred to as ETC, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by ETC on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing ELECTRONICS TESTING CENTER, TAIWAN as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product  compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, By: By: Michael A. Frost (Signature) (Printed) Title : Sr. Acoustic Engineer Applicant : Lightspeed Technologies Inc. Address : 11509 SW Herman Road, Tualatin, OR 97062 USA Tel : 800-732-8999 Fax: 503-684-3197

Electronics Testing Center, Taiwan No.8, Lane 29, Wenming RD., LeShan Tsuen, GuiShan Shiang, Taoyuan County 33383, Taiwan, R.O.C. TEL: 886-3-3276173 FAX: 886-3-3276188 1 Confidentiality Request Letter FCC ID: ORV-LSAL Device Name: Access Link Model No.: AL Date: 11/12/2014 Ref: Request for Confidentiality Dear Sir: With regard to the referenced application, Lightspeed Technologies Inc. is requesting confidentiality of certain sections of the accompanying documents. The documents for which Lightspeed Technologies Inc. is requesting confidentiality are: Exhibit Type File Name Block Diagrams Block Diagrams.pdf Schematic Diagrams Schematic Diagrams.pdf Operation Description Operation Description.pdf This request is made under the provisions of Section 0.457(d) of the Commission’s Rules, and Section 552(b)(4) of the Freedom of Information Act. The material for which confidentiality is requested falls within the scope of Section 552(b)(4) as trade secrets and includes material covered by Section 0.459 of the Commission’s Rules. Sincerely, By: By: Michael A. Frost (Signature) (Printed) Title : Sr. Acoustic Engineer Applicant : Lightspeed Technologies Inc. Address : 11509 SW Herman Road, Tualatin, OR 97062 USA Tel : 800-732-8999 Fax: 503-684-3197 Electronics Testing Center, Taiwan No.8, Lane 29, Wenming RD., LeShan Tsuen, GuiShan Shiang, Taoyuan County 33383, Taiwan, R.O.C. TEL: 886-3-3276173 FAX: 886-3-3276188 2 Authorization Letter FCC ID: ORV-LSAL Device Name: Access Link Model No.: AL Date: 11/12/2014 Federal Communications Commission To whom it may concern: I, the undersigned, hereby authorize the of ELECTRONICS TESTING CENTER, TAIWAN and hereafter referred to as ETC, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by ETC on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing ELECTRONICS TESTING CENTER, TAIWAN as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product  compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, By: By: Michael A. Frost (Signature) (Printed) Title : Sr. Acoustic Engineer Applicant : Lightspeed Technologies Inc. Address : 11509 SW Herman Road, Tualatin, OR 97062 USA Tel : 800-732-8999 Fax: 503-684-3197 Company Letter Electronics Testing Center, Taiwan No.8, Lane 29, Wenming RD., LeShan Tsuen, GuiShan Shiang, Taoyuan County 33383, Taiwan, R.O.C. TEL: 886-3-3276173 FAX: 886-3-3276188 3 User Manual Information Following information please add in the user manual: FCC Interference Information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference; and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna (that is, the antenna for radio or television that is “receiving” the interference). • Reorient or relocate and increase the separation between the telecommunications equipment and receiving antenna. • Connect the telecommunications equipment in…

Text truncated - open the document above for the full version.

UTAM Affidavit Letter Date：10/22/2013 UTAA{, Inc. |rffidavit of Participatio4 FCC Section 15 .307(b) Affidavit l, Michael Stima, Managing Director of UTAM, tnc., hereby swear and affirm that: Lightspeed Technologies Inc. is a participating member of UTAM, lnc. in good standing for purposes of Section 15.307(b) of the FCC rules. Subscribed to and sworn this 25th day of luly,2OtL UTAM, lnc. P.O. Box 8126 Bridgewater, New JerseY 08807 Tel: (508) 526-3636 ichael Stima, Managing Director Affidavit #: 1TSP072511 UTAM Affidavit LetterPage1/1

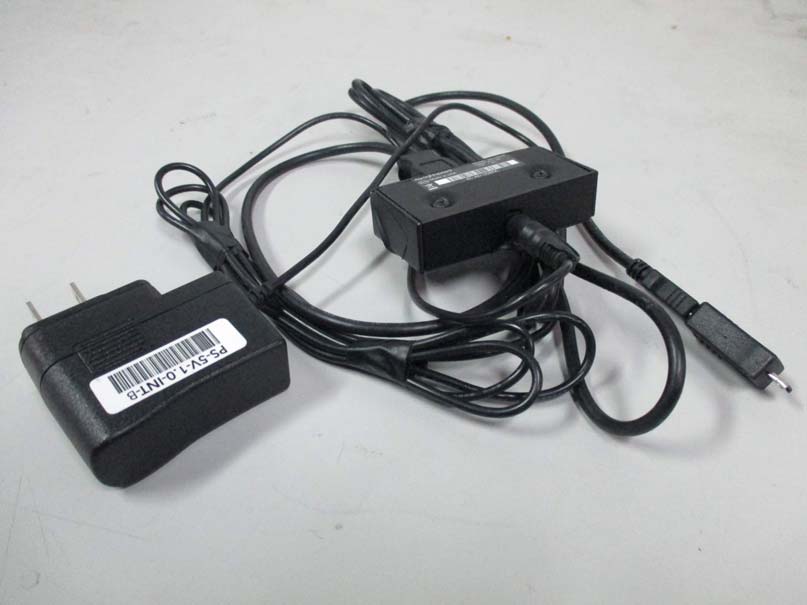

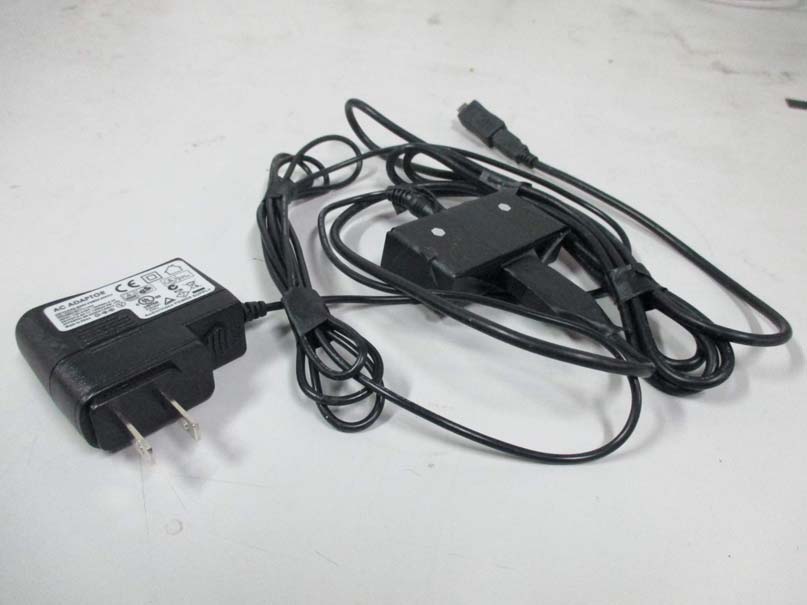

FCC ID: ORV-LSAL ETC Report No.: 14-10-MAS-148-02 Page A1 of A3 ANNEX A: EXTERNAL CONSTRUCTION PHOTOS OF EUT 1. Outside view 1 of EUT 2. Outside view 2 of EUT FCC ID: ORV-LSAL ETC Report No.: 14-10-MAS-148-02 Page A2 of A3 3. Outside view 1 of Adapter 4. Outside view 2 of Adapter FCC ID: ORV-LSAL ETC Report No.: 14-10-MAS-148-02 Page A3 of A3 5. Outside view 3 of Adapter

ACCESS LINK NAMEPLATE (PRODUCTION) REVISION A 09/22/2014 Access Link Access Link wireless audio hub AL ORV-LSAL 1732B-LSAL TRX-AL Name: Description: Model Number: FCC ID: IC Number: First Released Part Number: AL 5V/0.2A LABEL P/N: 334-0179-00 INPUT: MODEL: FCC ID: ORV-LSAL IC: 1732B-LSAL Apparatus E464712 Audio/Video

FCC ID: ORV-LSAL ETC Report No.: 14-10-MAS-148-02 Page B1 of B3 ANNEX B: INTERNAL CONSTRUCTION PHOTOS OF EUT 1. Inside View 1 of EUT 2. Inside View 2 of EUT FCC ID: ORV-LSAL ETC Report No.: 14-10-MAS-148-02 Page B2 of B3 3. DECT Module 4. Zigbee Module FCC ID: ORV-LSAL ETC Report No.: 14-10-MAS-148-02 Page B3 of B3 5. Front view of PCB 6. Rear view of PCB

FCC ID: ORV-LSAL Sheet 32 of 87 Sheets ETC Report No.: 14-10-MAS-148-02 Electronics Testing Center, Taiwan No.8, Lane 29, Wenming RD., LeShan Tsuen, GuiShan Shiang, Taoyuan County 33383, Taiwan, R.O.C. Rev. No 1.0 6.13 Safety exposure levels 6.13.1 Standard Applicable: FCC 15.319(i) UPCS devices are subject to the radio frequency radiation exposure requirements specified in FCC parts 1.1307 (b), 2.1091 and 2.1093, as appropriate. All equipment shall be considered to operate in a “general population / uncontrolled environment. For portable devices tests according to IEEE 1528 are requested, if applicable. 6.13.2 Measurement procedure Consideration of radio frequency radiation exposure for EUT is done as SAR test according OET65c (for PP) MPE calculation as below (for FP, Repeater) SAR test results: See SAR test report. MPE calculation: not applicable The EUT is considered as a mobile device according to OET Bulletin 65, Edition -97-01. Therefore distance to human body of min. 20 cm is determined. The limit of Power density for General Population / Umcontrolled Exposure is 1.0 mW/cm². Formula: S = EIRP / 4πR² Calculation: Radio Technology Operation Frequency (MHz) Distance (cm) Maximum Peak Output Power (dBm) Antenna Gain (dBi) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) DECT 1921 20 10.96 -2 0.001566 1 ZigBee 2405 20 -2.27 -2 0.000074 1 FCC ID: ORV-LSAL Sheet 33 of 87 Sheets ETC Report No.: 14-10-MAS-148-02 Electronics Testing Center, Taiwan No.8, Lane 29, Wenming RD., LeShan Tsuen, GuiShan Shiang, Taoyuan County 33383, Taiwan, R.O.C. Rev. No 1.0 Simultaneous Evaluation: ZigBee 2.4GHz and DECT radio can transmit simultaneously. The formula of calculated MPE is: CPD1/LPD1+CPD2/LPD2+...etc. ＜ 1 CPD=Calculated Power Density LPD=Limit of Power Density Radio Technology Worse CPD (mW/cm 2 ) ZigBee 0.000074 DECT 0.001566 The MPE evaluation is 0.000074/1+0.001566/1=0.00164＜1, which confirm the device comply the MPE limit. 6.13.3 Results： Complies

FCC ID: ORV-LSAL Sheet 1 of 87 Sheets ETC Report No.: 14-10-MAS-148-02 Electronics Testing Center, Taiwan No.8, Lane 29, Wenming RD., LeShan Tsuen, GuiShan Shiang, Taoyuan County 33383, Taiwan, R.O.C. Rev. No 1.0 CONFORMANCE TEST REPORT FOR FCC Part 15, subpart D Report No.: 14-10-MAS-148-02 Client: Lightspeed Technologies Inc. Product: Access Link Model: AL FCC ID: ORV-LSAL Manufacturer/supplier: REOR ELECTRONICS CO., LTD. Date test item received: 2014/10/17 Date test campaign completed: 2014/11/11 Date of issue: 2014/11/11 The test result only corresponds to the tested sample. It is not permitted to copy this report, in part or in full, without the permission of the test laboratory. Total number of pages of this test report: 87 pages Total number of pages of photos: External photos 3 pages Internal photos 3 pages Setup photos 2 pages Test Engineer Checked By Approved By John Li Perry Lin James Cheng FCC ID: ORV-LSAL Sheet 2 of 87 Sheets ETC Report No.: 14-10-MAS-148-02 Electronics Testing Center, Taiwan No.8, Lane 29, Wenming RD., LeShan Tsuen, GuiShan Shiang, Taoyuan County 33383, Taiwan, R.O.C. Rev. No 1.0 Table of Contents Page 1 GENERAL INFORMATION......................................................................................................... 4 1.1 Testing Laboratory..................................................................................................................... 4 1.2 Client Information....................................................................................................................... 4 1.3 Manufacturer...............................................................................................................................4 2 TEST INFORMATION................................................................................................................... 5 2.1 Description of Tested Device(s)............................................................................................... 5 2.2 Test Environment....................................................................................................................... 5 3 TEST REPORT SUMMARY......................................................................................................... 6 3.1 Test Summary............................................................................................................................ 6 3.2 Other Comments........................................................................................................................ 7 4 TEST SETUP.................................................................................................................................. 8 4.1 Frequency and Timing Measurements................................................................................... 8 4.2 Conducted Emission Tests....................................................................................................... 8 4.3 Radiated Emission Tests.......................................................................................................... 9 4.4 Power line Conducted Tests.................................................................................................... 9 4.5 Monitoring Tests....................................................................................................................... 10 5 TEST EQUIPMENT LIST............................................................................................................ 11 6 TEST RESULT............................................................................................................................. 12 6.1 Coordination with fixed microwave........................................................................................ 12 6.2 Cross Reference...................................................................................................................... 13 6.3 Field Strength Calculation....................................................................................................... 16 6.4 Labeling Requirements........................................................................................................... 17 6.5 Power line Conducted Emissions.......................................................................................... 18 6.6 Result Data Calculation........................................................................................................... 21 6.7 Antenna Requirement............................................................................................................. 22 6.8 Digital Modulation Techniques............................................................................................... 22 6.9 Peak Transmit Power.............................................................................................................. 23 6.10 Power Spectral Density......................................................................................................... 27 6.11 Antenna Gain.......................................................................................................................... 31 6.12 Automatic discontinuation of transmission......................................................................... 31 6.13 Safety exposure levels.......................................................................................................... 32 6.14 Emission Bandwidth B.......................................................................................................... 34 6.15 Monitoring time....................................................................................................................... 38 FCC ID: ORV-LSAL Sheet 3 of 87 Sheets ETC Report No.: 14-10-MAS-148-02 Electronics Testing Center, Taiwan No.8, Lane 29, Wenming RD., LeShan Tsuen, GuiShan Shiang, Taoyuan County 33383, Taiwan, R.O.C. Rev. No 1.0 6.16 Monitoring threshold...........................................................................................................…

Text truncated - open the document above for the full version.

FCC ID: ORV-LSAL Sheet 49 of 87 Sheets ETC Report No.: 14-10-MAS-148-02 Electronics Testing Center, Taiwan No.8, Lane 29, Wenming RD., LeShan Tsuen, GuiShan Shiang, Taoyuan County 33383, Taiwan, R.O.C. Rev. No 1.0 6.19 Least Interfered Channel, LIC 6.19.1 Standard Applicable: FCC 15.323(c) (5) same as RSS-213 4.3.4 (b)(5) If access to spectrum is not available as determined by the above, and a minimum of 20 duplex system access channels are defined for the system, the time and spectrum windows with the lowest power level may be accessed. A device utilizing the provisions of this paragraph must have monitored all access channels defined for its system within the last 10 seconds and must verify, within the 20 milliseconds (40 milliseconds for devices designed to use a 20 milliseconds frame period) immediately preceding actual channel access that the detected power of the selected time and spectrum windows is no higher than the previously detected value. The power measurement resolution for this comparison must be accurate to within 6 dB. No device or group of co-operating devices located within 1 meter of each other shall during any frame period occupy more than 6 MHz of aggregate bandwidth, or alternatively, more than one third of the time and spectrum windows defined by the system. 6.19.2 Measurement procedure Measurement method according to ANSI C63.17 2013 paragraph 4.3.3, 7.3.2, 7.3.3 6.19.3 Results: Complies Measurement Data Test Date : Oct. 22, 2014 Temperature : 24 °C Humidity : 58 ％ Calculation of monitoring threshold: Monitoring threshold: T L = 15 log B – 184 + 50 - P (dBm) B = emission bandwidth (Hz) P = peak transmit power (dBm) Calculated thresholds: T L: Monitoring limit threshold (dBm) -52.5 Emission bandwidth (MHz) 1.46 Used results Peak transmit power (dBm) 10.96 TL+UM = -52.5 + 6 = -46.5 (dBm) Result: Least interfered channel Pass Note 1: The monitoring threshold is applicable for systems which have defined a minimum of 20 duplex system access channels. Note 2: f1=1921.536 MHz, f2=1928.448MHz FCC ID: ORV-LSAL Sheet 50 of 87 Sheets ETC Report No.: 14-10-MAS-148-02 Electronics Testing Center, Taiwan No.8, Lane 29, Wenming RD., LeShan Tsuen, GuiShan Shiang, Taoyuan County 33383, Taiwan, R.O.C. Rev. No 1.0 Comment: 7.3.2b Comment1: Trace1 (green) shows the interference profile. Comment2: Trace2 (blue) shows the EUT transmissions are occurring. Comment3: The EUT always transmits on f2 (the carrier with the lower interference level) and so meets the requirement. FCC ID: ORV-LSAL Sheet 51 of 87 Sheets ETC Report No.: 14-10-MAS-148-02 Electronics Testing Center, Taiwan No.8, Lane 29, Wenming RD., LeShan Tsuen, GuiShan Shiang, Taoyuan County 33383, Taiwan, R.O.C. Rev. No 1.0 Comment: 7.3.2c Comment1: Trace1 (green) shows the interference profile. Comment2: Trace2 (blue) shows the EUT transmissions are occurring. Comment3: The EUT always transmits on f1 (the carrier with the lower interference level) and so meets the requirement. FCC ID: ORV-LSAL Sheet 52 of 87 Sheets ETC Report No.: 14-10-MAS-148-02 Electronics Testing Center, Taiwan No.8, Lane 29, Wenming RD., LeShan Tsuen, GuiShan Shiang, Taoyuan County 33383, Taiwan, R.O.C. Rev. No 1.0 Comment: 7.3.2d Comment1: Trace1 (green) shows the interference profile. Comment2: Trace2 (blue) shows the EUT transmissions are occurring. Comment3: The EUT always transmits on f2 (the carrier with the lower interference level) and so meets the requirement. FCC ID: ORV-LSAL Sheet 53 of 87 Sheets ETC Report No.: 14-10-MAS-148-02 Electronics Testing Center, Taiwan No.8, Lane 29, Wenming RD., LeShan Tsuen, GuiShan Shiang, Taoyuan County 33383, Taiwan, R.O.C. Rev. No 1.0 Comment: 7.3.2e Comment1: Trace1 (green) shows the interference profile. Comment2: Trace2 (blue) shows the EUT transmissions are occurring. Comment3: The EUT always transmits on f1 (the carrier with the lower interference level) and so meets the requirement. FCC ID: ORV-LSAL Sheet 54 of 87 Sheets ETC Report No.: 14-10-MAS-148-02 Electronics Testing Center, Taiwan No.8, Lane 29, Wenming RD., LeShan Tsuen, GuiShan Shiang, Taoyuan County 33383, Taiwan, R.O.C. Rev. No 1.0 Comment: 7.3.3 Comment1: Trace1 (deep blue, top) shows interference on f1. Comment2: Trace2 (red, 2nd from top) shows the interference on f2. Comment3: Trace3 (green, 3rd from top) shows EUT transmissions on f1. Comment4: Trace4 (light blue, 4th from top) shows the signal to the handset to trigger the transmissions. Comment5: Set interference on all system carriers except f2, at a level of T L+UM, in-band per carrier. Comment6: Apply interference on f2 at a level of T L+UM+20, in-band, and immediately remove all interference from f1 and immediately (but not sooner than 20 ms after the interference on f2 is applied) cause the EUT to attempt transmission. Comment7: The EUT transmits on f1 and so meets the requirement. FCC ID: ORV-LSAL Sheet 55 of 87 Sheets ETC Report No.: 14-10-MAS-148-02 Electronics Testing Center, Taiwan No.8, Lane 29, Wenming RD., LeShan Tsuen, GuiShan Shiang, Taoyuan County 33383, Taiwan, R.O.C. Rev. No 1.0 Comment: 7.3.4 (Zoom in) Comment1: Trace1 (deep blue, top) shows interference on f1. Comment2: Trace2 (red, 2nd from top) shows the interference on f2. Comment3: Trace3 (green, 3rd from top) shows EUT transmissions on f1. Comment4: Trace4 (light blu…

Text truncated - open the document above for the full version.
