OSLOKA-225TRF Keyless Entry System(Transmitter)

OKA-220T Transmitter, RF Keyless Entry System OMRON AUTOMOTIVE ELECTRONICS KOREA 1. Constitution of the Radio Frequency Keyless Entry System for vehicle The radio frequency keyless entry is a system that it controls locking and unlocking the door and the trunk by wireless remote controller. This system consists of three components. The TRANSMITTER is a device that transmits the signal when the button is pressed. The transmission signal consists of several synchronous codes , unique identification code , security code and function code. The RECEIVER is fixed inside the vehicle. It works intermittently to prevent the battery exhaustion. When the receiver detects the synchronous code, it runs continuously to receive the signals completely. After receiving the signal, the receiver decides which operation will be performed. The user can selectthe following operations by pressing the button of the remote transmitter. OPERATION ACTION LOCK Lock the Door UNLOCK Unlock the Door TRUNK Open the Trunk Transmitter f = 307.9MHz 2. User's manual (provisionally) REMOTE TRANSMITTER You can lock and unlock your vehicle with the remote transmitter. LOCK When you push the LOCK button, all the doors will lock. You cannot lock any of the doors with the remote transmitter if any door is open or the key is the ignition switch. UNLOCK When you push the UNLOCK button, all the doors will unlock. You cannot unlock any of the doors with the remote transmitter if any door is open or the key is in the ignition switch. TRUNK When you push the Trunk button, It will open. LOCK UNLOCK TRUNK FCC ID: OSLOKA­225T This devicecomplieswithpart 15 of the FCC Rules. Operation is subjectto the following twoconditions: (1)This devicemay not cause harmful interference,and (2)this devicemust accept any interferencereceived, including interferencethat may cause undesiredoperation. Any changesor modifications (including the antennas) made to this devicethat are not expressly approvedby the manufacturer may void the user's authority to operate the equipment. IC: 850F­OKA­225T This device complieswithIndustry Canada licence-exempt RSS standard(s). Operation is subjectto the following twoconditions: (1) this devicemay not cause interference, and (2)this devicemust accept any interference,including interferencethat may cause undesired operation of the device. Leprésent appareil est conforme aux CNR d'Industrie Canada applicablesaux appareils radio exempts de licence. L'exploitation est autoriséeaux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateurde l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'encompromettre le fonctionnement.

Date: September 10, 2012 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Lab Manager Jim. Kim and of SGS Korea Co., Ltd and hereafter referred to as SGS Testing Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Jim. Kim of SGS Korea Co., Ltd on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a)comply with the relevant provisions of the certification program; b)make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c)make claims regarding certification only in respect of the scope for which certification has been granted; d)do not use our product certification in such a manner as to bring the Certification Division into disrepute andnot make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e)upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; Omron Automotive Electronics Korea Co., Ltd. Ace Techno 10-cha 701, 470-5, Gasan-dong, Geumcheon-gu, Seoul, 153-789, Korea Tel. 82-2-850-5789 Fax. 82-2-850-5808 f)(use certification only to indicate the products are certified as being in conformity with specified standards; g)endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h)ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i)keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j)take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k)document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, SANG-IL NAM /Manager /Omron Automotive Electronics Korea

Date: September 10, 2012 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of Confidentiality for FCC ID: OSLOKA­225T To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Omron Automotive Electronics Korea Co., Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give Omron Automotive Electronics Korea Co., Ltd. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: CONFIDENTIAL LIST 1 Block Diagram 2 Operational Descriptions Permanent 3 Schematics 4 External Photos 5 Internal Photos 6 Test-Setup Photos Short-Term 7 User’s Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely Yours, Sang IL Nam / Manager OmronAutomotiveElectronics KoreaCo.,Ltd. Ace Techno 10-cha 701, 470-5,Gasan-dong, Geumcheon-gu, Seoul, 153-789, Korea Tel.82-2-850-5789Fax.82-2-850-5808

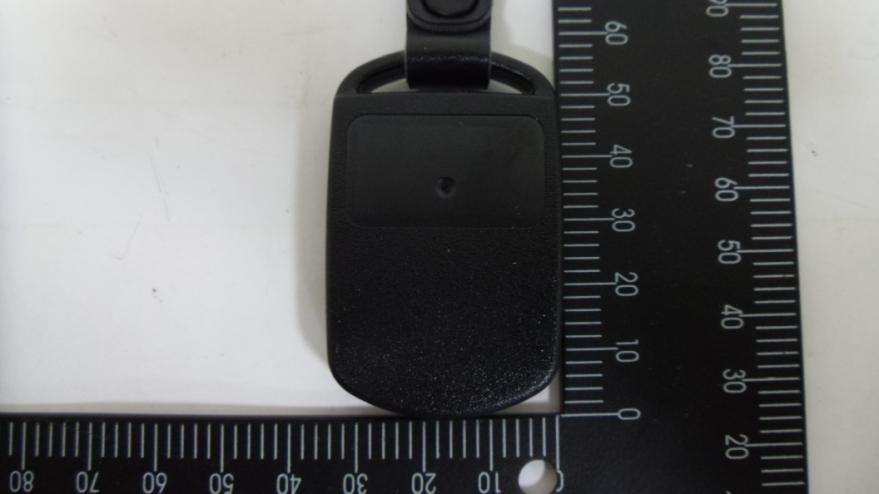

External photos of EUT Front view of EUT Rear view of EUT Top view of EUT Bottom view of EUT Side view of EUT

Head office : 492, Gayul-Ri, Bogye-Myeon, Anseong - City, Kyonggi-Do, Korea Tel: +82-31-670-2000 / Fax: +82-31-670-2017 [email protected] Omron Automotive Elective Electronics KoreaPage: 1 / 1 Label Sample & Location Label Information The following is a sample copy of the label that will be placed on Bottom side of the product. The FCC ID / IC No.is marked in theproduct label with model No. Theproduct label is made of plastic material and below informationis visible printedon thelabel. Because attached locationlabel size of thisproduct is bettersmall.FCC/ICStatement describedin thislabel is writtentheusermanual UNEEDS CommerceCo.,Ltd. Product : RF Keyless Entry System (Transmitter) Model: OKA­220T FCCID: OSLOKA­225T IC : 850F­OKA225T “MadeinKOREA” Label location The label shown above shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase. The label is affixed with permanent adhesive to the enclosure and can not be readily detachable. Thelabel is located here. 12mm 9mm

Internal photos of EUT Internal view of EUT Top view of Main PCB Bottom view of Main PCB Antenna

Report Number: F690501/RF-RTL005760-1 Page: 2 of 23 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea INDEX TABLE OF CONTENTS Page 1. General Information --------------------------------------------------------------------- 3 2. Field Strength of Fundamental ------------------------------------------------------ 6 3. Spurious Emission----------------------------------------------------------------------- 11 4. Bandwidth of Operation Frequency------------------------------------------------ 15 5. Transmission Time----------------------------------------------------------------------- 17 6. Occupied Bandwidth-------------------------------------------------------------------- 19 7. Duty Cycle Correction Factor-------------------------------------------------------- 21 Report Number: F690501/RF-RTL005760-1 Page: 3 of 23 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 705, Dongchun-Dong Sooji-Gu, Yongin-Shi, Kyungki-Do, South Korea. - Wireless Div. 3FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone : +82 31 428 5700 FAX : +82 31 427 2371 1.2. Details of Applicant Applicant : Omron Automotive Electronics Korea Co., Ltd. Address : Ace Techno 10-cha 701, 470-5, Gasan-dong, Geumcheon-gu, Seoul, 153-789, Korea Contact Person : Nam, Sang-il Phone No. : +82 +2 850 5789 Fax No. : +82 +2 850 5808 1.3. Description of EUT Kind of Product RF Keyless Entry System (Transmitter) Model Name OKA-220T Serial Number N/A Power Supply DC 3.0 V (Lithium type of battery) Frequency Range Tx : 307.9 ㎒ Modulation Type FSK Number of Channels 1 Antenna Type PCB Antenna 1.4. Details of Modification - N/A Report Number: F690501/RF-RTL005760-1 Page: 4 of 23 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea 1.5. Test Equipment List Equipment Manufacturer Model S/N Cal Date Cal Interval Cal Due. Signal Generator R&S SMR40 100540 Jan. 05, 2012 Annual Jan. 05, 2013 Spectrum Analyzer R&S FSV30 101004 Jul. 05, 2012 Annual Jul. 05, 2013 Spectrum Analyzer R&S FSV40 100007 Apr. 16, 2012 Annual Apr. 16, 2013 Preamplifier H.P. 8447D 1726A01265 Sep. 28, 2011 Annual Sep. 28, 2012 Preamplifier R&S SCU18 10070 Aug. 06, 2012 Annual Aug. 06, 2013 High Pass Filter Mini-Circuits NHP-400 VUU21201115-1 Aug.01, 2012 Annual Aug.01, 2013 Test Receiver R&S ESCI7 100778 Aug. 01, 2012 Annual Aug. 01, 2013 Bilog Antenna SCHWARZBECK MESSELEKTRONIK VULB9163 390 Apr. 19, 2012 Biennial Apr. 19, 2014 Horn Antenna R&S HF907 100208 Aug. 13, 2012 Biennial Aug. 13, 2014 Antenna Master INNCO SYSTEMS MA4000-EP N/A N/A N/A N.C.R. Turn Table INNCO SYSTEMS DT-3000S-3T N/A N/A N/A N.C.R. 10m Chamber SY Corporation L × W × H (21.5 m × 13.0 m × 9.0 m) N/A N/A N/A N.C.R. Controller INNCO SYSTEMS CONTROLLER CO2000 N/A N/A N/A N.C.R. Report Number: F690501/RF-RTL005760-1 Page: 5 of 23 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea 1.6. Summary of Test Results The EUT has been tested according to the following specifications: 15.APPLIED STANDARD Section in FCC 15 Section in RSS-210, RSS-Gen Test Item Result 15.209(a) 15.231(b) RSS-210, Issue 8, A1.1, Table B Radiated emission, Spurious Emission and Field Strength of Fundamental Complied 15.109(a) RSS-Gen, Issue 3, 6, Table 2 Receiver Spurious Emission (Radiated) Complied 15.231(c) RSS-210, Issue 8, A1.1.3 Bandwidth of Operation frequency Complied 15.231(a) RSS-210, Issue 3, A1.1.1 Transmission Time Complied - RSS-Gen, Issue 3, 4.6.1 Occupied Bandwidth Complied 1.7 Test Report Revision Revision Report number Description 0 F690501/RF-RTL005760 Initial 1 F690501/RF-RTL005760-1 Add the limit of Peak in the table Report Number: F690501/RF-RTL005760-1 Page: 6 of 23 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea 2. Field Strength of Fundamental 2.1. Test Setup The diagram below shows the test setup that is utilized to make the measurements for emission from 9 ㎑ to 30 ㎒ Emissions. The diagram below shows the test setup that is utilized to make the measurements for emission from 30 ㎒ to 1 ㎓ Emissions. Report Number: F690501/RF-RTL005760-1 Page: 7 of 23 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, wi…

Text truncated - open the document above for the full version.

Test setup photo of EUT A. Photo of Field Strength & Spurious Emission Test
