OKA-875T Transmitter, RF Keyless Entry System OMRON AUTOMOTIVE ELECTRONICS KOREA 2. User's manual (provisionally) REMOTE TRANSMITTER You can lock and unlock your vehicle with the remote transmitter. LOCK When you push the LOCK button, all the doors will lock. You cannot lock any of the doors with the remote transmitter if any door is open or the key is the ignition switch. UNLOCK When you push the UNLOCK button, all the doors will unlock. You cannot unlock any of the doors with the remote transmitter if any door is open or the key is in the ignition switch. TRUNK / TAIL GATE When you push the TAIL GATE button for 1.0sec, It will open. PANIC When you push the PANIC button for 0.5sec, horn will alarm. LOCK UNLOCK Tail Gate PANIC •Label Information This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications (including the antennas) made to this device that are not expressly approved by the manufacturer may void the user's authority to operate the equipment. Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications, However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ­ Reorient or relocate the receiving antenna. ­ Increase the separation between the equipment and receiver. ­ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ­ Consult the dealer or an experienced radio/TV technician for help. Modifications not expressly approved by the manufacturer could void the user’s authority to operated the equipment under FCC rules. This device complies with Industry Canada licence­exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas provoquer de brouillage, et (2) l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement.

Date: March 12, 2013 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Lab Manager Ham. Dennyand of SGS Korea Co., Ltd and hereafter referred to as SGS Testing Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Ham. Dennyof SGS Korea Co., Ltd on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a)comply with the relevant provisions of the certification program; b)make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c)make claims regarding certification only in respect of the scope for which certification has been granted; d)do not use our product certification in such a manner as to bring the Certification Division into disrepute andnot make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e)upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; Omron Automotive Electronics Korea Co., Ltd. Ace Techno 10-cha 701, 470-5, Gasan-dong, Geumcheon-gu, Seoul, 153-789, Korea Tel. 82-2-850-5789 Fax. 82-2-850-5808 f)(use certification only to indicate the products are certified as being in conformity with specified standards; g)endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h)ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i)keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j)take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k)document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, SANG-IL NAM /Manager /Omron Automotive Electronics Korea

Omron AutomotiveElectronics Korea Co., Ltd. 492, Gayul-Ri, Bogye-Myeon, Anseong-City, Kyonggi-Do, Korea Tel No.:82-31-670-2000FaxNo.:82-31-670-2017 Sang IL Nam/ Manager Federal CommunicationsCommission Authorization andEvaluationDivision 7435OaklandMills Road, Columbia, MD21046 Gentlemen: This letter is to comply with Section0.457(d)(2)(i) and0.459 pertainingto confidential material. We, Omron Automotive Electronics Korea Co., Ltd., would likethefollowingdocuments regarding this submissionforFCC ID: OSLOKA­875T to bekeptconfidential. We are also hereby request Short­Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04­1705. This provision will give Omron Automotive Electronics Korea Co., Ltd. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: Theabovematerialcontainstradesecrets ortechnical data, whichwould customarily beguarded from competitors.We donotwantthese documents to beaccessible to thegeneral public. Sincerely Yours,

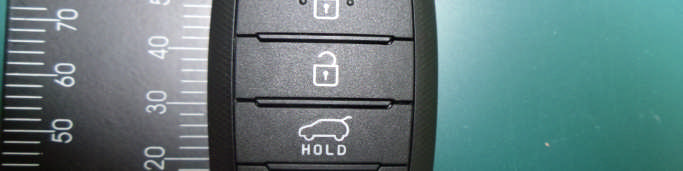

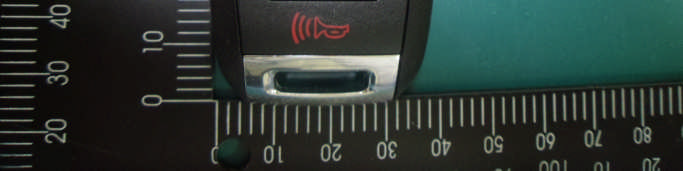

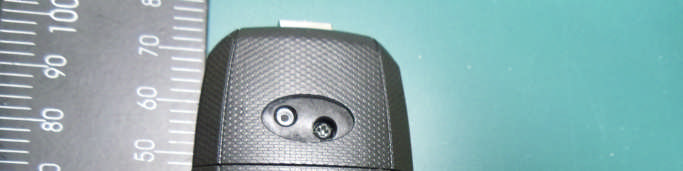

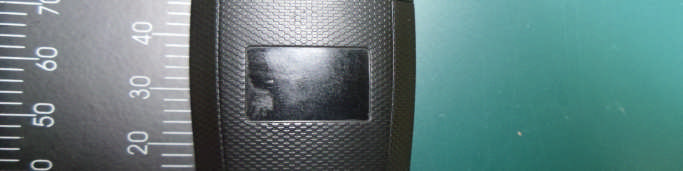

Model :OKA-875T External photos of EUT Model :OKA-875T Top view of EUT Bottom view of EUT Model :OKA-875T Top view of EUT Bottom of EUT Model :OKA-875T Side view of EUT

Head office : 492, Gayul-Ri, Bogye-Myeon, Anseong - City, Kyonggi-Do, Korea Tel: +82-31-670-2000 / Fax: +82-31-670-2017 [email protected] Omron Automotive Elective Electronics KoreaPage: 1 / 1 Label Sample & Location Label Information The following is a sample copy of the label that will be placed on Bottom side of the product. The FCC ID / IC No.is marked in the product label with model No. The product label is made of plastic material and below information is visible printed on the label. Because attached location label size of this product is better small. FCC/ICStatement described in this label is written the user manual UNEEDS Commerce Co.,Ltd. Product : RF Keyless Entry System (Transmitter) Model : OKA­875T FCC ID : OSLOKA­875T IC : 850F­OKA875T “Made in KOREA” Label location The label shown above shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase. The label is affixed with permanent adhesive to the enclosure and can not be readily detachable. The label is located on the back side of the product. 12 mm 9 mm

Model : OKA-875T Internal photos of EUT Model : OKA-875T Internal view of EUT Model : OKA-875T Top view of main board Bottom view of main board Pattern Antenna

Report Number: F690501/RF-RTL006308-2 Page: 2 of 20 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea TABLE OF CONTENTS Page 1. General Information ----------------------------------------------------------------------- 3 2. Field Strength of Fundamental ---------------------------------------------------------- 6 3. Spurious Emission-------------------------------------------------------------------------- 11 4. Bandwidth of Operation Frequency---------------------------------------------------- 14 5. Transmission Time-------------------------------------------------------------------------- 16 6. Occupied Bandwidth----------------------------------------------------------------------- 17 7. Duty Cycle Correction Factor------------------------------------------------------------ 20 Report Number: F690501/RF-RTL006308-2 Page: 3 of 20 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - 400-2, Gomae-Dong, Giheung-Gu, Yongin-Shi, Kyungki-Do, South Korea 446-901 - Wireless Div. 3FL, 18-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea 435-040 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone : +82 31 428 5700 FAX : +82 31 427 2371 1.2. Details of Applicant Applicant : Omron Automotive Electronics Korea Co., Ltd. Address : Ace Techno 10-cha 701, 470-5, Gasan-dong, Geumcheon-gu, Seoul, 153-789, Korea Contact Person : Nam, Sang-Il Phone No. : +82 2 850 5789 Fax No. : +82 2 850 5808 1.3. Description of EUT Kind of Product RF Keyless Entry System (Transmitter) Model Name OKA-875T Serial Number N/A Power Supply DC 3.0 V (Lithium type of battery) Frequency Range Tx: 433.92 ㎒ Modulation Type FSK Number of Channels 1 Antenna Type Pattern Antenna 1.4. Details of Modification - N/A Report Number: F690501/RF-RTL006308-2 Page: 4 of 20 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea 1.5. Test Equipment List Equipment Manufacturer Model S/N Cal Date Cal Interval Cal Due. Signal Generator R&S SMR40 100540 Jan, 08, 2013 Annual Jan, 08, 2014 Spectrum Analyzer R&S FSV30 101004 Jul. 05, 2012 Annual Jul. 05, 2013 Spectrum Analyzer R&S FSV40 100007 Apr. 16, 2012 Annual Apr. 16, 2013 Preamplifier H.P. 8447D 1726A01265 Sep. 17, 2012 Annual Sep. 17, 2013 Preamplifier R&S SCU18 10070 Aug. 06, 2012 Annual Aug. 06, 2013 High Pass Filter Mini-Circuits NHP-400 VUU21201115-1 Aug.01, 2012 Annual Aug.01, 2013 Test Receiver R&S ESCI7 100778 Aug. 01, 2012 Annual Aug. 01, 2013 Bilog Antenna SCHWARZBECK MESSELEKTRONIK VULB9163 390 Apr. 19, 2012 Biennial Apr. 19, 2014 Horn Antenna R&S HF907 100208 Aug. 13, 2012 Biennial Aug. 13, 2014 Antenna Master INNCO SYSTEMS MA4000-EP N/A N/A N/A N.C.R. Turn Table INNCO SYSTEMS DT-3000S-3T N/A N/A N/A N.C.R. 10m Chamber SY Corporation L × W × H (21.5 m × 13.0 m × 9.0 m) N/A N/A N/A N.C.R. Controller INNCO SYSTEMS CONTROLLER CO2000 N/A N/A N/A N.C.R. Preamplifier MITEQ Inc. JS44-18004000-35-8P 1546891 Jul. 12, 2012 Annual Jul, 12, 2013 Horn Antenna R&S HF 906 100326 Nov. 23, 2011 Biennial Nov. 23, 2013 Antenna Master INN-CO MM4000 N/A N/A N/A N.C.R. Turn Table INN-CO DS 1200 S N/A N/A N/A N.C.R. Anechoic Chamber SY Corporation L × W × H (9.6 m × 6.4 m × 6.6 m) N/A N/A N/A Report Number: F690501/RF-RTL006308-2 Page: 5 of 20 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea 1.6. Summary of Test Results The EUT has been tested according to the following specifications: 15.APPLIED STANDARD Section in FCC 15 Section in RSS-210, RSS-Gen Test Item Result 15.209(a) 15.231(b) RSS-210, Issue 8, A1.1, Table B Radiated emission, Spurious Emission and Field Strength of Fundamental Complied 15.231(c) RSS-210, Issue 8, A1.1.3 Bandwidth of Operation frequency Complied 15.231(a) RSS-210, Issue 3, A1.1.1 Transmission Time Complied - RSS-Gen, Issue 3, 4.6.1 Occupied Bandwidth Complied 1.7 Test Report Revision Revision Report number Description 0 F690501/RF-RTL006308 Initial 1 F690501/RF-RTL006308-1 Cal date of 8447D(Preamp) was modified 2 F690501/RF-RTL006308-2 Antenna Type was revised (PCB Ant to Pattern Ant) Report Number: F690501/RF-RTL006308-2 Page: 6 of 20 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 8-34, Sanbon-dong, Gunpo-si, Gyeonggi-do, Korea, 435-040 Tel. +82 31 428 5700 / Fax. +82 31 427 2371 www.ee.sgs.com/korea 2. Field Strength of Fundamental 2.1. Test Setup The diagram below shows the test setup that is utilized to make the measurements for emission from 9 ㎑…

Text truncated - open the document above for the full version.

Test setup photo of EUT A. the photo of Radiated Emission
