OSLOKA-865TRF Keyless Entry System(Transmitter)

2. User's manual (provisionally) REMOTE TRANSMITTER You can lock, unlock and trunk your vehicle with the remote transmitter. LOCK When you push the LOCK button, all the doors will lock. You cannot lock any of the doors with the remote transmitter if any door is open or the key is the ignition switch. UNLOCK When you push the UNLOCK button, all the doors will unlock. You cannot unlock any of the doors with the remote transmitter if any door is open or the key is in the ignition switch. TRUNK When you push the TRUNK button, after 1s, TRUNK will open. Attention For use only with battery PANASONIC Battery corporation etc., Lithium cell (CR2032) LOCK UNLOCK Tail Gate OKA- 865T •Label Information This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications (including the antennas) made to this device that are not expressly approved by the manufacturer may void the user's authority to operate the equipment. Note : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications, However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ­ Reorient or relocate the receiving antenna. ­ Increase the separation between the equipment and receiver. ­ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ­ Consult the dealer or an experienced radio/TV technician for help. Modifications not expressly approved by the manufacturer could void the user’s authority to operated the equipment under FCC rules.

Date: 14 May, 2014 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Lab Manager Feel Jeong and of SGS Korea Co., Ltd and hereafter referred to as SGS Testing Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Feel Jeong of SGS Korea Co., Ltd on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a)comply with the relevant provisions of the certification program; b)make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c)make claims regarding certification only in respect of the scope for which certification has been granted; d)do not use our product certification in such a manner as to bring the Certification Division into disrepute andnot make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e)upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; Omron Automotive Electronics Korea Co., Ltd. Ace Techno 10-cha 701, 470-5, Gasan-dong, Geumcheon-gu, Seoul, 153-789, Korea Tel. 82-2-850-5789 Fax. 82-2-850-5808 f)(use certification only to indicate the products are certified as being in conformity with specified standards; g)endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h)ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i)keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j)take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k)document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, SANG-IL NAM /Manager /Omron Automotive Electronics Korea

Omron Automotive Electronics Korea Co., Ltd. 492, Gayul-Ri, Bogye-Myeon, Anseong-City, Kyonggi-Do, Korea Tel No.:82-31-670-2000Fax No.:82-31-670-2017 Sang IL Nam / Manager Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 Gentlemen: This letter is to comply with Section 0.457(d)(2)(i) and 0.459 pertaining to confidential material. We, Omron Automotive Electronics Korea Co., Ltd., would like the following documents regarding this submission for FCC ID: OSLOKA­865T to be kept confidential. We are also hereby request Short­Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04­1705. This provision will give Omron Automotive Electronics Korea Co., Ltd. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Temporary Confidential exhibits are listed as follows: The above material contains trade secrets or technical data, which would customarily be guarded from competitors.We do not want these documents to be accessible to the general public. Sincerely Yours,

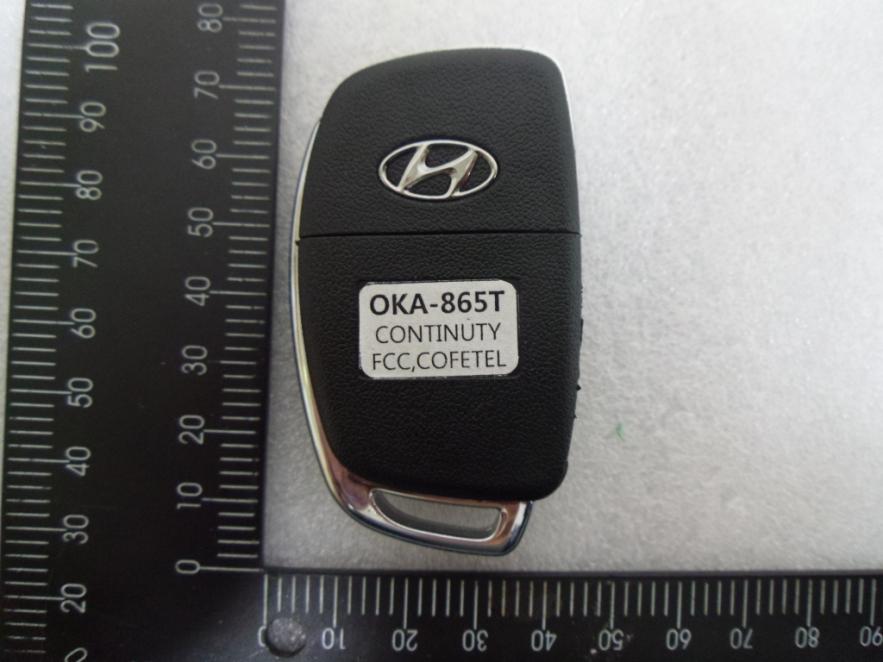

External photos of EUT Front view of EUT Rear view of EUT Top view of EUT Bottom view of EUT Side view of EUT

Head office : 492, Gayul-Ri, Bogye-Myeon, Anseong - City, Kyonggi-Do, Korea Tel: +82-31-670-2000 / Fax: +82-31-670-2017 [email protected] Omron Automotive Elective Electronics KoreaPage: 1 / 1 Label Sample & Location Label Information The following is a sample copy of the label that will be placed on Bottom side of the product. The FCC ID / IC No.is marked in the product label with model No. The product label is made of plastic material and below information is visible printed on the label. Because attached location label size of this product is better small. FCC/ICStatement described in this label is written the user manual UNEEDS Commerce Co.,Ltd. Product : RF Keyless Entry System (Transmitter) Model : OKA­865T FCC ID : OSLOKA­865T “Made in KOREA” 12mm 9mm

Internal photos of EUT Internal view of EUT Top view of Main PCB Bottom view of Main PCB Pattern Antenna

Report Number: F690501/RF-RTL007651 Page: 2 of 20 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) TABLE OF CONTENTS Page 1. General Information ----------------------------------------------------------------------- 3 2. Field Strength of Fundamental ---------------------------------------------------------- 6 3. Spurious Emission-------------------------------------------------------------------------- 11 4. Bandwidth of Operation Frequency---------------------------------------------------- 13 5. Transmission Time-------------------------------------------------------------------------- 15 6. Occupied Bandwidth----------------------------------------------------------------------- 17 7. Duty Cycle Correction Factor------------------------------------------------------------ 19 Report Number: F690501/RF-RTL007651 Page: 3 of 20 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1. General Information 1.1. Testing Laboratory SGS Korea Co., Ltd. (Gunpo Laboratory) - Wireless Div. 3FL, 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 All SGS services are rendered in accordance with the applicable SGS conditions of service available on request and accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx. Telephone : +82 31 428 5700 FAX : +82 31 427 2370 1.2. Details of Applicant Applicant : Omron Automotive Electronics Korea Co., Ltd. Address : 790-12, Bogaewonsam-ro, Bogae-myeon, Anseong-si, Gyeonggi-do, Korea Contact Person : Nam, Sang-il Phone No. : +82 2 850 5789 1.3. Description of EUT Kind of Product RF Keyless Entry System (Transmitter) Model Name OKA-865T Serial Number N/A Power Supply DC 3 V (Lithium type of battery) Frequency Range Tx: 433.92 ㎒ Modulation Type FSK Number of Channels 1 Antenna Type Pattern Antenna 1.4. Details of Modification - N/A Report Number: F690501/RF-RTL007651 Page: 4 of 20 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1.5. Test Equipment List Equipment Manufacturer Model S/N Cal Date Cal Interval Cal Due. Signal Generator R&S SMR40 100540 Jul. 03, 2013 Annual Jul. 03, 2014 Spectrum Analyzer R&S FSV30 100768 Jul. 20, 2013 Annual Jul. 20, 2014 Attenuator Mini-Circuits BW-N20W5+ 0950-4 Jan. 08, 2015 Annual Jan. 08, 2015 Preamplifier H.P. 8447D 2727A05297 Jul. 09, 2013 Annual Jul. 09, 2014 Preamplifier R&S AFS42-00101800-25-S 900699 Jul. 09, 2013 Annual Jul. 09, 2014 High Pass Filter Mini-Circuits NHP-800+ VUU16801113-2 Jul. 03, 2013 Annual Jul. 03, 2014 High Pass Filter MICROWAVE-CIRCUITS H03G12G3 0002DC0049 Jul. 02, 2013 Annual Jul. 02, 2014 Test Receiver R&S ESU8 100128 Feb. 11, 2014 Annual Feb. 11, 2015 Loop Antenna SCHWARZBECK FMZB 1519 1519-039 Jul. 09, 2013 Biennial Jul. 09, 2015 Bilog Antenna SCHWARZBECK VULB9163 9163-437 Jun. 11, 2013 Biennial Jun. 11, 2014 Horn Antenna R&S HF906 100608 Jun. 13, 2013 Biennial Jun. 13, 2014 Antenna Master INNCO SYSTEMS MA4000-EP N/A N/A N/A N.C.R. Turn Table INNCO SYSTEMS DT-3000S-3T N/A N/A N/A N.C.R. 10m Chamber SY Corporation L × W × H (21.5 m × 13.0 m × 9.0 m) N/A N/A N/A N.C.R. Controller INNCO SYSTEMS CONTROLLER CO2000 N/A N/A N/A N.C.R. Report Number: F690501/RF-RTL007651 Page: 5 of 20 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 1.6. Summary of Test Results The EUT has been tested according to the following specifications: APPLIED STANDARD Section in FCC Part 15 Test Item Result 15.209(a) 15.231(b) Radiated emission, Spurious Emission and Field Strength of Fundamental Complied 15.231(c) Bandwidth of Operation frequency Complied 15.231(a) Transmission Time Complied - Occupied Bandwidth Complied 1.7. Test Report Revision Revision Report number Date of issue Description 0 F690501/RF-RTL007651 2014.05.13 Initial Report Number: F690501/RF-RTL007651 Page: 6 of 20 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Korea Co., Ltd. (Gunpo Laboratory) 4, LS-ro 182beon-gil, Gunpo-si, Gyeonggi-do, Korea, 435-040 http://www.sgsgroup.kr RTT5041-20(2014.01.20)(2) Tel. +82 31 428 5700 / Fax. +82 31 427 2370 A4(210 mmx297 mm) 2. Field Strength of Fundamental 2.1. Test Setup The diagram below shows the test setup that is utilized to make the measurements for emission from 8 ㎒ to 30 ㎒ Emissions. The diagram below shows the test setup that is utilized to make the measurements for emission from 30 ㎒ to 1 ㎓ Emissions. Report Number: F690501/RF-RTL007651 Page: 7 of 20 The results shown in this test report refer only to the sample(s) teste…

Text truncated - open the document above for the full version.

Test setup photo of EUT A. Photo of Test setup (8 ㎒ ~ 30 ㎒) B. Photo of Test setup (30 ㎒ ~ 1 ㎓) C. Photo of Test setup (1 ㎓ ~ 4.5 ㎓)
