OSLOKA-870TRF Keyless Entry System (Transmitter)

Omron Automotive Electronics KoreaPage1 / 7 User Manual RF Keyless Entry System (OKA-870T) Omron Automotive Electronics KoreaPage2 / 7 Table of contents 1. USER INFORMATION ..........................................3 2. GENERAL DESCRIPTIONS................................... 4 3. REMOTE TRANSMITTER ..................................... 5 4. SPECIFICATIONS ............................................... 6 5. FEATURES ........................................................ 7 Omron Automotive Electronics KoreaPage3 / 7 1. USER INFORMATION •Label Information This device complies with the FCC and IC Rules. Operation is subject to the following two conditions ; (1) This device may not cause harmful interference. (2) This device must accept any interference received. Including interference that may cause undesired operation. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. •User’s Caution The manufacturer is not responsible for any radio or TVinterference caused by unauthorized modifications tothis equipment. Such modifications could void the user’s authority tooperatethe equipment. This device and its antenna(s) must not be co-located or operating in conjunction withany other antenna or transmitter except in accordance withFCCand IC multi- transmitter product procedures. Omron Automotive Electronics KoreaPage4 / 7 2. GENERAL DESCRIPTION The radio frequency keyless entry is a system that it controls locking and unlocking the door and the trunk by wireless remote controller. This system consists of three components. The TRANSMITTER is a device that transmits the signal when the button is pressed. The transmission signal consists of several synchronous codes , unique identification code , security code and function code. The RECEIVER is fixed inside the vehicle. It works intermittently to prevent the battery exhaustion. When the receiver detects the synchronous code, it runs continuously to receive the signals completely. After receiving the signal, the receiver decides whichoperation will be performed. The user can select the following operations by pressing the button of the remote transmitter. OPERATIONACTION LOCKLock the Door UNLOCKUnlock the Door TRUNKOpen the Trunk PANIC Omron Automotive Electronics KoreaPage5 / 7 3. REMOTE TRANSMITTER You can lock and unlock your vehicle with the remote transmitter. You cannot lock any of the doors with the remote transmitter if any door is open or the key is the ignition switch. •LOCK : When you push the LOCK button, all the doors will lock. •UNLOCK : When you push the UNLOCK button, all the doors will unlock. You cannot unlock any of the doors with the remote transmitter if any door is open or the key is in the ignition switch. •TRUNK : When you push the TAIL GATE button for 1.0sec, It will open. •PANIC : When you push the PANIC button, horn will alarm. Omron Automotive Electronics KoreaPage6 / 7 4. SPECIFICATION 4-1. RF Part 4-2. Control Part 4-3. The other Operating frequency313.850 MHz Oscillation typeX-TAL Modulation typeFSK(Frequency shift keying) Bit transmission rate1 000 bps Clock frequency8 MHz Communication typeSimplex CPUuPD78F0567MC ROM4 Kbytes RAM128 bytes Txbit rate1 000 bps EEPROM32 bytes Package20 pin SSOP Manufacturer : RENESASCorporation EEPROM32 bytes Package20 pin SSOP Dimension39.1(W)mm×70.9(L)mm×17.0(D)mm Weigh56g BatteryLithium cell coin (CR2032) Manufacturer PANASONICBattery corporation Operation VoltageDC3V Manufacturer PANASONICBattery corporation Operation VoltageDC3V Operating Temp’-20°C∼+60°C Omron Automotive Electronics KoreaPage7 / 7 5. FEATURES Transmission frame. The transmission begins immediately in case of LOCK and UNLOCK, PANIC button is pressed. The transmission frame consists of the synchronous frame and the data frame. The synchronous frame has 320bit synchronous codes that it will be used for the receiver to wake up. The data frame consists of 24bit length identification code, 16bit security code and 4bit function code and 8bit CRC code. 16million different identification codes are available. The security code is always changed in case of any of the buttons is pressed. The transmission time is typically 300 milliseconds.

Date: May 08, 2012 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 c.c. Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Lab Manager Jim. Kim and of SGS Korea Co., Ltd and hereafter referred to as SGS Testing Korea, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Lab Manager Jim. Kim of SGS Korea Co., Ltd on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing SGS Korea as our agent, we still recognize that we are responsible to: a)comply with the relevant provisions of the certification program; b)make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c)make claims regarding certification only in respect of the scope for which certification has been granted; d)do not use our product certification in such a manner as to bring the Certification Division into disrepute andnot make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e)upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; Omron Automotive Electronics Korea Co., Ltd. Ace Techno 10-cha 701, 470-5, Gasan-dong, Geumcheon-gu, Seoul, 153-789, Korea Tel. 82-2-850-5789 Fax. 82-2-850-5808 f)(use certification only to indicate the products are certified as being in conformity with specified standards; g)endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h)ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i)keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j)take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k)document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, SANG-IL NAM /Manager /Omron Automotive Electronics Korea

Omron AutomotiveElectiveElectronics Korea 492, Gayul-Ri, Bogye-Myeon, Anseong-City, Kyonggi-Do, Korea Tel No.:82-31-670-2000FaxNo.:82-31-670-2017 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: OSLOKA­870T Pursuant toSections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type 1. Block diagram 2. Schematicdiagram 3. Operational Description The above materials containtrade secrets and proprietary information not customarilyreleased to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits toits competitors. The applicant understands that pursuant to Section 0.457 and 0.459 of the Rules, disclosure of this application and all accompanying documentation willnot be made before the date of the Grant for this application. Sincerely, Sang IL Nam/ Manager

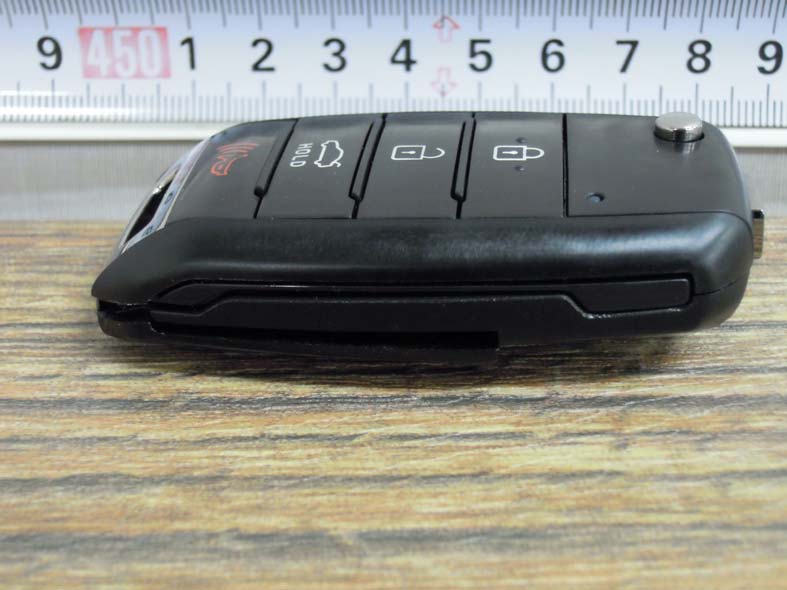

Head office : 492, Gayul-Ri, Bogye-Myeon, Anseong -City, Kyonggi-Do, Korea Tel: +82-31-670-2000 / Fax: +82-31-670-2017 www.omronoka.co.kr [email protected] Omron Automotive Electronics Korea Co.,Ltd. Page: 1 / 3 Photographs of EUT [External View] Front Rear Head office : 492, Gayul-Ri, Bogye-Myeon, Anseong -City, Kyonggi-Do, Korea Tel: +82-31-670-2000 / Fax: +82-31-670-2017 www.omronoka.co.kr [email protected] Omron Automotive Electronics Korea Co.,Ltd. Page: 2 / 3 Photographs of EUT [External View] Right Left Head office : 492, Gayul-Ri, Bogye-Myeon, Anseong -City, Kyonggi-Do, Korea Tel: +82-31-670-2000 / Fax: +82-31-670-2017 www.omronoka.co.kr [email protected] Omron Automotive Electronics Korea Co.,Ltd. Page: 3 / 3 Photographs of EUT [External View] To p Bottom

Head office : 492, Gayul-Ri, Bogye-Myeon, Anseong - City, Kyonggi-Do, Korea Tel: +82-31-670-2000 / Fax: +82-31-670-2017 [email protected] Omron Automotive Elective Electronics KoreaPage: 1 / 1 Label Sample & Location Label Information The following is a sample copy of the label that will be placed on Bottom side of the product. The FCC ID / IC No.is marked in theproduct label with model No. Theproduct label is made of plastic material and below informationis visible printedon thelabel. Because attached locationlabel size of thisproduct is bettersmall.FCC/ICStatement describedin thislabel is writtentheusermanual UNEEDS CommerceCo.,Ltd. Product : RF Keyless Entry System (Transmitter) Model: OKA­870T FCCID: OSLOKA­870T IC : 850F­OKA870T “MadeinKOREA” Label location The label shown above shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase. The label is affixed with permanent adhesive to the enclosure and can not be readily detachable. Thelabel is located here. 12mm 9mm

Head office : 492, Gayul-Ri, Bogye-Myeon, Anseong - City, Kyonggi-Do, Korea Tel: +82-31-670-2000 / Fax: +82-31-670-2017 www.omronoka.co.kr [email protected] Omron Automotive Electronics Korea Co.,Ltd. Page: 1 / 2 Photographs of EUT [Internal View] Main board (Front) Main board (Front) Head office : 492, Gayul-Ri, Bogye-Myeon, Anseong - City, Kyonggi-Do, Korea Tel: +82-31-670-2000 / Fax: +82-31-670-2017 www.omronoka.co.kr [email protected] Omron Automotive Electronics Korea Co.,Ltd. Page: 2 / 2 Photographs of EUT [Internal View] Removed housing Blank

Head office & Test Lab: 180-254, Annyeong-dong, Hwaseong-si, Gyeonggi-do, South korea 445-380 Tel: +82-31-222-4251 / Fax: +82-31-222-4252 www.kosteclab.com [email protected] Report No: KST-FCR-120001 Page: 1 / 21 KST-FCR-RFS-Rev.0.1 This report shall not be reproduced except in full without the written approval of KOSTEC Co., Ltd. TEST REPORT Report No: KST-FCR-120001 Applicant Name Omron Automotive Electronics Korea Co., Ltd. Address 492, Gayul-Ri, Bogye-Myeon, Anseong-City, Kyonggi-Do, Korea Manufacturer Name Omron Automotive Electronics Korea Co., Ltd. Address 492, Gayul-Ri, Bogye-Myeon, Anseong-City, Kyonggi-Do, Korea Equipment Name RF Keyless Entry System(Transmitter) Model No OKA-870T Usage Car door remote controller Test Standard FCC Part15, Subpart C §15.231 RSS-210 A1.1 (Issue 8, December 2010), RSS-Gen (Issue 3, December 2010) Test Date(s) 2012. 4. 26 ~ 2012. 4. 30 Issue Date 2012. 5. 02 Test Result Compliance Supplementary Information The device bearing the brand name specified above has been shown to comply with the applicable technical standards as indicated in the measurement report and was tested in accordance with measurement procedures specified in ANSI C 63.4-2009. within the scope of the FCC Rule. We attest to the accuracy of data and all measurements reported herein were performed by KOSTEC Co., Ltd. and were made under Chief Engineer’s supervision. We assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. Tested by Mi Young, Lee Approved by Gyeong Hyeon, Park Signature Signature Head office & Test Lab: 180-254, Annyeong-dong, Hwaseong-si, Gyeonggi-do, South korea 445-380 Tel: +82-31-222-4251 / Fax: +82-31-222-4252 www.kosteclab.com [email protected] Report No: KST-FCR-120001 Page: 2 / 21 KST-FCR-RFS-Rev.0.1 This report shall not be reproduced except in full without the written approval of KOSTEC Co., Ltd. Table of Contents 1. GENERAL INFORMATION .............................................................................................................. 3 1.1 Test Facility ............................................................................................................................................... 3 1.2 Location .................................................................................................................................................... 3 2. EQUIPMENT DESCRIPTION ........................................................................................................... 4 3. SYSTEM CONFIGURATION FOR TEST ......................................................................................... 5 3.1 Device characteristics .............................................................................................................................. 5 3.2 Configuration of EUT ................................................................................................................................ 5 3.3 Product Modification ................................................................................................................................. 5 3.4 Operating Mode ........................................................................................................................................ 5 3.5 Used Test Equipment List ......................................................................................................................... 6 4. SUMMARY TEST RESULTS ............................................................................................................ 8 5. MEASUREMENT RESULTS ............................................................................................................ 9 5.1 20 dB and 99% Occupied bandwidth ....................................................................................................... 9 5.2 Limited transmitting time ........................................................................................................................ 11 5.3 Fundamental E-field strength emissions ................................................................................................ 13 5.4 Spurious E-field strength emissions ....................................................................................................... 17 5.5 Antenna requirement .............................................................................................................................. 20 Appendix. Photographs of test setup ........................................................................................................... 21 Head office & Test Lab: 180-254, Annyeong-dong, Hwaseong-si, Gyeonggi-do, South korea 445-380 Tel: +82-31-222-4251 / Fax: +82-31-222-4252 www.kosteclab.com [email protected] Report No: KST-FCR-120001 Page: 3 / 21 KST-FCR-RFS-Rev.0.1 This report shall not be reproduced except in full without the written approval of KOSTEC Co., Ltd. 1. GENERAL INFORMATION 1.1 Test Facility Test laboratory and address KOSTEC Co., Ltd. 180-254, Annyeong-dong, Hwaseong-si, Gyeonggi-do, South Korea The open area field test site and conducted measurement facility are used for these testing. This site at was fully described in a reports submitted to the Federal Communications Commission (FCC). The details of these reports have been found to be in complies with the requirements of Section 2.948 of the FCC Rules on November 14, 2002. The facility also complies with the radiated and conducted test site criteria set forth in ANSI C63.4-2003. The Federal Communications Commission (FCC) has the reports on file and KOSTEC Co., Ltd. is listed under FCC Registration No.525762. The test site has been approved by the FCC for public use and is List in the FCC Public Access Link CORES (Commission Registration System) Registration information KCC (Korea Communications Commission) Number : KR0041 KOLAS(Korea laboratory accreditation Scheme) Number : 232 FCC Registration Number(FRN) : 525762 IC C…
