OSLOKA-310TRF Keyless Entry System

FCC Compliance Statements NOTE : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates ,uses and can radiate radio frequency energy and ,if not installed and used in accordance with the instruction , may cause harmful interference to radio communication. However , there is no guarantee that interference will not occur in a particular installation. If this equipment dose harmful interference to radio or television reception ,which can be determined by turning the equipment off and on. The user is encouraged to try to correct the interference by one or more of the following measures : Reorient or relocate the receiving antenna - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio / TV technician for help. Warning : Your are cautioned that any change or modifications to the equipment not prissily approved by the party responsible for compliance could void your authority to operate such equipment.

Report No: BWS-04-RF-0006 FCC ID : OSLOKA-310T Date of Test : February 28, 2004 Appendix 5. Block Diagram Omron Automotive Electronics Korea Co, Ltd RF Keyless Entry System OKA-310T

Report No: BWS-04-RF-0006 FCC ID : OSLOKA-310T Date of Test : February 28, 2004 Appendix 3. External Photographs of EUT Front of EUT Rear of EUT Omron Automotive Electronics Korea Co, Ltd RF Keyless Entry System OKA-310T

Report No: BWS-04-RF-0006 FCC ID : OSLOKA-310T Date of Test : February 28, 2004 Appendix 2. FCC ID Label and location Product Label Sample with FCC ID Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC identifier is marked in the product label. The warning statement and Information to the User are described in the user manual. Label Location The label shown above shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase(Labeling requirements per 2.925). This device complies with part 15 of the FCC rules. Operation is subject to the following conditions: (1) This devices may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation. Model No : OKA-310T FCC ID : OSLOKA-310T Omron Automotive Electronics Korea Co, Ltd Made in Korea FCC Label Omron Automotive Electronics Korea Co, Ltd RF Keyless Entry System OKA-310T

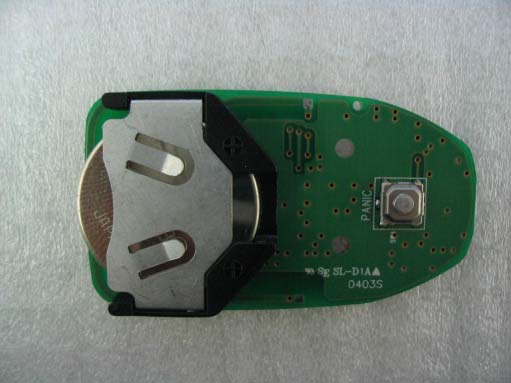

Report No: BWS-04-RF-0006 FCC ID : OSLOKA-310T Date of Test : February 28, 2004 Appendix 4. Internal Photographs of EUT Omron Automotive Electronics Korea Co, Ltd RF Keyless Entry System OKA-310T Report No: BWS-04-RF-0006 FCC ID : OSLOKA-310T Date of Test : February 28, 2004 Omron Automotive Electronics Korea Co, Ltd RF Keyless Entry System OKA-310T

Report No: BWS-04-RF-0006 FCC ID : OSLOKA-310T Date of Test : February 28, 2004 Appendix 8. Description of RF Omron Automotive Electronics Korea Co, Ltd RF Keyless Entry System OKA-310T

Report No: BWS-04-RF-0006 FCC ID : OSLOKA-310T Date of Test : February 28, 2004 Appendix 7. Circuit Diagram Omron Automotive Electronics Korea Co, Ltd RF Keyless Entry System OKA-310T

Report No: BWS-04-RF-0006 FCC ID : OSLOKA-310T Date of Test : February 28, 2004 Electromagnetic Emission FCC MEASUREMENT REPORT FCC PART 15 SUBPART C FOR LOW POEWR TRANSMITTER PRODUCT : RF Keyless Entry System MODEL/TYPE NO : OKA-310T FCC ID : OSLOKA-310T TRADE NAME : Omron APPLICANT : Omron Automotive Electronics Korea Co, Ltd 481-2, Kasan-Dong, Kumchun-Ku, Seoul, 153-023, South Korea Attn. : Young-Jea, Seo / General Manager FCC CLASSIFICATION : DSC- Part 15 RF Control/Security device Transmitter FCC RULE PART(S) : FCC Part 15 Subpart C Section 15.231 FCC PROCEDURE : Certification DATES OF TEST : February 27, 2004 DATES OF ISSUE : February 28, 2004 TEST REPORT No. : BWS-04-RF-0006 TEST LAB. : BWS Tech., Inc. (Registration No. : 553281) This RF Keyless entry system has been tested in accordance with the measurement procedures specified in ANSI C63.4-2000 at the BWS TECH/EMC Test Laboratory and has been shown to be complied with the electromagnetic radiated emission limits specified in FCC Rule Part15 Subpart C Section15.231 I attest to the accuracy of data. All measurement herein was performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system, which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Lee Young-Soo Chief of Laboratory Division BWS TECH Inc. BWS TECH Inc. www.bws.co.kr 294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do, 464-080, Korea TEL: +82 31 762 0124 FAX: +82 31 762 0126 BWS TECH Inc. 1 of 16 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea Omron Automotive Electronics Korea Co, Ltd RF Keyless Entry System OKA-310T Report No: BWS-04-RF-0006 FCC ID : OSLOKA-310T Date of Test : February 28, 2004 TABLE OF CONTENTS Pages 1. General Information 3 2. Description of Test Facility 4 3. Product Information 5 4. Description of Tests 6~7 5. Test Condition 8~9 6. Test Results 10~16 7. Sample Calculation and Other Information 18 8. Test Equipment List 19 Appendix 1. Test Setup Photos Appendix 2. FCC ID Label and location Appendix 3. External Photos of EUT Appendix 4. Internal Photos of EUT Appendix 5. Block Diagram Appendix 6. Schematics Appendix 7. Operational Description Appendix 8. User Manual BWS TECH Inc. 2 of 16 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea Omron Automotive Electronics Korea Co, Ltd RF Keyless Entry System OKA-310T Report No: BWS-04-RF-0006 FCC ID : OSLOKA-310T Date of Test : February 28, 2004 FCC TEST REPORT Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) 1. General Information Applicant Manufacturer Company Name : Omron Automotive Electronics Korea Co, Ltd Company Address : 481-2, Kasan-Dong, Kumchun-Ku, Seoul, 153-023, South Korea Phone/Fax : Phone : +82-2-850-5747Fax : +82-2-850-5808 Company Name : Omron Automotive Electronics Korea Co, Ltd Company Address : 481-2, Kasan-Dong, Kumchun-Ku, Seoul, 153-023, S : P outh Korea Phone/Fax hone : +82-2-850-5747Fax : +82-2-850-5808 z EUT Type : RF Keyless Entry System z Model Number : OKA-310T z FCC Identifier : OSLOKA-310T z S/N : Prototype z Freq. Range : 313.85 MHz z Channel : 1 ch z Modulation Method : FSK z FCC Rule Part(s) : Part 15 Subpart C Section 15.231 z Test Procedure : ANSI C63.4-2000 z Dates of Tests : February 04, 2004 z Place of Tests : BWS TECH Inc. EMC Testing Lab (FCC Registration Number : 553281) 294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do, 464-080, Korea TEL: +82 31 762 0124 FAX: +82 31 762 0126 z Test Report No. zBWS-04-RF-0006 BWS TECH Inc. 3 of 16 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea Omron Automotive Electronics Korea Co, Ltd RF Keyless Entry System OKA-310T Report No: BWS-04-RF-0006 FCC ID : OSLOKA-310T Date of Test : February 28, 2004 2. Description of Test Facility The measurement for radiated emission test were practiced at the open area test site of BWS TECH Inc. Measurement for conducted emission test were practiced at the semi EMC Anechoic Chamber test site of BWS TECH Inc. facility located at 294-9, Jungdae-Dong, Kwangju-Si, Kyunggi-Do, Korea. The site is constructed in conformance with the requirements of the ANSI C63.4-2000 and CISPR Publication 16. The BWS TECH measurement facility has been filed to the Commission with the FCC for 3 and 10-meter site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-1992 and registered to the Federal Communications Commission (Registration Number : 553281 ). The measurement procedure described in American National Standard for Method of Measurement of Radio-Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C.63.4-2000) was used in determining radiated emissions from the Omron Automotive Electronics Korea Co, Ltd. RF keyless entry system Model : OKA-310T. BWS TECH Inc. 4 of 16 294-9 Jungdae-Dong, Kwanggu-Si,Kyunggi-Do, 464-800, Korea Omron Automotive Electronics Korea Co, Ltd RF Keyless Entry System OKA-310T Report No: BWS-04-RF-0006 FCC ID : OSLOKA-310T Date of Test : February 28, 2004 3. Product Information 3.1 Equipment Description The Equipment Under Test (EUT) is RF transmitter by the Omron Automotive Electronics Korea Co, Ltd RF keyless entry system model: OKA-310T (FCC ID: OSLOKA-310T). This product is transmitter that it controls locking and unlocking the door of a vehicle and alarm the horn by wireless remote controller. 3.2 General Specification - Carrier Frequency 313.85 MHz - Frequency genera…

Text truncated - open the document above for the full version.

Report No: BWS-04-RF-0006 FCC ID : OSLOKA-310T Date of Test : February 28, 2004 Appendix 1. Test Setup Photographs Radiated Emission Test Setup Omron Automotive Electronics Korea Co, Ltd RF Keyless Entry System OKA-310T
