OSLOKA-315RRF Keyless Entry System (Receiver)

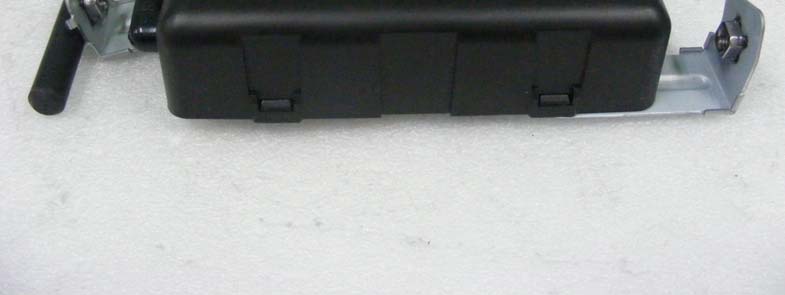

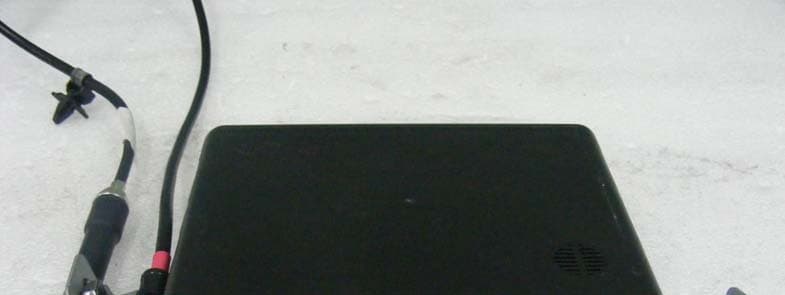

Report No. : F690501/RF-EMG001246 Page : 11 of 13 4. Photographs of Product z Front View of Product z Rear View of Product

FCC/IC ID LABEL 1. FCC/IC ID label drawing & location

Report No. : F690501/RF-EMG001246 Page : 12 of 13 z Top View of Main Board z Bottom View of Main Board Report No. : F690501/RF-EMG001246 Page : 13 of 13 z Inside

Report No. : F690501/RF-EMG001246 Page : 2 of 13 Contents 1. General Information.............................................................. 3 1.1 Applicant & Manufacturer Information........................................... 3 1.2 General Description of EUT.................................................... 3 1.3 Details of EUT...............................................................3 1.4 Description of Support Units................................................... 3 1.5 Cable List................................................................... 3 1.6 System Configuration......................................................... 3 1.7 Test Set-Up Configuration..................................................... 4 1.8 Measurment Procedure....................................................... 4 1.9 Standards Applicable for Testing............................................... 4 1.10 Summary of Results......................................................... 4 2. RADIO DISTURBANCE.......................................................... 5 2.1 Test Results................................................................. 5 2.2 Frequency Range............................................................ 5 2.3 Limits Of Conducted And Radiated Emission..................................... 5 2.3.1 Limit Of Conducted Emission Of FCC Part 15.107............................ 5 2.3.2 Limit Of Radiated Emission Of FCC Part 15.109.............................. 5 2.5 Test of Radiated Emission..................................................... 7 2.5.1 Test Instruments......................................................... 7 2.5.2 Test Site................................................................7 2.5.3 Operating Environment.................................................... 7 2.5.4 Measurement Data....................................................... 7 3. Photographs of Test............................................................. 8 4. Photographs of Product......................................................... 11 Report No. : F690501/RF-EMG001246 Page : 3 of 13 1. General Information 1.1 Applicant & Manufacturer Information Applicant : Omron Automotive Electronics Korea Co., Ltd. Address of Applicant : Ace Techno 10-cha 701, 470-5, Gasan-dong, Geumcheon-gu, Seoul, 153-789, Korea Manufacturer : Omron Automotive Electronics Korea Co., Ltd. Address of Manufacturer : Ace Techno 10-cha 701, 470-5, Gasan-dong, Geumcheon-gu, Seoul, 153-789, Korea 1.2 General Description of EUT Product Name : RF Keyless Entry System (Receiver) Model No. : OKA-315R Serial No : None 1.3 Details of EUT Tested Power Supply : DC 12 V Description of Operating : RX Mode and Idle 1.4 Description of Support Units Product Model No. Serial No. Manufacturer Code Cheker N/A N/A N/A 1.5 Cable List Start END Cable Spec. Name I/O Port Name I/O Port Length Shield EUT DC In Code Checker - 3.2 Unshielded Sync. Code Checker - 3.2 Unshielded Ant. Antenna - 0.5 Shield 1.6 System Configuration Description Model Serial No. Manufacturer Main Board JM-ETACS-08MY N/A Omron Automotive Electronics Korea Co., Ltd. Report No. : F690501/RF-EMG001246 Page : 4 of 13 1.7 Test Set-Up Configuration 1.8 Measurment Procedure Conducted Emission Testing was performed according ANSI C63.4:2003 in a shielded room with peripherals placed on a table, 0.8m high over a metal floor. It was located more than required distance away from the shielded room wall. Radiated Emission Testing was performed according to ANSI C63.4:2003 at the open field test site. The EUT was placed in a 0.8m high table along with the peripherals. The turn table was separated from the antenna distance 3 meters. Cables were placed in a position to produce maximum emissions as determined by experimentation, and operation mode was selected for maximum. The frequencies and amplitudes of maximum emission were measured at varying azimuths, antenna heights and antenna polarities. Reported are maximized emission levels. 1.9 Standards Applicable for Testing Table of tests to be carried out under FCC Part 15, Subpart B, CLASS B Test Standards Status FCC Part 15, Subpart B, Class B Applicable Deviation from Standard No Deviation 1.10 Summary of Results The data collected shows that Model OKA-315R complies with of the FCC Part 15, Subpart B Rules. Code Checker EUT Antenna Report No. : F690501/RF-EMG001246 Page : 5 of 13 Radio Disturbance 2. RADIO DISTURBANCE 2.1 Test Results Results Conducted Emission N/A Radiated Emission PASS 2.2 Frequency Range Conducted Emission : 150 kHz - 30 MHz Radiated Emission : 30 MHz - 1000 MHz 2.3 Limits Of Conducted And Radiated Emission 2.3.1 Limit Of Conducted Emission Of FCC Part 15.107 Class A (dBuV) Class B (dBuV) FREQUENCY (MHz) Quasi - peak Average Quasi - peak Average 0.15 - 0.5 79 66 66 - 56 56 - 46 0.50 - 5.0 73 60 56 46 5.0 - 30.0 73 60 60 50 Note : (1) The lower limit shall apply at the transition frequencies. (2) The limit decreases linearly with the logarithm of the frequency in the range 0.15 to 0.50 MHz. (3) All emanation from a class A/B digital device or system, including any network of conductors and apparatus connected there to, shall not exceed the level of field strengths specified above. 2.3.2 Limit Of Radiated Emission Of FCC Part 15.109 Class A (at 10m)* Class B (at 3m)* FREQUENCY (MHz) uV/m(dBuV/m) uV/m(dBuV/m) 30 - 88 90(39) 100(40) 88 - 216 150(43.5) 150(43.5) 216 - 960 210(46.5) 200(46) Above 960 300(49.0) 500(54) Note : (1) *Detector Function : Quasi-Peak (2) Emission level (dBuV/m) = 20 log Emission level (uV/m). Report No. : F690501/RF-EMG001246 Page : 8 of 13 3. Photographs of Test z Front View of Conducted Emission N/A z Rear View of Conducted Emission N/A Report No. : F690501/RF-EMG001246 Page : 9 of 13 z Front View of Radiated Emission (30 MHz - 1000 MHz) z Rear View of Radiated Emission (30 MHz - 1000 MHz) Report No. : F690501/RF-EMG001246 Page : 10 of 13 z Front View of Radiated Emission (Above 1000 MHz) z Rea…

Text truncated - open the document above for the full version.

Report No. : F690501/RF-EMG001246 Page : 8 of 13 3. Photographs of Test z Front View of Conducted Emission N/A z Rear View of Conducted Emission N/A Report No. : F690501/RF-EMG001246 Page : 9 of 13 z Front View of Radiated Emission (30 MHz - 1000 MHz) z Rear View of Radiated Emission (30 MHz - 1000 MHz) Report No. : F690501/RF-EMG001246 Page : 10 of 13 z Front View of Radiated Emission (Above 1000 MHz) z Rear View of Radiated Emission (Above 1000 MHz)
