OSLOKA-320TRemote Keyless Entry System

Omron Automotive Electronics Korea Co., Ltd.

Click to zoom

Application Details

Equipment Class: DSC - Part 15 Security/Remote Control Transmitter
Date of Grant: Oct 27, 2004
Application Purpose: Original Equipment
Date of Application: Oct 27, 2004
Equipment Note: Remote Keyless Entry System
Frequency Range: 313.85000000 - 313.85000000
Company: Omron Automotive Electronics Korea Co., Ltd.
Country: South Korea

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Cover Letter(s)

Omron Automotive Electronics Korea Co., Ltd. #481-2, Kasan-Dong, Kumchun-Ku, Seoul, 153-023, Korea Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Section 0.457(d)(2)(i) pertaining to confidential material. Omron Automotive Electronic Korea Co., Ltd. would like the following documents regarding this submission for FCC ID: OSLOKA-320T to be kept confidential. 1. Schematics 2. Part List The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Moon-won song / Manager

External Photos

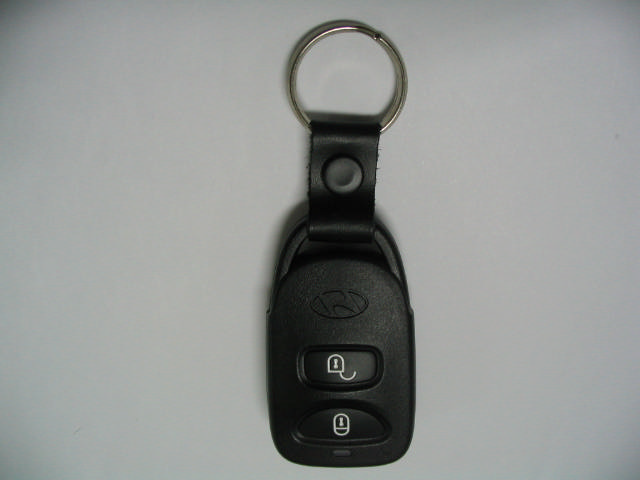

View of EUT Rear View of Product

ID Label/Location Info

FCC ID LABEL 1. FCC ID label drawing 2. FCC ID label location - Rear side of set Omron Automotive Electronics Korea Co., Ltd Model : OKA-320T FCC ID : OSLOKA-320T Made in Korea This device complies with part 15 of the FCC rules. Operation is subject to the following conditions: (1)This devices may not cause harmful interference, and (2)this device must accept any interference received including interference that may cause undesired operation

Internal Photos

Inner View of Product Inner View of Product

Test Report

VERIFICATION OF COMPLIANCE Omron Automotive Electronics Korea Co., Ltd. Remote Keyless Entry System - OKA-320T STROR-04-013 APPLICABLE STANDARDS 1. General Description of EUT 2. General Information of EUT 3. Test Procedure 3.1 Conducted Emission 3.2 Radiated Emission 4. Test Condition 4.1 Test Configuration 4.2 EUT Operation 4.3 Peripherals / Support Equipment Used 5. Field Strength of the Carrier FCC Part 15,Subpart C,Section15.231(b) Test Equipment Used Spectrum analyzer H/P 8593E Aug. 2005 Test Receiver Rohde & Schwarz ESVS 10 Jun. 2005 Log-periodic Rohde & Schwarz UHALP9107 Jan. 2005 6. Spurious Emission FCC Part 15,Subpart C,Section15.231(b) Test Equipment Used Spectrum analyzer H/P 8593E Aug. 2005 Test Receiver Rohde & Schwarz ESVS 10 Jun. 2005 Log-periodic Antenna Rohde & Schwarz UHALP9107 Jan. 2005 Horn Antenna Schwarzbeck BBHA9120D(0600) Jul. 2006 7. Bandwidth of Operation Frequency FCC Part 15,Subpart C,Section15.231(c) Test Equipment Used Spectrum analyzer H/P 8593E Aug. 2005 Test Receiver Rohde & Schwarz ESVS 10 Jun. 2005 Log-periodic Antenna Rohde & Schwarz UHALP9107 Jan. 2005 8. Transmission Time FCC Part 15,Subpart C,Section15.231(a) (1) Test Equipment Used Spectrum analyzer H/P 8593E Aug. 2005 Test Receiver Rohde & Schwarz ESVS 10 Jun. 2005 Log-periodic Antenna Rohde & Schwarz UHALP9107 Jan. 2005 9. Attachment A – Photos of the test set up 10. Attachment B – Photos of the EUT View of EUT Rear View of Product Inner View of Product Inner View of Product

Test Setup Photos

Photos of the test set up
