OSLOKA-351RRF Keyless Entry System (Receiver)

Omron Automotive Electronics Korea Co., Ltd. #481-2, Kasan-Dong, Kumchun-Ku, Seoul, 153-023, Korea Date: Jan. 10, 2006 MET Laboratories, Inc. Certification Division 914 W. Patapsco Ave. Baltimore, Maryland, 21230-3432, USA To whom it may concern: We, the undersigned, hereby authorize SGS Testing Korea Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by SGS Testing Korea Co., Ltd. on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). In authorizing SGS Testing Korea Co., Ltd. as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Moon-Won Song / Manager /Omron Automotive

DOC-FCC009 4/14/2005 Page 1 of 3 FEDERAL COMMUNICATIONS COMMISSION - FCC FORM 731 APPLICATION FOR EQUIPMENT AUTHORIZATION Approved by OMB 3060 - 0934 Expires 02/28/2005 Item 1. Applicant's complete, legal business name: Omron Automotive Electronics Korea Co., Ltd. Item 2. Applicant's mailing address Line 1: 481-2, Kasan-Dong, Kumchun-Gu, Line 2: P.O.Box: City: Seoul State: Country (if foreign address): South Korea Zip/Postal Code: 153-023 Item 3. FCC ID: OSLOKA-351R Grantee code: OSL Equipment Product Code (14 characters maximum): OKA-351R FCC Registration Number (FRN): 0006657183 Item 4. Person at the applicant's address to receive grant or for contact: First Name: Moon-Won Mail Stop: Last Name: Song Telephone: 82-2-850-5796 Ext: Title: Manager E-mail: [email protected] Fax No: 82-2-850-5808 Item 5. Instead of Applicant, the original Grant is authorized to be mailed to: SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo-city, Gyeonggi-do, 435-040, South Korea James Kwon (T. 82314285740, [email protected]) Item 6. Technical Contact: Firm Name: SGS Testing Korea Co., Ltd. Telephone: 82314285742 Ext: Fax No: 82314272371 First Name: Feel Middle Initial: Last Name: Jeong Address Line 1: 18-34, Sanbon-dong, Gunpo-city P.O.Box: Address Line 2: City: Gyeonggi-do Country (if foreign address): South Korea Zip/Postal Code: 435-040 E-mail: [email protected] Item 7. Non-Technical Contact: Firm Name: Telephone: Ext: Fax No: First Name: Middle Initial: Last Name: Address Line 1: P.O.Box: Address Line 2: City: Country (if foreign address): Zip/Postal Code: E-mail: Item 8. * Does this application include a request for confidentiality for any portion(s) of the data contained in this application pursuant to 47 CFR § 0.459 of the Commission Rules? If "Yes" see instructions. (please mark as appropriate) • Yes Ο No Item 9. Does the applicant request that the Commission defer grant of this application pursuant 47 CFR § 0.457(d)(1)(ii)? (See instructions) If so, specify date when grant may be issued (MM/DD/YYYY format): Item 10. * Equipment Class: CYY (Communications Receiver used w/Pt 15 Transmitter) * Description of Product as it is Marketed: Remote Keyless Entry System (Receiver) (NOTE: This text will appear below the equipment class on the grant) Item 11. * Application is for: (please mark as appropriate) • Original Equipment (See instructions) Ο Change in identification of presently authorized equipment: Original FCC ID: Grant Date (MM/DD/YYYY format): Ο Class II permissive change or modification of presently authorized equipment (See instructions) DOC-FCC009 4/14/2005 Page 2 of 3 Item 12. Is the equipment in this application: * (a) a composite device subject to an additional equipment authorization? * (b) part of a system that operates with, or is marketed with, another device that requires an equipment authorization? If either of the above questions is answered "Yes" complete section 12(c). Ο Yes Ο No Ο Yes Ο No (c) The related application: Ο has been granted under the FCC ID listed to the right Ο is in the process of being filed under the FCC ID listed to the right Ο is pending with the FCC under the FCC ID listed to the right FCC ID Item 13. Name of test firm and contact person on file with the FCC, if different from applicant or contact person: Firm Name: Last Name: Telephone Ext Fax No. E-mail: Item 14. Enter any text that you would like to appear at the bottom of the Grant of Equipment Authorization. Read each certification carefully before answering and signing this application Equipment Specifications: Rule Part Frequency Range (MHz) Power (W) Frequency Tolerance and Units Emission Designator Note Codes Part 15B 313.85 MHz WILLFUL FALSE STATEMENTS MADE ON THIS FORM ARE PUNISHABLE BY FINE AND IMPRISONMENT (U.S. CODE, TITLE 18, SECTION 1001), AND/OR REVOCATION OF ANY STATION LICENSE OR CONSTITUTION PERMIT (U.S. CODE, TITLE 47, SECTION 312(a)(1)), AND/OR FORFEITURE (U.S. CODE, TITLE 47, SECTION 503). Item 15. *SECTION 5301 (ANTI-DRUG ABUSE) CERTIFICATION: The applicant must certify that neither the applicant nor any party to the application is subject to a denial of Federal benefits, that include FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862 because of a conviction for possession or distribution of a controlled substance. See 47 CFR 1.2002(b) for the definition of a "party" for these purposes. Does the applicant or authorized agent so certify? • Yes Ο No Item 16. APPLICANT/AGENT CERTIFICATION: I certify that I am authorized to sign this application. All of the statements herein and the exhibits attached hereto, are true and correct to the best of my knowledge and belief. IN accepting a Grant of Equipment Authorization issued by the FCC as a result of the representations made in this application, the applicant is responsible for (1) labeling the equipment with the exact FCC ID specified in this application, (2) compliance statement labeling pursuant to the applicable rules, and (3) compliance of the equipment with the applicable technical rules. If the applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC's technical requirements. Authorizing an agent to sign this application, is done solely at the applicant's discretion; however, the applicant remains responsible for all statements in this application. If an agent has signed this application on behalf of the applicant, a written letter of authorization which includes information to enable the agent to respond to the above section 5301 (Anti-Drug Abuse) Certification statement has been provided by the applicant. It is understood that the letter of authorization must be submitted to the FCC upon request, and that the FCC reserves the right to contact the applicant directly at any time. * Signature of Authorized Person Filing: Marie Ann Confroy Tit…

Text truncated - open the document above for the full version.

Omron Automotive Electronics Korea Co., Ltd. #481-2, Kasan-Dong, Kumchun-Ku, Seoul, 153-023, Korea Date: Jan. 10, 2006 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Section 0.457(d)(2)(i) and 0.459 pertaining to confidential material. Omron Automotive Electronic Korea Co., Ltd. would like the following documents regarding this submission for FCC ID: OSLOKA-351R to be kept confidential. 1. Schematics 2. Parts List The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Moon-Won Song / Manager

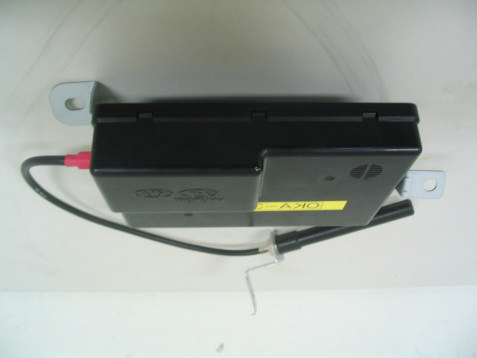

Report No. : STK-06-EMCG002 Page : 12 of 14 4. Photographs of Product l Front View l Rear View

FCC ID LABEL 1. FCC ID label drawing 2. FCC ID label location Omron Automotive Electronics Korea Co., Ltd. Model : OKA-351R FCC ID : OSLOKA-351R Made in Korea This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1)This devices may not cause harmful interference, and (2)This device must accept any interference received including interference that may cause undesired operation.

Report No. : STK-06-EMCG002 Page : 13 of 14 l Inside View l Top View of Main Board Report No. : STK-06-EMCG002 Page : 14 of 14 l Bottom View of Main Board

Report No. : STK-06-EMCG002 Page : 1 of 14 FCC COMPLIANCE REPORT Order No. : STR-06-0002/G Reference No. : STK-06-EMCG002 Applicant : Omron Automotive Electronics Korea Co., Ltd. Address of Applicant : 481-2, Kasan-Dong, Kumchun-Ku, Seoul, 153-023, Korea Equipment Under Test (EUT) : Name : RF Keyless Entry System (Receiver) Model No. : OKA-351R FCC ID : OSLOKA-351R Standards : FCC Part 15, Subpart B, Class B ANSI C63.4:2003 Date of Receipt : 03 January 2006 Date of Test : 05 January 2006 Date of Issue : 13 January 2006 Test Result : PASS In the configuration tested, the EUT complied with the standards specified above. Remarks : This report details the results of the testing carried out on one sample, the results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report shall not be reproduced except in full, without the written approval of the laboratory. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Carl Lee EMC DIV. Manager SGS Testing Korea CO., LTD. Report No. : STK-06-EMCG002 Page : 2 of 14 Contents 1. General Information 1.1 Applicant & Manufacturer Information 3 1.2 General Description of EUT 3 1.3 Details of EUT 3 1.4 Description of Support Units 3 1.5 Cable List 4 1.6 System Configuration 4 1.7 Test Set-Up Configuration 4 1.8 Measurement Procedure 5 1.9 Standards Applicable for Testing 5 1.10 Summary of Results 5 2. Measurement Results 2.1 Applied Tests 6 2.2 Frequency Range 6 2.3 Limit Of Radiated Emission 6 2.3.1 Limit Of Radiated Emission Of RSS-210, Table 3 6 2.3.2 Limit Of Radiated Emission Of RSS-210, Table 7 6 2.4 Test of Conducted Emission 7 2.4.1 Test Instruments 7 2.4.2 Test Site 7 2.4.3 Operating Environment 7 2.4.4 Measurement Data 7 2.5 Test of Radiated Emission 8 2.5.1 Test Instruments 8 2.5.2 Test Site 8 2.5.3 Operating Environment 8 2.5.4 Measurement Data 8 3.Photographs of Test 9-11 4.Photographs of Product 12-14 Report No. : STK-06-EMCG002 Page : 3 of 14 1. General Information 1.1 Applicant & Manufacturer Information Applicant : Omron Automotive Electronics Korea Co., Ltd. Address of Applicant : 481-2, Kasan-Dong, Kumchun-Ku, Seoul, 153-023, Korea Manufacturer : Omron Automotive Electronics Korea Co., Ltd. Address of Manufacturer : 481-2, Kasan-Dong, Kumchun-Ku, Seoul, 153-023, Korea 1.2 General Description of EUT Name : RF Keyless Entry System (Receiver) Model No. : OKA-351R Serial No : None FCC ID : OSLOKA-351R 1.3 Details of EUT Operating Frequency : 313.85 MHz Tested Power Supply : DC 12V Port : Power & Signal Port Description of Operating : Operate it continually. Modifications to the EUT : None 1.4 Description of Support Units Product Model No. Serial No. Manufacturer RF Keyless Entry System (Transmitter) OKA-310T N/A Omron Automotive Electronics Korea Co., Ltd. Report No. : STK-06-EMCG002 Page : 4 of 14 1.5 Cable List Start END Cable Spec Name I/O Port Name I/O Port Length Shield EUT Power & Signal Switch Power & Signal 1.0 Unshielded 1.6 System Configuration Description Model Serial No. Manufacturer Main Board HD-BCM 0531S N/A 1.7 Test Set-Up Configuration RF Keyless Entry System (Transmitter) JIG EUT Report No. : STK-06-EMCG002 Page : 5 of 14 1.8 Measurment Procedure Conducted Emission Testing was performed according ANSI C63.4:2003 in a shielded room with peripherals placed on a table, 0.8m high over a metal floor. It was located more than required distance away from the shielded room wall. Radiated Emission Testing was performed according to ANSI C63.4:2003 at the open field test site. The EUT was placed in a 0.8m high table along with the peripherals. The turn table was separated from the antenna distance 3meters. Cables were placed in a position to produce maximum emissions as determined by experimentation, and operation mode was selected for maximum. The frequencies and amplitudes of maximum emission were measured at varying azimuths, antenna heights and antenna polarities. Reported are maximized emission levels. 1.9 Standards Applicable for Testing Table of tests to be carried out under FCC Part 15, Subpart B, CLASS B Test Standards Status FCC Part 15,Subpart B, Class B Applicable Deviation from Standard No Deviation 1.10 Summary of Results The data collected shows that Model OKA-351R complies with Part 15.109 of FCC Technical Rules. The highest emission level observed was at 389.43MHz radiated emission with a margin of 7.50dB. Report No. : STK-06-EMCG002 Page : 6 of 14 Radio Disturbance 2.1 Test Results Results Conducted Emission N/A Radiated Emission PASS 2.2 Frequency Range Conducted Emission : 150 kHz - 30 MHz Radiated Emission : 30 MHz - 1000 MHz, Above 1000MHz 2.3 Limits Of Conducted And Radiated Emission 2.3.1 Limit Of Conducted Emission Of FCC Part 15, Subpart B Class A Class B FREQUENCY (MHz) Quasi - peak Quasi - peak 0.45 – 1.705 1000uV(60dB) 250uV(48dB) 1.705 - 30.0 3000uV(69.5dB) 250uV(48dB) 2.3.2 Limit Of Radiated Emission Of FCC Part 15, Subpart B Class A (at 10m)* Class B (at 3m)* FREQUENCY (MHz) uV/m(dBuV/m) uV/m(dBuV/m) 30 - 88 90(39) 100(40) 88 - 216 150(43.5) 150(43.5) 216 - 960 210(46.4) 200(46) Above 960 300(49.5) 500(54) Note : (1) *Detector Function : Quasi-Peak (2) The lower limit shall apply at the transition frequencies. (3) Emission level (dBuV/m) = 20 log Emission level (uV/m). (4) All emanation from a class A/B digital device or system, including anynetwork of conductors and apparatus connected thereto, shall not exceed the level of field strengths specified above. Report No. : STK-06-EMCG002 Page : 7 of 14 2.4.Test of Conducted Emission 2.4.1 Test Instruments Description Model No. Manufacturer Date of Calibration Test Receiver ESHS 10 Rohde & Schwarz Sep. 2005 Test Receiver ESVS 10 R & S May. 2005 TWO-LINE V-NETWOR…

Text truncated - open the document above for the full version.

Report No. : STK-06-EMCG002 Page : 9 of 14 3. Photographs of Test l Front View of Conducted Emission N/A l Rear View of Conducted Emission N/A Report No. : STK-06-EMCG002 Page : 10 of 14 l Front View of Radiated Emission (Biconical Antenna) l Rear View of Radiated Emission Report No. : STK-06-EMCG002 Page : 11 of 14 l Front View of Radiated Emission (Logperiodic Antenna) l Rear View of Radiated Emission
