OSLOKA-360RRF Keyless Entry System(Receiver)

Type Local clock frequency Frequency generation Modulation Scheme Bandwidth Carrier Detect Sensitivity G8X-21RX-KO1 Manufacturer: OMRON KOREA 313.85MHz Crystal resonator FM(superheterodyne) 200 KHz 11dBuVemf Dimension Weigh Battery Operation Voltage, Current 149mm 119mm 35mm 326g CAR Battery(DC 12V) DC12V,50mA (4mA on standby) -40 ∼ +80 OKA-360R is an integrated controller for a car body control, includes the keyless entry receiver. The integrated. controller consists of the multiple control functions as follows, centralized door lock, turn-signal lamp, room-lamp, intermitted wiper, power window timer, ignition key illumination, warning buzzer and so on.

Omron Automotive Electronics Korea Co., Ltd. Ace Techno 10-cha 701, 470-5, Gasan-dong, Geumcheon-gu, Seoul, 153-789, Korea Tel. 82-2-850-5789 Fax. 82-2-850-5808 Date: May 9, 2010 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046, USA Gentlemen: This letter is to comply with Section 0.457(d)(2)(i) and 0.459 pertaining to confidential material. Omron Automotive Electronic Korea Co., Ltd. would like the following documents regarding this submission for FCC ID: OSLOKA-360R to be kept confidential. 1. Schematics 2. Block diagram The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, SANG-IL NAM / Manager /Omron Automotive Electronics

Omron Automotive Electronics Korea Co., Ltd. Ace Techno 10-cha 701, 470-5, Gasan-dong, Geumcheon-gu, Seoul, 153-789, Korea Tel. 82-2-850-5789 Fax. 82-2-850-5808 To whom it may concern: We, the undersigned, hereby authorize SGS Testing Korea Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by SGS Testing Korea Co., Ltd. on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). In authorizing SGS Testing Korea Co., Ltd. as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, SANG-IL NAM / Manager /Omron Automotive Electronics

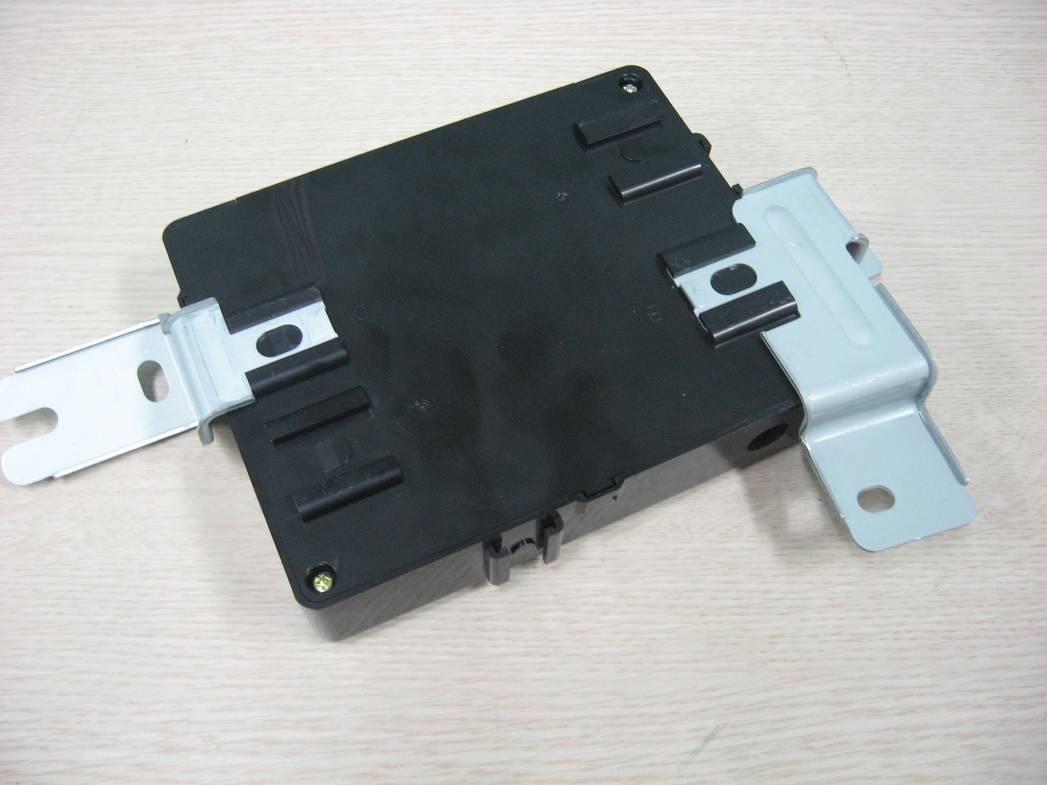

Test Report No. : F690501/RF-EMG003278 Page : 10 of 12 3. Photographs of EUT  Front View  Rear View

Test Report No. : F690501/RF-EMG003278 Page : 11 of 12  Top View of Main Board  Bottom View of Main Board

Test Report No. : F690501/RF-EMG003278-1 Page : 2 of 12 Contents 1. General Information...................................................................................................3 1.1 Client Information................................................................................................3 1.2 Test Laboratory...................................................................................................3 1.3 General Information of E.U.T. .............................................................................3 1.4 Operating Modes and Conditions........................................................................3 1.5 Peripheral Equipments........................................................................................3 1.6 Cable List ............................................................................................................4 1.7 System Configurations ........................................................................................4 1.8 Test System Layout ............................................................................................4 1.9 Applicable Standards for Testing ........................................................................5 1.10 Summary of Test Results..................................................................................5 2. Test Description ........................................................................................................6 2.1 Test Equipments .................................................................................................6 2.2 Test Site..............................................................................................................6 2.3 Radiated Emission Test Data..............................................................................6 2.4 Modifications.......................................................................................................7 2.5 Photographs of Radiated Emission (Below 1GHz)..............................................8 2.6 Photographs of Radiated Emission (Above 1GHz) .............................................9 3. Photographs of EUT ................................................................................................10 Test Report No. : F690501/RF-EMG003278-1 Page : 3 of 12 1. General Information 1.1 Client Information Applicant : Omron Automotive Electronics Korea Co., Ltd. Address of Applicant : Ace Techno 10-cha 701, 470-5, Gasan-dong, Geumcheon-gu, Seoul, 153-789, Korea Manufacturer : Omron Automotive Electronics Korea Co., Ltd. Address of Manufacturer : 492, Gayul-ri, Bogae-myeon, Anseong-city, Kyeonggi-do, 456-871, Korea 1.2 Test Laboratory Name and Address : SGS Testing Korea Co., Ltd. 18-34, Sanbon-dong, Gunpo, Gyeonggi-do, Korea 435-041 1.3 General Information of E.U.T. Product Name : RF Keyless Entry System (Receiver) Model Name : OKA-360R Serial No. : N/A Power Supply : Input DC 12V Operating Frequency : 313.85 MHz FCC ID : OSLOKA-360R 1.4 Operating Modes and Conditions Operating mode Operating condition RX Mode RX Mode 1.5 Peripheral Equipments Description Model Serial No.Manufacturer Code Checker N/A N/A N/A RF Keyless Entry System (Transmitter) OKA-360TN/A Omron Automotive Electronics Korea Co., Ltd. Test Report No. : F690501/RF-EMG003278-1 Page : 4 of 12 1.6 Cable List Start END Cable Spec. Name I/O Port Name I/O PortLength Shield DC IN Code Checker - 0.1 UnshieldedRF Keyless Entry System (Receiver) I/O Code Checker - 0.1 Unshielded - RF Keyless Entry System (Receiver) DC IN 0.1 Unshielded - RF Keyless Entry System (Receiver) I/O 0.1 Unshielded Code Checker DC IN Car Battery - 0.5 Unshielded 1.7 System Configurations 1.8 Test System Layout Description Model Serial No. Manufacturer Main Board N/A N/A N/A Car Battery Code Cheker RF Keyless Entry System (Receiver) RF Keyless Entry System(Transmitter) Test Report No. : F690501/RF-EMG003278-1 Page : 5 of 12 1.9 Applicable Standards for Testing 1.10 Summary of Test Results Test Item Standards Results Radiated Emission FCC Part 15, Subpart B, RSS-210 Issue 7 RSS-Gen Issue 2 Complied Note : This is powered from car battery. So, the conducted emission is not performed. Standards Status Deviation FCC Part 15, Subpart B Applicable No Deviation RSS-Gen Issue 2, RSS-210 Issue 7 Applicable No Deviation Test Report No. : F690501/RF-EMG003278-1 Page : 6 of 12 2. Test Description 2.1 Test Equipments Equipment Model Manufacturer Last Cal. Date Preamplifier 8449B Agilent 2010.03.31 Test Receiver ESU26 R&S 2010.04.08 Amplifier 8447F HP 2009.07.02 Horn Antenna HF906 R&S 2009.10.08 Bi-Log Antenna VULB9163 SCHWARZBECK MESS- ELEKTRONIK 2009.07.22 Note : Only the calibration period of Antennas is 2 years but the period of every equipment is 1 year. 2.2 Test Site Radiated Emission : 3m Semi-Anechoic Chamber in Gunpo Laboratory. 2.3 Radiated Emission Test Data The initial preliminary exploratory scans were performed using a max hold mode incorporating a Peak detector. The final test data was measured using a Quasi- Peak detector below 1GHz and a Average detector above 1GHz. Below 1GHz Temperature : 25.2 °C ~ 25.3 °C Humidity : 45.0 % RH Atmospheric Pressure : 101.0 kPa FREQ. LEVEL POLAFCLAmpF/SLIMITMARGIN (MHz)(dB ㎶ ) (H/V)(dB)(dB)(dB)(dB ㎶ /m) (dB ㎶ /m)(dB) 32.5046.30V11.07 0.58 28.3129.6540.00 10.36 56.3044.20 H 11.680.7628.21 28.43 40.0011.57 65.2043.50 H 9.380.82 28.1925.51 40.0014.49 74.5045.80 V 6.640.87 28.1625.15 40.0014.85 89.6043.20 V 10.51 0.95 28.1726.49 43.5017.01 100.5440.10 H 11.86 0.99 28.0624.89 43.5018.61 Note:  AF = Antenna Factor  CL = Cable Loss  F/S = Field Strength  POL H = Horizontal  POL V = Vertical  Amp = Amplifier Gain  Margin = Limit – F/S  F/S = Level + AF + CL – Amp Test Report No. : F690501/RF-EMG003278-1 Page : 7 of 12 Above 1GHz Temperature : 24.4 °C ~ 25.2 °C Humidity : 44.0 % RH ~ 45.0 % RH Atmospheric Pressure : 101.0 kPa ~ 101.1 kPa FREQ.LEVEL POLAFCLAmpF/SLIMITMARGIN (MHz)(dB ㎶ ) (H/V) (dB)(dB)(dB)(…

Text truncated - open the document above for the full version.

Test Report No. : F690501/RF-EMG003278 Page : 8 of 12 2.5 Photographs of Radiated Emission (Below 1GHz) Test Report No. : F690501/RF-EMG003278 Page : 9 of 12 2.6 Photographs of Radiated Emission (Above 1GHz)
