OSLOKA-510TRF Keyless Entry System

Transmitter, RF Keyless Entry System OMRON AUTOMOTIVE ELECTRONICS KOREA OKA-510T Table of contents 1. ...Constitution of the Radio Frequency Keyless Entry system Controller for vehicle ------ 1 2. ...User's manual (provisionally ------------------------------------------------------------------------ 2 3. ...Block diagram ------------------------------------------------------------------------------------------ 3 4. ...Specification -------------------------------------------------------------------------------------------- 4 5. ...Features -------------------------------------------------------------------------------------------------- 5 - 1 - 1. Constitution of the Radio Frequency Keyless Entry System for vehicle The radio frequency keyless entry is a system that it controlls locking and unlocking the door by wireless remote controller. This system consists of three components. The TRANSMITTER is a device that transmits the signal when the button is pressed. The transmission signal consists of several synchronous codes, unique identification code, security code and function code. The RECEIVER is fixed inside the vehicle. It works intermittently to prevent the battery exhaustion. When the receiver detects the sychronous code, it runs continuously to receive the signals completely. After receiveing the signal, the receiver decides which operation will be performed. The user can select the following operations by pressing the button of theremote transmitter. OPERATION ACTION LOCK lock the door UNLOCK unlock the door - 2 - 2. User's manual (provisionally) REMOTE TRANSMITTER You can lock and unlock your vehicle with the remote transmitter. LOCK When you push the LOCK button, all the doors will lock. You cannot lock any of the doors with the remote transmitter if any door is open or the key is the ignition switch. UNLOCK When you push the UNLOCK button, all the doors will unlock. You cannot unlock any of the doors with the remote transmitter if any door is open or the key is in the ignition switch. - 3 - 3. Block diagram This is block diagram concerning to the transmitter figure 3.1 block diagram of the transmitter - 4 - 4. Specification 4.1 CPU Type ROM RAM EEPROM Clock frequency Clock frequency generation Package uPD754144-xxx(4bit) Manufacturer : NEC Corporation 4096 x 8bit(4kbytes) 128 x 4bit 16 x 8bit 500KHz CR ossillation 20pin SSOP 4.2 RF block Carrer frequency Frequency generation Modulation Bit transmission rate Bandwidth RF output power (field strength) 307.9MHz SAW resonator FSK 100bps or 500bps 120KHz ≤ 75.6dBuV/m 4.3 Others Dimension Weigh Battery Operation Voltage Operation Temperature 52.5mm x 33mm x 11mm 20g Lithium cell (CR2032) Manufacturer : PANASONIC Battery corporation etc. DC3V, 10mA -20+60 - 5 - 5.Features 5.1 Transmission frame The transmission begins immediately in case of LOCK or UNLOCK or button is pressed. The transmisssion frame consists of the synchronous frame and the data frame. The synchronous frame has 30 synchronous codes that it will be used for the receiver to wake up. The data frame consists of 24bit length identification code , 16bit security code and function code. 16million different identification codes are available. The security code is always changed in case of any of the buttins is pressed. The transmission time is typically 600 milliseconds. 5.2 Battery saving To prevent the battery exhaustion, the microcomputer of the transmitter is usually inactive. When the button will be pressed, the microcomputer wakes up immediately and judges which button is pressing. Then the microcomputer constructs the transmission frame and radiates it from the antenna. After transmitting, the microcomputer switches stand-by mode by itself. INFORMATION TO THE USER This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. WARNING Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment.

OMRON AUTOMOTIVE ELECTRONICS KOREA CO., LTD. HEAD OFFICE: 272-2, KYERUKRI, MYANG-MYON, ANSONG-CITY, KYONGGI-DO, 456-840, KOREA TEL: (82)334-677-4262 ~ 7 / FAX: (82)334-677-4268 ~ 9 OFFICE: 481-2, KASAN-DONG, KUMCHUN-KU, SEOUL, 153-023, KOREA TEL: (82)2-8505-700 / FAX: (82)2-850-5808 AUTHORIZATION LETTER Federal Communications CommissionNovember 01, 1999 Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road, Columbia, MD 21046 U.S.A Subject : Agent Authorization Letter To Whom it may it concern : We, the undersigned, hereby authorize ONETECH Corp.. To act on our behalf in all matters relating to applications for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by ONETECH Corp.. On our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(A). This authorization is valid until further written notice from the applicant. Very truly yours, K. Y. Jang / Section Manager OMRON AUTOMOTIVE ELECTRONICS KOREA CO., LTD.

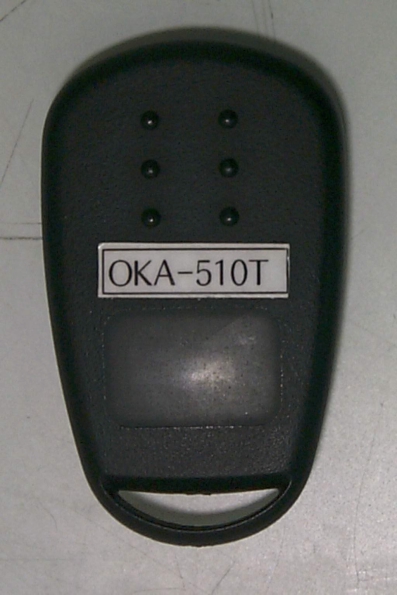

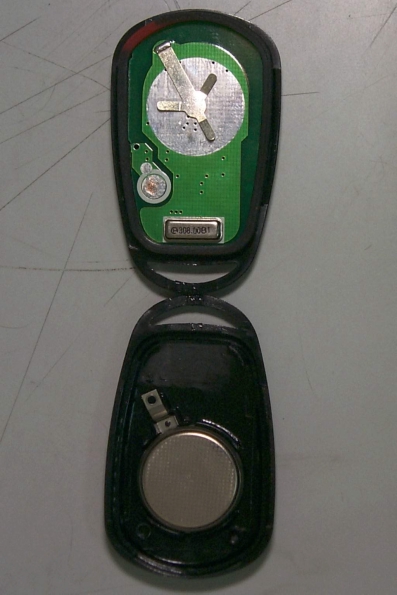

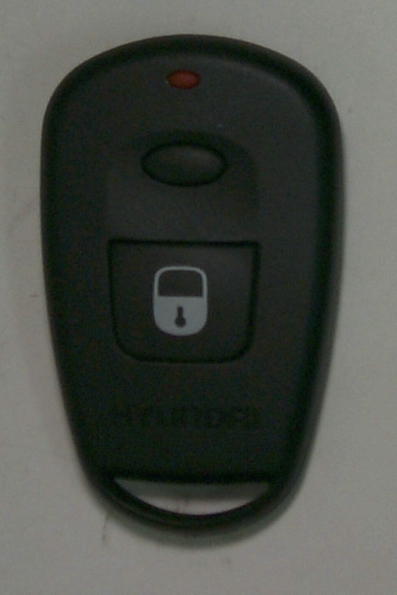

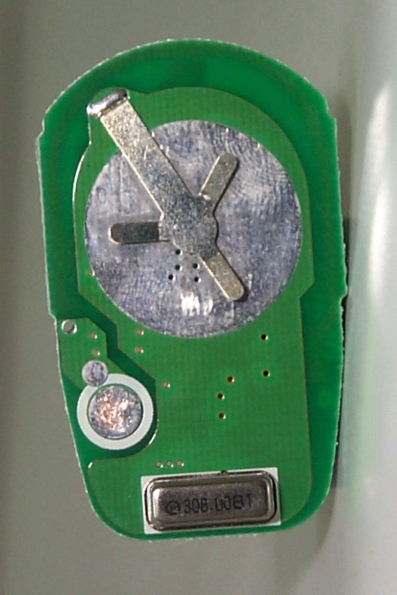

ONETECH Corp. #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-121, Korea. (TEL: 82-342-746-8500 FAX: 82-342-746-8700) PHOTO REPORT PRODUCTRF KEYLESS ENTRY SYSTEM FOR VEHICLE FCC IDOSLOKA-510T MODEL NO.OKA510TSERIAL NO.N/A APPLICANT & ADDRESS OMRON AUTOMOTIVE ELECTRONICS KOREA CO., LTD. 481-2, KASAN-DONG, KUMCHUN-KU, SEOUL, 153-023, KOREA REPORT NO.E99NR-006ISSUE DATENovember 03, 1999 PREPARED BY: ONETECH CORP. #505 SK APT. FACTORY 223-28, SANGDAEWON 1 DONG, JUNGWON-GU, SEONGNAM-CITY, KYUNGGI-DO, 462-121, KOREA. (TEL: 82-342-746-8500 FAX: 82-342-746-8700) REMOTE TRANSMITTER CERTIFICATION TO FCC PART 15 REQUIREMENT

ONETECH Corp. #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-121, Korea. (TEL: 82-342-746-8500 FAX: 82-342-746-8700) IDENTIFICATION LABEL: PROPOSED FCC ID LABEL The label included following statement will be attached on the bottom of product. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operations. Made in Korea FCC ID : OSLOKA-510T

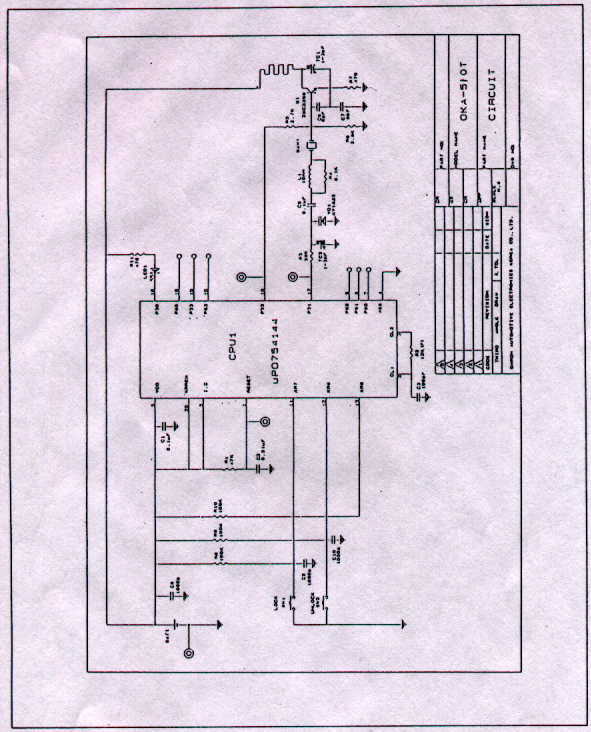

ONETECH Corp. #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-121, Korea. (TEL: 82-342-746-8500 FAX: 82-342-746-8700) ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT PRODUCTRF KEYLESS ENTRY SYSTEM FOR VEHICLE FCC IDOSLOKA-510T MODEL NO.OKA-510TSERIAL NO.N/A APPLICANT & ADDRESS OMRON AUTOMOTIVE ELECTRONICS KOREA CO., LTD. 481-2, KASAN-DONG, KUMCHUN-KU, SEOUL, 153-023, KOREA REPORT NO.E99NR-006ISSUE DATENovember 03, 1999 PREPARED BY: ONETECH CORP. #505 SK APT. FACTORY 223-28, SANGDAEWON 1 DONG, JUNGWON-GU, SEONGNAM-CITY, KYUNGGI-DO, 462-121, KOREA. (TEL: 82-342-746-8500 FAX: 82-342-746-8700) REMOTE TRANSMITTER CERTIFICATION TO FCC PART 15 REQUIREMENT REPORT NO.: E99NR-006FCC ID: OSLOKA-510T DATE: November 03, 1999 LIST OF EXHIBITS FCC ID: OSLOKA-510T MODEL : OKA-510T EXHIBIT 1. IDENTIFICATION LABEL 2. AGENT AUTHORIZATION 3. TECHNICAL INFORMATION: ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT 4. PHOTO REPORT 5. USER’S MANUAL & SCHEMATIC (BLOCK DIAGRAM) PREPARED BY : ONETECH CORP. #505 SK APT. Factory 223-28, Sangdaewon 1 Dong, Jungwon-Gu, Seongnam-City, Kyunggi-Do, 462-121, Korea. (TEL: 82-342-746-8500 FAX: 82-342-746-8700) REPORT NO.: E99NR-006FCC ID: OSLOKA-510T DATE: November 03, 1999 EXHIBIT 1. IDENTIFICATION LABEL: PROPOSED FCC LABEL (Part15 sec. 15.19) The label included following statement will be attached on bottom side of product. “Please find an ID Label for EUT at ID Label/Location Info in Exhibit Type” This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operations. Made in korea FCC ID : OSLOKA-510T REPORT NO.: E99NR-006FCC ID: OSLOKA-510T DATE: November 03, 1999 EXHIBIT 2. AGENT AUTHORIZATION: “Please find an Agent Authorization Letter at Cover Letters in Exhibit Type” REPORT NO.: E99NR-006FCC ID: OSLOKA-510T DATE: November 03, 1999 EXHIBIT 3. TECHNICAL INFORMATION: ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT PRODUCTRF KEYLESS ENTRY SYSTEM FOR VEHICLE FCC IDOSLOKA-510T MODEL NO.OKA-510TSERIAL NO.N/A APPLICANT & ADDRESS OMRON AUTOMOTIVE ELECTRONICS KOREA CO., LTD. 272-2, KYERUKRI, MYANG-MYON, ANSONG-CITY, KYONGGI-DO, 456-840, KOREA REPORT NO.E99NR-006ISSUE DATENovember 03, 1999 PREPARED BY: ONETECH CORP. #505 SK APT. FACTORY 223-28, SANGDAEWON 1 DONG, JUNGWON-GU, SEONGNAM-CITY, KYUNGGI-DO, 462-121, KOREA. (TEL: 82-342-746-8500 FAX: 82-342-746-8700) REMOTE TRANSMITTER CERTIFICATION TO FCC PART 15 REQUIREMENT REPORT NO.: E99NR-006FCC ID: OSLOKA-510T DATE: November 03, 1999 TABLE OF CONTENTS Page 1. VERIFICATION OF COMPLIANCE............................................................................................................ 1 2. GENERAL INFORMATION........................................................................................................................... 2 2.1 Product Description ......................................................................................................................................................2 2.2 Related Submittal(s) / Grant(s) ....................................................................................................................................2 2.3 Test System Details........................................................................................................................................................2 2.4 Test Methodology ..........................................................................................................................................................2 2.5 Test Facility....................................................................................................................................................................2 3. SYSTEM TEST CONFIGURATION.............................................................................................................. 3 3.1 Justification....................................................................................................................................................................3 3.2 Equipment Modifications .............................................................................................................................................3 3.3 Mode of operation during the test................................................................................................................................3 3.4 Configuration of Test System .......................................................................................................................................3 4. PRELIMINARY TESTS................................................................................................................................... 4 4.1 AC Power line Conducted Emissions Tests.................................................................................................................4 4.2 Radiated Emissions Tests..............................................................................................................................................4 5. RADIATED MEASUREMENT PHOTOS...................................................................................................... 5 6. FINAL RESULT OF MEASUREMENT......................................................................................................... 6 6.1 Conducted Emissions Tests ..........................................................................................................................................6 6.2 Field Strength of the Carrier Test................................................................................................................................7 6.3 Spurious Emission Test.................................................................................................................................................8 6.4 Bandwidth of the operating fr…
