OSLOKA-672RRF Keyless Entry System (Receiver)

LOCK UNLOCK PANIC ()

Omron Automotive Electronics Korea Co., Ltd. #481-2, Kasan-Dong, Kumchun-Ku, Seoul, 153-023, Korea Date: Jan. 10, 2006 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037, USA To whom it may concern: We, the undersigned, hereby authorize SGS Testing Korea Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by SGS Testing Korea Co., Ltd. on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). In authorizing SGS Testing Korea Co., Ltd. as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Moon-Won Song / Manager /Omron Automotive

Omron Automotive Electronics Korea Co., Ltd. #481-2, Kasan-Dong, Kumchun-Ku, Seoul, 153-023, Korea Date: April 2, 2006 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046, USA Gentlemen: This letter is to comply with Section 0.457(d)(2)(i) and 0.459 pertaining to confidential material. Omron Automotive Electronic Korea Co., Ltd. would like the following documents regarding this submission for FCC ID: OSLOKA-672R to be kept confidential. 1. Schematics 2. Parts List The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Moon-Won Song / Manager /Omron Automotive Electronics

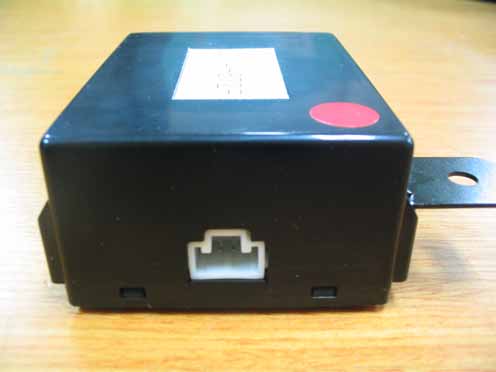

Report No. : STK-06-EMCG0025 Page : 12 of 15 4. Photographs of Product z Front View z Rear View

FCC ID LABEL 1. FCC ID label drawing 2. FCC ID label location STICKER

Report No. : STK-06-EMCG0025 Page : 13 of 15 z Internal View z Top View of Main Board Report No. : STK-06-EMCG0025 Page : 14 of 15 z Bottom View of Main Board z Top View of RF Module Report No. : STK-06-EMCG0025 Page : 15 of 15 z Bottom View of Main Board

Report No. : STK-06-EMCG0025 Page : 1 of 15 FCC COMPLIANCE REPORT Order No. : STR-06-0124/G Reference No. : STK-06-EMCG0025 Applicant : Omron Automotive Electronics Korea Co., Ltd. Address of Applicant : 481-2, Kasan-Dong, Kumchun-Ku, Seoul, 153-023, Korea Equipment Under Test (EUT) : Name : RF Keyless Entry System (Receiver) Model No. : OKA-672R FCC ID : OSLOKA-672R Standards : FCC Part 15, Subpart B, Class B ANSI C63.4:2003 Date of Receipt : 13 March 2006 Date of Test : 15 March 2006 Date of Issue : 24 March 2006 Test Result : PASS In the configuration tested, the EUT complied with the standards specified above. Remarks : This report details the results of the testing carried out on one sample, the results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report shall not be reproduced except in full, without the written approval of the laboratory. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Carl Lee EMC DIV. Manager SGS Testing Korea CO., LTD. Report No. : STK-06-EMCG0025 Page : 2 of 15 Contents 1. General Information 1.1 Applicant & Manufacturer Information 3 1.2 General Description of EUT 3 1.3 Details of EUT 3 1.4 Description of Support Units 3 1.5 Cable List 4 1.6 System Configuration 4 1.7 Test Set-Up Configuration 4 1.8 Measurement Procedure 5 1.9 Standards Applicable for Testing 5 1.10 Summary of Results 5 2. Measurement Results 2.1 Applied Tests 6 2.2 Frequency Range 6 2.3 Limit Of Radiated Emission 6 2.3.1 Limit Of Radiated Emission Of RSS-210, Table 3 6 2.3.2 Limit Of Radiated Emission Of RSS-210, Table 7 6 2.4 Test of Conducted Emission 7 2.4.1 Test Instruments 7 2.4.2 Test Site 7 2.4.3 Operating Environment 7 2.4.4 Measurement Data 7 2.5 Test of Radiated Emission 8 2.5.1 Test Instruments 8 2.5.2 Test Site 8 2.5.3 Operating Environment 8 2.5.4 Measurement Data 8 3.Photographs of Test 9-11 4.Photographs of Product 12-15 Report No. : STK-06-EMCG0025 Page : 3 of 15 1. General Information 1.1 Applicant & Manufacturer Information Applicant : Omron Automotive Electronics Korea Co., Ltd. Address of Applicant : 481-2, Kasan-Dong, Kumchun-Ku, Seoul, 153-023, Korea Manufacturer : Omron Automotive Electronics Korea Co., Ltd. Address of Manufacturer : 481-2, Kasan-Dong, Kumchun-Ku, Seoul, 153-023, Korea 1.2 General Description of EUT Name : RF Keyless Entry System (Receiver) Model No. : OKA-672R Serial No : None FCC ID : OSLOKA-672R 1.3 Details of EUT Operating Frequency : 315.1 MHz Tested Power Supply : DC 12V Port : Power & Signal Port Description of Operating : Operate it continually. Modifications to the EUT : None 1.4 Description of Support Units Product Model No. Serial No. Manufacturer RF Keyless Entry System (Transmitter) N/A N/A Omron Automotive Electronics Korea Co., Ltd. Report No. : STK-06-EMCG0025 Page : 4 of 15 1.5 Cable List Start END Cable Spec Name I/O Port Name I/O Port Length Shield EUT Power & Signal Switch Power & Signal 1.0 Unshielded 1.6 System Configuration Description Model Serial No. Manufacturer Main Board 95790-2F000 - N/A 1.7 Test Set-Up Configuration RF Keyless Entry System (Transmitter) Switch EUT Report No. : STK-06-EMCG0025 Page : 5 of 15 1.8 Measurment Procedure Conducted Emission Testing was performed according ANSI C63.4:2003 in a shielded room with peripherals placed on a table, 0.8m high over a metal floor. It was located more than required distance away from the shielded room wall. Radiated Emission Testing was performed according to ANSI C63.4:2003 at the open field test site. The EUT was placed in a 0.8m high table along with the peripherals. The turn table was separated from the antenna distance 3meters. Cables were placed in a position to produce maximum emissions as determined by experimentation, and operation mode was selected for maximum. The frequencies and amplitudes of maximum emission were measured at varying azimuths, antenna heights and antenna polarities. Reported are maximized emission levels. 1.9 Standards Applicable for Testing Table of tests to be carried out under FCC Part 15, Subpart B, CLASS B Test Standards Status FCC Part 15,Subpart B, Class B Applicable Deviation from Standard No Deviation 1.10 Summary of Results The data collected shows that Model OKA-672R complies with Part 15.109 of FCC Technical Rules. The highest emission level observed was at 37.58 MHz radiated emission with a margin of 19.38 dB. Report No. : STK-06-EMCG0025 Page : 6 of 15 Radio Disturbance 2.1 Test Results Results Conducted Emission N/A Radiated Emission PASS 2.2 Frequency Range Conducted Emission : 150 kHz - 30 MHz Radiated Emission : 30 MHz - 1000 MHz, Above 1000MHz 2.3 Limits Of Conducted And Radiated Emission 2.3.1 Limit Of Conducted Emission Of FCC Part 15, Subpart B Class A Class B FREQUENCY (MHz) Quasi - peak Quasi - peak 0.45 – 1.705 1000uV(60dB) 250uV(48dB) 1.705 - 30.0 3000uV(69.5dB) 250uV(48dB) 2.3.2 Limit Of Radiated Emission Of FCC Part 15, Subpart B Class A (at 10m)* Class B (at 3m)* FREQUENCY (MHz) uV/m(dBuV/m) uV/m(dBuV/m) 30 - 88 90(39) 100(40) 88 - 216 150(43.5) 150(43.5) 216 - 960 210(46.4) 200(46) Above 960 300(49.5) 500(54) Note : (1) *Detector Function : Quasi-Peak (2) The lower limit shall apply at the transition frequencies. (3) Emission level (dBuV/m) = 20 log Emission level (uV/m). (4) All emanation from a class A/B digital device or system, including anynetwork of conductors and apparatus connected thereto, shall not exceed the level of field strengths specified above. Report No. : STK-06-EMCG0025 Page : 7 of 15 2.4.Test of Conducted Emission 2.4.1 Test Instruments Description Model No. Manufacturer Date of Calibration Test Receiver ESHS 10 Rohde & Schwarz Sep. 2005 TWO-LINE V-NETWORK NNB 41 SCHAFFNER Sep. 2005 TWO-LIN…

Text truncated - open the document above for the full version.

Report No. : STK-06-EMCG0025 Page : 9 of 15 3. Photographs of Test z Front View of Conducted Emission N/A z Rear View of Conducted Emission N/A Report No. : STK-06-EMCG0025 Page : 10 of 15 z Front View of Radiated Emission (Biconical Antenna) z Rear View of Radiated Emission Report No. : STK-06-EMCG0025 Page : 11 of 15 z Front View of Radiated Emission (Logperiodic Antenna) z Rear View of Radiated Emission
