OSLOKA-750RNRemote Keyless Entry System (Receiver)

— — — — ................................................................................. ................................................ ... Type Memory Package S-93C46XXX Manufacturer: Seiko. Elec 1Kbit 8pin SOP Type Receiver frequency Frequency generation Modulation Scheme Bandwidth Carrier Detect Sensitivity OKA-No.4 Manufacturer: OMRON Korea 313.85 MHz Crystal resonator FSK 0 KHz 11dBuVemf Dimension Weigh Battery Operation Voltage, Current 112mm 92mm 36mm 324g CAR Battery(DC 12V) DC12V,50mA (4mA on standby) -40 +105 6. Derivatives OKA-750R is an integrated controller for a car body control, includes the keyless entry receiver. The integrated. controller consists of the multiple control functions as follows, centralized door lock, turn-signal lamp, room-lamp, intermitted wiper, power window timer, ignition key illumination, warning buzzer and so on.

3. Block diagram (Main board) This is block diagram concerning to the receiver - 3 - A6 B6 A2 A14 M C12 C16 HORN HAZARD LAMP C13 C8 ETACS C14 UNLOCK TAILGATE SW HOOD SW LOCK 4DOOR SW DOOR LOCK ACTOR 4 BATTERY 12V HAZARD RELAY

Omron Automotive Electronics Korea Co., Ltd. #481-2, Kasan-Dong, Kumchun-Ku, Seoul, 153-023, Korea Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Gentlemen: This letter is to comply with Section 0.457(d)(2)(i) and 0.459 pertaining to confidential material. Omron Automotive Electronic Korea Co., Ltd. would like the following documents regarding this submission for FCC ID: OSLOKA-750RN to be kept confidential. 1. Schematics 2. Parts List The above material contains trade secrets or technical data, which would customarily be guarded from competitors. We do not want these documents to be accessible to the general public. Sincerely, Moon-won song / Manager

Report No. : F690501/LF-EMC000965 Page : 11 of 14 4. Photographs of Product l Front View l Rear View

FCC ID LABEL 1. FCC ID label drawing 2. FCC ID label location Omron Automotive Electronics Korea Co., Ltd. Model : OKA-750R FCC ID : OSLOKA-750RN Made in Korea This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1)This devices may not cause harmful interference, and (2)This device must accept any interference received including interference that may cause undesired operation.

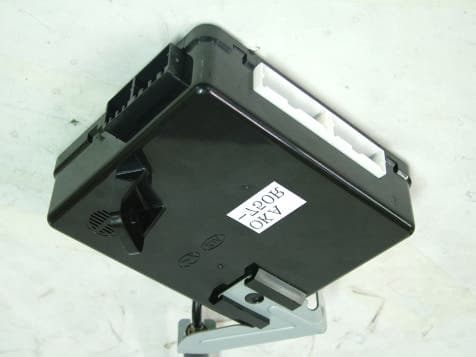

Report No. : F690501/LF-EMC000965 Page : 12 of 14 l Inside View Report No. : F690501/LF-EMC000965 Page : 13 of 14 l Front View of Main Board l Rear View of Main Board Report No. : F690501/LF-EMC000965 Page : 14 of 14 l Front View of RF Module l Rear View of RF Module

Report No. : F690501/LF-EMC000965 Page : 1 of 14 FCC COMPLIANCE REPORT Order No. : STR-05-0068/E Reference No. : F690501/LF-EMC000965 Applicant : Omron Automotive Electronics Korea Co., Ltd. Address of Applicant : 481-2, Kasan-Dong, Kumchun-Ku, Seoul, 153-023, Korea Equipment Under Test (EUT) : Name : RF Keyless Entry System (Receiver) Model No. : OKA-750R Standards : FCC Part 15, Subpart B, Class B ANSI C63.4:1992 Date of Receipt : 01 April 2005 Date of Test : 06 April 2005 Date of Issue : 07 April 2005 Test Result : PASS In the configuration tested, the EUT complied with the standards specified above. Remarks : This report details the results of the testing carried out on one sample, the results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report shall not be reproduced except in full, without the written approval of the laboratory. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Kew-Seung, Lim EMC DIV. Manager SGS Testing Korea CO., LTD. Report No. : F690501/LF-EMC000965 Page : 2 of 14 Contents 1. General Information 1.1 Manufacturer Information 4 1.2 General Description of EUT 4 1.3 Details of EUT 4 1.4 Description of Support Units 4 1.5 Cable List 5 1.6 System Configuration 5 1.7 Test Set-Up Configuration 5 1.8 Measurement Procedure 6 1.9 Standards Applicable for Testing 6 1.10 Summary of Results 6 2. Measurement Results 2.1 Applied Tests 7 2.2 Frequency Range 7 2.3 Limit Of Radiated Emission 7 2.3.1 Limit Of Radiated Emission Of RSS-210, Table 3 7 2.3.2 Limit Of Radiated Emission Of RSS-210, Table 7 7 2.4 Test of Conducted Emission 8 2.4.1 Test Instruments 8 2.4.2 Test Site 8 2.4.3 Operating Environment 8 2.4.4 Measurement Data 8 2.5 Test of Radiated Emission 9 2.5.1 Test Instruments 9 2.5.2 Test Site 9 2.5.3 Operating Environment 9 2.5.4 Measurement Data 9 3.Photographs of Test 10 4.Photographs of Product 12 Report No. : F690501/LF-EMC000965 Page : 3 of 14 1. General Information 1.1 Manufacturer Information Manufacturer : Omron Automotive Electronics Korea Co., Ltd. Address : 481-2, Kasan-Dong, Kumchun-Ku, Seoul, 153-023, Korea 1.2 General Description of EUT Name : RF Keyless Entry System (Receiver) Model No. : OKA-750R Serial No : None FCC ID : OSLOKA-750RN Modulation : FSK 1.3 Details of EUT Operating Frequency : 313.85 MHz Tested Power Supply : DC 12V Port : I/O 1, I/O 2, I/O 3, I/O 4, ANT Description of Operating : Operate it continually. Modifications to the EUT : None 1.4 Description of Support Units Product Model No. Serial No. Manufacturer RF Keyless Entry System (Receiverr) OKA-750R N/A Omron Automotive Electronics Korea Co., Ltd. Checker N/A N/A Omron Automotive Electronics Korea Co., Ltd. RF Keyless Entry System (Transmitter) N/A N/A Omron Automotive Electronics Korea Co., Ltd. Report No. : F690501/LF-EMC000965 Page : 4 of 14 1.5 Cable List Start END Cable Spec Name I/O Port Name I/O Port Length Shield EUT I/O 2 Checker Output 2.0 Unshielded I/O 3 Checker Output 2.0 Unshielded ANT Antenna - 0.1 Shielded 1.6 System Configuration Description Model Serial No. Manufacturer Main Board MG-ETACS N/A N/A RF Module N/A N/A N/A 1.7 Test Set-Up Configuration RF Keyless Entry System (Transmitter) Checker EUT Report No. : F690501/LF-EMC000965 Page : 5 of 14 1.8 Measurment Procedure Conducted Emission Testing was performed according ANSI C63.4:1992 in a shielded room with peripherals placed on a table, 0.8m high over a metal floor. It was located more than required distance away from the shielded room wall. Radiated Emission Testing was performed according to ANSI C63.4:1992 at the open field test site. The EUT was placed in a 0.8m high table along with the peripherals. The turn table was separated from the antenna distance 3meters. Cables were placed in a position to produce maximum emissions as determined by experimentation, and operation mode was selected for maximum. The frequencies and amplitudes of maximum emission were measured at varying azimuths, antenna heights and antenna polarities. Reported are maximized emission levels. 1.9 Standards Applicable for Testing Table of tests to be carried out under FCC Part 15, Subpart B, CLASS B Test Standards Status FCC Part 15,Subpart B, Class B Applicable Deviation from Standard No Deviation 1.10 Summary of Results The data collected shows that Model OKA-750R complies with Part 15.109 of FCC Technical Rules. The highest emission level observed was at 941.55MHz radiated emission with a margin of 4.48dB. Report No. : F690501/LF-EMC000965 Page : 6 of 14 Radio Disturbance 2.1 Test Results Results Conducted Emission N/A Radiated Emission PASS 2.2 Frequency Range Conducted Emission : 150 kHz - 30 MHz Radiated Emission : 30 MHz - 1000 MHz, Above 1000MHz 2.3 Limits Of Conducted And Radiated Emission 2.3.1 Limit Of Conducted Emission Of FCC Part 15, Subpart B Class A Class B FREQUENCY (MHz) Quasi - peak Quasi - peak 0.45 – 1.705 1000uV(60dB) 250uV(48dB) 1.705 - 30.0 3000uV(69.5dB) 250uV(48dB) 2.3.2 Limit Of Radiated Emission Of FCC Part 15, Subpart B Class A (at 10m)* Class B (at 3m)* FREQUENCY (MHz) uV/m(dBuV/m) uV/m(dBuV/m) 30 - 88 90(39) 100(40) 88 - 216 150(43.5) 150(43.5) 216 - 960 210(46.4) 200(46) Above 960 300(49.5) 500(54) Note : (1) *Detector Function : Quasi-Peak (2) The lower limit shall apply at the transition frequencies. (3) Emission level (dBuV/m) = 20 log Emission level (uV/m). (4) All emanation from a class A/B digital device or system, including anynetwork of conductors and apparatus connected thereto, shall not exceed the level of field strengths specified above. Report No. : F690501/LF-EMC000965 Page : 7 of 14 2.4.Test of Conducted Emission 2.4.1 Test Equipments Equipment Model No. Manufacturer Date of Calibration Test…
