OTM-6203C-27MTXFL Hyperdrive 3.0

To operate your transmitter you will need a 9 Volt battery (included). 1. Remove battery cover as shown and install a new 9 Volt battery. Replace cover. Move power button ON and the red LED light will come on. This will show you that the battery is good and the transmitter is ready for operation. PLEASE NOTE: Vehicle power switch must be in the ON position to receive commands from the transmitter. 2. Insert antenna into hole in the transmitter and screw it in clockwise. 3. Please change the battery to fresh one when LED is dim BATTERY REQUIREMENTS/INSTALLATION FOR TRANSMITTER To operate your vehicle, you will need a 11.1V Battery Pack (included). PLEASE NOTE: The battery pack will become hot during use, so care should be taken whenever you handle it. BATTERY REQUIREMENTS/INSTALLATION FOR VEHICLE 3. Replace cover. Rotate latches to closed position. 1. Fully charge battery pack following manufacturer’s instructions. Rotate battery cover latches on rear of vehicle to the open position. Lift to remove cover. 4. Turn power switch to the ON position. OFF ON Insert the battery pack to the charger Recharging - 1. Insert the battery pack to the charger with docking. 2. Plug the charger into an electrical outlet. 3. Charge the battery for approximately 4 hours. 4. After charging is complete, detach the charger. from the outlet and disconnect the battery from the charger. Caution • Do not charge battery pack immediately following use - allow battery pack to cool down. • Avoid short circuits - they can cause overheating, burning and other damages to the battery and charger. • The battery charger should only be used to recharge the specified battery pack. Only charge one battery at a time. • Do not use the charger as an outlet for other electrical appliances. • Keep the battery pack and charger out of the hands of infants and small children while in use. • Do not charge near fire, hot temperatures, or wet damp areas. • Charger may become warm while in use, allow sufficient space during this time. • If the battery pack remains weak after proper charging techniques, dispose of it correctly and replace with a new battery. • Disconnect the supply before making/breaking the battery connection. • Only use this battery charger for the included battery. ACTION FEATURES SAFETY PRECAUTIONS (Keep manual for future reference) This vehicle is not recommended for children under the age of 8 years. Please read all of the instructions before operating this vehicle. Always follow general safety rules while operating vehicle: avoid hitting pets, furniture or people. Do not pick up vehicle while it is in motion, keep hands, hair and clothing away from this vehicle when the power switch is turned to the “ON” position. Remove battery pack when vehicle is stored. Avoid tire contact on painted or varnished surfaces. The HyperDrive3.0 is built with an automatic shut-off function if the vehicle reaches excessive temperature during operation. If the vehicle stops after prolonged period of operation, turn off vehicle and controller, remove battery from vehicle and cease operation for ten (10) minutes. Reinsert battery and resume play. WARNING: Charger that is supplied with the toy should be regularly examined for potential hazards, such as damage to the plug, enclosure, or other parts. In the event of such damage, the charger or toy must not be used until that damage has been properly repaired. DO NOT use any other charger other than one supplied. 5F6203C 11.1V Rechargeable Battery Pack 11.1V 1500mAh Charger Docking Air Pump with needle Tire Gauge 2. Insert 11.1V battery pack. 11.1V Rechargeable Battery Pack 8 INPUT: 120V~60Hz 300mA OUTPUT:12V=750mA Battery Requirement 1. Vehicle: 1 x 11.1V Lithium-ion rechargeable battery pack 2. Transmitter: 1 x 9V Battery 2-SIDED BODY DESIGN HIDDEN INTERNAL ANTENNA FOR LONG RANGE ACTION HARDENED STEEL AXLES FOR ADDED STRENGTH 6.5-INCH INFLATABLE TIRE FOR MASSIVE SUPERBOUNCE ACTION! SUPER-GRIP TIRE TREAD FOR BETTER OFF- ROAD TRACTION DUAL AND MEGATORQUE ACTION • FULL- THROTTLE, MAXIMUM-SPEED OPERATION • SCALE SPEEDS OVER 225 MPH • UP TO 60-FEET EFFECTIVE RANGE The Included 11.1V rechargeable battery pack is NOT charged prior to shipment and must be charged at least 8 hours befotr the first use. Charging the 11.1V Rechargeable Battery Pack for the Vehicle: ATTENTION FOR PARENTS: The Charger & 11.1V Battery Pack need to be periodically examined for potential hazards. Any potentially hazardous parts need to be repaired or replaced. 1. Plug the Docking to the Charger. 2. Insert 11.1V rechargeable battery pack securely into the charger (as shown). Be sure the arrows are properly matched. 3. Allow battery to charge for a minimum of 8 hours on the initial first charges. Susequent charges require only 4 hours. 4. Play time approximately 15 minutes depending on terrain and driving style. 5. The Charger is intended to be correctly orientated in a vertical or floor mount position. 6. When charging is completed. unplug the charger form the AC socket. 7. Releases the 11.1V rechargeable battery pack form the battery charger. Fig.1 Fig.2 ON OFFOFF ON I + 9 V Battery OFFOFFONON SIDE ASIDE B TYRE INFLATION INSTRUCTIONS 1. Locate and remove the inflation needle that is attached to the air pump. 2. Attach the inflation needle to the air pump. DO NOT USE PUMPS WITH COMPRESSED AIR! 3. Make sure inflation needle is clean. Moisten it and slowly insert it straight into the tire inflation hole. (Fig.2) 4. Continually check the tire size by placing the tire inside the gauge. DO NOT OVERINFLATE. Once tire is the proper size (fits perfectly in gauge), you are ready to run your vehicle. Keep tire pattern for future use. 5. This is NOT a toy. This is a tool and should not be used by a child without parent supervision. IMPORTANT: TIRES MAY DEFLATE DURING SHIPPING OR STORAGE Inflation Hole Needle 2.1/4 Pipe Verticle Ramp. Here are a few of the exciting tricks and stunts you can do. The following tricks and stunts take prac…

Text truncated - open the document above for the full version.

1 2 3 4 A A B B C C D VCC9V ANTENNA Function Selection Regulating circuit MCU Oscillation circuit AM modulation circuit frequency selective circuit antenna matching 27.145MHZ D 1 2 3 4

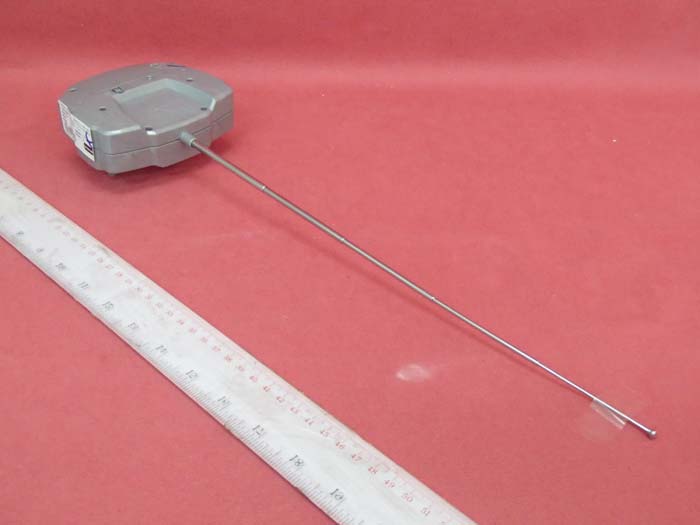

INTERTEK TESTING SERVICE Report No.: 14060537HKG-001 Equipment Photographs Model : 5F6203C (External) FCC ID: OTM-6203C-27MTX

FCC ID: OTM-6203C-27MTX Model: 5F6203C (Transmitter portion) Technical Description of Transmitter The transmitter operates at 27.145 MHz, and controls the corresponding receiver to move forward, backward, left and right. The circuit of the transmitter comprises of, 1. Control buttons Consisting: S1, S2, S3, S4 2. An Encoding circuit Consisting: U1 (PIC12C5XX) 2. A RF Oscillator (27.145MHz) Consisting: Y1, Q1 3. A Filter Network Consisting: T1, L1, C1, C2, C3 4. A RF Modulator and Amplifier Consisting: Q2 5. A Power Supply Consisting: 9VDC (1 X "9V" battery) Antenna Gain: 0dBi Nominal rated field strength: 59.5dBμV/m at 3m Maximum allowed field strength of production tolerance: +/-3dB The transmitter uses an external and telescope type antenna with unique antenna connector

Analysis Report Report No.: 14060537HKG-001 The Equipment Under Test (EUT) is a portable transmitter of a RC Car operating at 27.145 MHz as dictated by a crystal. The EUT is powered by a 9.0 V DC source (1 x 9.0V 6LR61 battery). The EUT has a on/off switch, left and right control lever. After switching ON the EUT and the receiver of the RC Car, activating the control levers on the EUT can control the receiver moving forward, backward, left and right directions. Antenna Type: External, telescope type antenna with unique antenna connector Antenna Gain: 0dBi Nominal rated field strength: 59.5dBμV/m at 3m Maximum allowed field strength of production tolerance: ±3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 62.5dBμV/m at 3m in frequency 27.145MHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.00053mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.00053mW. The SAR Exclusion Threshold Level for 27.145MHz when the minimum test separation distance is < 50mm: = [474 * (1 + log100/f(MHz))]/2 = 371.2mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

1 1 2 2 3 3 4 4 DD CC BB AA ANTENNA C7 33P C6 47P C5 100P C3 47P L1 7.5uH L2 2.2uH L3 2.2uH R2 22K R3 100 R4 150K Y1 27.145MHz C8 103 C2 68P T1 15T C1 68P C4 103 Q1 2712 Q2 2712 R1 100 DATA PC VCC ZD1 3.3V LED 1234 5678 U1 4DB3 R5 470R C11 104 VDD R6 3.9K R7 10K R8 10K R9 10K VDD DATA C10 104 C9 104. K1 S2 S1 PC J1 0R R10 NC C12 0R

Valued QualiU. Delivercd' lssuing Laboratory: lntertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 - TEST) under HOKLAS for spec¡f¡c laboratory activities as listed in the HOKLAS directory of accredited laboratories. TEST REPORT Report No.: 1 4060537HKG-001 Prepared and Checked by: Tse Ying, Cathy Senior Lead Engineer Ng Mei Nar, Lead Engineer Date: June27,2014 This report shall not bè reproduced, except in fulì. This report ¡s for the exclus¡vê use of lnterteks Client and is provided pursuant to the agreement b€tween lntertek and its Cl¡ent. lntêrtel{s respons¡bility and liability are l¡m¡ted to the tems and condit¡ons of thê agreement. lntertek assumes no liability to any party, other than to thg Client in accordanæ with the âgrêêment, for âny loss, expense or damúge occasionêd by the use of th¡s report. Only the Client is authorized to permit copying or distribution of this report and then only in its ent¡Þty. Any use of the lntertek name or one of ¡ts marks for the sâle or âdvertisement of the tested material, product or s€rv¡ce must f¡6t be approved in wr¡ting by lntertek. The observat¡ons and test results ¡n thìs report are relevant only to the sample testêd. Th¡s report by itself does not imply that the mater¡al, product, or serv¡ce is or hâs eveÍ been under an lntertek ært¡fication program. lntertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Kidztech Toys Manufacturing Ltd. Application For Certification (Original Grant) (FCC I D: OTM -6203C-27MTX) Transmitter Approved by: Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 14060537HKG-001 i FCC ID: OTM-6203C-27MTX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Grantee: Kidztech Toys Manufacturing Ltd. Grantee Address: Room 1201, 12/F., Inter Continental Plaza, 94 Granville Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Contact Person: Eric Ho Tel: (852) 2721 8868 Fax: (852) 2721 8838 e-mail: N/A Manufacturer: Shantou Chenghai JinJun Toys Co. Ltd. Manufacturer Address: Yongxin Industry Zone, Lianshang, Chenghai, Shantou, China Brand Name: Fastlane Model: 5F6203C Additional Model: 225113, 167581, 075423, 098763, 141892, 847278 Type of EUT: Transmitter Description of EUT: FL Hyperdrive 3.0 (5F6203C) FL Maxxdrive / RC Hyperdrive 3.0 (225113, 167581, 075423, 098763, 141892, 847278) Serial Number: N/A FCC ID: OTM-6203C-27MTX Date of Sample Submitted: June 11, 2014 Date of Test: June 11, 2014 to June 24, 2014 Report No.: 14060537HKG-001 Report Date: June 27, 2014 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 14060537HKG-001 ii FCC ID: OTM-6203C-27MTX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Transmitter Field Strength 15.227 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2012 Edition Note: 1. The EUT uses detachable antenna with unique antenna connector which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 14060537HKG-001 iii FCC ID: OTM-6203C-27MTX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ........................................................................................... 1 1.2 Related Submittal(s) Grants ............................................................................... 1 1.3 Test Methodology .............................................................................................. 1 1.4 Test Facility ....................................................................................................... 1 2.0 System Test Configuration ................................................................................. 2 2.1 Justification........................................................................................................ 2 2.2 EUT Exercising Software ................................................................................... 2 2.3 Special Accessories........................................................................................... 2 2.4 Measurement Uncertainty .................................................................................. 2 2.5 Support Equipment List and Description.......…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 14060537HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 5F6203C FCC ID: OTM-6203C-27MTX INTERTEK TESTING SERVICE Report No: 14060537HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 5F6203C FCC ID: OTM-6203C-27MTX
