OTM-62041-27M-TXRC Lightning Striker

1 2 3 4 A B C D 4 3 2 1 D C B A ±êÌâ ͼºÅ ÐÞ¶© ³ß ́ç A4 ÈÕÆÚ: 16-Mar-2012 μÚ ÕÅ ¹² ÕÅ Îļþ: D:\μç·°åÀ¬»ø\·¢Éä·½¿òͼ.DDB ÖÆͼÈË: Coding circuit· ANTENNA Oscillation circuit AM Regulator circuit VCC+9V 27.145MHZ Frequency selection Antenna matching

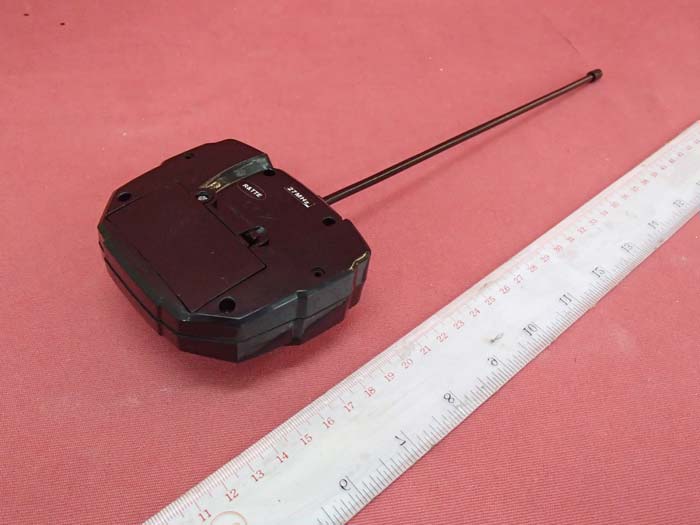

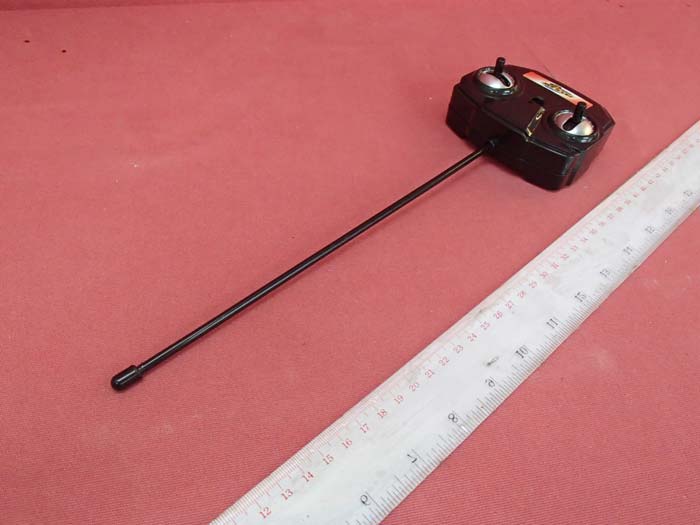

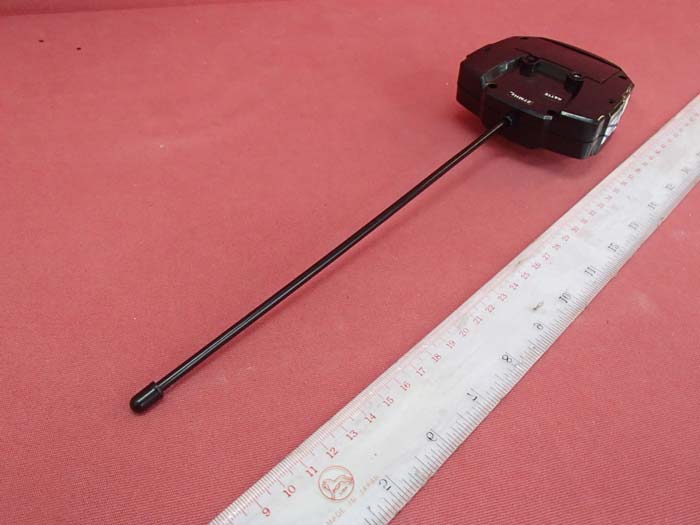

INTERTEK TESTING SERVICE Report No.: 14040895HKG-001R1 Equipment Photographs Model : 5F62041 (External) FCC ID: OTM-62041-27M-TX INTERTEK TESTING SERVICE Report No.: 14040895HKG-001R1 Equipment Photographs Model : 5F62041 (External) FCC ID: OTM-62041-27M-TX

INTERTEK TESTING SERVICE Report No.: 14040895HKG-001R1 Equipment Photographs Model : 5F62041 (Internal) FCC ID: OTM-62041-27M-TX INTERTEK TESTING SERVICE Report No.: 14040895HKG-001R1 Equipment Photographs Model : 5F62041 (Internal) FCC ID: OTM-62041-27M-TX INTERTEK TESTING SERVICE Report No.: 14040895HKG-001R1 Equipment Photographs Model :5F62041 (Internal) FCC ID: OTM-62041-27M-TX

FCC ID: OTM-62041-27M-TX Model: 5F62041 (Transmitter portion) Technical Description of Transmitter The transmitter operates at 27.145 MHz, and controls the corresponding receiver to move forward, backward, left and right. The circuit of the transmitter comprises of, 1. An Encoding circuit Consisting: SW1, SW2, SW3, SW4, U1 (TX-2) 2. A RF Oscillator (27.145MHz) Consisting: Y1, Q2 3. A Filter Network Consisting: L4, C1, C7, C8, L3 4. A RF Modulator and Amplifier Consisting: Q1 5. A Power Supply Consisting: 9VDC (1 X "9V" battery) Antenna Gain: 0dBi Nominal rated field strength: 70.9dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 5dB The transmitter uses an external and detachable dedicated antenna with plastic enclosure

Analysis Report Report No.: 14040895HKG-001R1 The Equipment Under Test (EUT) is a portable transmitter of a RC Car operating at 27.145 MHz as dictated by a crystal. The EUT is powered by a 9.0 V DC source (1 x 9.0V/6LR61 battery). The EUT has a on/off switch, left / right control lever and a forward / backward control lever. After switching ON the EUT and the receiver of the RC Car, activating the control levers on the EUT can control the receiver moving forward, backward left and right directions. Antenna Type: External, detachable dedicated antenna with plastic enclosure Antenna Gain: 0dBi Nominal rated field strength: 70.9dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 5dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 75.9dBμV/m at 3m in frequency 27.145MHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.01167mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.01167mW. The SAR Exclusion Threshold Level for 27.145MHz when the minimum test separation distance is < 50mm: = [474 * (1 + log100/f(MHz))]/2 = 371.2mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

1 1 2 2 3 3 4 4 DD CC BB AA 89 1011121314 7654321 U1 TX-2 R6 200K R5 100K R1 22K R4 2.2K LED1 Q1 LY Q2 LY L2 0805-2.2UH L1 0805-2.2UH L4 0410-2.2UH C3 100P C4 100P C5 47P C1 100P ANT1 K1 R2 22R 9v SW1SW2SW3SW4 R3 330R R7 10R C8 68P C6 104 C9 C7 39P L3 0410-7.5UH D1 3V9 C2 104 Y1 27.145

Valued Quality. Delivercd. lssuing Laboratory: lntertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HI(AS) has accredited th¡s laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specifìc laboratory activit¡es as listed in the HOKLAS directory of accredited laborator¡es. The results shown in this report were determ¡ned by this laboratory in accordance with its terms of accred¡tation. TEST REPORT Report No.: I 4040895HKG-001 Rl Kidztech Toys Manufacturing Limited Application For Certification (Original Grant) (FCC I D: OTM -62041-27M-TX) Transmitter This report supersedes previous report with report number(s) 14040895HKG- 001 dated May 21,2014, no application is required and no certificate wlll issue. Prepared and Checked by:Approved by: Tse Ying, Cathy Senior Lead Engineer The test rsport only allows to be rev¡sed with¡n thè retention per¡od unless further standard or the requiæment was noliæd. Th¡s report is for thê exclusive use of lnterleKs Cl¡ent and is prcv¡ded pursuanl to the agreement betwèen lntgrtek and its Client. lntertêKs rêspons¡b¡lity and l¡ability are limitsd to the terms and cond¡tions of the agresment. lntertek assumês no liability to any party, other than to the Client in accordânce w¡th tho agresment, for any loss, expense or darÍälle ocôasioned by the use of this report. Only the Client ¡s aulhorized to permit copy¡ng or distribution of this rêport and then only in ils entirêty. Any use of the lnterlek name or one of ¡ts marks for the sale or advertiæment of the têsted material, product or ssrvice must f¡rst bê apprcved in wr¡ting by lntertek. The obserualions and test results in th¡s report are rolevant only to the sample tested. This report by ¡tsèlf does not ¡mply that the material, producl, or ærvice is or has ever been undtr an lntertek ærtif¡ætion pmgram. lntertek Testing Services Hong Kong Ltd. ZF., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: wvrM.hk.intertek-etlsemko.com Ng Mei Nar, Chriç Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 14040895HKG-001R1 i FCC ID: OTM-62041-27M-TX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Grantee: Kidztech Toys Manufacturing Limited Grantee Address: Room 1201, 12/F., Inter-Continental Plaza, 94 Granville Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Contact Person: Eric Ho Tel: (852) 2721 8868 Fax: (852) 2721 8838 e-mail: N/A Manufacturer: Shantou Chenghai JinJun Toys Co., Ltd. Manufacturer Address: Yongxin Industry Zone, Lianshang, Chenghai, Shantou, China Brand Name: Fastlane Model: 5F62041 Additional Model: 820404, 167579, 075437, 098757, 0004659384 Type of EUT: Transmitter Description of EUT: RC Lightning Striker Serial Number: N/A FCC ID: OTM-62041-27M-TX Date of Sample Submitted: April 19, 2014 Date of Test: April 19, 2014 to May 13, 2014 Report No.: 14040895HKG-001R1 Report Date: June 06, 2014 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 14040895HKG-001R1 ii FCC ID: OTM-62041-27M-TX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Transmitter Field Strength 15.227 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2012 Edition Note: 1. The EUT uses detachable antenna with unique antenna connector which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 14040895HKG-001R1 iii FCC ID: OTM-62041-27M-TX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ........................................................................................... 1 1.2 Related Submittal(s) Grants ............................................................................... 1 1.3 Test Methodology ...........…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 14040895HKG-001R1 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 5F62041 FCC ID: OTM-62041-27M-TX INTERTEK TESTING SERVICE Report No: 14040895HKG-001R1 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 5F62041 FCC ID: OTM-62041-27M-TX
