OTM-6239F-27M-TXRC B-Furious

B-FURIOUS The packaging and instruction manual contain important information. Please keep them for future reference. Warning! Choking Hazard. Not suitable for children under the age of 3 years due to small parts. We reserve the right to improve/amend specifications and colors without notice. Warning! The Antenna of vehicle is not to be inserted into socket outlets. Fig. 2 Fig. 9Fig. 8 For Transmitter Battery Installation 1. Switch OFF the power (Fig.1) 2. Using a screwdriver (not included), remove the screw on the battery cover (Fig.2) 3. Open the battery compartment cover 4. Install 1 new 9V/6LR61 battery with correct polarity (+/-) as shown inside the battery compartment 5. Close the battery compartment cover 6. Insert the screw and securely tighten using the screwdriver. 7. Insert the antenna into the top of transmitter, tighten it by rotating clockwise (viewing from top of transmitter) How to Play 1. Do not drive on grass, dirt, sand, dusts, carpet or go through water 2. Do not drive in windy or rainy weather 3. Avoid direct impact the Vehicle with obstacles 4. Switch OFF the power when not in use to prevent damage of Vehicle and Transmitter due to leakage of electrolyte from batteries 5. Remove all batteries from the Vehicle and Transmitter when not in use for long period 6. Keep fingers, hair and loose clothing away from wheels 7. The operating range can be affected by a variety of factors a) Low Voltage of batteries in Transmitter or Vehicle b) Interference from other items that emit radio frequency signals 8. Outdoor usage is recommended in order to get optimum control range 9. Recommend to play the vehicle on a clean and smooth surface 10. Clean the battery compartment to make sure it is free from dust to prevent poor contact of batteries Performance Tips 1. Do not attempt to disassemble the Vehicle or Transmitter 2. Do not operate the Vehicle with same frequency with other player(s) in same location that will interfere and make the Vehicle out of control. 3. Make sure the batteries are installed with correct polarities (+/-) as shown inside the battery compartment 4. Remove the package and take out all accessories before giving the Vehicle and Transmitter to child to play Cautions Environmental notes: The whole product also does not belong to household waste at the end of the product life. You can return it at collection points for the recycling of electronic and electronical instruments The symbol on the item, instruction manual, hangtag or packing is showing this clearly. Materials should be recycled according to their respective markings. Recycling of old devices or other re-use of materials contained therein represents an important contribution to environmental protection. Please ask at your local community for the correct collection point. Please retain this sheet and address for future use, as they contain important information. 1. Switch ON the vehicle and the transmitter (Fig.1-Fig.3) 2. If putting Side A (Blue color) upside on the ground, pull the trigger of the transmitter for driving forward and push the trigger for backward (Fig.8) 3. If putting Side B (Red color) upside on the ground, push the trigger of the transmitter for driving forward and pull the trigger for backward (Fig.8) Contents Vehicle x 1 Transmitter x 1 Antenna for transmitter x 1 Instruction manual x 1 Battery Requirements 1. Vehicle: 4 x 1.5V ”AA/LR6” batteries ( Not Included ) 2. Transmitter: 1 x 9V/6LR61 battery ( Not Included ) 4 x AA/LR6 (Not Included) 1 x 9V/6LR61 (Not Included) 4 Disposal of batteries Batteries should not be disposed of in the household waste. As the consumer you are legally obliged to return batteries containing harmful substances and all other used batteries. You can hand in your old batteries at public collection points in your area or wherever batteries are sold. You will find these chemical abbreviations along with a crossed-out refuse bin on batteries containing harmful substances: Pb=Battery contains lead Cd=Battery contains cadmium Hg=Battery contains mercury A4 size: (balck & White) - English -FrontA4 size: (balck & White) - English -Back 5F6239F FCC label compliance statement: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: 1.This device may not cause harmful interference, and 2.This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna - Increase the separation between the equipment and receiver - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected - Consult the dealer or an experienced radio/TV technician for help Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. RSS-310 Compliance Statement: This device complies with Industry Canada Licence-exempt RSS-310. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the de…

Text truncated - open the document above for the full version.

3 1 D 2 1 2 3 4 ABCD 4 CBA ±êÌâ ͼºÅ ÐÞ¶© ³ß ́ç A4 ÈÕÆÚ: 16-Mar-2012 μÚ ÕÅ ¹² ÕÅ Îļþ: D:\μç·°åÀ¬»ø\·¢Éä·½¿òͼ.DDB ÖÆͼÈË: Coding circuit· ANTENNA Oscillation circui t Q1 AM Regulator circuit VCC+9V 27.145MHZ Frequency selection Antenna matching 27.145MHz TX-2 Y1 Q2

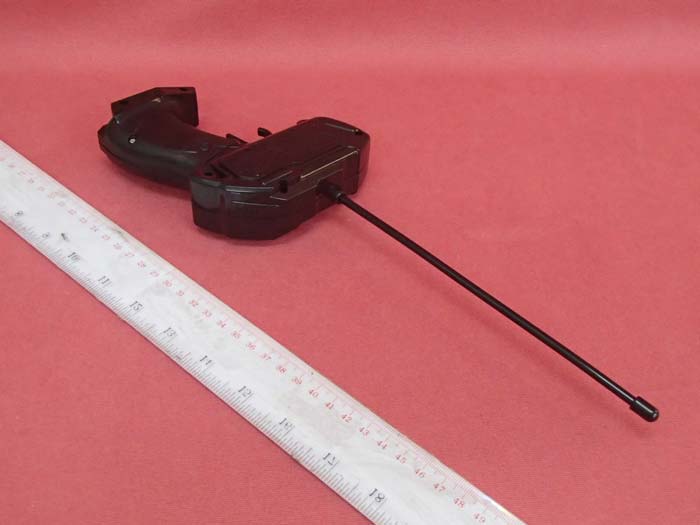

INTERTEK TESTING SERVICE Report No.: 14041824HKG-001 Equipment Photographs Model : 5F6239F (External) FCC ID: OTM-6239F-27M-TX

INTERTEK TESTING SERVICE Report No.: 14041824HKG-001 Equipment Photographs Model : 5F6239F (Internal) FCC ID: OTM-6239F-27M-TX INTERTEK TESTING SERVICE Report No.: 14041824HKG-001 Equipment Photographs Model : 5F6239F (Internal) FCC ID: OTM-6239F-27M-TX INTERTEK TESTING SERVICE Report No.: 14041824HKG-001 Equipment Photographs Model : 5F6239F (Internal) FCC ID: OTM-6239F-27M-TX INTERTEK TESTING SERVICE Report No.: 14041824HKG-001 Equipment Photographs Model : 5F6239F (Internal) FCC ID: OTM-6239F-27M-TX

FCC ID: OTM-6239F-27M-TX Model: 5F6239F (Transmitter portion) Technical Description of Transmitter The transmitter operates at 27.145 MHz, and controls the corresponding receiver to move forward, backward and flip action. The circuit of the transmitter comprises of, 1. An Encoding circuit Consisting: K2, K3, U1 (TX-2) 2. A RF Oscillator (27.145MHz) Consisting: Y1, Q1 3. A Filter Network Consisting: T1, L1, C1, C2, C3 4. A RF Modulator and Amplifier Consisting: Q2 5. A Power Supply Consisting: 9VDC (1 X “9V” battery) 6. Regulator Consisting: ZD1, C10 Antenna Gain: 0dBi Nominal rated field strength: 67.5dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB The transmitter uses an External, detachable dedicated antenna

Analysis Report Report No.: 14041824HKG-001 The Equipment Under Test (EUT) is a portable transmitter of a RC Car operating at 27.145 MHz as dictated by a crystal. The EUT is powered by a 9.0 V DC source (1 x 9.0V battery). The EUT has a forward / backward control lever. After switching ON the EUT and the receiver of the RC Car, activating the control levers on the EUT can control the receiver moving forward, backward and flip action. Antenna Type: External, detachable dedicated antenna Antenna Gain: 0dBi Nominal rated field strength: 67.5dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 70.5dBμV/m at 3m in frequency 27.145MHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.00337mW Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.00337mW. The SAR Exclusion Threshold Level for 27.145MHz when the minimum test separation distance is < 50mm: = [474 * (1 + log100/f(MHz))]/2 = 371.2mW Since the above conducted output power is well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

1 1 2 2 3 3 4 4 DD CC BB AA ANTENNA C7 33P C6 47P C5 300P C3 47P L1 6.8uH L2 2.2uH L3 2.2uH R2 22K R3 100 R4 150K Y1 27.145MHz C8 103 C2 68P T1 15T C1 68P C4 103 Q1 2712 Q2 2712 R1 10R DATA ZD1 3.3V LED R5 470R VDD R6 3.9K VDD DATA C10 104 C9 104. K2 K1 VCC R8 10R 1 2 3 4 5 6 78 9 10 11 12 13 14 U1TX-2 R7 220K PC PC R9 NC C11 0R

Valued Quality. DelÌvercd. lssuing Laboratory: lntertek Testing Services Hong Kong Limited Hong Kong Accred¡tation Service (H|(AS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specif¡c laboratory ac{ivities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with ¡ts terms of accreditation. TEST REPORT Hl+- nq{ Hf@Aso# Prepared and Checked by: Tse Ying, Cathy Senior Lead Engineer Ng Mei Nar, Chris Lead Engineer Date: June 12, 2Ô14 Report No. : I 40 41824HKG-001 Kidztech Toys Manufacturing Limited Application For Certification (Original Grant) (FCC I D: OTM -6239F -27M-TX) Transmitter Approved by: The test report only âllows to be revised within the retention period unloss further standard or the requirement ms not¡ced. Th¡s Eport is for thê exclusive use of lntertek's Cl¡ent and is prcv¡dgd pursuânt to the agreement betreen lntertek ând its Client. lntêrtsKs responsibility and liabil¡ty are lim¡ted to the tems and conditions of lhe âgreement. lntertek assumês no l¡abil¡ty to any party, other than to the Cl¡ent in amrdânæ with thè agreement, for any loss, expensê or darD?ge occasioned by the usg of this report. Only the Client is authorized to permit @pying or d¡str¡bution of this report and then only in its entirety. Any use of the lntertek name or one of its marks for thê sale or advsrtisement of thê têsted materiat, product or seru¡æ must f¡rst be approvêd in wr¡ting by lntertek. The observations and test results ¡n this report aro rêtevant only to the samplê têst€d. This report by itself does not imply that the material, produc-t, or ssrviæ is or has ever been under an lntertek ærtificat¡on program. Intertek Testing Seruices Hong Kong Ltd. ZJF., Garment Gentre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8883 Fax: (852) 2785 5487 Website: www.hk.intertek-eilsemko.com Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 14041824HKG-001 i FCC ID: OTM-6239F-27M-TX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Grantee: Kidztech Toys Manufacturing Limited Grantee Address: Room 1201, 12/F., Inter-Continental Plaza, 94 Granville Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Contact Person: Eric Ho Tel: (852) 2721 8868 Fax: (852) 2721 8838 e-mail: N/A Manufacturer: Shantou Chenghai JinJun Toys Co., Ltd. Manufacturer Address: Yongxin Industry Zone, Lianshang, Chenghai, Shantou, China Brand Name: Fastlane Model: 5F6239F Additional Model: 338783, 075445, 121460, 050881, 773738, 172311, 0004699688 Type of EUT: Transmitter Description of EUT: RC B-Furious Serial Number: N/A FCC ID: OTM-6239F-27M-TX Date of Sample Submitted: April 30, 2014 Date of Test: April 30, 2014 to June 10, 2014 Report No.: 14041824HKG-001 Report Date: June 12, 2014 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 14041824HKG-001 ii FCC ID: OTM-6239F-27M-TX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Transmitter Field Strength 15.227 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2012 Edition Note: 1. The EUT uses a detachable antenna with unique antenna connector which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Report No.: 14041824HKG-001 iii FCC ID: OTM-6239F-27M-TX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ........................................................................................... 1 1.2 Related Submittal(s) Grants ............................................................................... 1 1.3 Test Methodology .............................................................................................. 1 1.4 Test Facilit…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 14041824HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 5F6239F FCC ID: OTM-6239F-27M-TX INTERTEK TESTING SERVICE Report No: 14041824HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 5F6239F FCC ID: OTM-6239F-27M-TX
