OTM-62780-49MRXRC Turbo Rider

This device complies with Industry Canada Licence-exempt RSS-310.

1 1 2 2 3 3 4 4 DD CC BB AA A NTENNA A -+ A -+ V CC+6V IC1 PT978

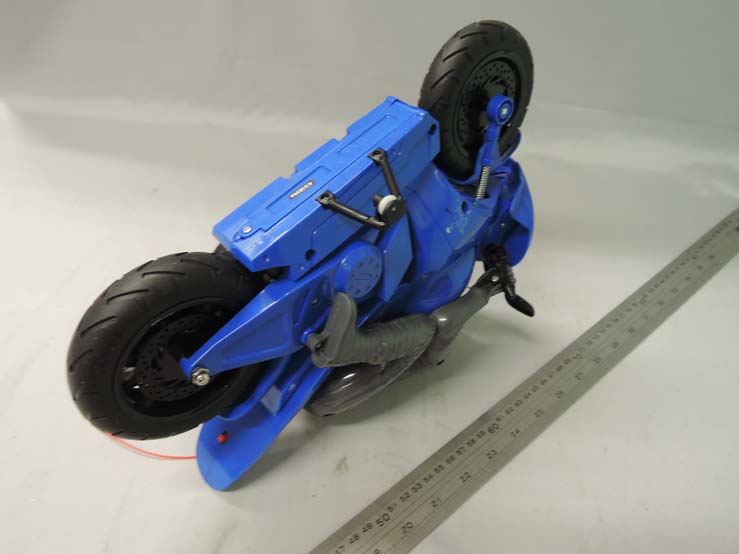

INTERTEK TESTING SERVICE Report No.: 14110667HKG-002 Equipment Photographs Model : 5F62780 (External) FCC ID: OTM-62780-49MRX

INTERTEK TESTING SERVICE Report No.: 14110667HKG-002 Equipment Photographs Model : 5F62780 (Internal) FCC ID: OTM-62780-49MRX INTERTEK TESTING SERVICE Report No.: 14110667HKG-002 Equipment Photographs Model : 5F62780 (Internal) FCC ID: OTM-62780-49MRX INTERTEK TESTING SERVICE Report No.: 14110667HKG-002 Equipment Photographs Model : 5F62780 (Internal) FCC ID: OTM-62780-49MRX INTERTEK TESTING SERVICE Report No.: 14110667HKG-002 Equipment Photographs Model : 5F62780 (Internal) FCC ID: OTM-62780-49MRX

FCC ID: OTM-62780-49MRX Model: 5F62780 (Receiver portion) Technical Description of Receiver The receiver operates at 49.860 MHz, and controls by the corresponding transmitter to move forward, backward, left and right. The circuit of the receiver comprises of, 1. Super-regenerative circuit Consisting: Q1 2. Decoder: Consisting: IC1 (PT978), 3. Motor driver Consisting: Q2, Q3, Q4, Q5, Q6, Q7, Q8, Q9, Q10, Q11, Q12, Q13, 4. A Power Supply Consisting: 7.5 V DC source (5 X 1.5V AA size batteries)

1 1 2 2 3 3 4 4 5 5 6 6 DD CC BB AA C1 5P C3 22P C222P C4 332 C7 104P C9471P C8 104P C10 202P L2 5.6uH R2 680R R1 200K R3 4.7K R4 2.2K R6 2.2M R5 2.2K R9 220K R21 220 R15 1K R14 1K R16 100R R17 100R R10 1K R11 1K R12 100R R13 100R VO2 1 GND 2 SI 3 OSCI 4 OSCO 5 RIG HT 6 LEFT 7 RDB 8 LDB 9 BACK 10 FOR 11 TURBOB 12 VDD 13 VI1 14 VO1 15 VI2 16 IC1 PT978 C15 470uF C17 4.7uF R18 330 R19 150 R20 1K C6 104 12 CN1 12 CN2 C13 104 C14 104 L1 1.0UH C5 103 VDD Q1 2712 Q2 9014 Q3 9014 Q4 9014 Q5 9014 Q8 Comment: 8050 Q9 8050 Q12 882 Q13 882 ZD1 3.0V Q10 772 Q11 772 Q6 8550 Q7 8550 T1 KY5 VCC+7.5V R7 2.2M R8 2.2K L3 10UH C18 104 ANTENNA FB LR A - + A - + 22UH 22UH 104 104 104 104 R L L R 104 104 49.860MHz

Valued QualiU. Delivercd. lssuing Laboratory: lntertek Testing Services Hong Kong Limited HI(AS has accred¡ted this laboratory (HOKIAS 005 - TEST) under HOKLAS for specif¡c laboratory activities as listed in the HOKLAS d¡rectory of accredited laboratories. TEST REPORT Hlt- rrcl ro04s# -- Report No.: l4l I 0667HKG-002 Kidztech Toys Manufacturing Ltd. Application For Certification (Original Grant) (FCC I D: OTM -6278049MRX) Superregenerat¡ve Receiver Approved by: lntsrtek's standard Tems ând Condit¡ons can be obtained at our webs¡te http://ww.intêrtek.com^erms/. Th¡s report shall not be reproduced, êxcept ¡n full. Th¡s report ¡s for the exclus¡ve use of lntertek's Client and ¡s provided pursuant to the agreement between lntertek and ¡ts Cl¡ent. lntertqß's responsibility and l¡ability ârê l¡mited to thê terms and ænd¡t¡ons of the agrêement. lntertek assumes no liability to any party, other than to the Client inìlâccordânce w¡th the agreemènt, for any loss, sxpense or damage occasioned by the use of th¡s report. Only the Client is authorized to perm¡t æpying or distributiirn of th¡s report and thsn only ¡n its ent¡Ety. Any use of the lntertek name or one of its marks for the sâle or advert¡sement of the tested mater¡al, product or ssrv¡ce must first be âpproved in writ¡ng by lntertek. The obseruations and têst results ¡n this report âre relevant only to thè sâmple tested. This report by ¡tself does not imply that the material, product, or service is or has ever bæn under an lntêrtek certif¡ætion program. lntertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.¡ntertek-etlsemko.com Prepared and Checked by: Tse Ying, Cathy Senior Lead Engineer Ng Mei Nar, Chris Engineer Date: December 02,2014 Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 14110667HKG-002 i FCC ID: OTM-62780-49MRX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Grantee: Kidztech Toys Manufacturing Ltd. Grantee Address: Room 1201, 12/F., Inter Continental Plaza, 94 Granville Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Contact Person: Eric Ho Tel: (852) 2721 8868 Fax: (852) 2721 8838 e-mail: N/A Manufacturer: Shantou Chenghai JinJun Toys Co. Ltd. Manufacturer Address: Yongxin Industry Zone, Lianshang, Chenghai, Shantou, China Buyer: TOYSRUS Brand Name: Fastlane Model: 5F62780 041519, 208636, 134691, 166618 Type of EUT: Superregenerative Receiver Description of EUT: RC Turbo Rider (5F62780) FL Turbo Rider (041519, 208636, 134691, 166618) Serial Number: N/A FCC ID: OTM-62780-49MRX Date of Sample Submitted: November 18, 2014 Date of Test: November 18, 2014 to November 27, 2014 Report No.: 14110667HKG-002 Report Date: December 02, 2014 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 14110667HKG-002 ii FCC ID: OTM-62780-49MRX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Receiver Radiated Emissions 15.109 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2012 Edition Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 14110667HKG-002 iii FCC ID: OTM-62780-49MRX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ........................................................................................... 1 1.2 Related Submittal(s) Grants ............................................................................... 1 1.3 Test Methodology .............................................................................................. 1 1.4 Test Facility ....................................................................................................... 1 2.0 System Test Configuration ................................................................................. 2 2.1 Justification........................................................................................................ 2 2.2 EUT Exercising Software ................................................................................... 2 2.3 Special Accessories........................................................................................... 2 2.4 Measurement Uncertainty ..............................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 14110667HKG-002 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 5F62780 FCC ID: OTM-62780-49MRX INTERTEK TESTING SERVICE Report No: 14110667HKG-002 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 5F62780 FCC ID: OTM-62780-49MRX
