OTM-62780-49MTXRC Turbo Rider

This device complies with Industry Canada Licence-exempt RSS-310.

1 1 2 2 3 3 4 4 DD CC BB AA A NTENNA AM V CC+9V 49.860MHZ 49.860MHz

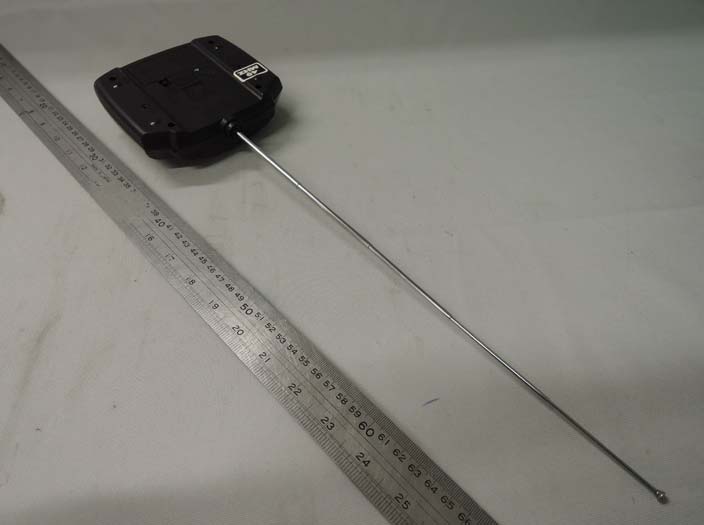

INTERTEK TESTING SERVICE Report No.: 14110667HKG-001 Equipment Photographs Model : 5F62780 (External) FCC ID: OTM-62780-49MTX

INTERTEK TESTING SERVICE Report No.: 14110667HKG-001 Equipment Photographs Model : 5F62780 (Internal) FCC ID: OTM-62780-49MTX INTERTEK TESTING SERVICE Report No.: 14110667HKG-001 Equipment Photographs Model : 5F62780 (Internal) FCC ID: OTM-62780-49MTX INTERTEK TESTING SERVICE Report No.: 14110667HKG-001 Equipment Photographs Model : 62780 (Internal) FCC ID: OTM-62780-49MTX

FCC ID: OTM-62780-49MTX Model: 5F62780 (Transmitter portion) Technical Description of Transmitter The transmitter operates at 49.86 MHz, and controls the corresponding receiver to move forward, backward, left and right. The circuit of the transmitter comprises of, 1. An Encoding circuit Consisting: S1, S2, U1 (PT977) 2. A RF Oscillator (49.86MHz) Consisting: Y1, Q1 3. A Filter Network Consisting: L1, T1, C1, C2, C3 4. A RF Modulator and Amplifier Consisting: Q2 5. A Power Supply Consisting: 9VDC (1 X “9V” battery) 6. Regulator Consisting: ZD1, C11 Antenna Gain: 0dBi Nominal rated field strength: 70.5dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB The transmitter uses an external and telescope antenna with unique antenna connector .

Analysis Report Report No.: 14110667HKG-001 The Equipment Under Test (EUT) is a portable transmitter of a RC vehicle operating at 49.86 MHz as dictated by a crystal. The EUT is powered by a 9.0 V DC source (1 x 9.0V battery). The EUT has a on/off switch, a left / right control lever and a forward / backward control lever. After switching ON the EUT and the receiver of the RC vehicle, activating the control levers on the EUT can control the receiver moving forward, backward left and right directions. Antenna Type: External, telescope antenna with unique antenna connector Antenna Gain: 0dBi Nominal rated field strength: 70.5dBμV/m at 3m Maximum allowed field strength of production tolerance: +/- 3dB According to the KDB 447498: Based on the Maximum allowed field strength of production tolerance was 73.5dBμV/m at 3m in frequency 49.860MHz, thus; The EIRP = [(FS*D) ^2*1000 / 30] = 0.00672mW Thus; Conducted power = Radiated Power (EIRP) – Antenna Gain So; Conducted Power = 0.00672mW. The SAR Exclusion Threshold Level for 49.860MHz when the minimum test separation distance is < 50mm: = [474 * (1 + log100/f(MHz))]/2 = 308.6mW Since the above conducted output power is well below the SAR Exclusion Threshold level, so the EUT is considered to comply with SAR requirement without testing.

1 1 2 2 3 3 4 4 DD CC BB AA ANTENNA C7 22P C6 47P C5 100P C3 47P L1 2.2uH L2 1.0uH L3 1.0uH R2 22K R3 100 R4 150K Y1 49.860MHz C8 103 C2 39P T1 15T C1 22P C4 103 Q1 2712 Q2 2712 R1 100R DATA VCC ZD1 3.3V LED R5 470R C11 104 VDD R6 3.9K R7 220K VDD DATA C10 104 C9 104 R8 NC C12 0R 1234567 89 1011121314 U1 PT977 K1 S1 S2 VDD 49.860MHz PI01 CO PIC101 PIC102 COC1 PIC201 PIC202 COC2 PIC301PIC302 COC3 PIC401 PIC402 COC4 PI C501 PI C502 CO C5 PIC601PIC602 COC6 PIC701 PIC702 COC7 PIC801 PIC802 COC8 PIC901 PIC902 COC9 PIC1001 PIC1002 COC10 PIC1101 PIC1102 COC11 PIC1201 PIC1202 COC12 PIK101PIK102 COK1 PIL101 PIL102 COL1 PIL201 PIL202 COL2 PIL301 PIL302 COL3 PILED01 PILED02 COLED PIQ10B PIQ10C PIQ10E COQ1 PIQ20B PIQ20C PIQ20E COQ2 PIR101 PIR102 COR1 PIR201 PIR202 COR2 PIR301 PIR302 COR3 PI R401 PI R402 CO R4 PIR501 PIR502 COR5 PIR601 PIR602 COR6 PIR701 PIR702 COR7 PIR801 PIR802 COR8 PIS101PIS102 PIS103 COS1 PIS201PIS202 PIS203 COS2 PIT101PIT102 COT1 PIU101PIU102PIU103PIU104PIU105PIU106PIU107 PIU108PIU109PIU1010PIU1011PIU1012PIU1013PIU1014 COU1 PIY101PIY102 COY1 PIZD101 PIZD102 COZD1 PODATA

Valued Quality. Delivercd. lssuing Laboratory: lntertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 - TEST) under HOKLAS for specific laboratory act¡vities as listed in the HOKLAS directory of accredited laboratories. TEST REPORT HII= R6il *dJ Report No.: I 4110667HKG-001 Kidztech Toys Manufacturing Ltd. Application For Certification (Original Grant) (FCC I D: OTM -6278049MTX) Transmitter Approved by: lnterteks standard Terms and Cond¡tions €n bs oblained at our website http://Ww.intertek.ærì/terms/. This report shall not be reproduced, exæpt ¡n full. Th¡s report is for the exclus¡ve use of lnlerteKs Cl¡ent and ¡s provided pursuant to the agreement between lntertek and ¡ts Client. lntertgFs rêspons¡b¡l¡ty and l¡ability âre limited to the terms ând conditions of the agreement. lntêrtek assumes no liability to any party, other than to the Client ¡nÞcærdanæ with the agreement, for any loss, expense or damage oæasioned by the use of this rèport. Only the Client is author¡zed to perm¡t æpying or distr¡bution of this report and then only ¡n its entiEty. Any usê of the lntertek name or onê of its marks for thê sale or advert¡sement of thê tested matêr¡al, product or seruice must first be âpproved in writ¡ng by lntertek. ïhe observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or sêrv¡æ is or has ever be€n under an lntertek certificâtion program. lntertek Testing Services Hong Kong Ltd. 2/F., GarmentCentre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Prepared and Checked by: Tse Ying, Cathy Senior Lead Engineer Date: December 02,2014 Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 14110667HKG-001 i FCC ID: OTM-62780-49MTX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Grantee: Kidztech Toys Manufacturing Ltd. Grantee Address: Room 1201, 12/F., Inter Continental Plaza, 94 Granville Road, Tsim Sha Tsui East, Kowloon, Hong Kong. Contact Person: Eric Ho Tel: (852) 2721 8868 Fax: (852) 2721 8838 e-mail: N/A Manufacturer: Shantou Chenghai JinJun Toys Co. Ltd. Manufacturer Address: Yongxin Industry Zone, Lianshang, Chenghai, Shantou, China Buyer: TOYSRUS Brand Name: Fastlane Model: 5F62780 Additional Model: 041519, 208636, 134691, 166618 Type of EUT: Transmitter Description of EUT: RC Turbo Rider (5F62780) FL Turbo Rider (041519, 208636, 134691, 166618) Serial Number: N/A FCC ID: OTM-62780-49MTX Date of Sample Submitted: November 18, 2014 Date of Test: November 18, 2014 to November 27, 2014 Report No.: 14110667HKG-001 Report Date: December 02, 2014 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 14110667HKG-001 ii FCC ID: OTM-62780-49MTX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com SUMMARY OF TEST RESULT TEST SPECIFICATION REFERENCE RESULTS Transmitter Field Strength and Bandwidth Requirement 15.235 Pass The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2012 Edition Note: 1. The EUT uses detachable antenna with unique antenna connector which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Report No.: 14110667HKG-001 iii FCC ID: OTM-62780-49MTX Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 General Description............................................................................................ 1 1.1 Product Description ........................................................................................... 1 1.2 Related Submittal(s) Grants ............................................................................... 1 1.3 Test Methodology .............................................................................................. 1 1.4 Test Facility ....................................................................................................... 1 2.0 System Test Configuration ................................................................................. 2 2.1 Justification........................................................................................................ 2 2.2 EUT Exercising Software ................................................................................... 2 2.3 Special Accessories........................................................................................... 2 2.4 Measurement Uncertainty ..........................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: 14110667HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Front View) Model : 5F62780 FCC ID: OTM-62780-49MTX INTERTEK TESTING SERVICE Report No: 14110667HKG-001 Configuration Photographs Worst-Case Radiated Emissions (Back View) Model : 5F62780 FCC ID: OTM-62780-49MTX
